Description
ER-TFT035-3 is 320x240 dots 3.5" color tft lcd module display with HX8238 controller.Optional 3.5 inch capacitive touch panel with controller cst340 zif fpc connector and 3.5 inch 4-wire resistive touch panel with soldering type fpc, 3.5 inch 4-wire resistive touch panel with free fpc connector and USB port driver/controller board. superior display quality,wide view angle and easily controlled by MCU such as 8051,PIC,AVR, ARDUINO and ARM .It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface. FPC with zif connector is easily to assemble or remove.
3.5" TFT LCD Display Series List ↓
Display Part Number | Description |
3.5" TFT 320x240 Pixels Display with SSD2119 Controller. | |
3.5" TFT 320x240 Pixels Display with HX8238 Controller. | |
3.5" IPS TFT 320x240 Pixels Display with ST7272A Controller.with Optional Touch Panel. | |
3.5" IPS TFT 320x240 Pixels Display with ILI9488 Controller, with Optional Touch Panel. | |
3.5" TFT 320x480 Pixels Display with ILI9488 Controller and Capacitive touch panel. | |
3.5" TFT 320x480 Pixels Display with ILI9488 Controller and Resistive touch panel. | |
3.5" IPS TFT 640x480 Pixels Display with NV3052C Controller,with Optional Touch Panel. |
Video

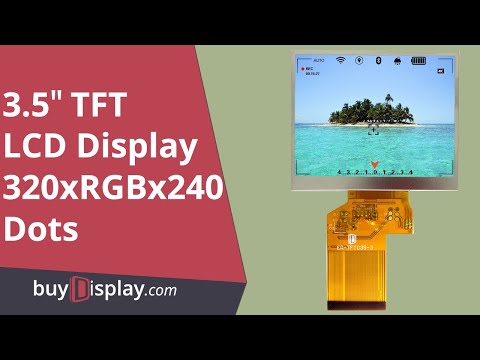

3.5 inch TFT LCD Color Display in 320x240,OPTL Touch Screen,LQ035NC111
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Optional Accessory List (Click the part number to buy accessories) ↓
Category | Part Number | Description |
CTP | 3.5 inch capacitive touch screen panel with Free FPC Connector | |
RTP | 3.5 inch 4-wire resistive touch screen panel with soldering type FPC | |
RTP | 3.5 inch 4-wire resistive touch screen panel with Free FPC Connector | |
RTP Driver | 4-Wire Resistive Touch Panel Screen USB Port Controller Driver Board |
*If choose the touch panel,we'll mount on display by default.
Ebay doesn't allow listings to contain external links,so the documents link may be invalid. Please copy the below entire link to your browser for checking our documents(at the bottom of the page) or for bulk order.
https://www.buydisplay.com/default/3-5-inch-tft-lcd-color-module-in-320x240-touch-screen-lq035nc111
Datasheet for TFT LCD Display,Controller,Connector
Format Documents Name Language Update Date Size
3.5 inch 320x240 Dots TFT LCD Display Datasheet English Dec-02-2021 1.1M Driver IC (HX8238) Datasheet English Nov-01-2006 1.8M 54 Pins 0.50mm Pitch ZIF Connector Drawing English Jul-26-2012 657K
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
| 3.5 inch 320x240 Dots TFT LCD Display Datasheet | English | Dec-02-2021 | 1.1M |
| Driver IC (HX8238) Datasheet | English | Nov-01-2006 | 1.8M |
| 54 Pins 0.50mm Pitch ZIF Connector Drawing | English | Jul-26-2012 | 657K |
Datasheet for Touch Panel,Connector
Format Documents Name Language Update Date Size 3.5 inch 4-Wire Resistive Touch Panel w/Connector Type FPC English Mar-02-2013
180K 4 Pins 1.0mm Pitch ZIF Connector for Resistive Touch Drawing English Jul-26-2012
268K 3.5 inch 4-Wire Resistive Touch Panel w/Soldering Type FPC English Jun-06-2016
242K 3.5 inch Capacitive Touch Panel Outline Drawing English Mar-17-2021
234K Capacitive Touch Panel Controller CST340 Datasheet English Jul-24-2014
2.3M 6 Pins FPC Connector Drawing for Capactive Touch Panel English Jul-12-2014
179K
Specification
Gross Weight (kg) 0.0680 Manufacturer EastRising Continuity Supply We promise the long term continuity supply for this product no less than 10 years since 2015. Part Number ER-TFT035-3 Display Format 320x240 Dots Interface RGB IC or Equivalent HX8238 Appearance RGB on Black Diagonal Size 3.5” Connection FPC-Connector Outline Dimension 76.9(W)x63.9(H)x3.2(T)mm Visual Area 72.88x54.96mm Active Area 70.08(W)x52.56(H)mm Character Size No Dot (Pixel) Size 0.219x0.219mm Dot (Pixel) Pitch No IC Package COG Display Type TFT-LCD Color Touch Panel Optional Yes Sunlight Readable No Response Time(Typ) 10ms Contrast Ratio(Typ) 400:1 Colors 65K/262K/16.7M Viewing Direction 12:00 Viewing Angle Range Left:60.0 , Right:60.0 , Up:50.0 , Down:55.0 degree Brightness(Typ) 250cd/m2 Backlight Color White Color Backlight Current (Typ) 20mA Power Supply(Typ) 3.3V Supply Current for LCM(Max) No Operating Temperature -20℃~70℃ Storage Temperature -30℃~80℃ Series Number ER-TFT035-3
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
| 3.5 inch 4-Wire Resistive Touch Panel w/Connector Type FPC | English | Mar-02-2013 | 180K |
| 4 Pins 1.0mm Pitch ZIF Connector for Resistive Touch Drawing | English | Jul-26-2012 | 268K |
| 3.5 inch 4-Wire Resistive Touch Panel w/Soldering Type FPC | English | Jun-06-2016 | 242K |
| 3.5 inch Capacitive Touch Panel Outline Drawing | English | Mar-17-2021 | 234K |
| Capacitive Touch Panel Controller CST340 Datasheet | English | Jul-24-2014 | 2.3M |
| 6 Pins FPC Connector Drawing for Capactive Touch Panel | English | Jul-12-2014 | 179K |
| Gross Weight (kg) | 0.0680 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2015. |
| Part Number | ER-TFT035-3 |
| Display Format | 320x240 Dots |
| Interface | RGB |
| IC or Equivalent | HX8238 |
| Appearance | RGB on Black |
| Diagonal Size | 3.5” |
| Connection | FPC-Connector |
| Outline Dimension | 76.9(W)x63.9(H)x3.2(T)mm |
| Visual Area | 72.88x54.96mm |
| Active Area | 70.08(W)x52.56(H)mm |
| Character Size | No |
| Dot (Pixel) Size | 0.219x0.219mm |
| Dot (Pixel) Pitch | No |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Response Time(Typ) | 10ms |
| Contrast Ratio(Typ) | 400:1 |
| Colors | 65K/262K/16.7M |
| Viewing Direction | 12:00 |
| Viewing Angle Range | Left:60.0 , Right:60.0 , Up:50.0 , Down:55.0 degree |
| Brightness(Typ) | 250cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 20mA |
| Power Supply(Typ) | 3.3V |
| Supply Current for LCM(Max) | No |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Series Number | ER-TFT035-3 |
