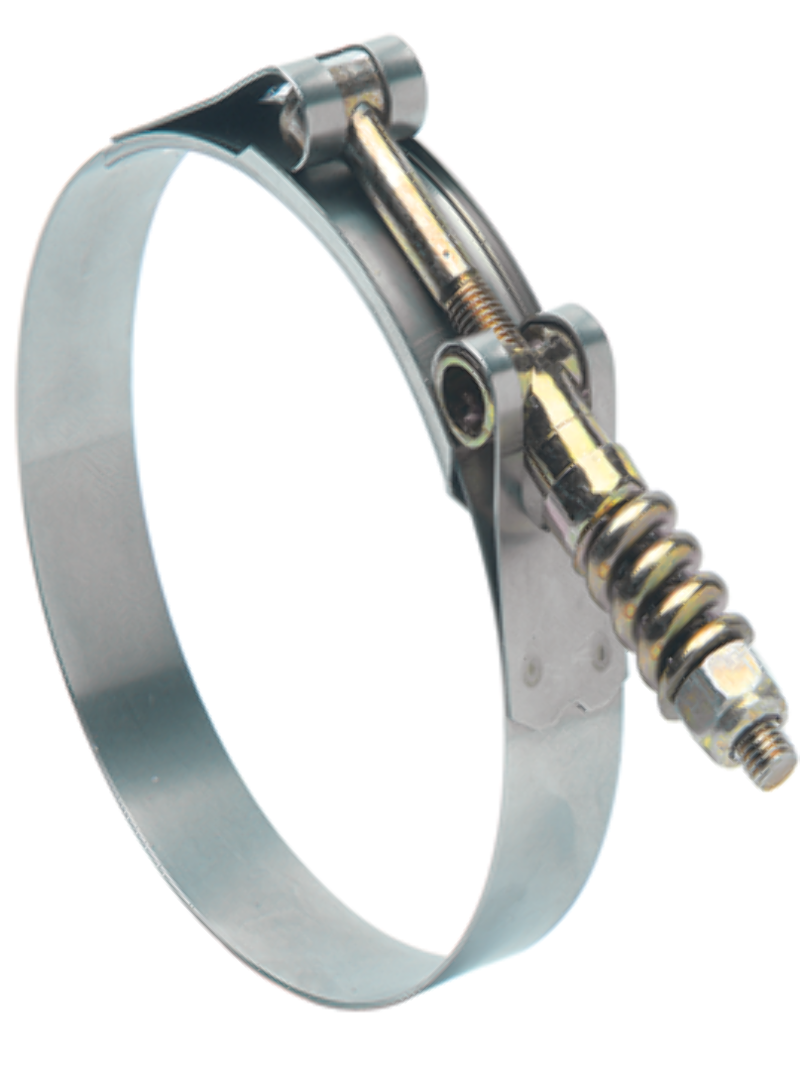

Ideal Tridon Sping Loaded 3/4 T-Bolt Stainless Hose Clamp 3.56-3.875" 30030-0356

Spring Loaded T-Bolt clamps provide uniform sealing pressure for a positive, reliable seal. The spiral spring design compensates and provides constant tension to prevent leak paths due to temperature fluctuations. Designed for use in high vibration and large diameter applications common in heavy trucks (charge air and cooling systems), industrial machinery, off-road equipment, agricultural irrigation and machinery. Features a spring-loaded t-bolt assembly, a 3/4″ wide stainless steel band and welded construction for reliability. Material Specifications Series Number: 30030 Part Number: 30030-0356 Size: 356 Package Quantity: 1 Min: 3.563" / 90.5mm Max: 3.875" / 98.4mm T-Bolt: 1/4″ Plated Carbon Steel Hex Nut: 7/16″ Plated Carbon Steel, Nylon Insert Band: 3/4″, 300 Stainless Bridge: 3/4″, 300 Stainless Trunnion: Plated Carbon Steel Spring: Steel Installation Torque: 75 in-lbs (8.5 Nm)
Top Biz Buy's



Ideal Tridon Sping Loaded 3/4 T-Bolt Stainless Hose Clamp 3.56-3.875" 30030-0356

Spring Loaded T-Bolt clamps provide uniform sealing pressure for a positive, reliable seal. The spiral spring design compensates and provides constant tension to prevent leak paths due to temperature fluctuations. Designed for use in high vibration and large diameter applications common in heavy trucks (charge air and cooling systems), industrial machinery, off-road equipment, agricultural irrigation and machinery. Features a spring-loaded t-bolt assembly, a 3/4″ wide stainless steel band and welded construction for reliability.

Material Specifications

Series Number: 30030

Part Number: 30030-0356

Size: 356

Package Quantity: 1

Min: 3.563" / 90.5mm

Max: 3.875" / 98.4mm

T-Bolt: 1/4″ Plated Carbon Steel

Hex Nut: 7/16″ Plated Carbon Steel, Nylon Insert

Band: 3/4″, 300 Stainless

Bridge: 3/4″, 300 Stainless

Trunnion: Plated Carbon Steel

Spring: Steel

Installation Torque: 75 in-lbs (8.5 Nm)

×
