Description
ER-TFT121-1-5795 is a 12.1-inch TFT display with a resolution of 800x600 pixels. It comes with an HDMI+Video board and louder speaker, which allows for easy connection to the Raspberry Pi's HDMI output. It's optional 4-wire resistive touch panel with USB driver board and cable.
ER-TFT121-1-5795 also features a high brightness level, which makes it easy to view in bright environments. Additionally, it has a fast response time, which minimizes motion blur and makes it suitable for use in fast-paced applications such as gaming.
Overall, ER-TFT121-1-5795 is a high-quality display that is well-suited for a wide range of applications, including embedded systems, digital signage, and gaming. Its large size and high resolution make it ideal for displaying detailed images and text, while its compatibility with the Raspberry Pi and easy connectivity make it a convenient and versatile choice for DIY electronics projects.

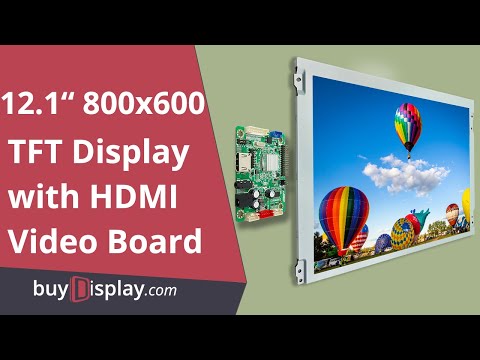

Video_ER-TFT121-1-5795
Color 12.1 inch Raspberry PI IPS TFT Display w/HDMI+Video Board,800x600
Video will open in a new window
Using the eBay App? Paste link into a browser window:
12.1"TFT LCD Series List ↓
Display Part Number | Description |
12.1 inch 800x600 Pixel TFT LCD Display Panel with LVDS Interface |
What's included in the package ↓
Num | Accessory Name | Qty |
1 | LVDS 12.1 inch 800x600 Pixels TFT LCD Display Panel | 1 |
2 | HDMI+Video Driver Board | 1 |
3 |
LVDS Cable |
1 |
4 |
Backlight Cable |
1 |
5 |
Keyboard Cable with Terminal |
1 |
6 | Louder Speaker | 1 |
Optional Accessory List (Click the part number to buy accessories) ↓
Category | Part Number | Description |
Touch Panel | 12.1" 4-wire Resistive Touch Panel | |
Touch Board | Resistive Touch USB Port Controller Board | |
Power Adaptor | AC100-240V To DC 12V 2A Power Supply Adapter |
Ebay doesn't allow listings to contain external links,so the documents link may be invalid. Please copy the below entire link to your browser for checking our documents(at the bottom of the page) or for bulk order.
https://www.buydisplay.com/12-1-inch-raspberry-pi-ips-tft-display-w-hdmi-video-board-800x600
Datasheet for TFT LCD Display
Format Documents Name Language Update Date Size
ER-TFT121-1-5795 Datasheet English Dec-15-2022
1.2M
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
| ER-TFT121-1-5795 Datasheet | English | Dec-15-2022 | 1.2M |
Datasheet for Resistive Touch Panel
Format Documents Name Language Update Date Size English Jun-10-2019 470K English Jun-19-2013 190K
English Jul-08-2013 56M
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
| English | Jun-10-2019 | 470K | |
| English | Jun-19-2013 | 190K | |
| English | Jul-08-2013 | 56M |
| Gross Weight (kg) | 1.000 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2023. |
| Part Number | ER-TFT121-1-5795 |
| Display Format | 800x600 Pixels |
| Interface | HDMI |
| IC or Equivalent | RTD2513 |
| Appearance | RGB on Black |
| Diagonal Size | 12.1” |
| Connection | LVDS Wire-Connection |
| Outline Dimension | 279.00(W)x209.00(H)x9.0(T)mm |
| Visual Area | 249.05x188.30mm |
| Active Area | 246.00(W)x184.50(H)mm |
| Character Size | No |
| Dot (Pixel) Size | No |
| Dot (Pixel) Pitch | 0.3075(W)x0.3075(H)mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | Yes |
| Sunlight Readable | No |
| Response Time(Typ) | 30ms |
| Contrast Ratio(Typ) | 800:1 |
| Colors | 65K/262K/16.7M |
| Viewing Direction | No |
| Viewing Angle Range | Left:80.0 , Right:80.0 , Up:65.0 , Down:75.0 degree |
| Brightness(Typ) | 400cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 475mA |
| Power Supply(Typ) | 12V |
| Supply Current for LCM(Max) | No |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Series Number | ER-TFT121-1 |
