Description
ER-EPD029-2B-5073 is e-paper/e-ink display module that is 2.9 inch e-paper display panel attached with a breakout board, 128x296 resolution with white/black color,SSD1680 controller,running both 3.3V and 5V power supply,super wide viewing angle,sunlight readable and easily controlled by MCU such as PIC, AVR, ARDUINO,ARM and Raspberry PI. One fantastic aspect of the ePaper display is the fact they don't need any power to keep the image on the screen. Just like a Kindle, you can read whatever is on your screen in daylight without any reflection.It's optional for 3-wire or 4-wire serial interface,pin header or FFC with ZIF connector connection.
We prepared the library and examples for arduino due,mega 2560,uno,nano and for raspberry pi or raspberry pi zero. Dupont wires used for connecting to arduino and female header connector used for connecting to raspberry pi are also optional.
Package Content
◇ e-Paper Display Module x 1
◇ Doupont Wire for Arduino x 1
◇ Female Pin Header for Raspberry Pi x 1
◇ Pin Header x 1
* Please select if you wish to have optional accessories.
◇ e-Paper Display Module x 1
◇ Doupont Wire for Arduino x 1
◇ Female Pin Header for Raspberry Pi x 1
◇ Pin Header x 1
* Please select if you wish to have optional accessories.
Application
◇ Logistics
◇ Reusable Transit Item
◇ Station Terminal
◇ Smart Card
◇ Smart Identity Tag
◇ Seat Number Tab
◇ Smart Luggage Tag
◇ Smart Coffee Cup
◇ Smart Home Application
◇ Identification & Access
◇ Display the Latest Weather Forecast
◇ Display Your Own Twitter Feed
◇ E-paper room booking system
◇ Other IoT (Internet of Things) Devices
◇ 1D/2D Barcode Electronic Shelf Label
2.9" e-paper/e-ink panel Series List ↓
Display Part Number Description
Red 2.9 inch E-Paper Display Panel
Black 2.9 inch E-Paper Display Panel
2.9 inch E-Paper Display Panel with Arduino Shield,FFC Cable and ZIF Connector
2.9 inch E-Paper Display Panel with Raspberry Pi HAT,FFC Cable and ZIF Connector
2.9 inch E-Paper Display Module
◇ Logistics
◇ Reusable Transit Item
◇ Station Terminal
◇ Smart Card
◇ Smart Identity Tag
◇ Seat Number Tab
◇ Smart Luggage Tag
◇ Smart Coffee Cup
◇ Smart Home Application
◇ Identification & Access
◇ Display the Latest Weather Forecast
◇ Display Your Own Twitter Feed
◇ E-paper room booking system
◇ Other IoT (Internet of Things) Devices
◇ 1D/2D Barcode Electronic Shelf Label
2.9" e-paper/e-ink panel Series List ↓
Display Part Number | Description |
Red 2.9 inch E-Paper Display Panel
| |
Black 2.9 inch E-Paper Display Panel
| |
2.9 inch E-Paper Display Panel with Arduino Shield,FFC Cable and ZIF Connector
| |
2.9 inch E-Paper Display Panel with Raspberry Pi HAT,FFC Cable and ZIF Connector | |
2.9 inch E-Paper Display Module
|

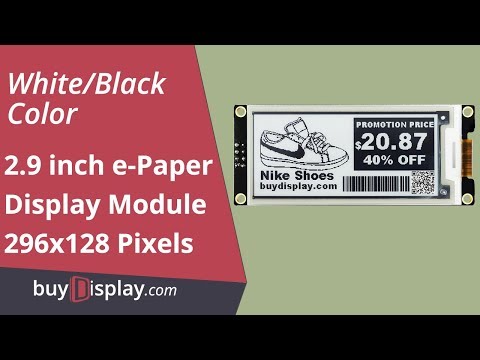

Video_ER-EPD029-2B-5073
Black 2.9\" inch e-Paper Display Module for Arduino,Raspberry Pi
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Ebay doesn't allow listings to contain external links,so the documents link may be invalid. Please copy the below entire link to your browser for checking our documents(at the bottom of the page) or for bulk order.
https://www.buydisplay.com/black-2-9-inch-e-paper-display-module-for-arduino-raspberry-pi

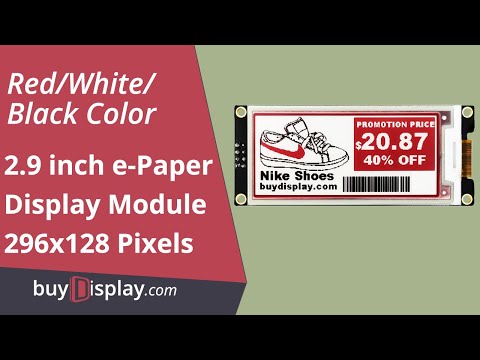

Video_ER-EPM029-2R
Connect Black 2.9\" inch e-Ink Display w/Raspberry Pi HAT,e-Paper 296x128 IoT to Pi Zero W
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Ebay doesn't allow listings to contain external links,so the documents link may be invalid. Please copy the below entire link to your browser for checking our documents(at the bottom of the page) or for bulk order.
https://www.buydisplay.com/red-2-9-inch-e-ink-display-module-296x128-for-arduino-raspberry-pi
Datasheet
Format Documents Name Language Update Date Size
2.9 inch e-Paper/e-Ink Display Module Datasheet English Mar-20-2021 1.3M Controller IC SSD1680 Datasheet English Jun-05-2019 690K
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
| 2.9 inch e-Paper/e-Ink Display Module Datasheet | English | Mar-20-2021 | 1.3M |
| Controller IC SSD1680 Datasheet | English | Jun-05-2019 | 690K |
Tutorial-Arduino
Format Documents Name Language Update Date Size
Arduino Library and Example for 4-wire SPI and SD Card English Mar-17-2021 38K Arduino Interfacing Document English Sep-05-2019 161K
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
| Arduino Library and Example for 4-wire SPI and SD Card | English | Mar-17-2021 | 38K |
| Arduino Interfacing Document | English | Sep-05-2019 | 161K |
Tutorial-Raspberry Pi
Format Documents Name Language Update Date Size Raspberry Pi Library and Example English Mar-17-2021 250K Raspberry Pi Interfacing Document English Sep-05-2019 77K
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
| Raspberry Pi Library and Example | English | Mar-17-2021 | 250K |
| Raspberry Pi Interfacing Document | English | Sep-05-2019 | 77K |
| Gross Weight (kg) | 0.0430 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2021. |
| Part Number | ER-EPM029-2R,ER-EPD029-2B-5073 |
| Display Format | 128x296 Dots |
| Interface | 3-wire SPI, 4-wire SPI |
| IC or Equivalent | SSD1680 |
| Appearance | Red+Black on White |
| Diagonal Size | 2.9” |
| Connection | Pin Header, Plug-in FFC |
| Outline Dimension | 37.00(W) x89.00(H)mm |
| Visual Area | 29.06x66.90mm |
| Active Area | 29.06(W)x66.90(H)mm |
| Dot (Pixel) Pitch | 0.227x0.226mm |
| IC Package | COG |
| Display Type | E-Paper |
| Touch Panel Optional | No |
| Sunlight Readable | Yes |
| Viewing Angle Range | Left:85.0 , Right:85.0 , Up:85.0 , Down:85.0 degree |
| Brightness(Typ) | 80cd/m2 |
| Power Supply(Typ) | 3V |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -0℃~40℃ |
