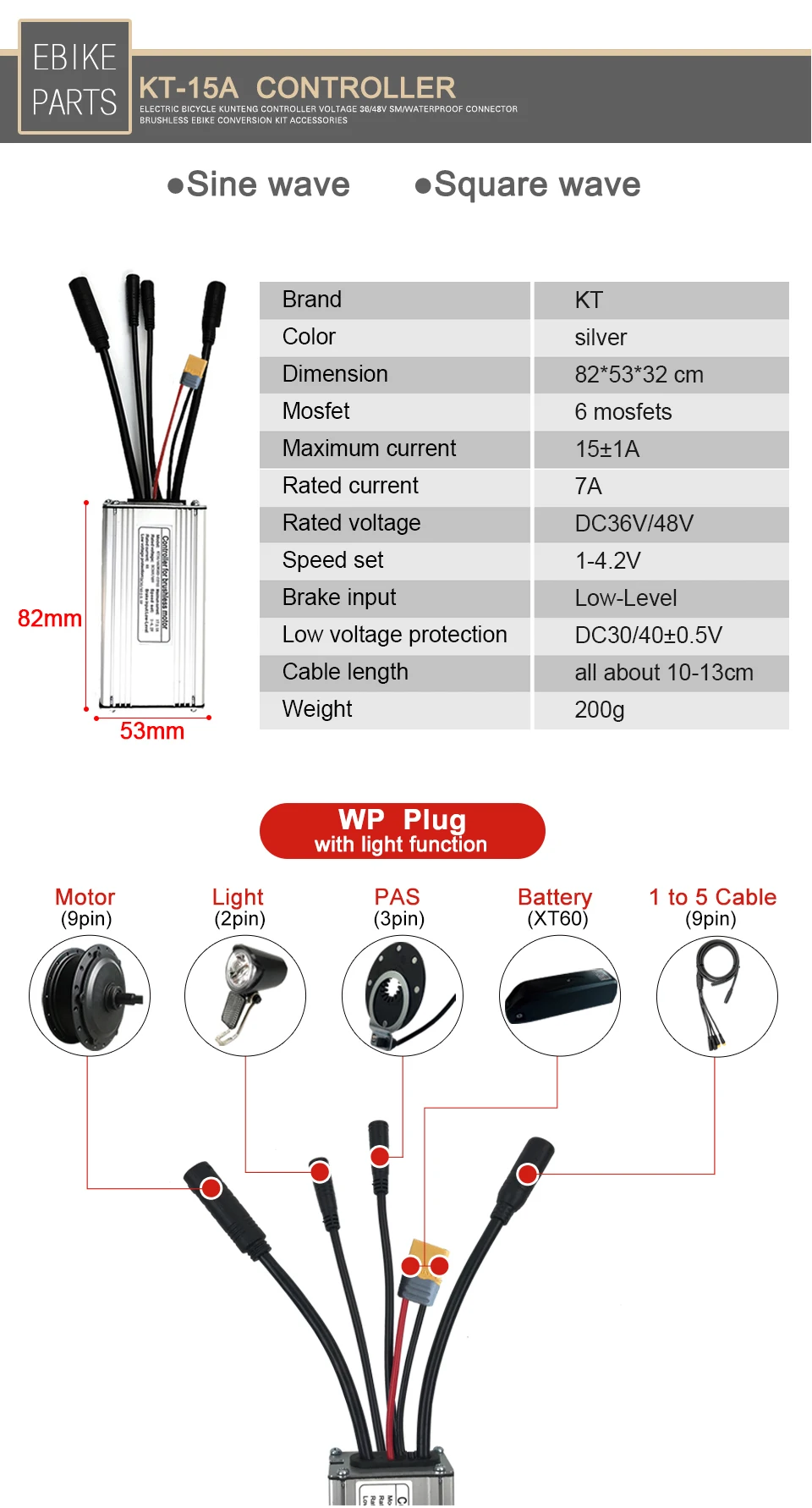

●●●Brand :KT（KUNTENG）

●●●Size : 82 * 53 * 32 mm

●●●Weight : 200g

●●●Cable length : all about 10-13cm

●●●Mosfets : 6 mosfets

●●●Maximum current : 15±1A

●●●Rated voltage : DC36V/48V

●●●Speed set :1-4.2V

●●●Rated current : 7A

●●●Brake input : Low-Level

●●●Low voltage protection : DC30/40±0.5V

●●●Wave : Square wave /Sine wave

KT-17A Controller Used For 250W-350W Motor

●●●Brand :KT（KUNTENG）

●●●Size : 94 * 62 * 35 mm

●●●Weight : 350g

●●●Cable length : all about 10-13cm

●●●Mosfets : Big 6 better mosfets

●●●Maximum current : 17±1A

●●●ated voltage : DC36V/48V

●●●Speed set : 1-4.2V

●●●Rated current : 8A

●●●Brake input : Low-Level

●●●Low voltage protection : DC30/40±0.5V

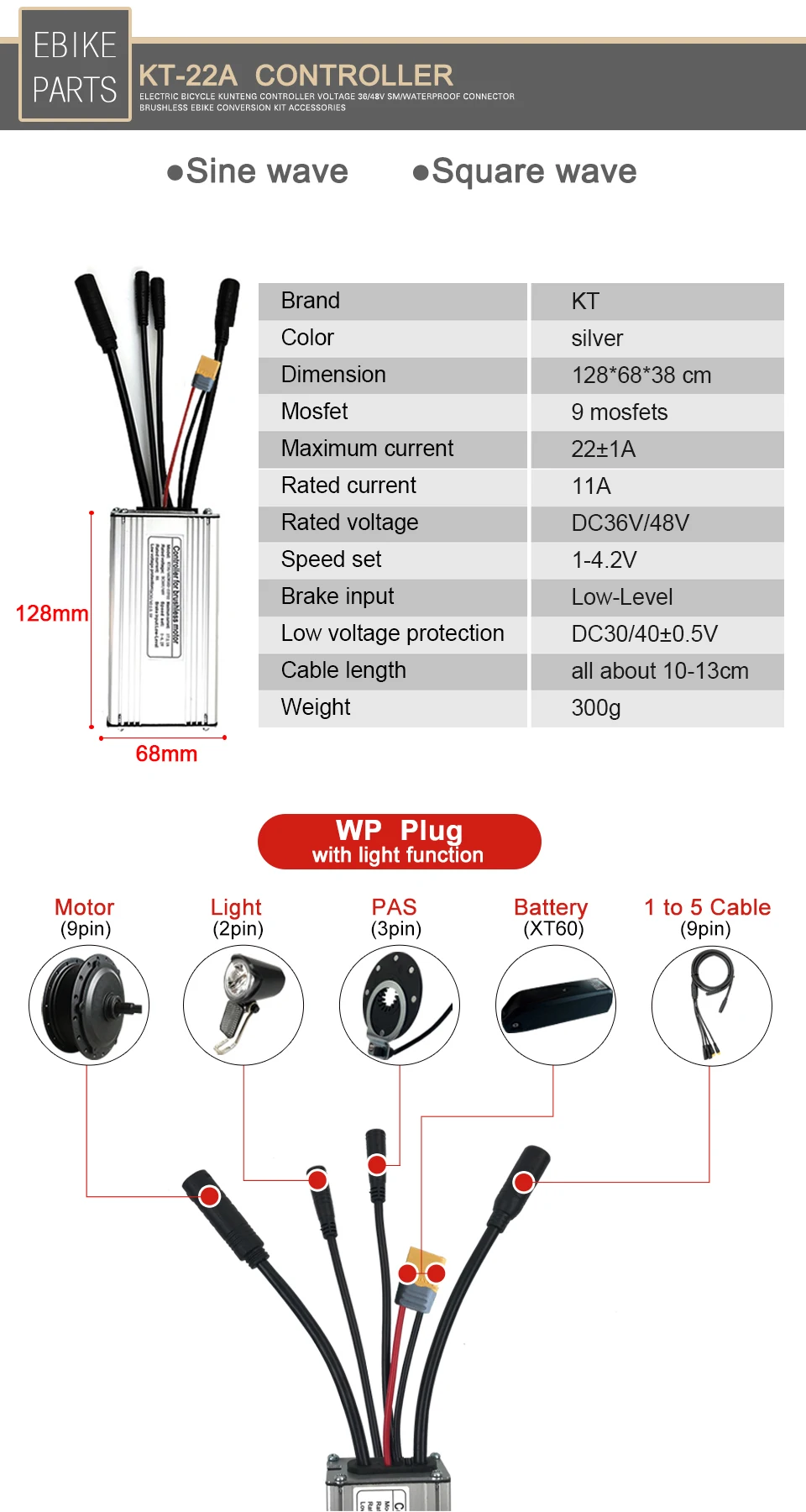

●●●Wave : Square wave /Sine waveKT-22A Controller Used For 500W Motor

●●●Brand : KT（KUNTENG）

●●●Color : Silver

●●●Size : about 128 * 68 * 38 mm

●●●Mosfet : 9 Mosfets

●●●Maximum current : 22±1A

●●●Rated current : 11A

●●●Rated voltage : DC36V/48V

●●●Speed set : 1-4.2V

●●●Brake input : Low-Level

●●●Low voltage protection : DC30/40±0.5V

●●●Cable Length : all about 13-18cm

●●●Weight : 450g

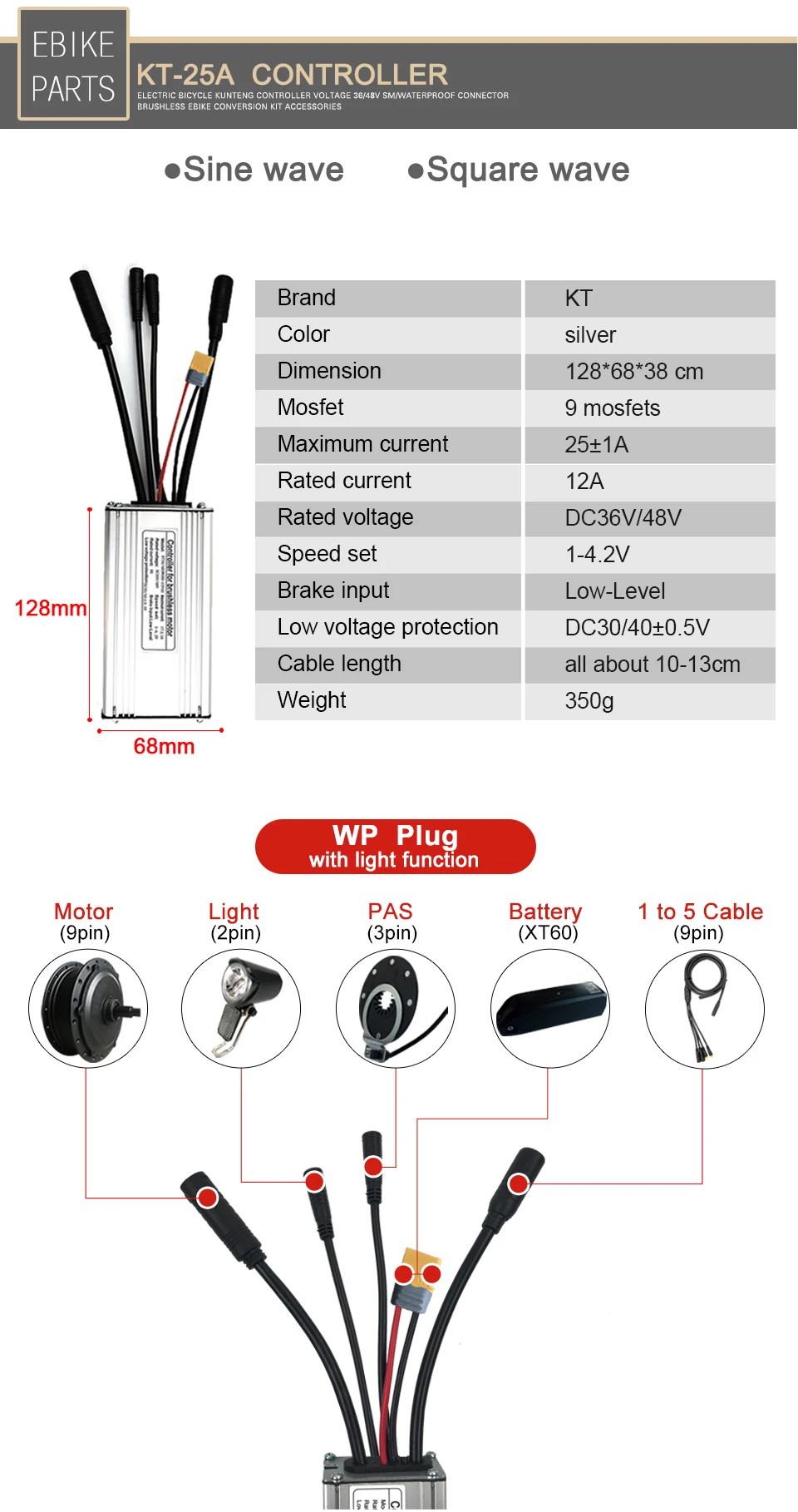

●●●Wave : Square wave /Sine waveKT-25A Controller Used For 500W Motor

●●●Brand : KT（KUNTENG）

●●●Color : Silver

●●●Size : about 128 * 68 * 38 mm

●●●Mosfet : 9 Mosfets

●●●Maximum current : 25±1A

●●●Rated current : 13A

●●●Rated voltage : DC36V/48V

●●●Speed set : 1-4.2V

●●●Brake input : Low-Level

●●●Low voltage protection : DC30/40±0.5V

●●●Cable Length : all about 13-18cm

●●●Weight : 450g

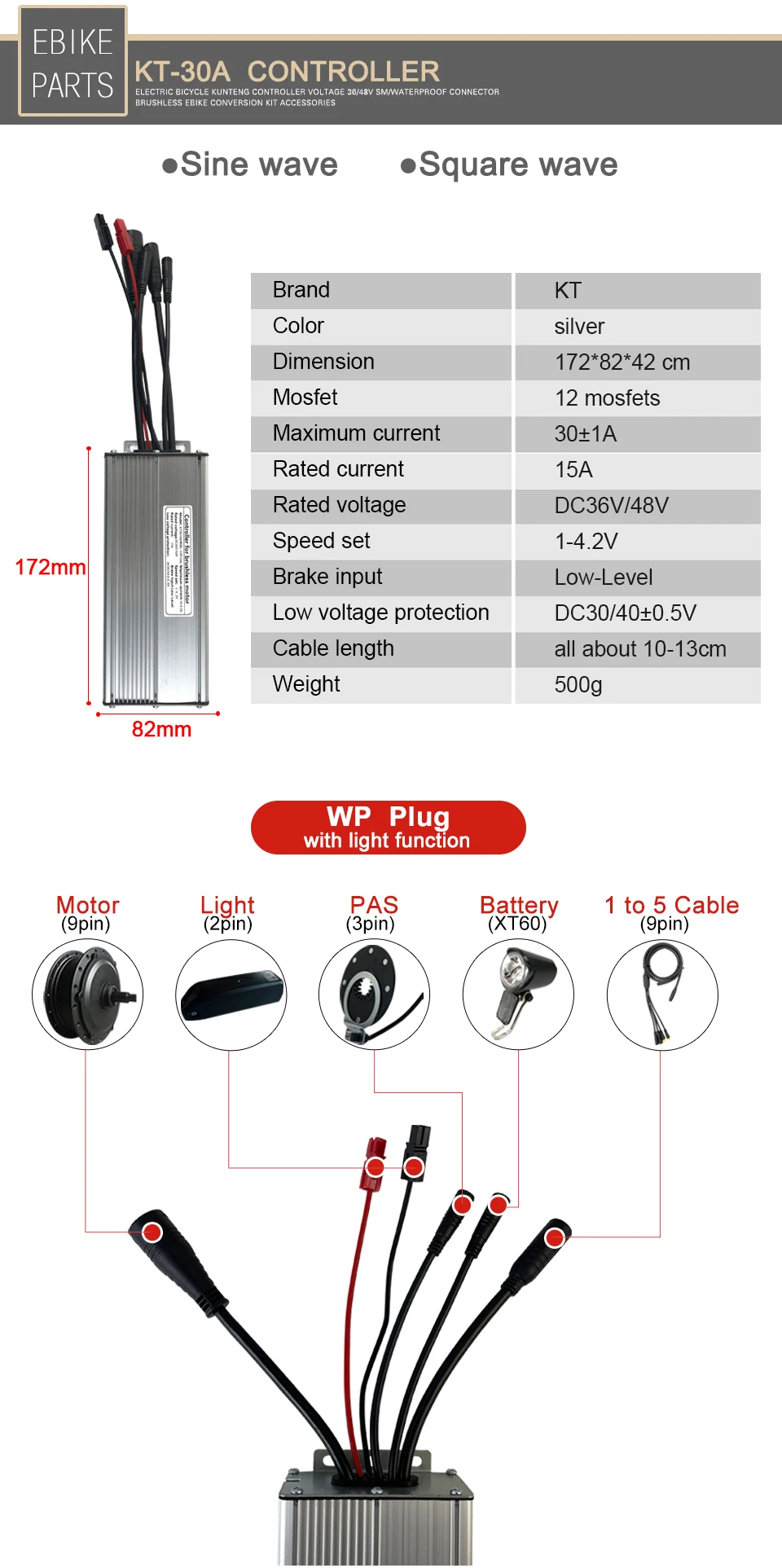

●●●Wave : Square wave /Sine waveKT-30A Controller Used For 1000W Motor

●●●Brand : KT（KUNTENG）

●●●Color : Silver

●●●Size : about 172 * 82 *42 mm

●●●Mosfet : 12 Mosfets

●●●Maximum current : 30±1A

●●●Rated current : 15A

●●●Rated voltage : DC36V/48V

●●●Speed set : 1-4.2V

●●●Brake input : Low-Level

●●●Low voltage protection : DC30/40±0.5V

●●●Cable Length : all about 13-18cm

●●●Weight : 450g

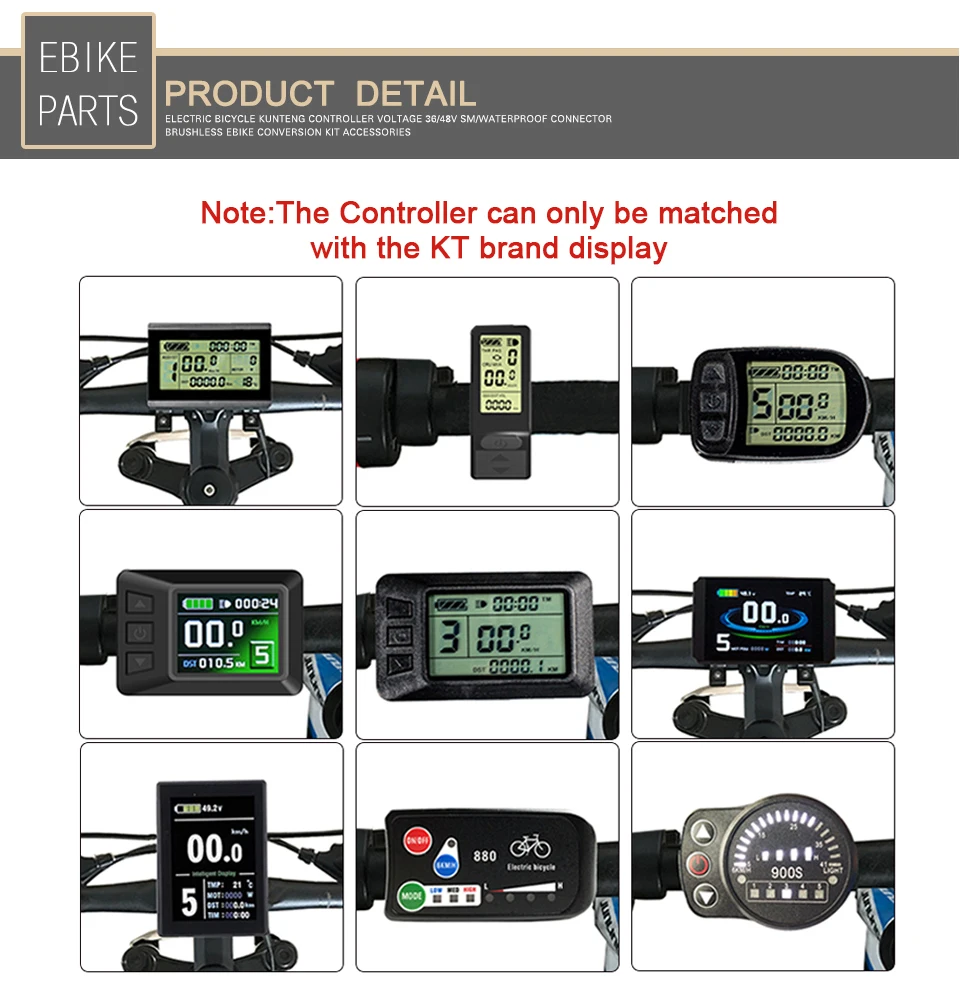

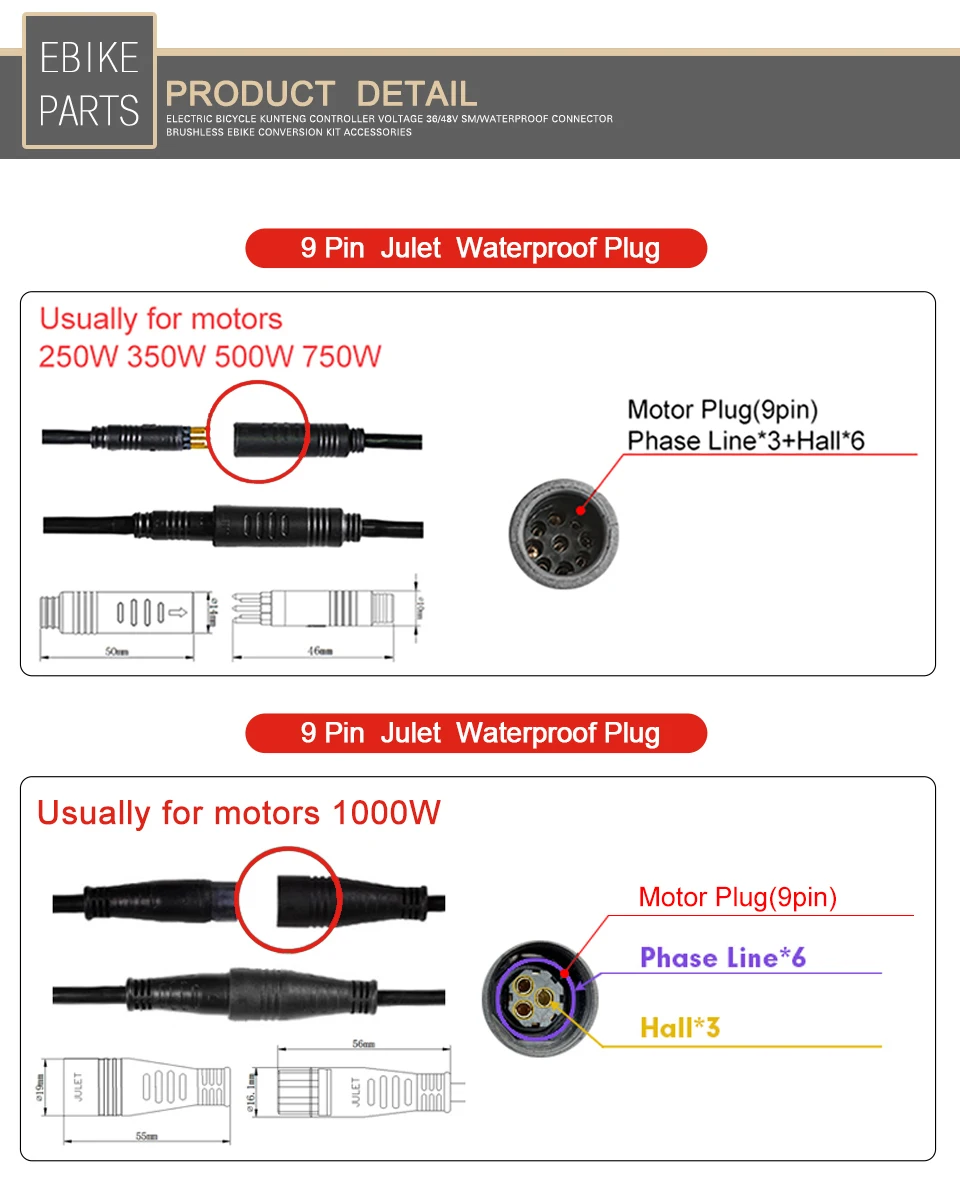

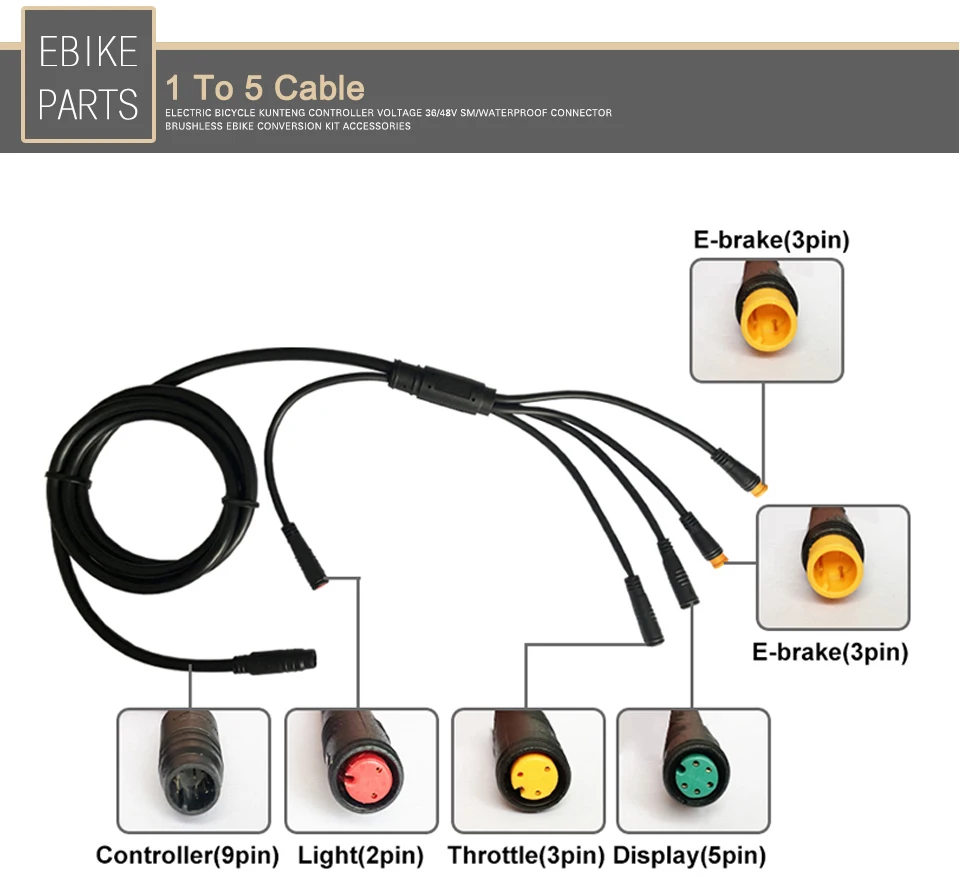

●●●Wave : Square wave /Sine wave●●●Our controller cable brand is Julet. Please check and confirm the appearance of your connector. Usually 90% of them can work normally. If you encounter problems during installation, please contact us and we will try our best to help you solve it.●●●KT Controller only applies to KT system, please confirm whether you are using KT system, such as KT display.●●●Waterproof cable length is about 13-15cm.If you want to connect the controller,you need a1 to 4 /1 to 5Extension Cable，Please buy it together with the controller and 1TO5
