Product Details

Features
1. Wide frequency adjustable range (0.1Hz-99999Hz), precisely meet different needs.
2.Dual-channel output supports external antenna board to realize multi-device serial expansion.
3. Default frequency 7.83Hz, one key to set the desired frequency, simple and convenient operation.
4. Push-button operation, simple and convenient design, even a novice can easily get started, the operation is no pressure.
5. The host can connect up to 10 antenna motherboards, suitable for a variety of scenarios application needs.

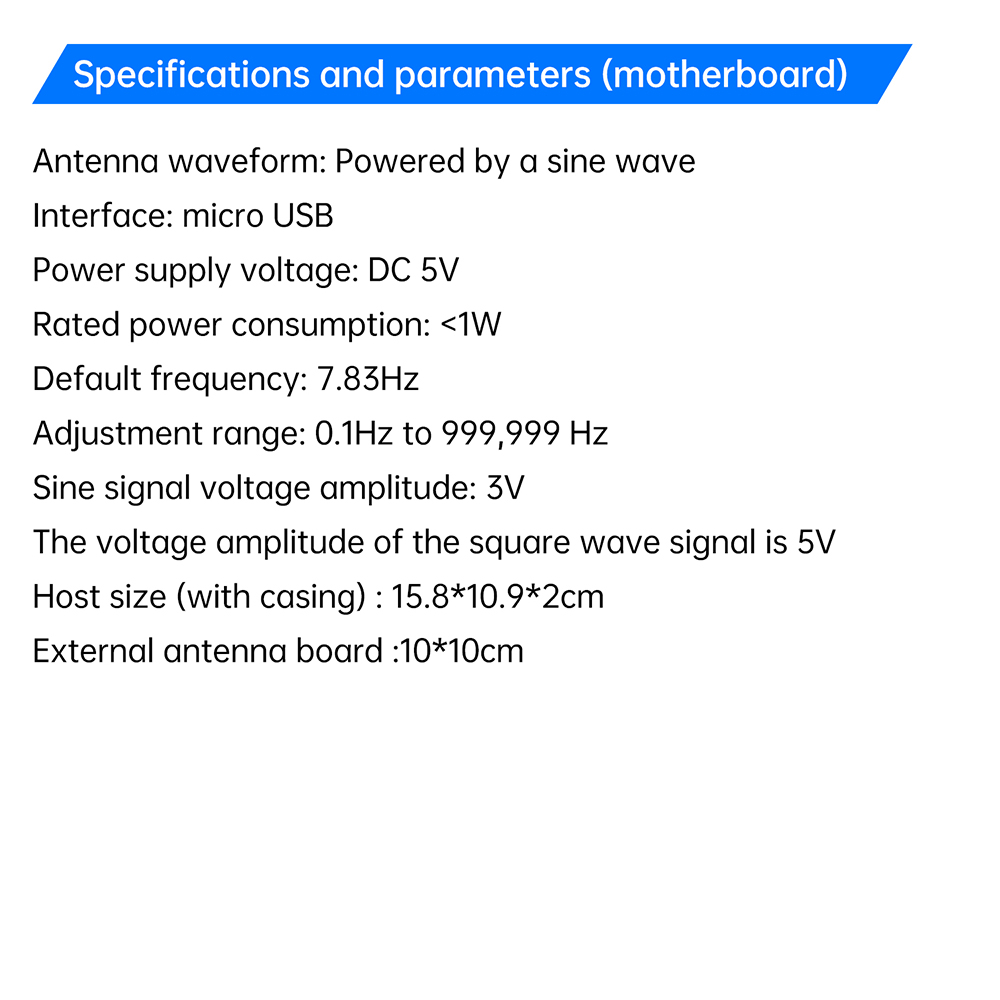

Specifications
Antenna Waveform: Sine Wave
Power Supply Interface: Android Interface
Power Supply Voltage: DC 5V
Rated Power Consumption: <1W
Default Frequency: 7.83Hz
Adjustment Range: 0.1Hz~99999Hz
Sine Signal Voltage Amplitude: 3V
Square Wave Signal Voltage Amplitude: 5V

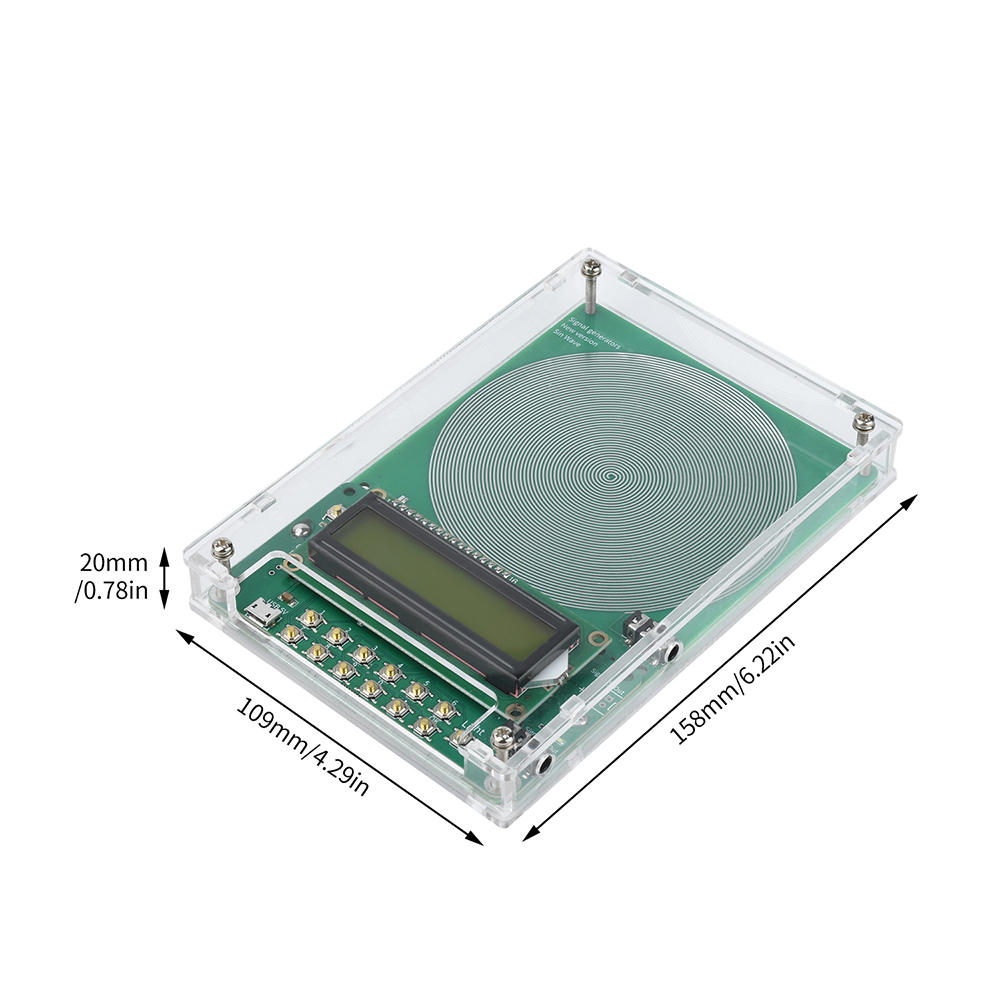

Mainframe Dimension (with case): 15.8*10.9*2cm

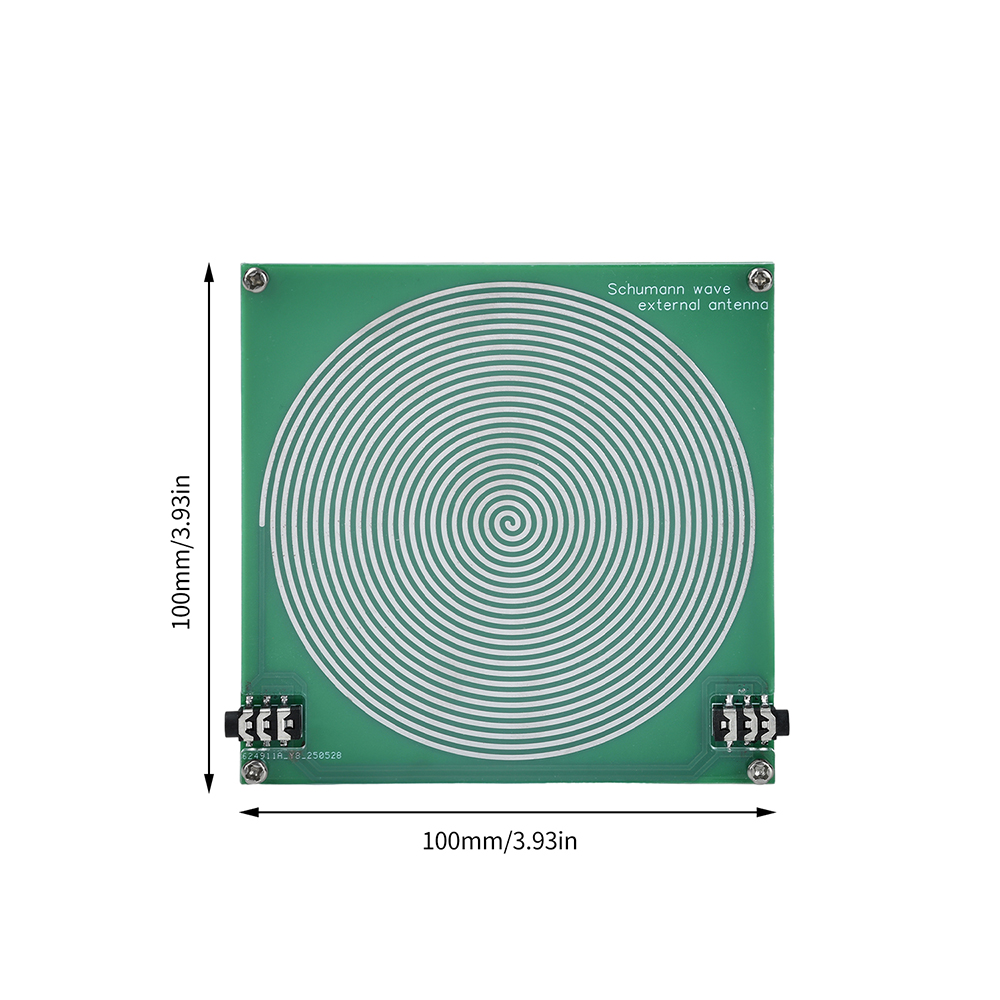

External Antenna Board:10*10cm
Description: Dual Channel Output interface can be external antenna board, can be combined can be cascaded, can be set to link the host can take 10 antenna motherboard.

Usage: use the phone charging plug with Android cable boot start, the frequency default 7.83Hz, directly enter the keyboard number press OK (ok) button, that is, set the frequency successfully, for example: to enter the frequency of 888Hz - power on the keyboard directly press the number [8] [8] [8] [8] and then press the [ok] button, you can set the success.
External antenna usage:
Insert one section of AUX audio cable into any headphone hole of the host, and the other section into the headphone interface of the external antenna board (Note: must be inserted to the end) to use directly.
The headphone interface can be operated in series, that is, it can be used by more than one, connect the AUX audio cable to the headphone port position of the corresponding equipment, you can realize more than one serial use.

Package includes
According to your choice
