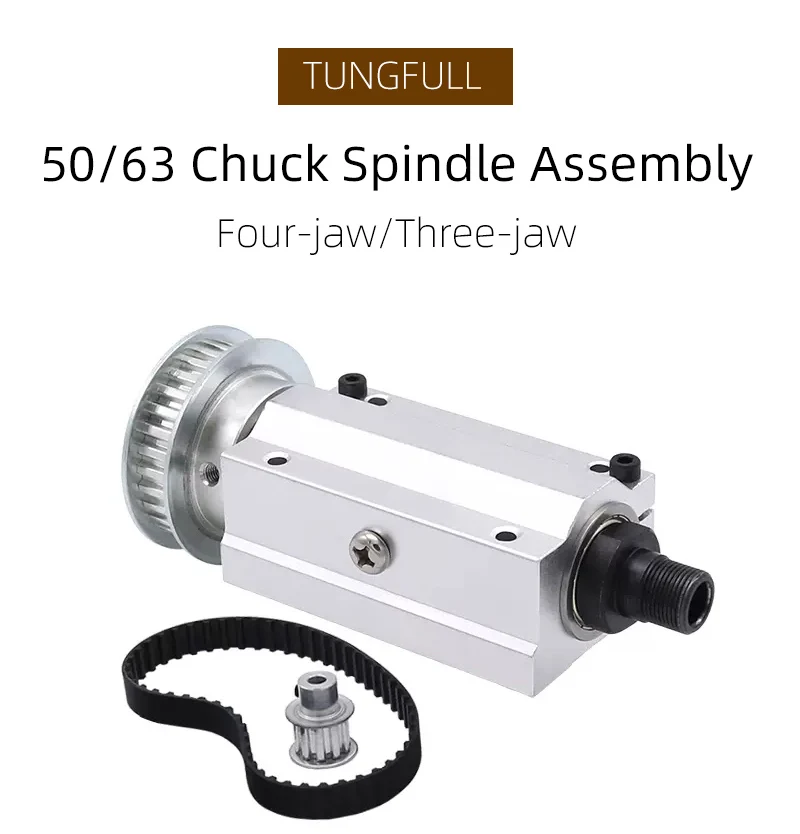

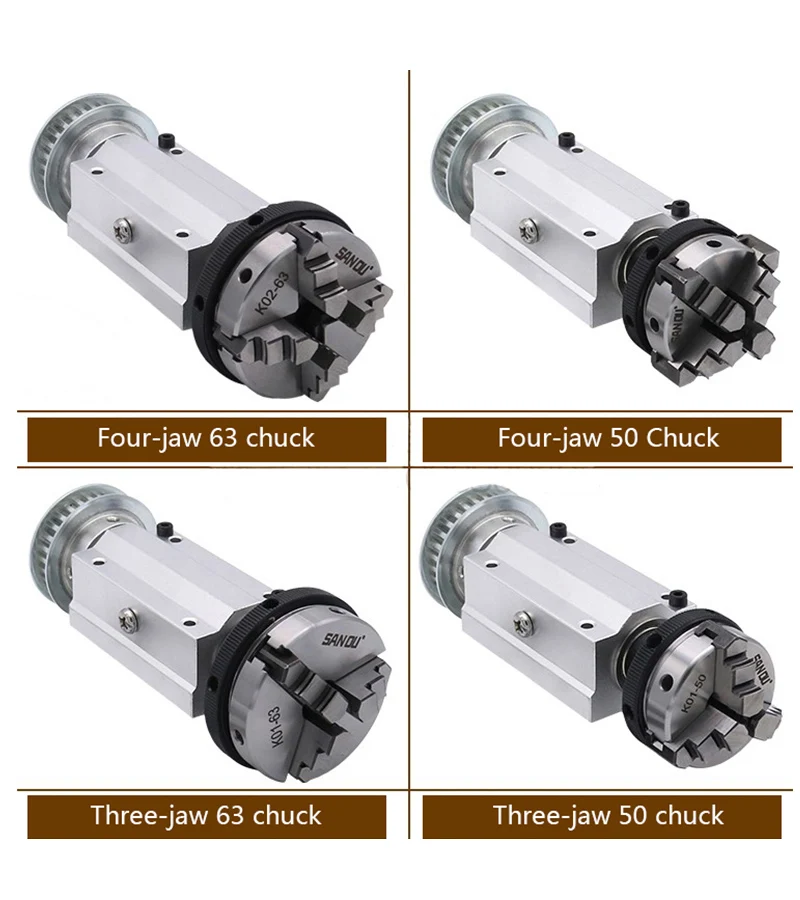

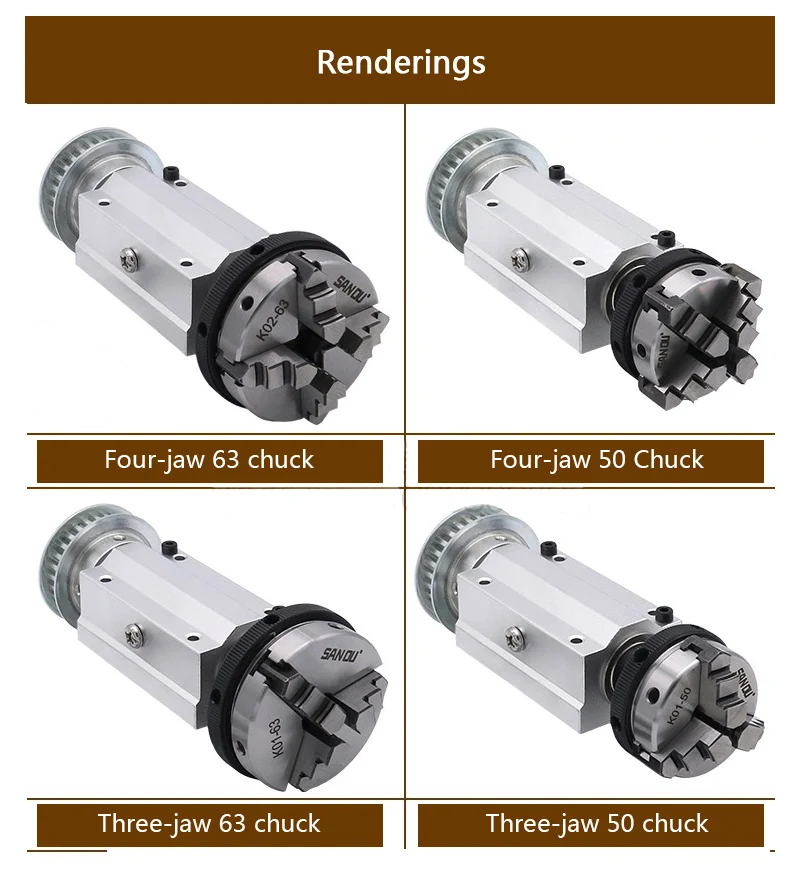

Package options:

63-4: 63 four-jaw chuck spindle assembly

63-3: 63 three-jaw chuck spindle assembly

50-4: 50 four-jaw chuck spindle assembly

50-3: 50 three-jaw chuck spindle assembly

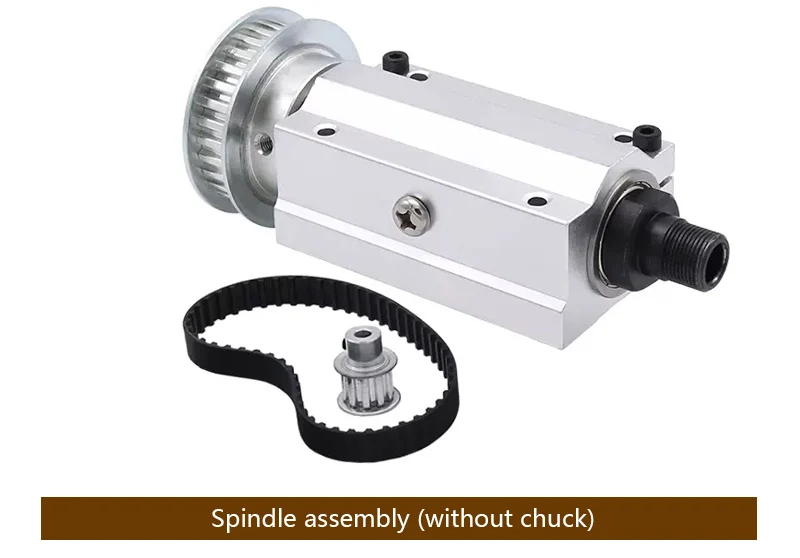

Set 5: Spindle assembly (without chuck)

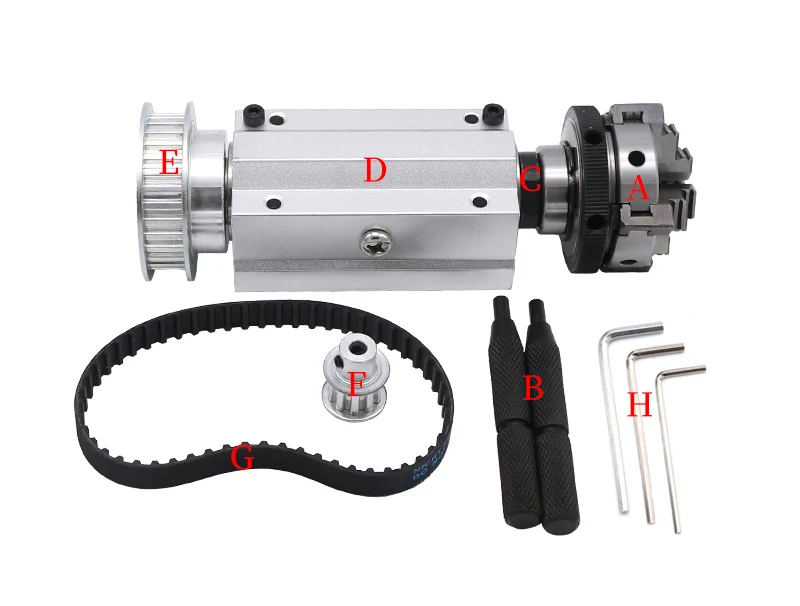

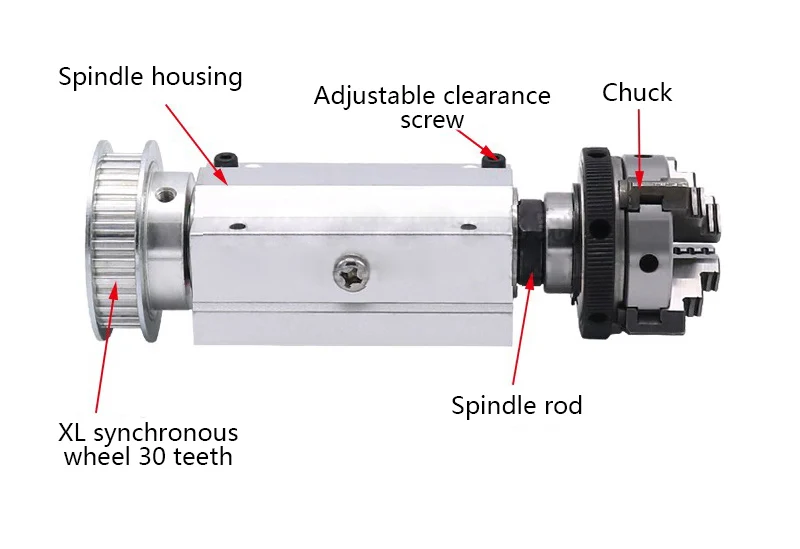

Chuck Assembly Accessories Overview

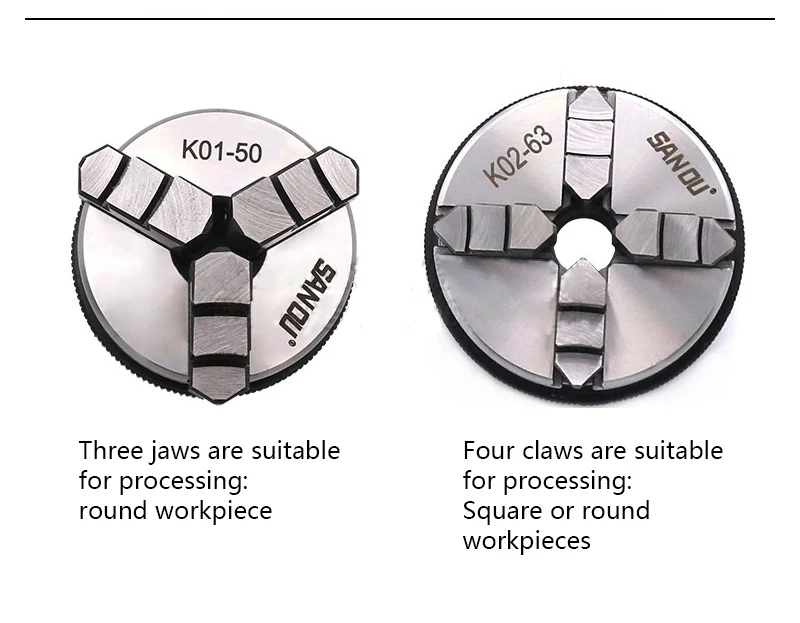

A. Chuck*1

B. One pair of chuck wrench

C.Through hole spindle rod*1

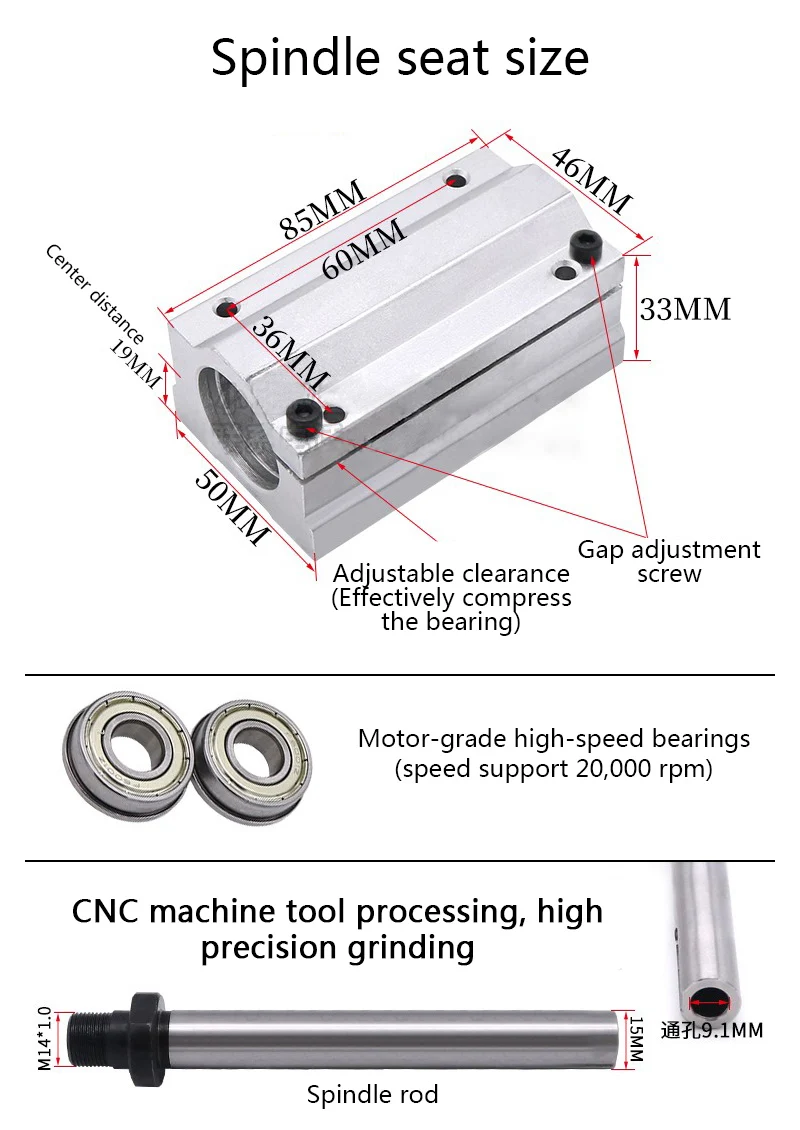

D. Spindle bearing housing*1

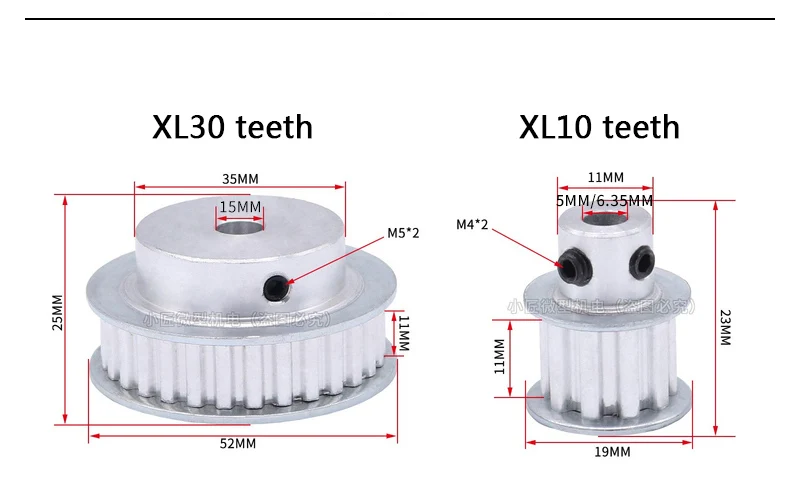

E.XL30 tooth synchronous wheel*1

F.XL10 tooth 5MM synchronous wheel*1

G.XL110 belt *1

H. Hex wrench*3

The motor synchronous wheel defaults to XL10 teeth 5MM, the main shaft wheel defaults to XL30 teeth, and the belt defaults to 110XL (the center distance between the two wheels is 86MM),

If you need to replace the synchronous wheel and belt of the motor, please contact customer service to change it.

Tooth pitch 5.08MM, tooth width 11MM

Pinion 10 teeth-5mm/6.35MM(10 teeth-5mm by default)

Large gear 30 teeth-15mm, speed ratio 1: 3

synchronous wheel can be replaced as needed > makeup the difference > contact customer service

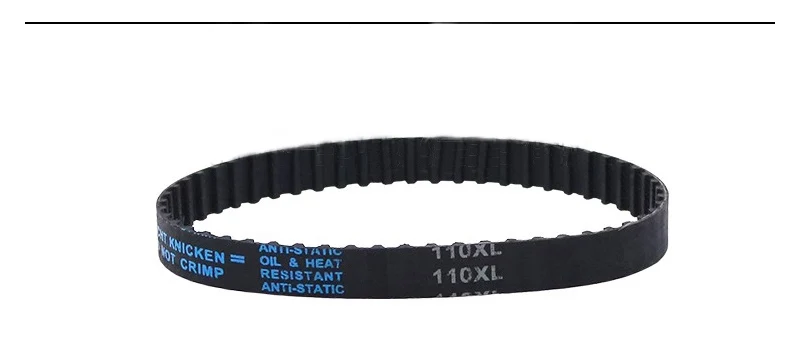

High-precision XL synchronous pulley belt , made of polyurethane PU rubber , durable and not easy to break ,width 10MM , thickness 1.22MM , tooth pitch 2.032MM ,tooth height 0.51MM ( durable compared to 2GT belt )

The circumference of the belt can be replaced as needed >make up the difference > contact customer service

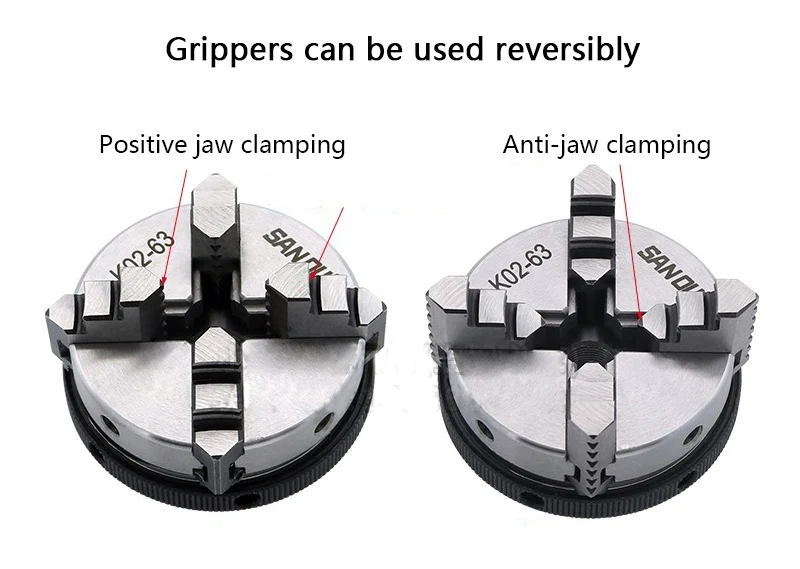

When the chuck is shipped , the default jaw is the defaWhen the reverse iaw is to be used rotate the chuck so thatthe jaw clip is completely withdrawn and then reversed

( Note : Which slot the jaws are removed from must be put back in pIace and the slots must not be mixed)
