Product Details

1. Using high-quality materials, the quality is guaranteed
2. Use Imported Hall Vision
3. Good sealing and no water leakage

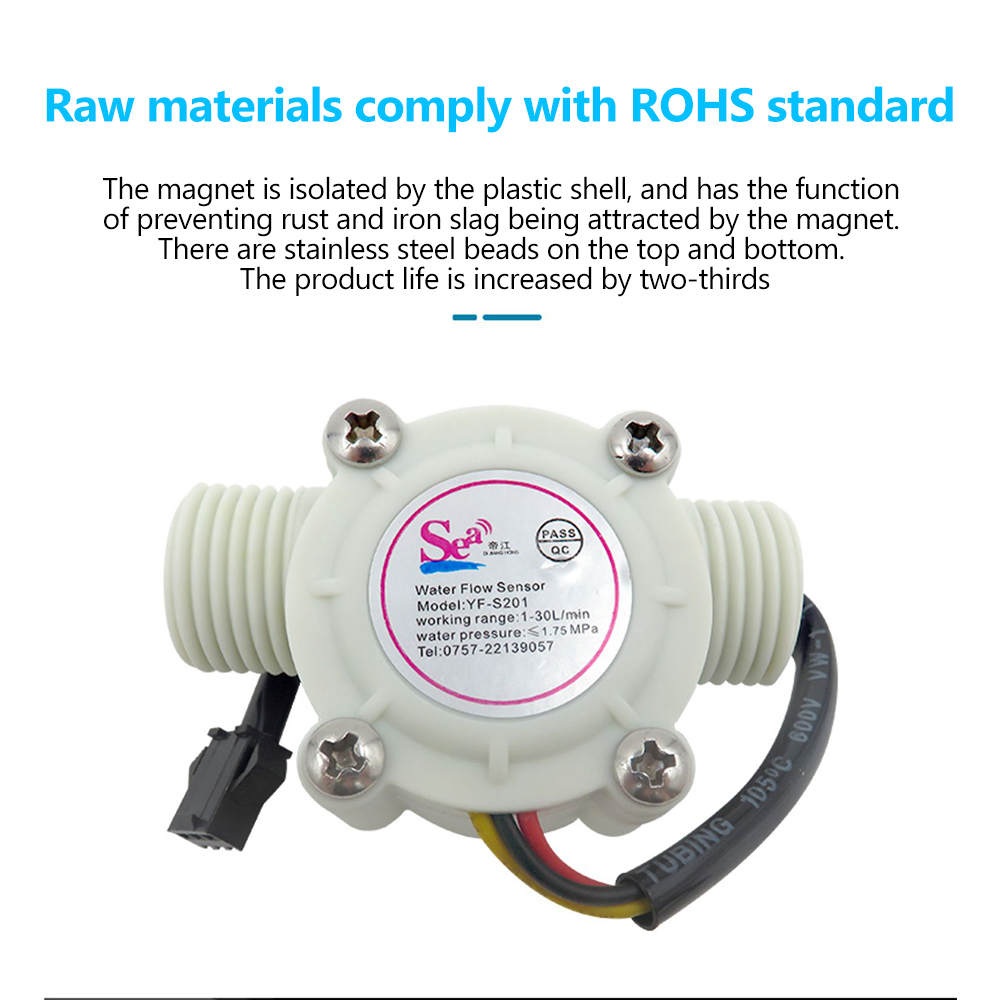

4. The magnet is isolated by the plastic shell, which has the function of preventing rust and iron slag from being attracted by the magnet, and there are stainless steel beads on the top and bottom. The product life is increased by two-thirds
5. Wide application

Parameter:

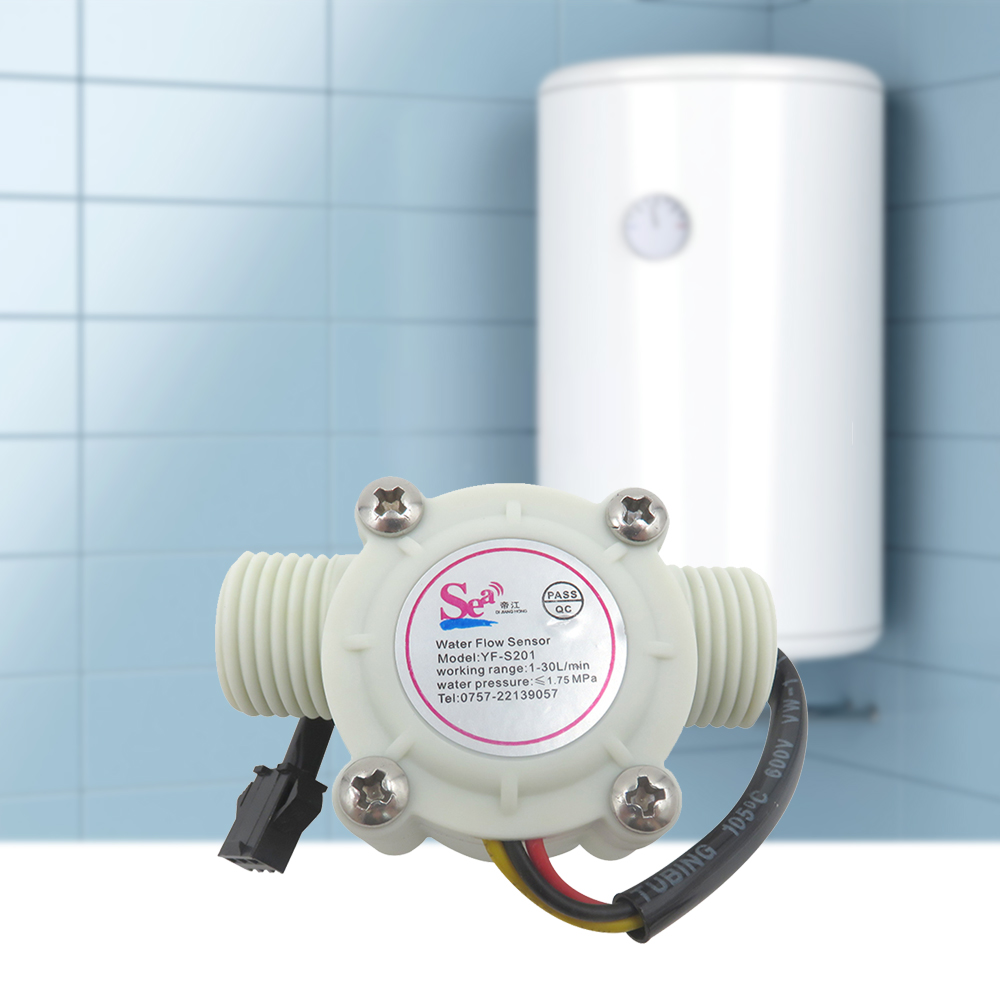

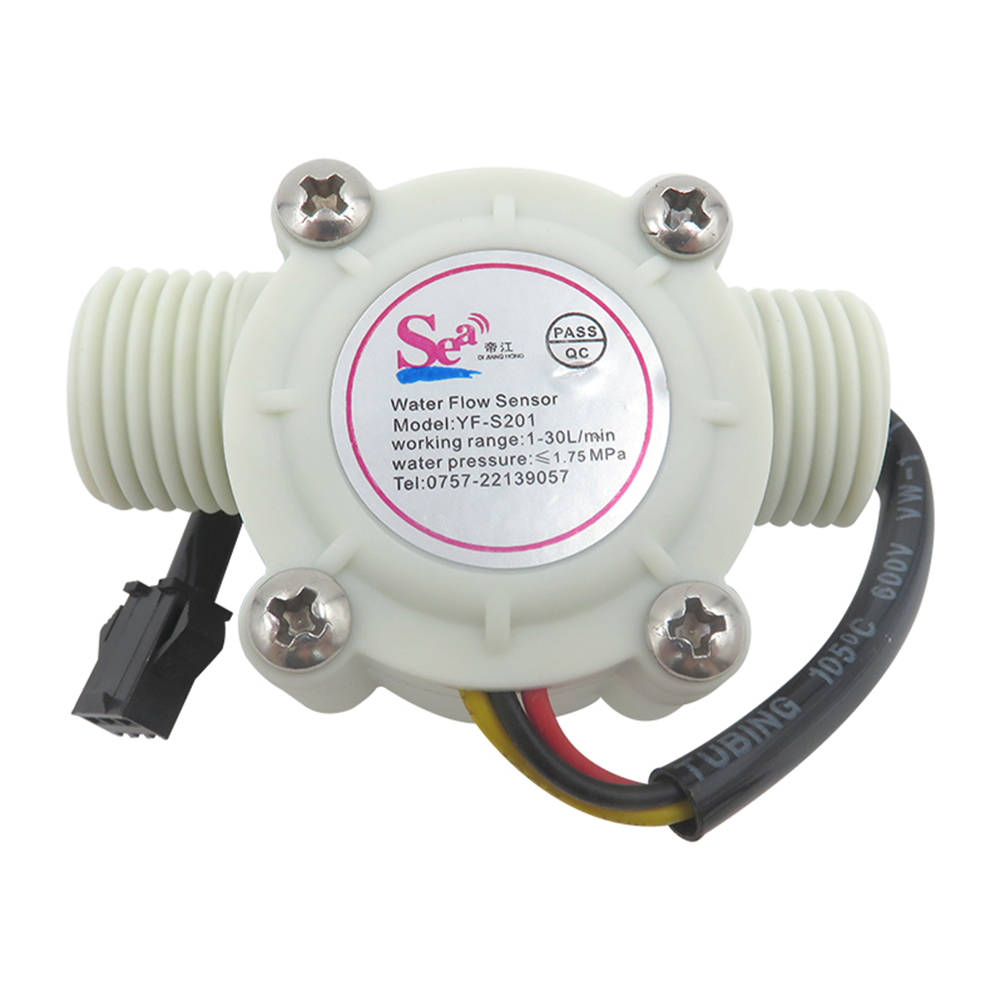

Model: YF-S201

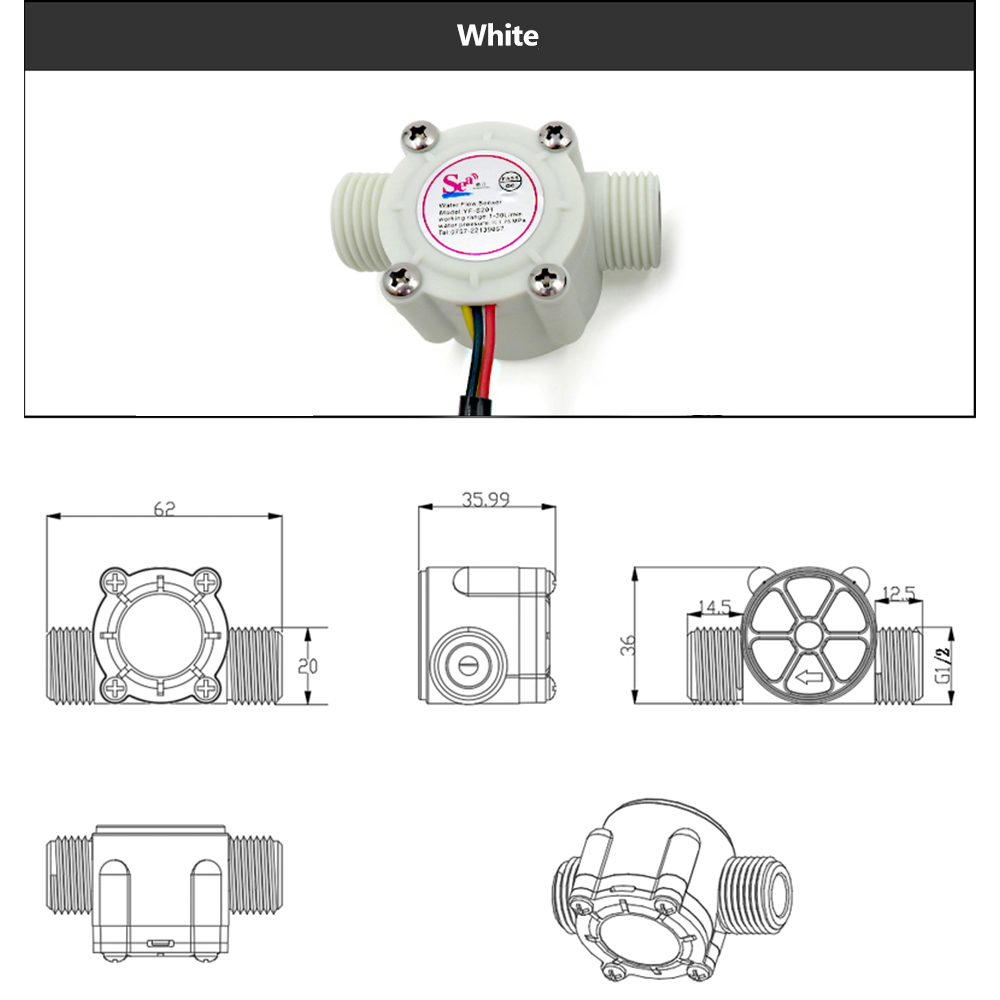

Interface size: 4 points (G1/2)
Operating voltage range: DC5 ~ 15V
Inner/Outer Diameter: 10.9mm/20mm
Thread length: 14.5mm12.5mm
Material: Nylon
Water pressure resistance: ≤1.75MPa

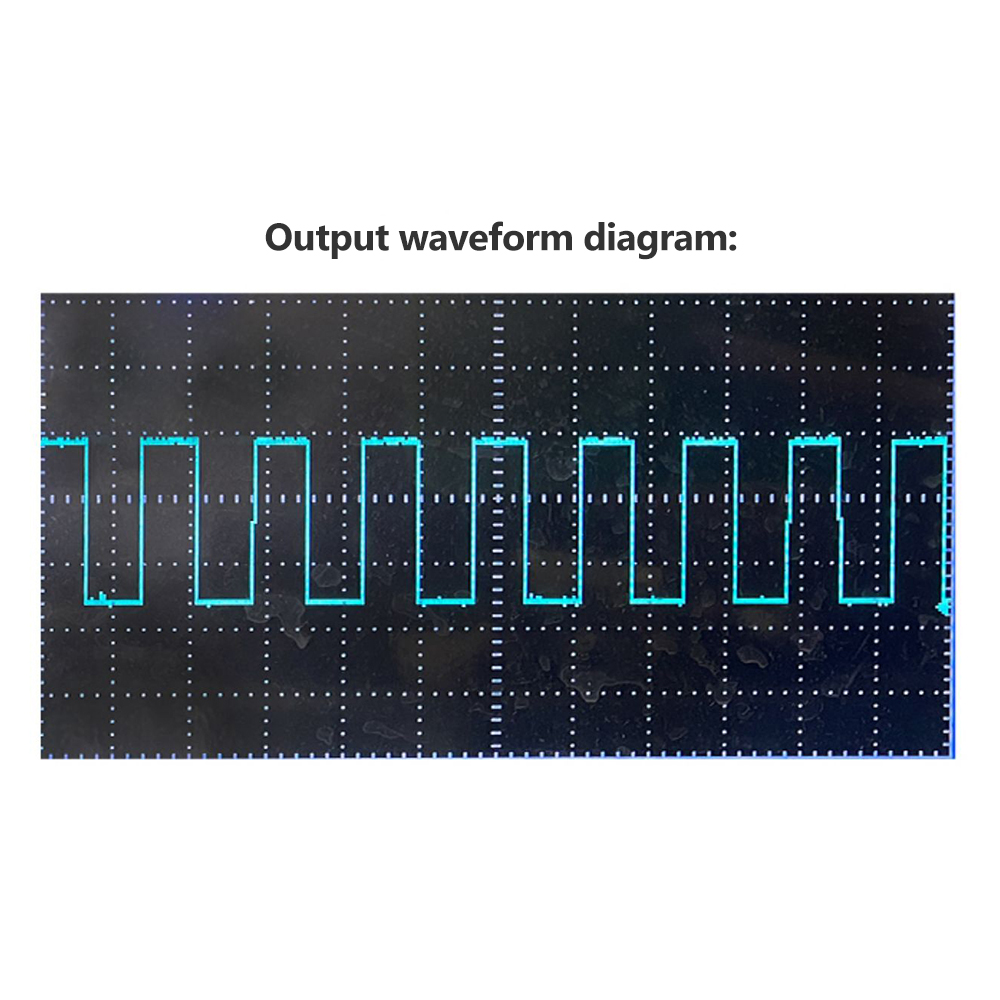

Output pulse high level: >DC4.7V (input voltage DC5V)
Output pulse low level: <DC0.5V (input voltage DC5V)
Insulation resistance: >100MQ
Flow range: 1～30L\MIN
Airtightness: Close each hole, add 1.7Mpa water pressure test for 1 minute without leakage and deformation
Flow pulse characteristics: F= (7.5*Q) error≤3%

Instructions for use:
1. In order to prevent particles and debris from entering the sensor, a filter must be installed at the water inlet of the sensor;
2. The installation of the water flow sensor should be inside the equipment or indoors. Do not expose it to harsh environments such as outdoor or humid and high temperature for a long time. The installation of the water flow sensor must avoid vibration and shaking environments and applications, so as not to affect the measurement of the sensor. precision;
3. When the magnetic material or the material that generates magnetic force on the sensor approaches the sensor, its characteristics may change;
4. Do not disassemble the water flow sensor without authorization to prevent damage;
5. The sensor of this structure has not been used, and it may be uncomfortable when it is used for direct replacement;

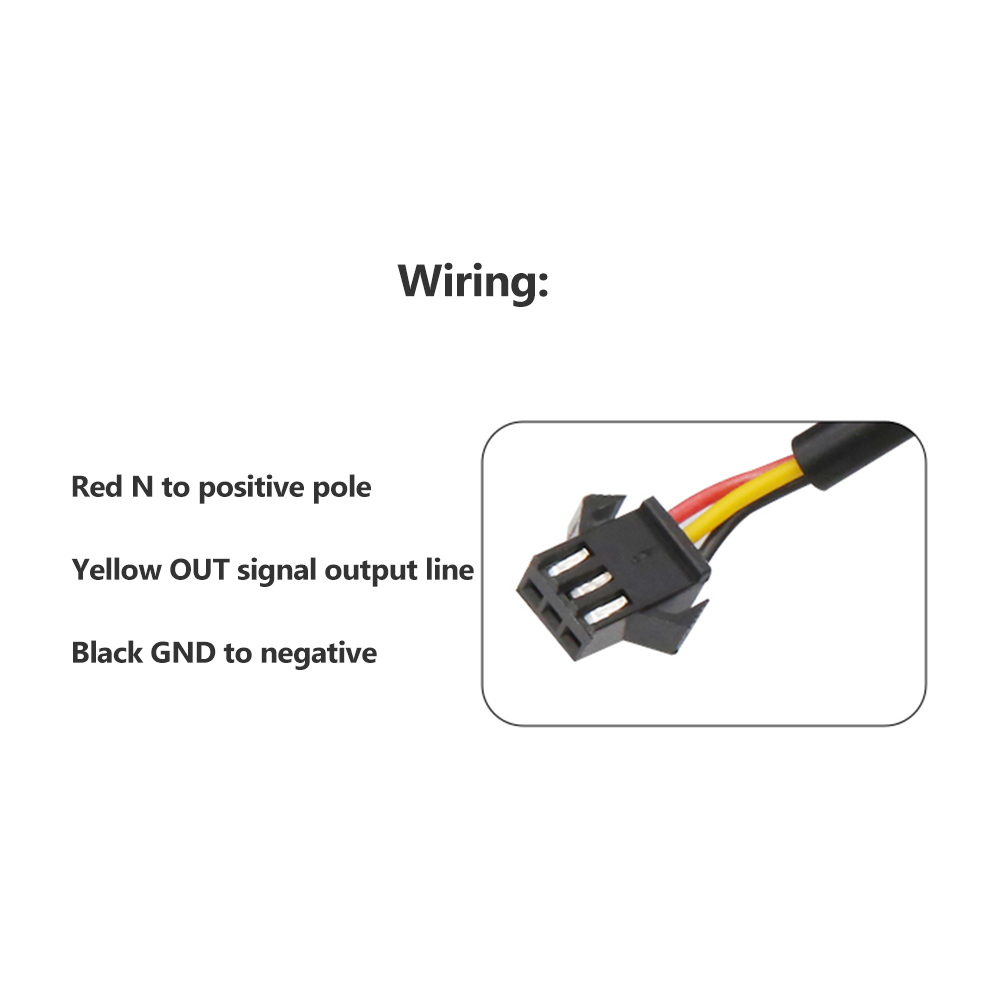

Wiring:
Red IN is connected to the positive pole
Yellow IN signal output line
Black GND to negative pole

Package list:
Water flow sensor* 1
