Details
Product Features:
Output voltage and current continuously adjustable
Easy to use
Easy to operate
Stable performance, input voltage up to 75 volts
Very high efficiency
Output voltage and current continuously adjustable
Easy to use
Easy to operate
Stable performance, input voltage up to 75 volts
Very high efficiency
Main features of power supply module:
*The module adopts step rectification scheme with high efficiency, the highest efficiency is up to 95%.
*Continuously adjustable output voltage and current
*Input voltage up to 75 volts, output voltage up to 60V (at input 75 volts) maximum current 25A.
Product parameters:
Product Model: SZ-8025CCCV

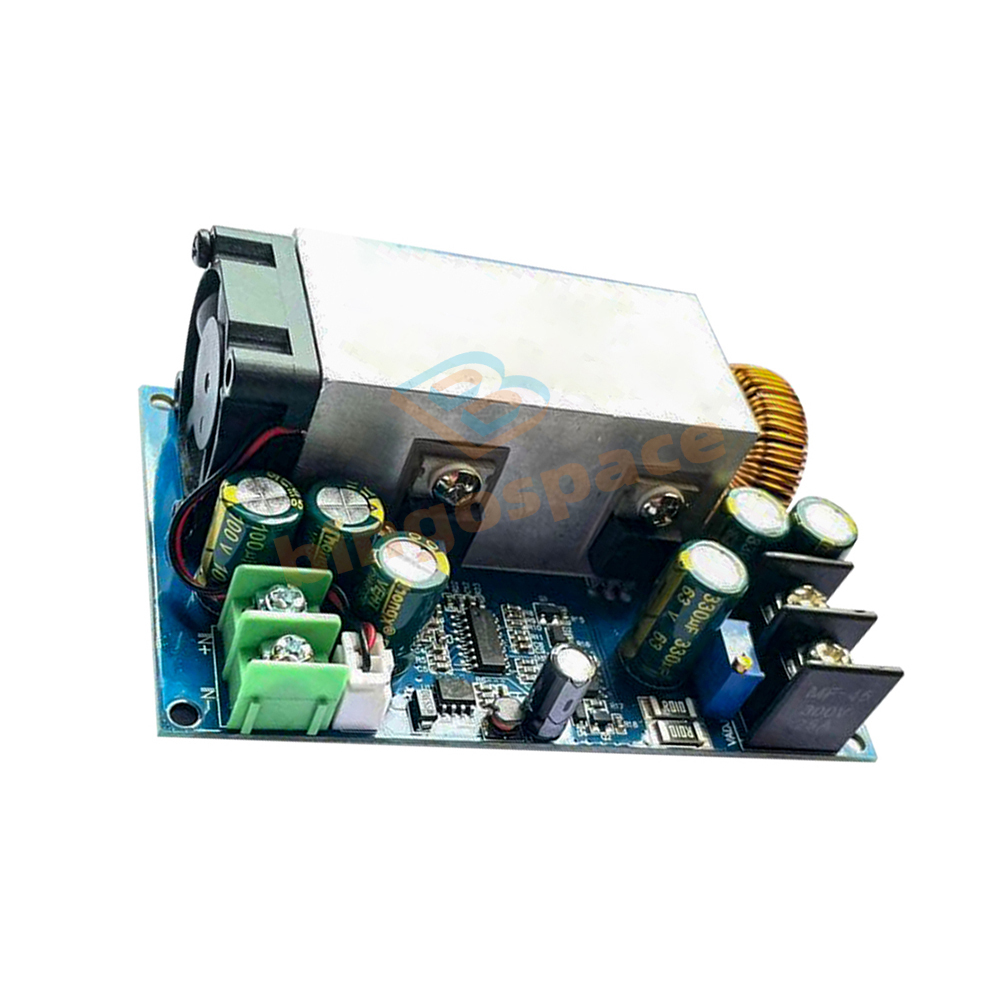

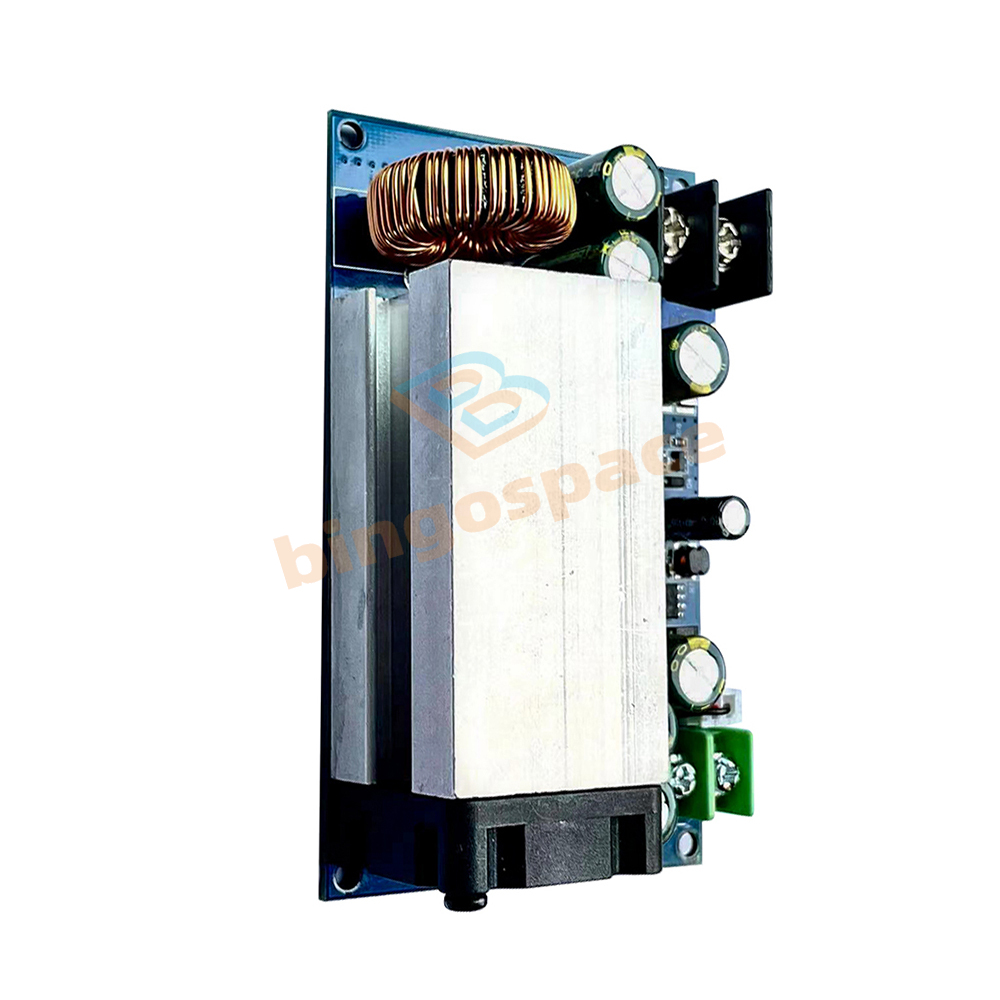

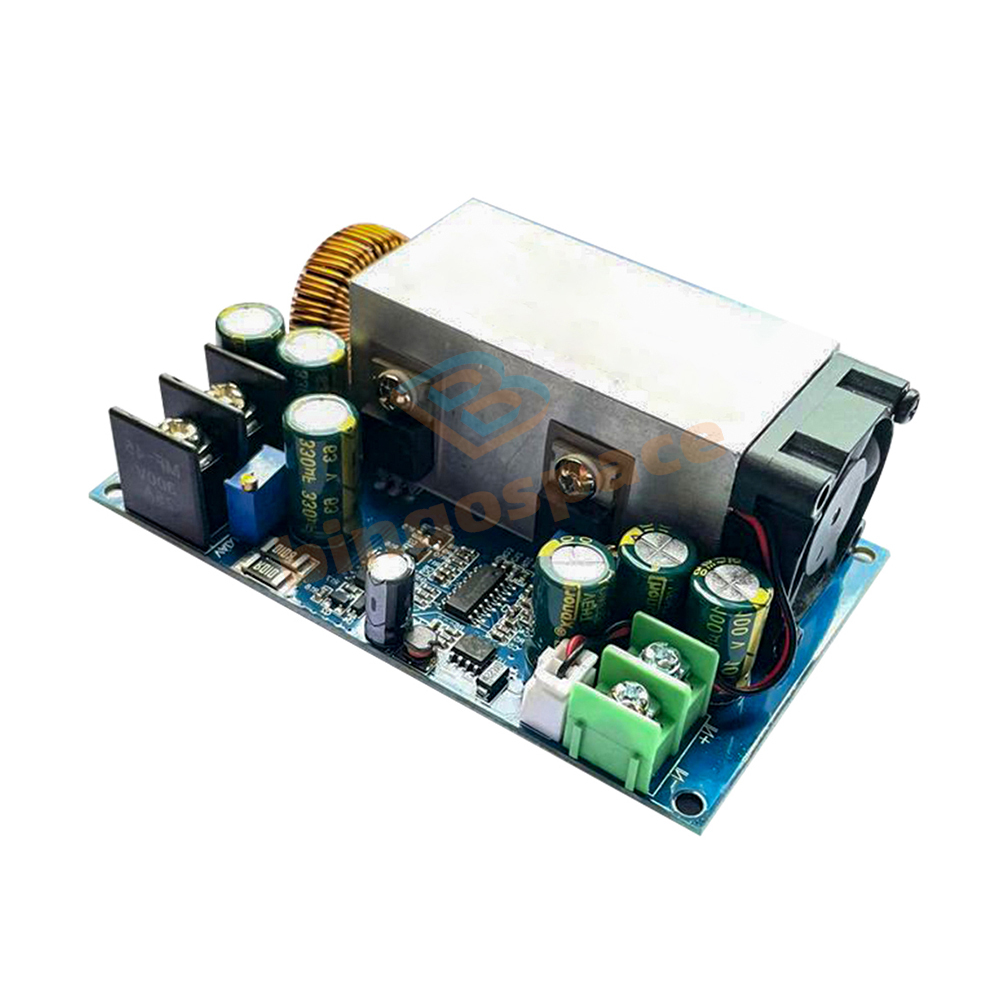

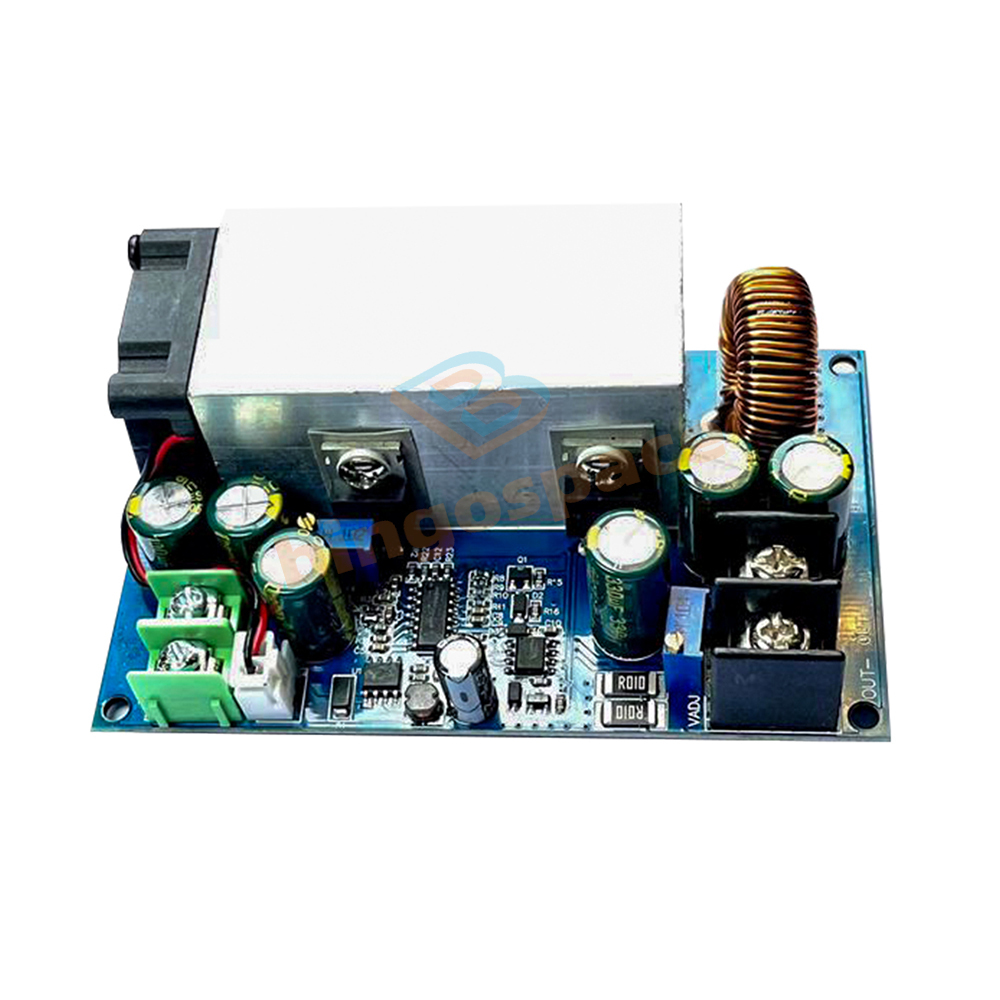

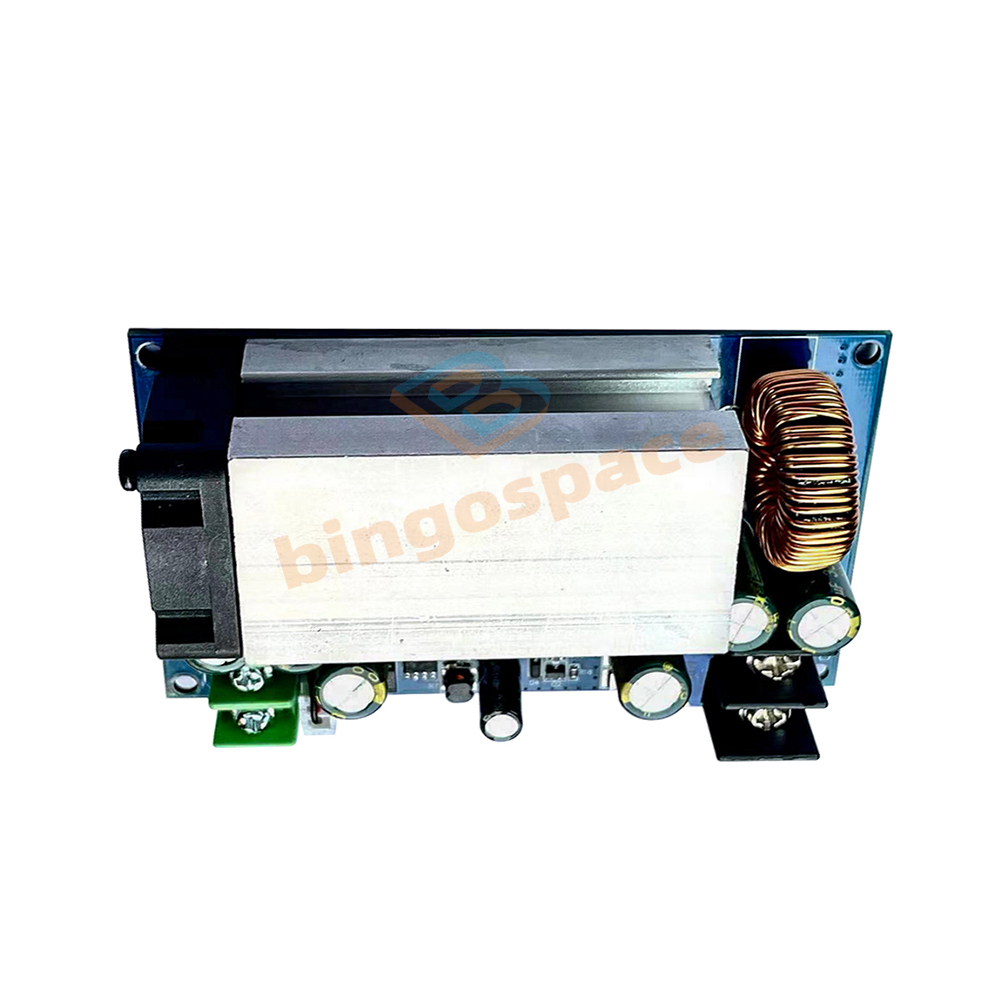

Module name: 600w buck constant voltage constant current adjustable power supply module
Module nature: non-isolated buck module (BUCK)
Input voltage:12-75V
Output voltage range: 2.5-60V (must meet the buck condition, IN input multiplied by 0.8)
Output minimum voltage: 2.5V
Output maximum voltage: approximately equal to the input voltage * 0.8 (for example, the input is 40V, 40V * 0.8 = 32V maximum output voltage is 32V.)
Output constant current: 1-25A (continuously adjustable,)
Maximum output power: 600W (working environment must be well ventilated)
Continuous maximum working power: 500W (ventilated environment)
Continuous maximum working current: 25A (under ventilated environment)
Heat dissipation mode: air-cooled heat dissipation
Input undervoltage protection: No
Input over-voltage protection: None (over-voltage prohibited)
Operating temperature: -10~+65 degrees
Operating frequency: 80KHz
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current and differential pressure)
Short circuit protection: Yes (constant current protection)
Input reverse connection protection: no
Output anti-reflow: no (to charge the battery, the output connected to inductive loads, such as connected to the motor must add anti-reflow diode)
Work indicator: Yes (output voltage blue LED)
Wiring method: comes with no welding terminals
Module size: about 100mm long by 60mm wide by 35mm high
Net weight: about 140 grams

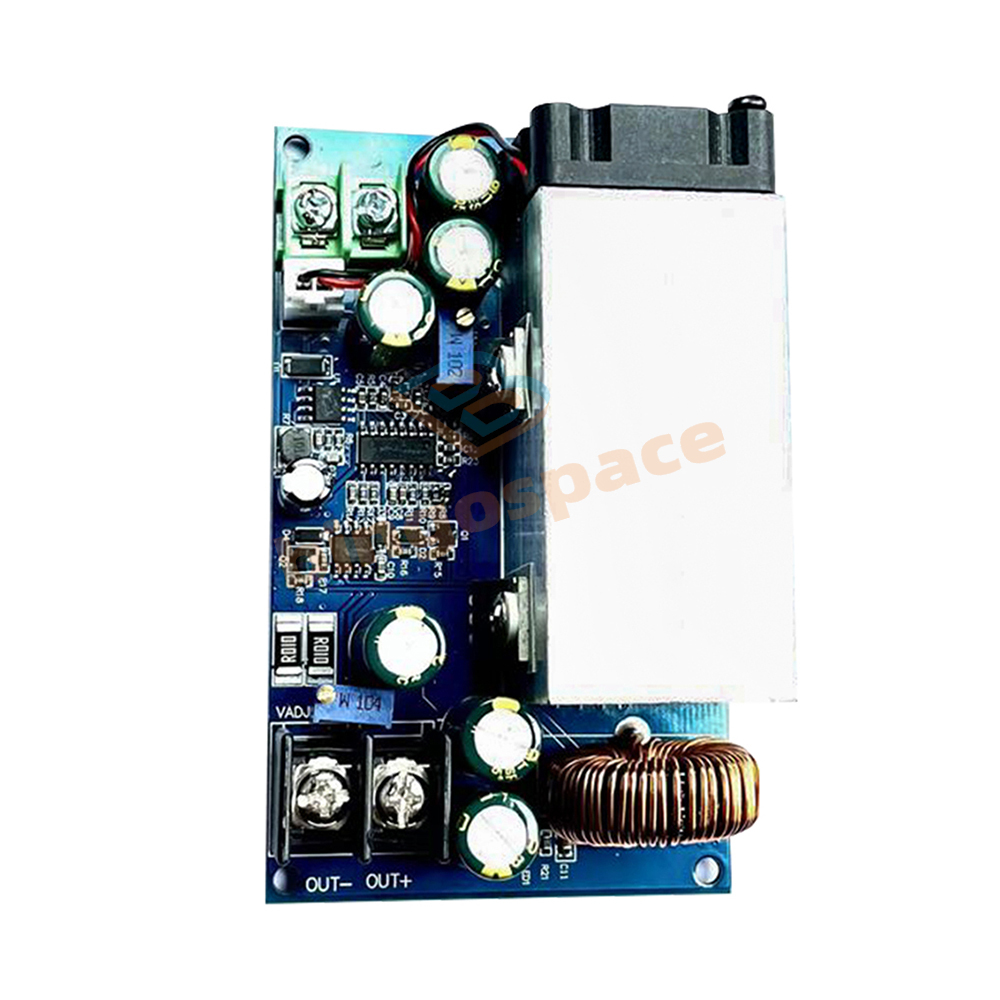

Wiring: "IN" for input.
"OUT" for output
Product list:
1X power module
Copyright©2018 datacaciques
Top & Fast Shipping！
Get The Right At The Right Price！

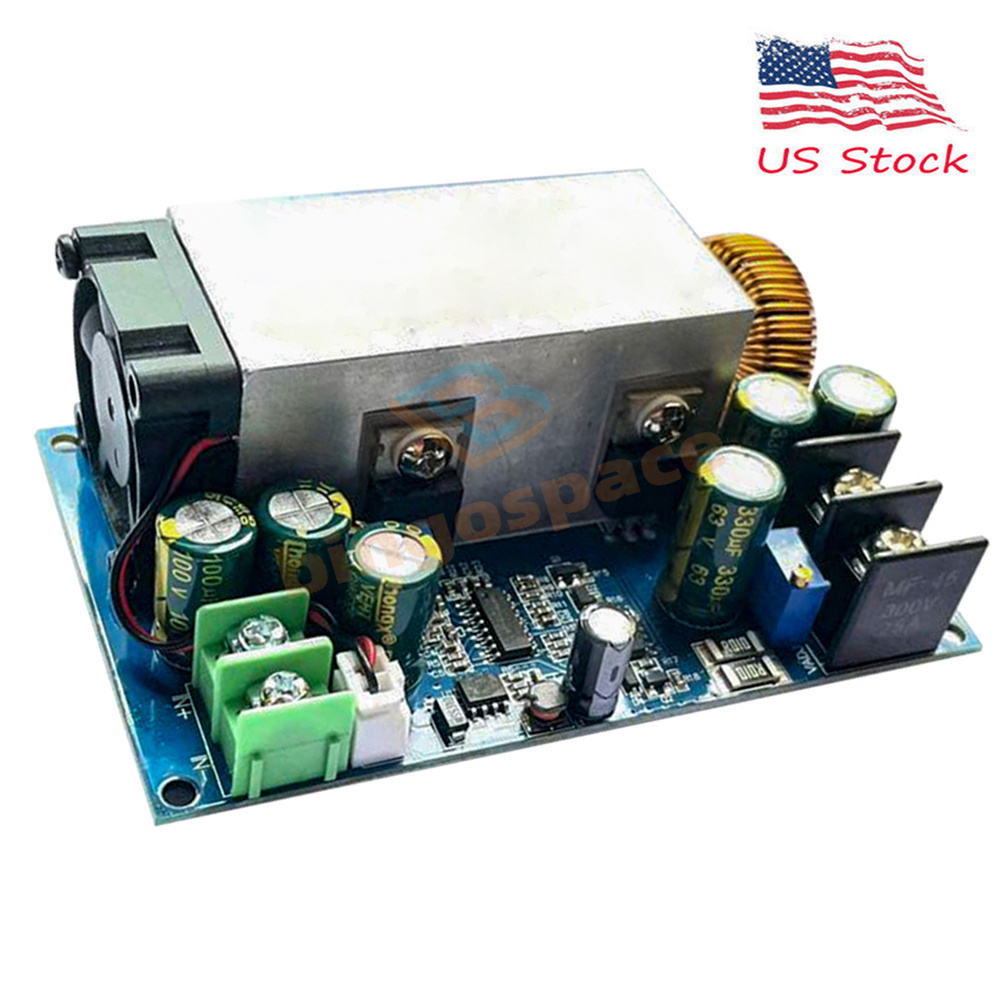

25A 600W DC-DC Adjustable Step-down Buck Converter Power Supply Module US
DESCRIPTION
Product Features:
Output voltage and current continuously adjustable
Easy to use
Easy to operate
Stable performance, input voltage up to 75 volts
Very high efficiency
Output voltage and current continuously adjustable
Easy to use
Easy to operate
Stable performance, input voltage up to 75 volts
Very high efficiency
Main features of power supply module:
*The module adopts step rectification scheme with high efficiency, the highest efficiency is up to 95%.
*Continuously adjustable output voltage and current
*Input voltage up to 75 volts, output voltage up to 60V (at input 75 volts) maximum current 25A.
Product parameters:
Product Model: SZ-8025CCCV
Module name: 600w buck constant voltage constant current adjustable power supply module
Module nature: non-isolated buck module (BUCK)
Input voltage:12-75V
Output voltage range: 2.5-60V (must meet the buck condition, IN input multiplied by 0.8)
Output minimum voltage: 2.5V
Output maximum voltage: approximately equal to the input voltage * 0.8 (for example, the input is 40V, 40V * 0.8 = 32V maximum output voltage is 32V.)
Output constant current: 1-25A (continuously adjustable,)
Maximum output power: 600W (working environment must be well ventilated)
Continuous maximum working power: 500W (ventilated environment)
Continuous maximum working current: 25A (under ventilated environment)
Heat dissipation mode: air-cooled heat dissipation
Input undervoltage protection: No
Input over-voltage protection: None (over-voltage prohibited)
Operating temperature: -10~+65 degrees
Operating frequency: 80KHz
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current and differential pressure)
Short circuit protection: Yes (constant current protection)
Input reverse connection protection: no
Output anti-reflow: no (to charge the battery, the output connected to inductive loads, such as connected to the motor must add anti-reflow diode)
Work indicator: Yes (output voltage blue LED)
Wiring method: comes with no welding terminals
Module size: about 100mm long by 60mm wide by 35mm high
Net weight: about 140 grams
Wiring: "IN" for input.
"OUT" for output
Product list:
1X power module
