Product Details
Product features:
1.Easy to use, come with pin head, but not welding, easy to use when you can weld yourself in the direction of personal needs;
2.CP2102 module, upgraded TYPE-C interface to TTL, support for USB to serial port, support for UART STC downloader;
3.CP2102 its high degree of integration, built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM and asynchronous serial data bus (UART);
4. Supports modem full-featured signals without any external USB devices;
5. CJMCU-CP2102 works similarly to other USB-UART adapter circuits by virtualising the PC's USB port into a COM port through the driver for expansion purposes.
Product Description:

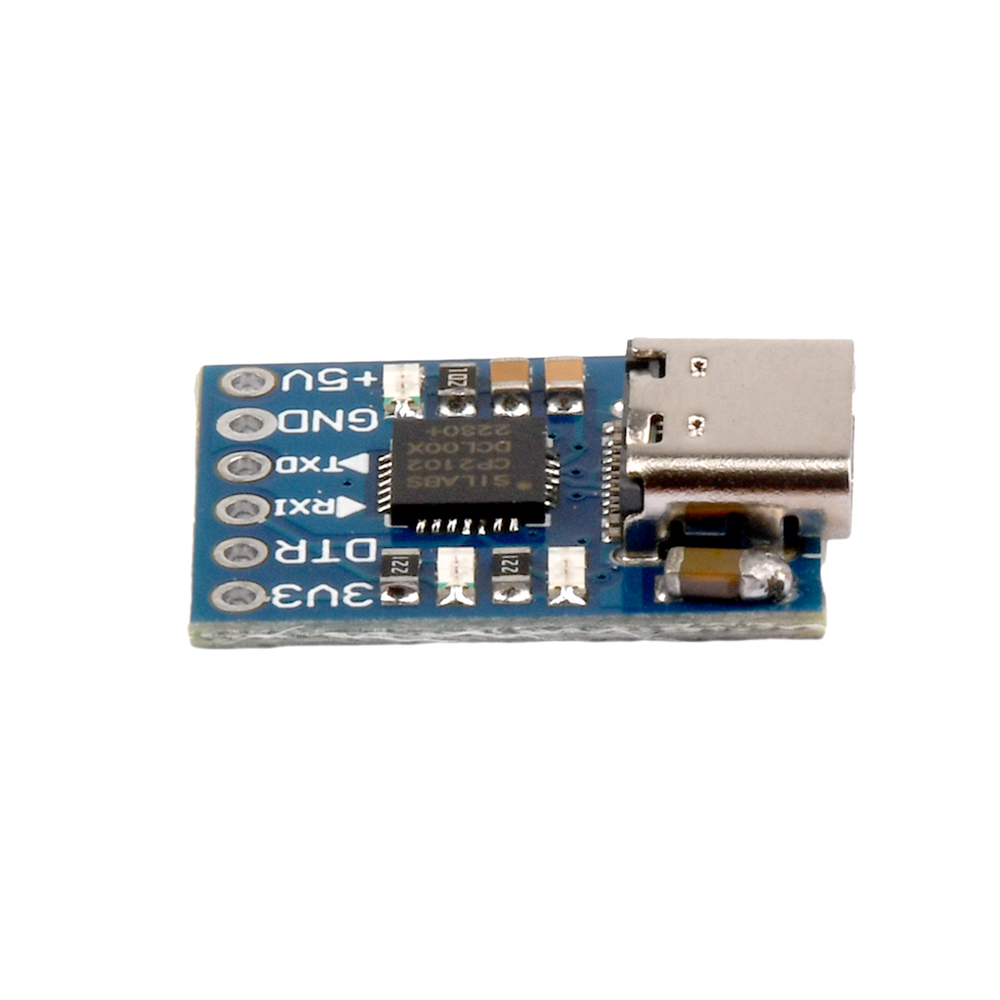

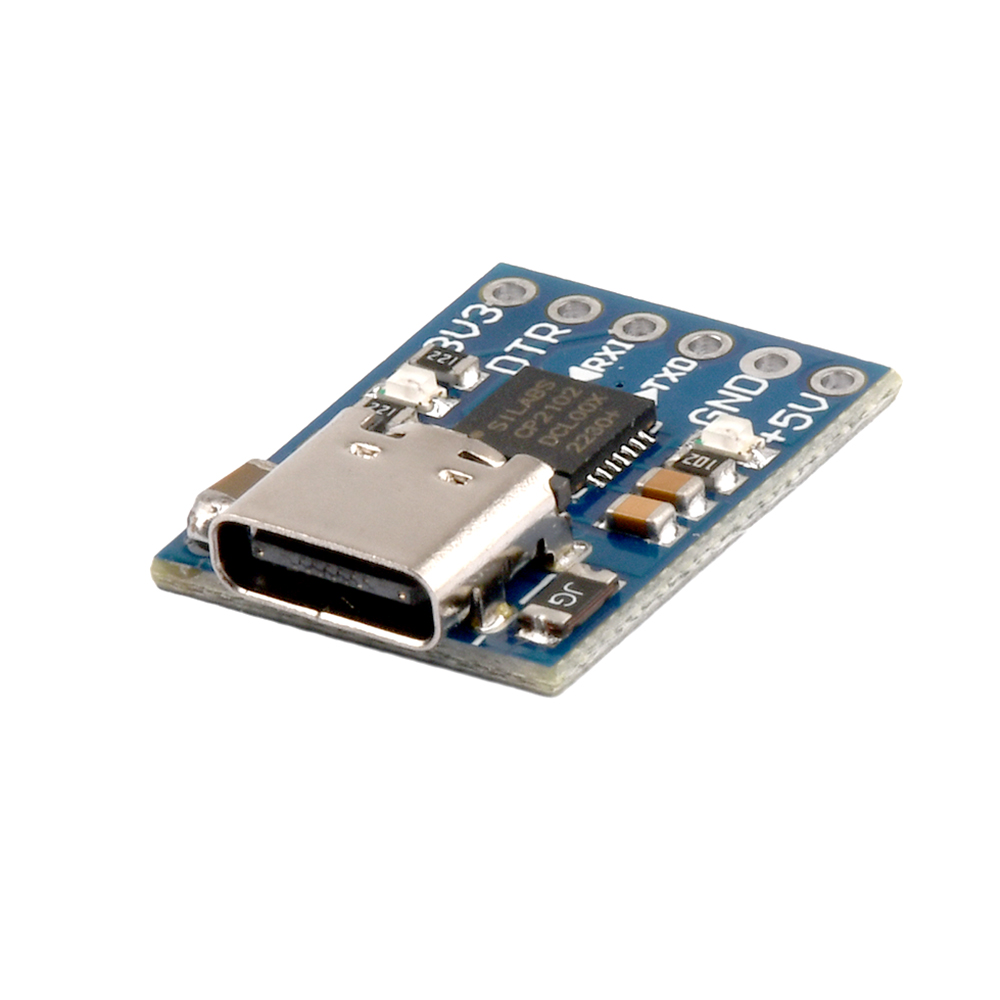

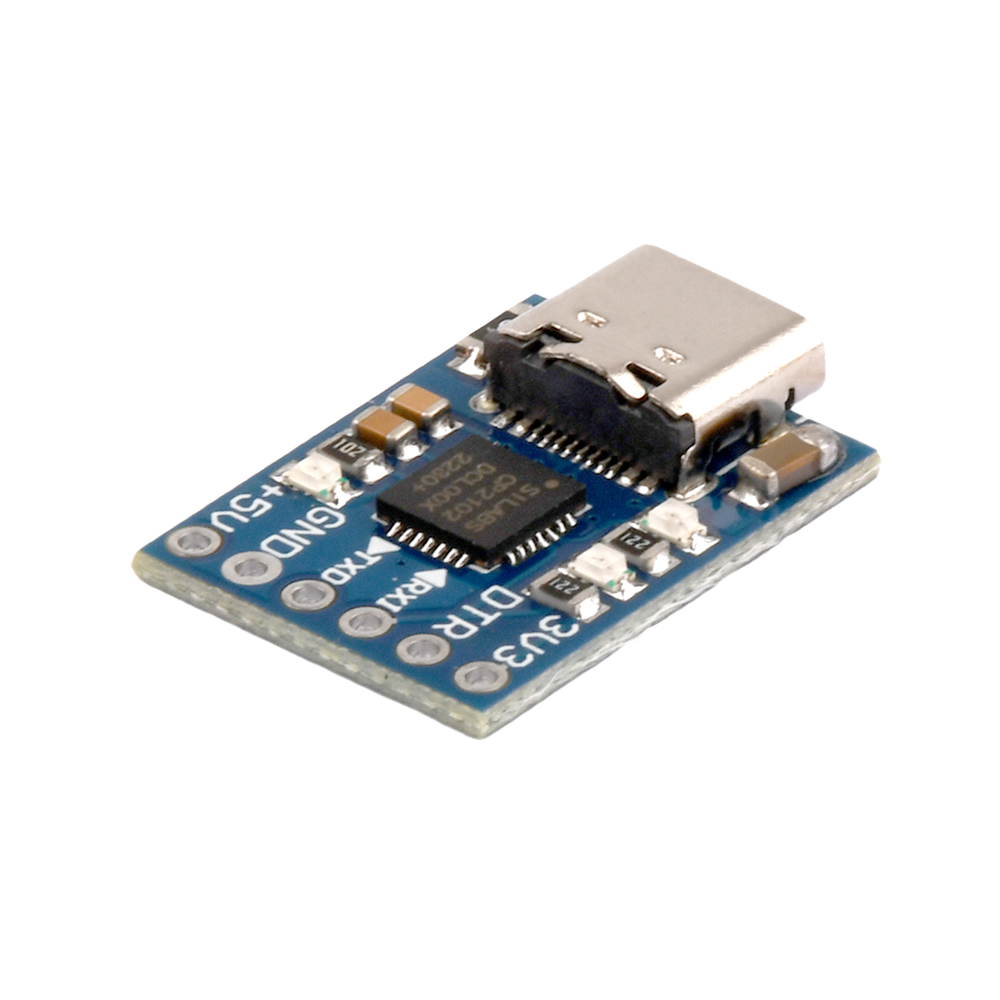

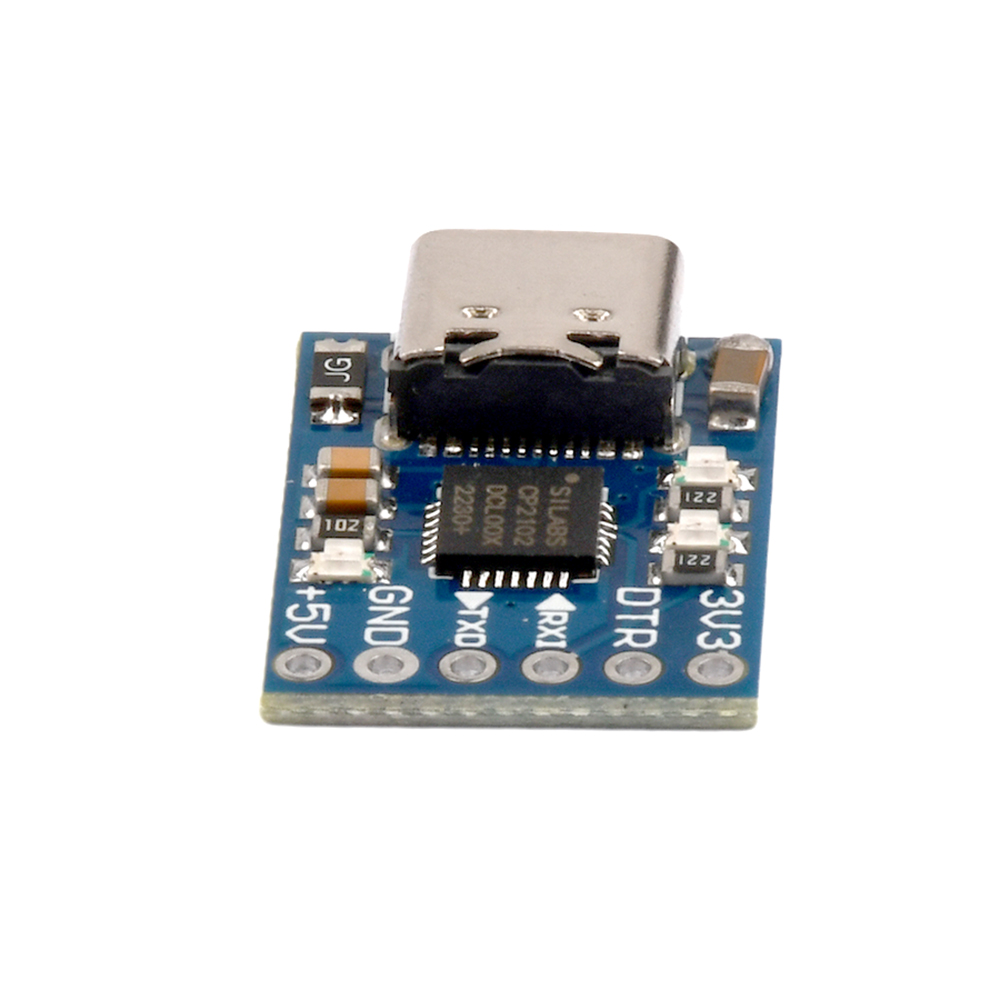

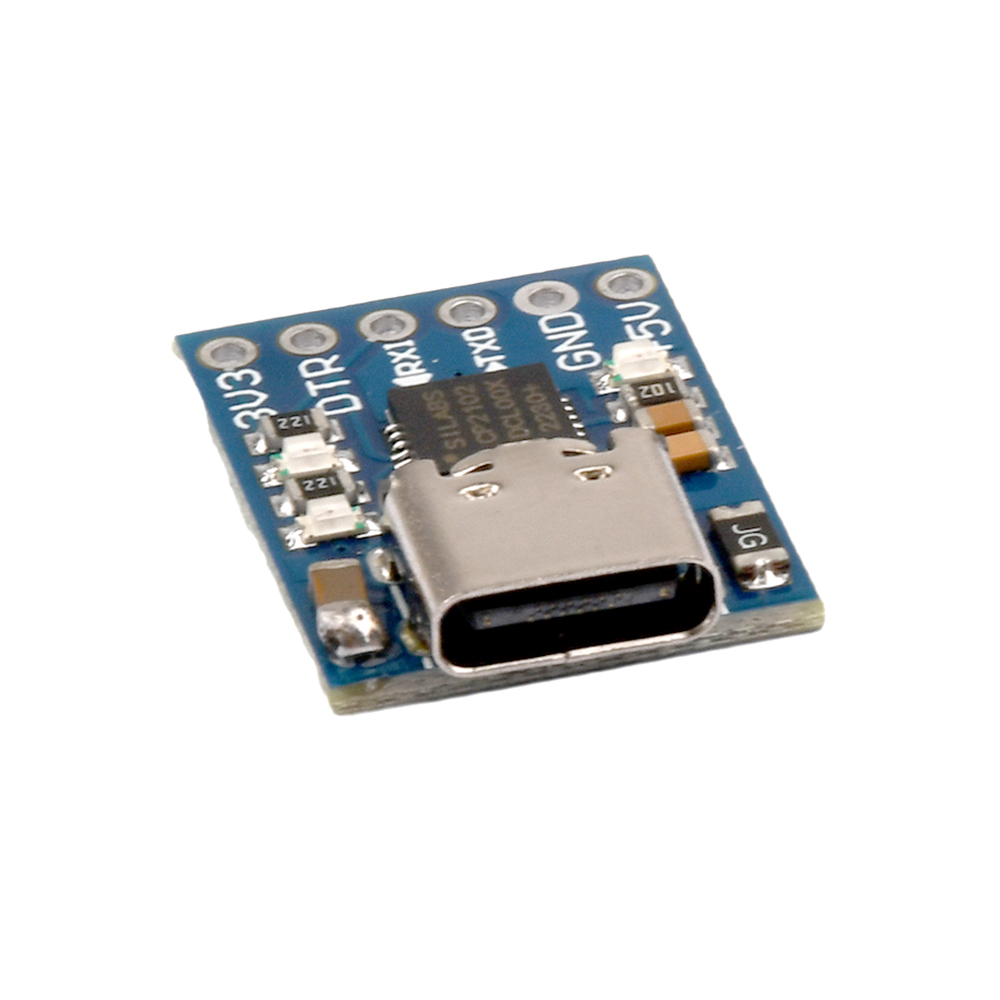

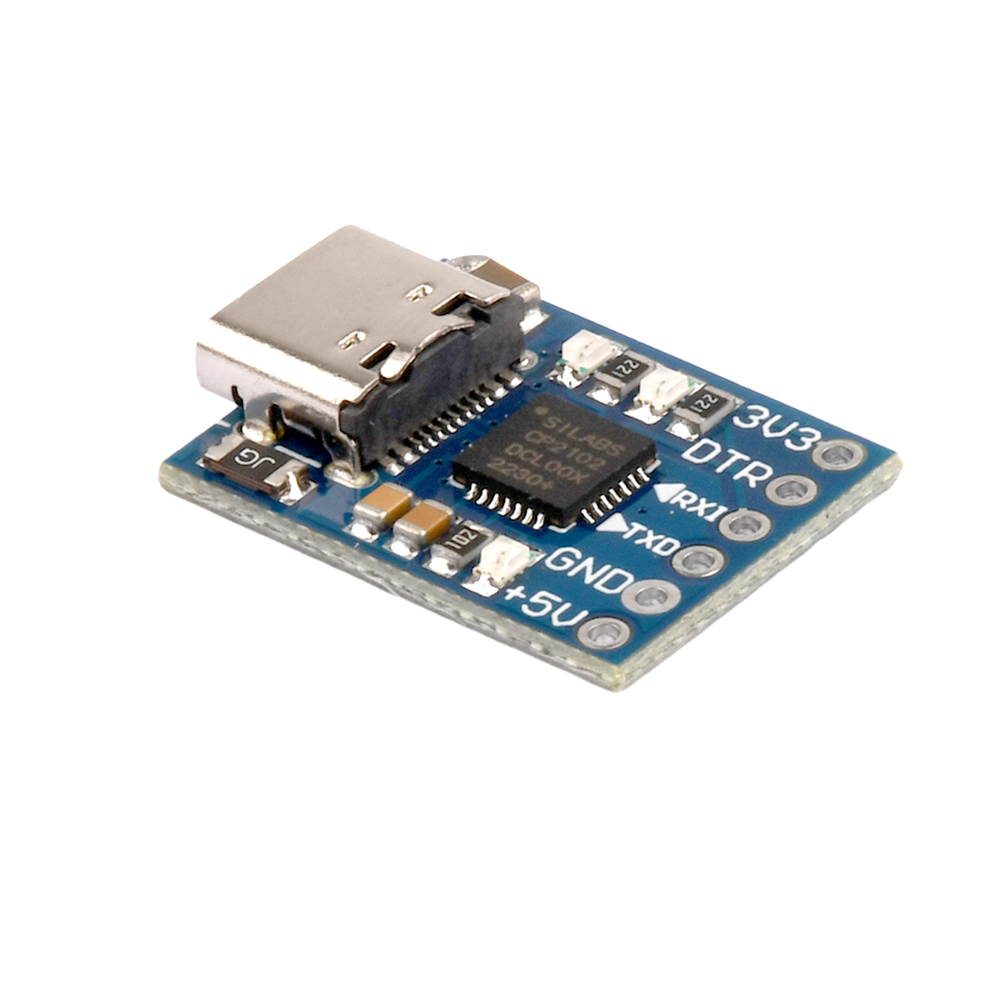

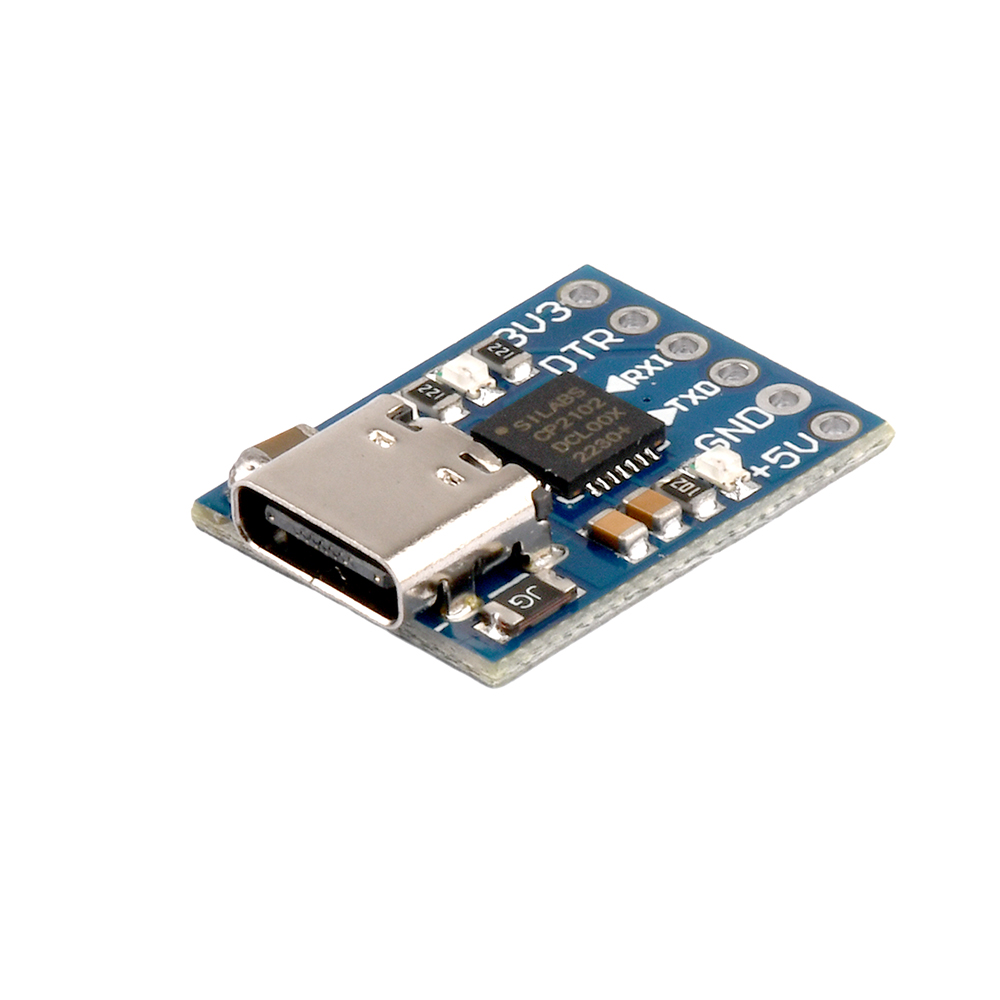

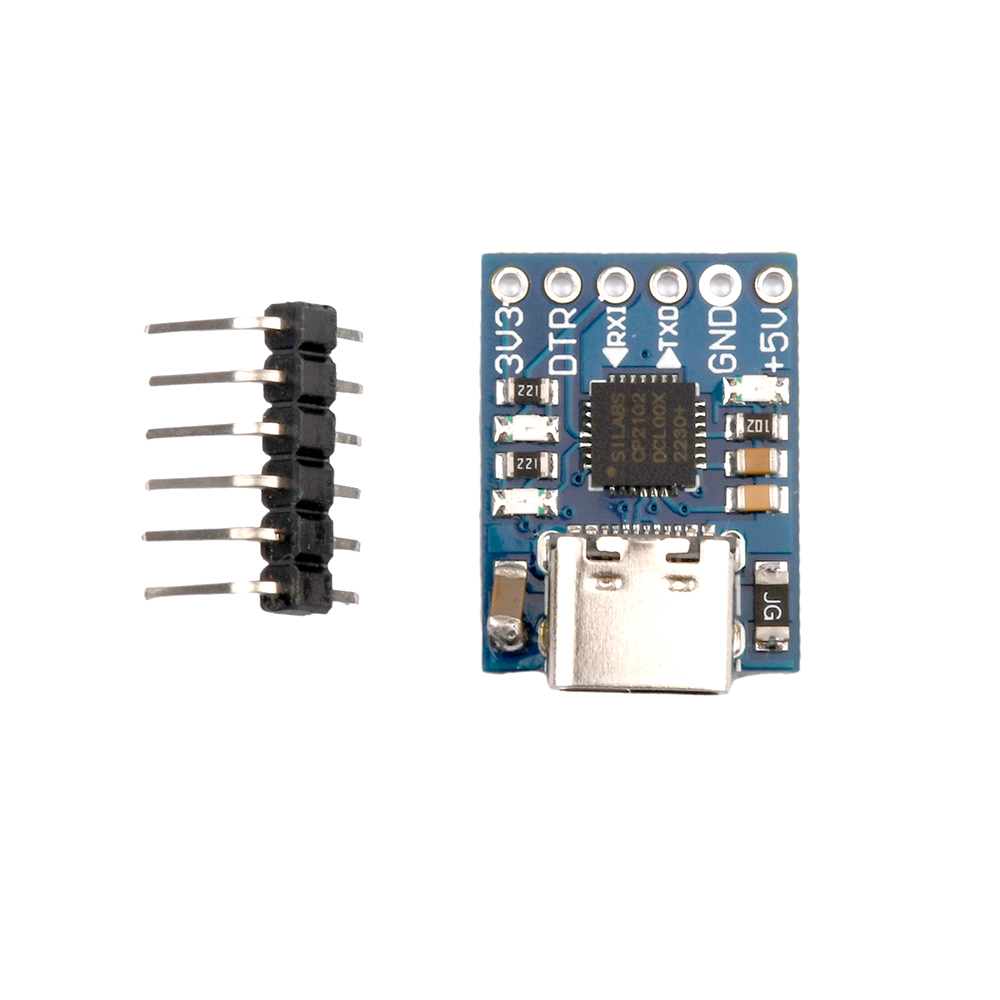

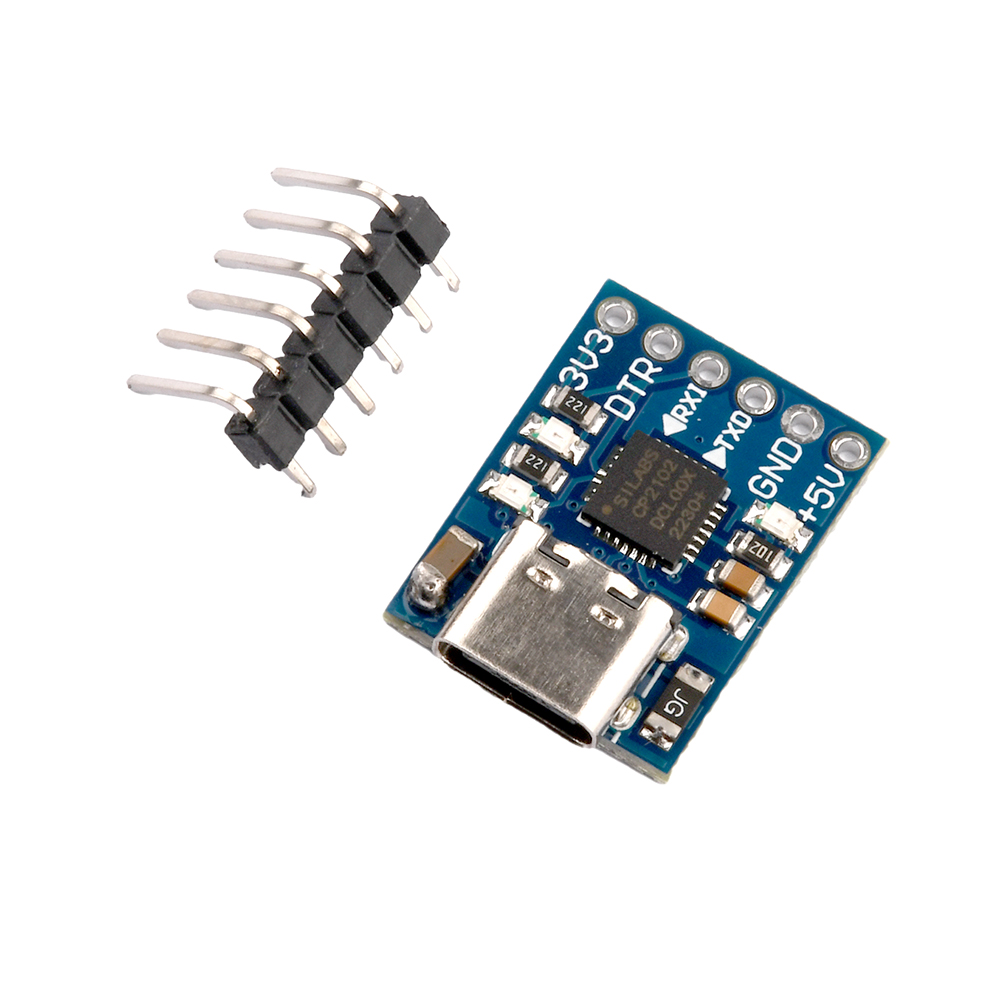

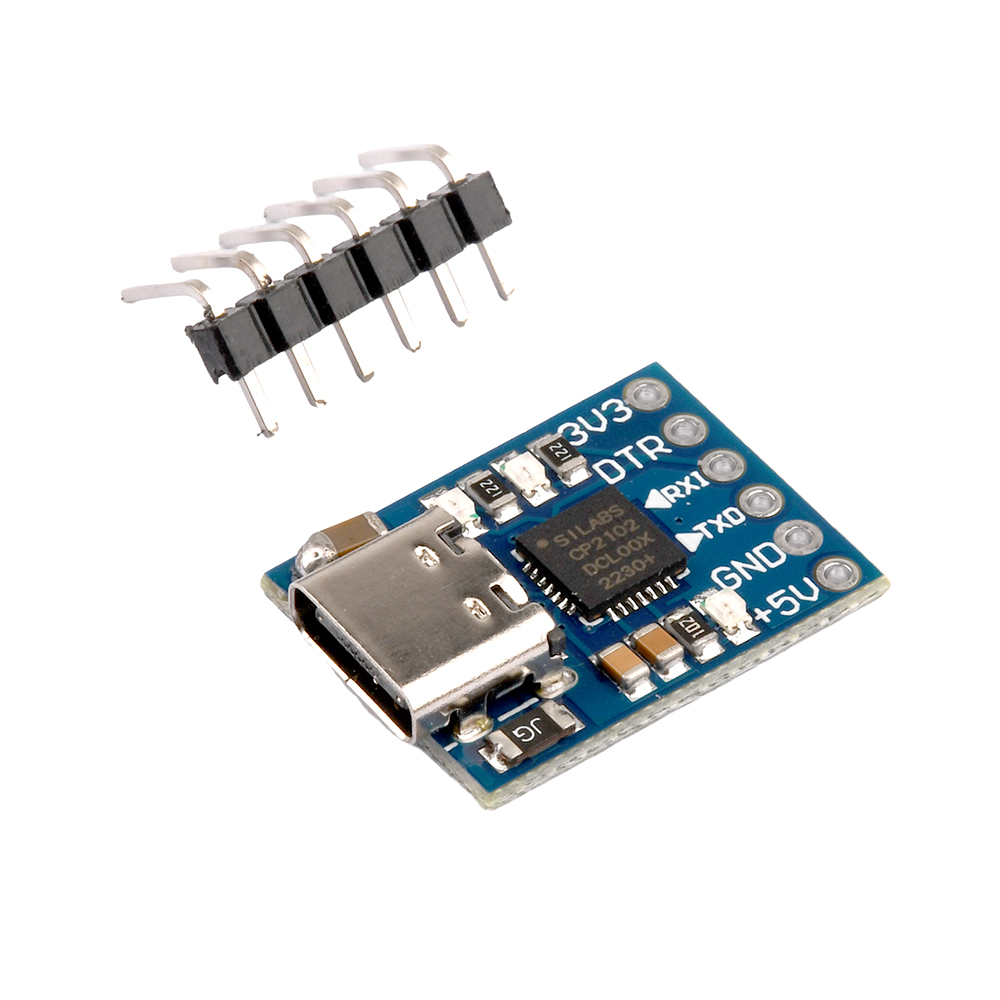

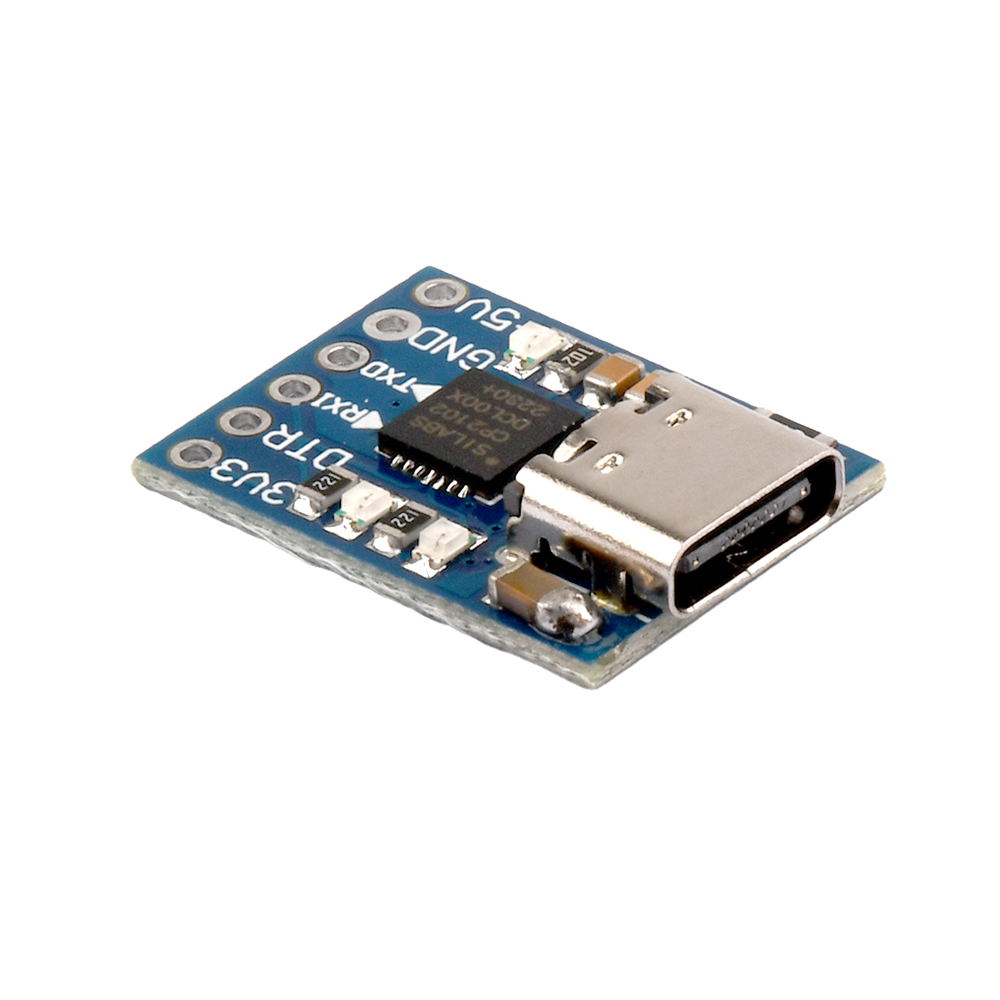

CJMCU-Posture Module Communication USB to TTL Module 5V Power Output TTL Level CP2102 Kernel The CJMCU-CP2102 is a highly integrated USB-UART bridge that can provide an easy solution for RS232 to USB conversion using minimal components and PCB space. To put it simply: users can use the CJMCU-CP2102 to convert USB interfaces to RS232 interfaces.
1, using 2102 chip, after installing the driver to generate COM port.
2, connected to the standard TYPE-C line input to the computer USB interface, with 3.3V and 5V voltage two power outputs
3, on-board status indicator, transceiver indicator, the correct installation of the driver status indicator will always be on, transceiver indicator will blink when the communication, with running LED indicator.
4、Support the baud rate from 300bps~1Mbps.
5、Communication format support: 1) 5,6,7,8 bit data bits; 2) support for 1,1.5,2 stop bit; 3) odd, even, mark, space, none checksums
6、Support operating system: windows 8.1/7/vista/xp/98, Mac OS-X/OS-9
7, USB seat interface for TYPE-C-USB seat
8, SMD components for the regular company welding, stable quality, beautiful appearance
9, with DTR trigger signal output, can be directly to the pro mini ATMEGA328P and other motherboards to download the programme communication.
10, module size: 16mm * 20mm

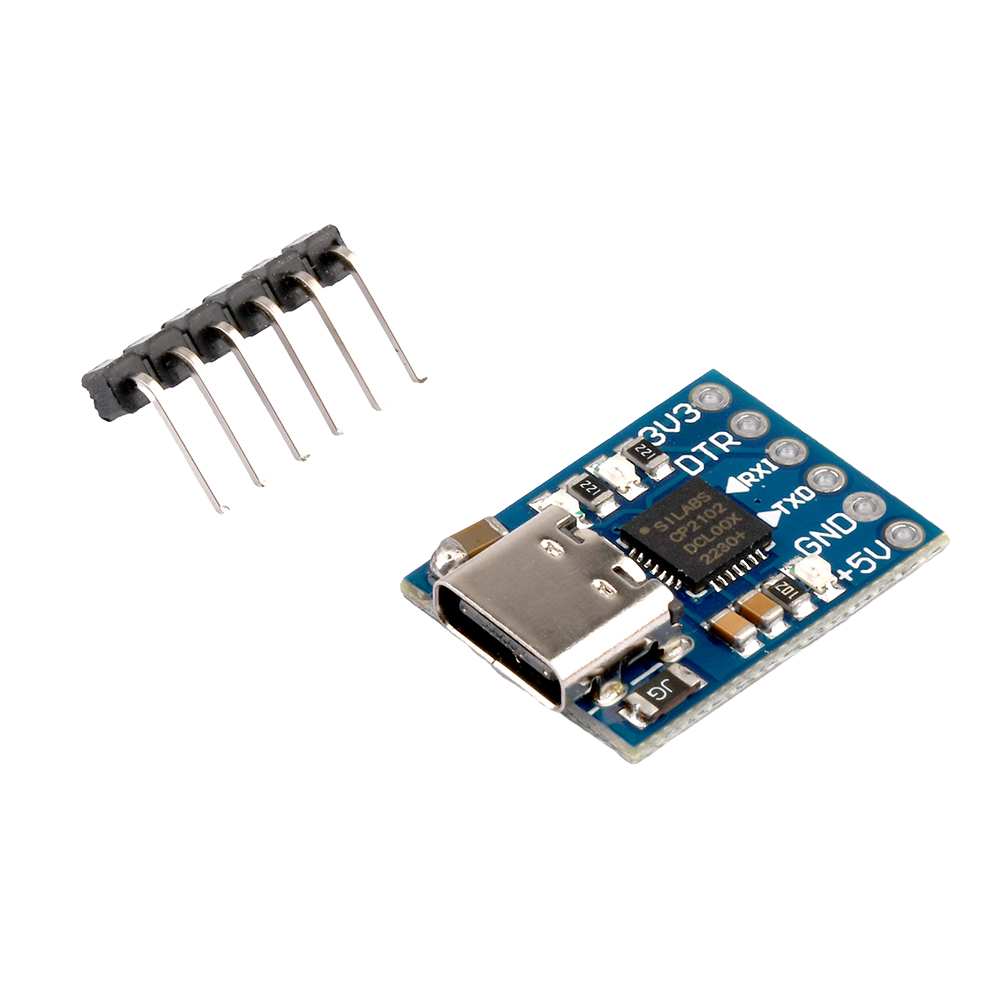

1X module
1X Pin
