Product Details
1. High power output: support dual-channel 2*10W power, at the same time you can connect two 10W speakers, the sound quality is shocking.
2. Multi-functional connection: support USB, TF card, Bluetooth 5.3, FM radio, a variety of playback methods as you wish.
3. Support a variety of music formats: support MP3 / WMA music format, to create a sense of atmosphere of the music experience.
4. microphone function: compatible with wired and wireless microphone, with reverb and acoustic cancellation function.

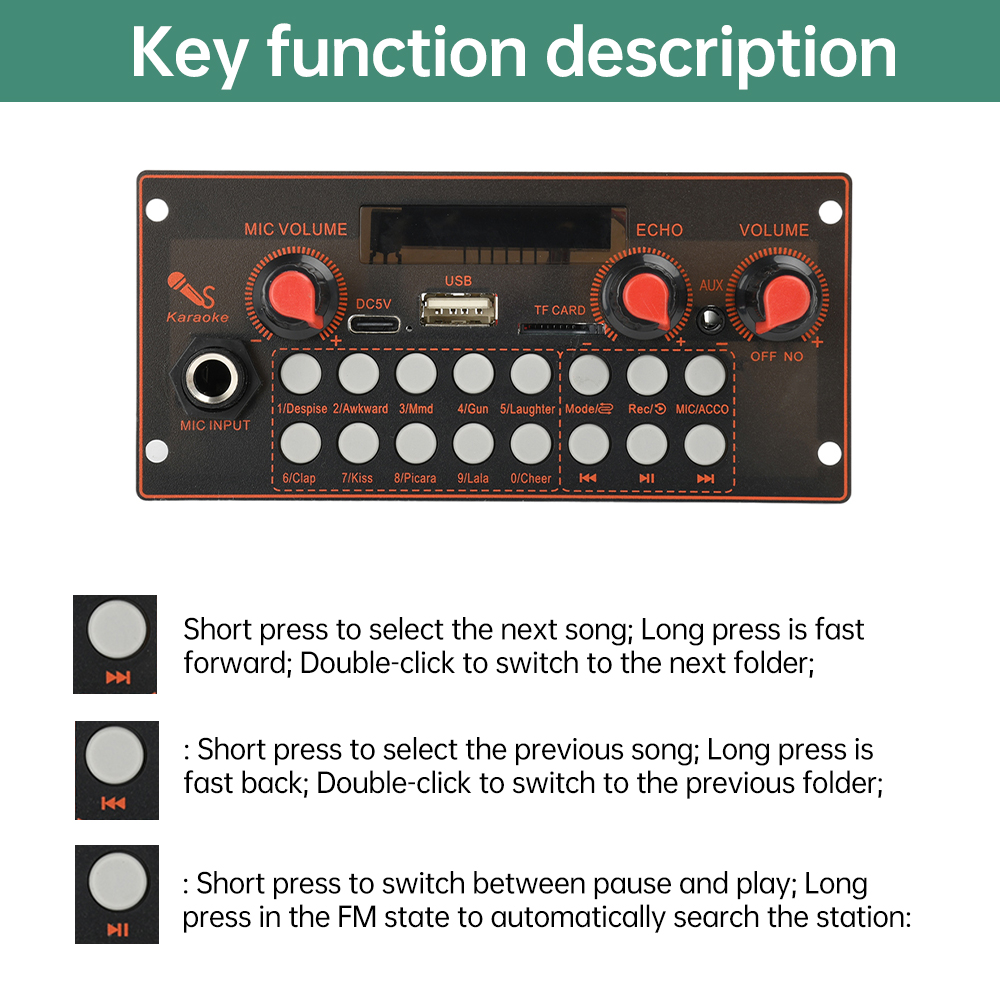

5. Convenient operation design: support folder switching, remote control, panel size is moderate, easy to install.
Power 2*10W
Main control IC:AB5362B
Bluetooth IC:AB5362B
Bluetooth version: 5.3

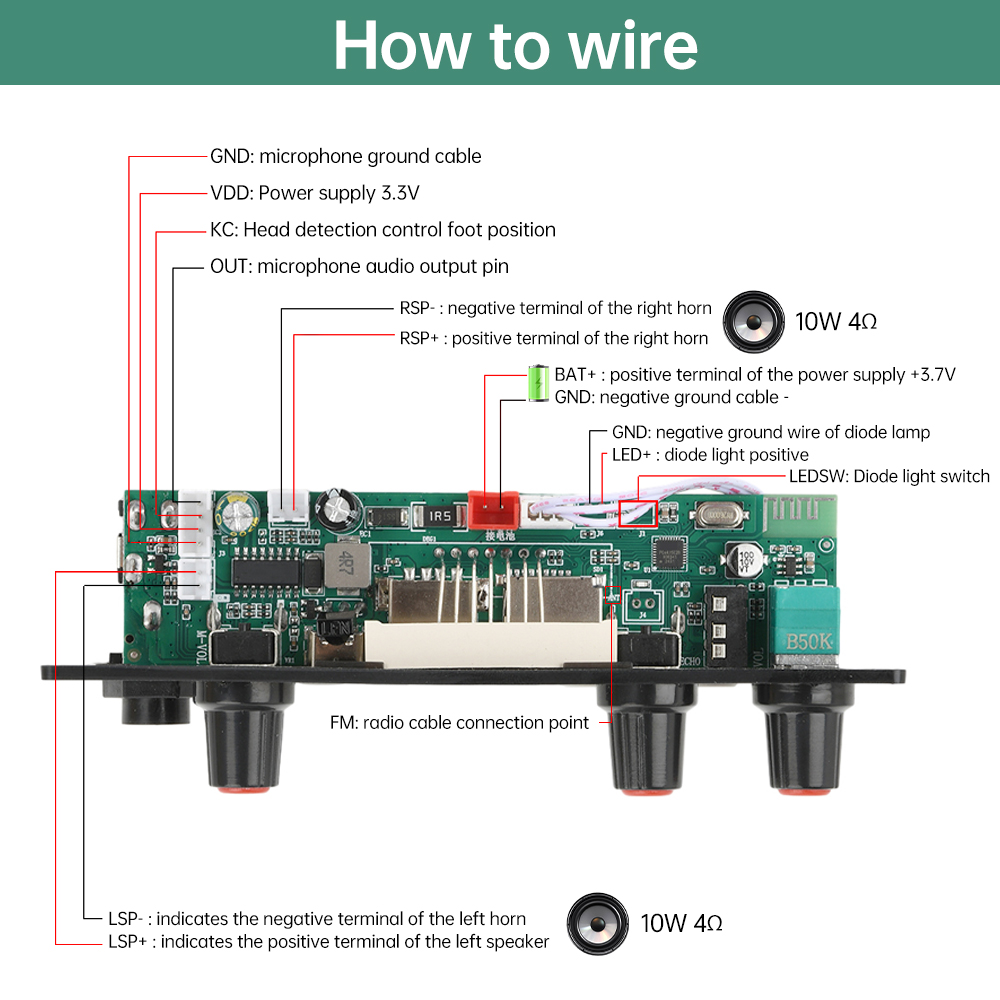

Power supply voltage: 5V (range 3.7V-5V), current above 2A
Amplifier IC: LTK5328
Power: 2*10W, at the same time can connect two 10W speakers

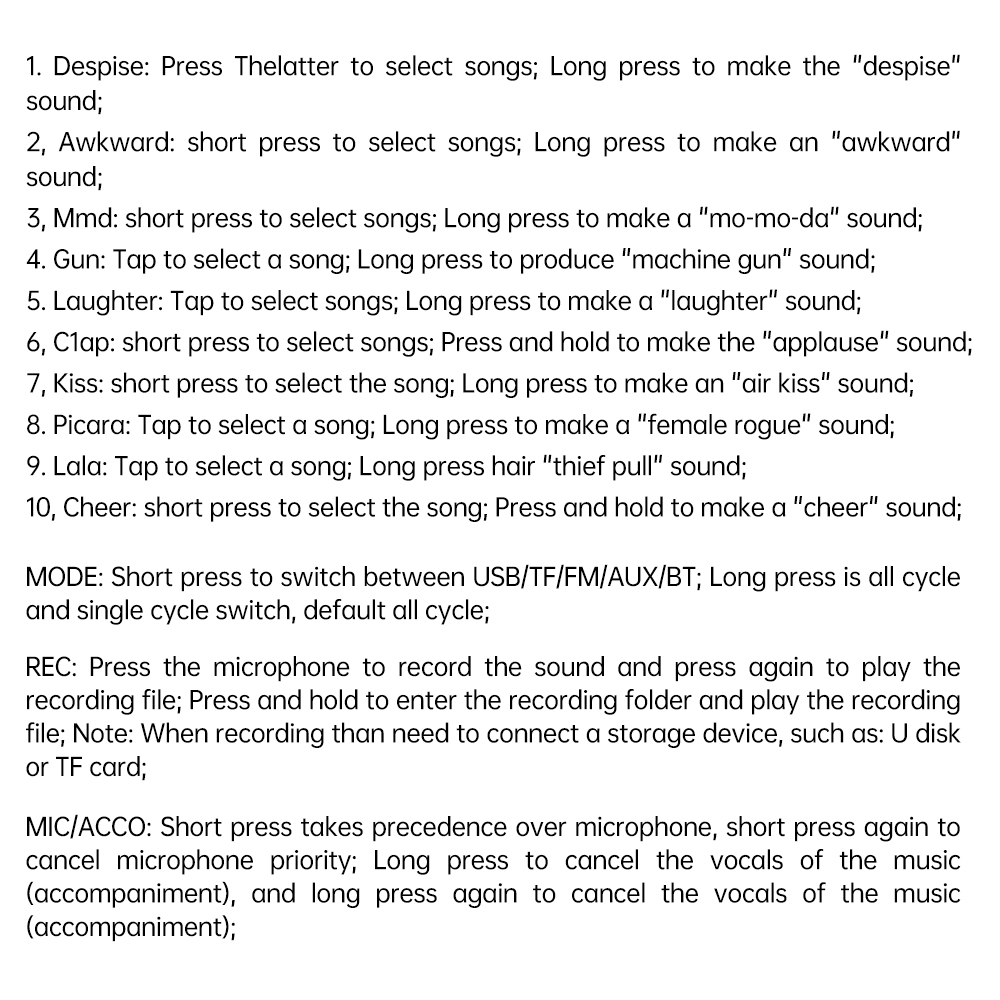

Connection function: connect microphone function, recording function, accompaniment function, folder switching function
Music format: MP3 / WMA music format
Receiving FM frequency: 87.5-107.5 MHZ

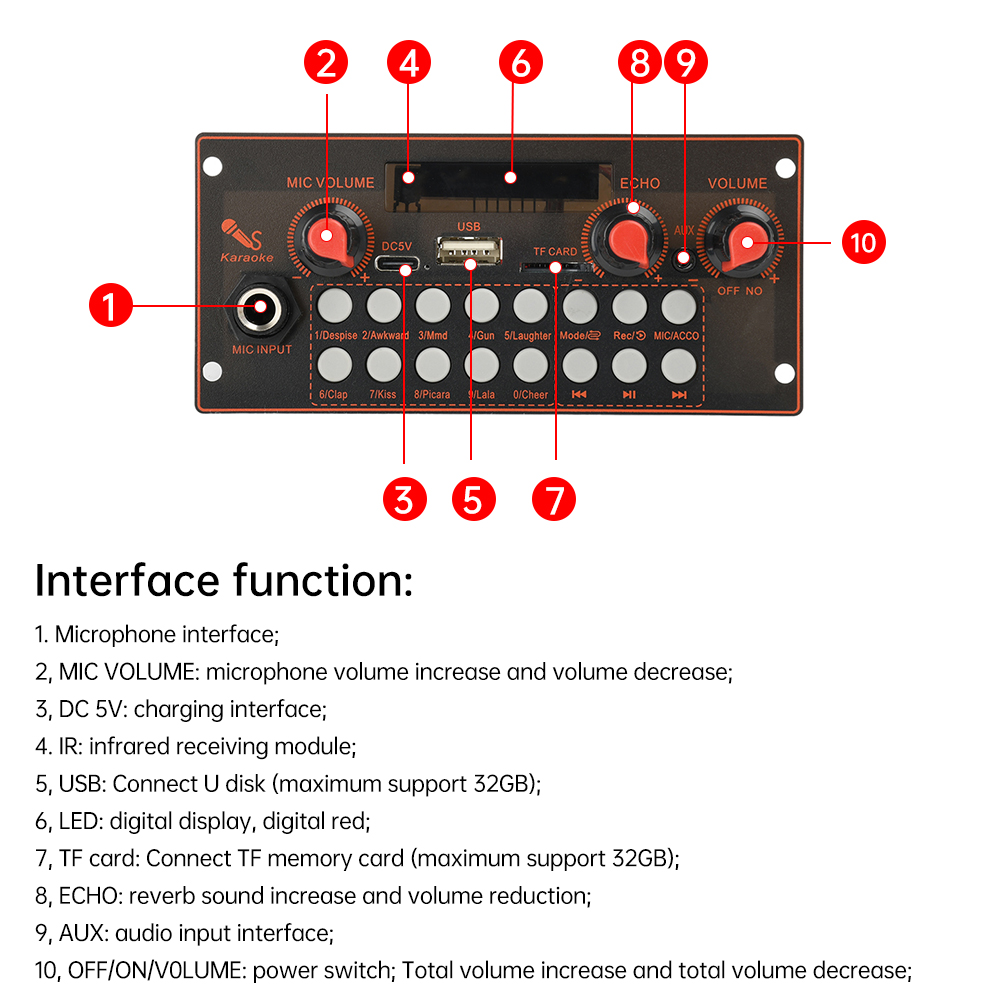

Support function: Support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / Remote Control / DC 5V

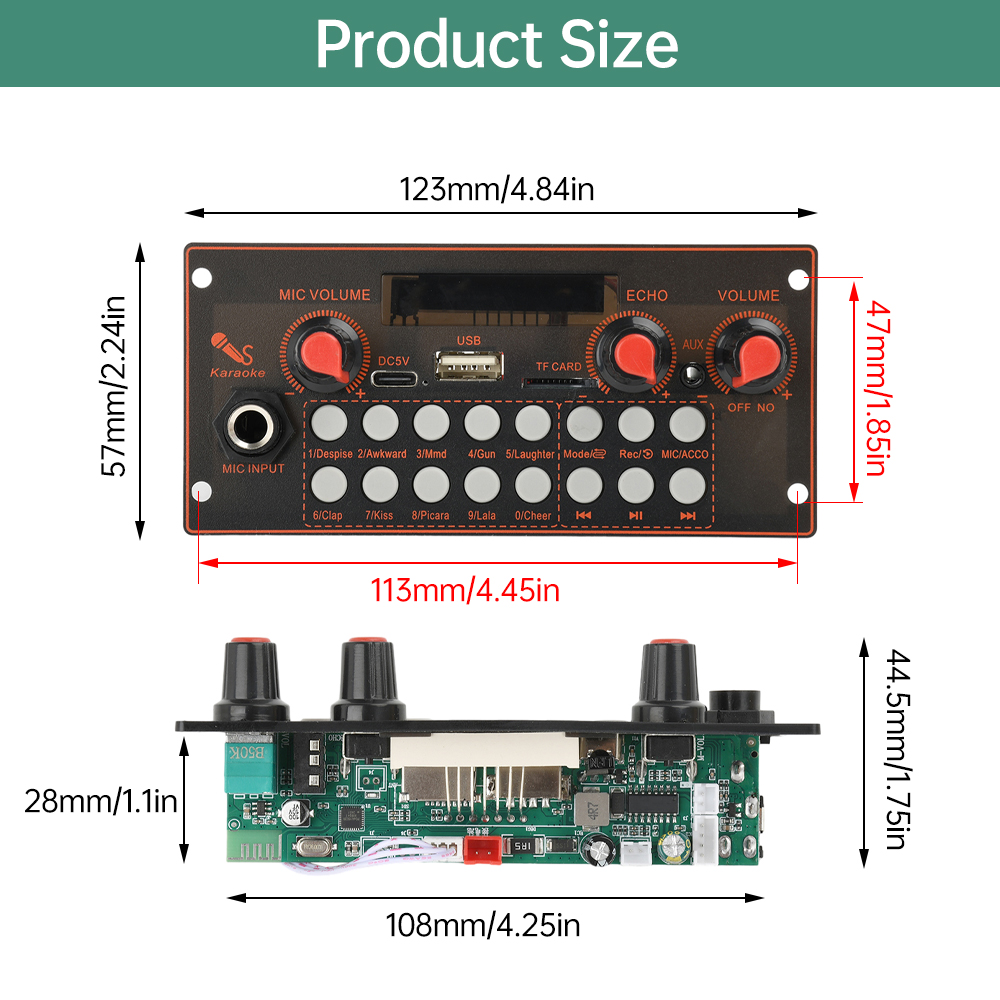

Panel size: 123 * 57 MM; panel corners and screw holes position, the depth of the board is 30 MM

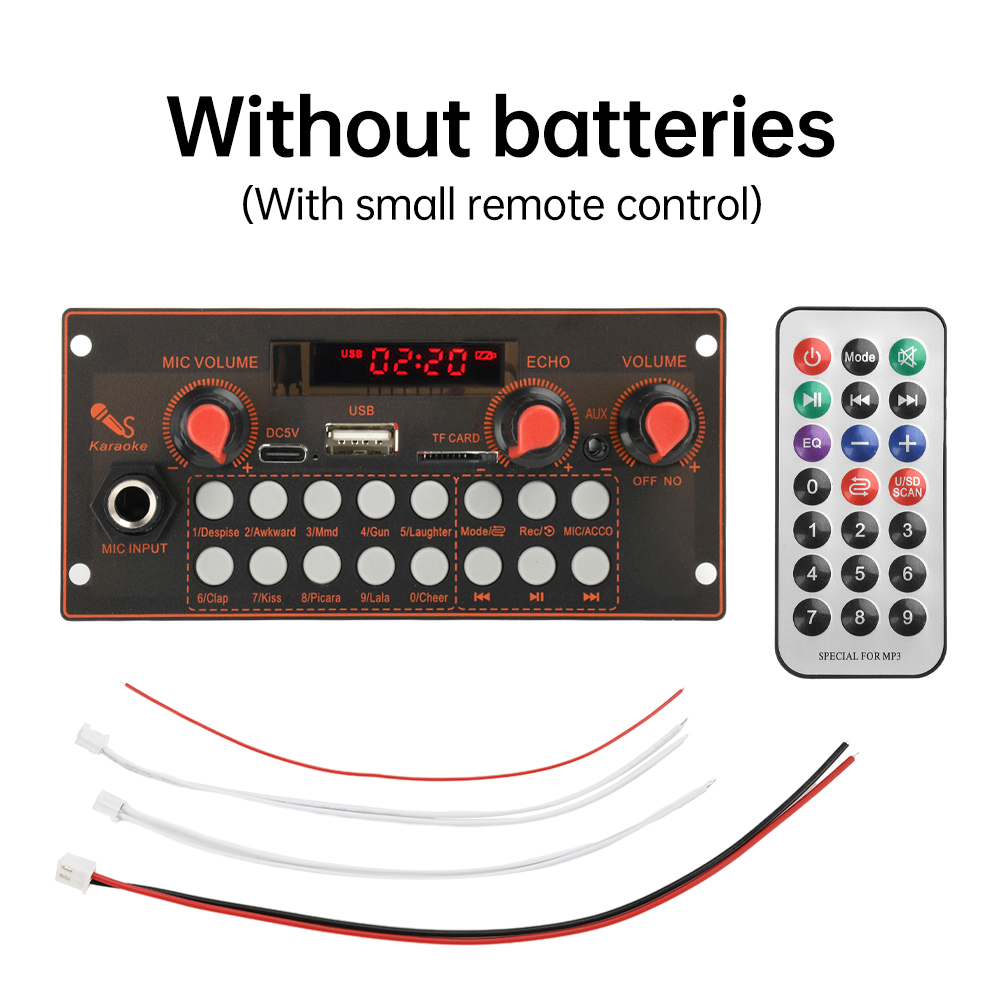

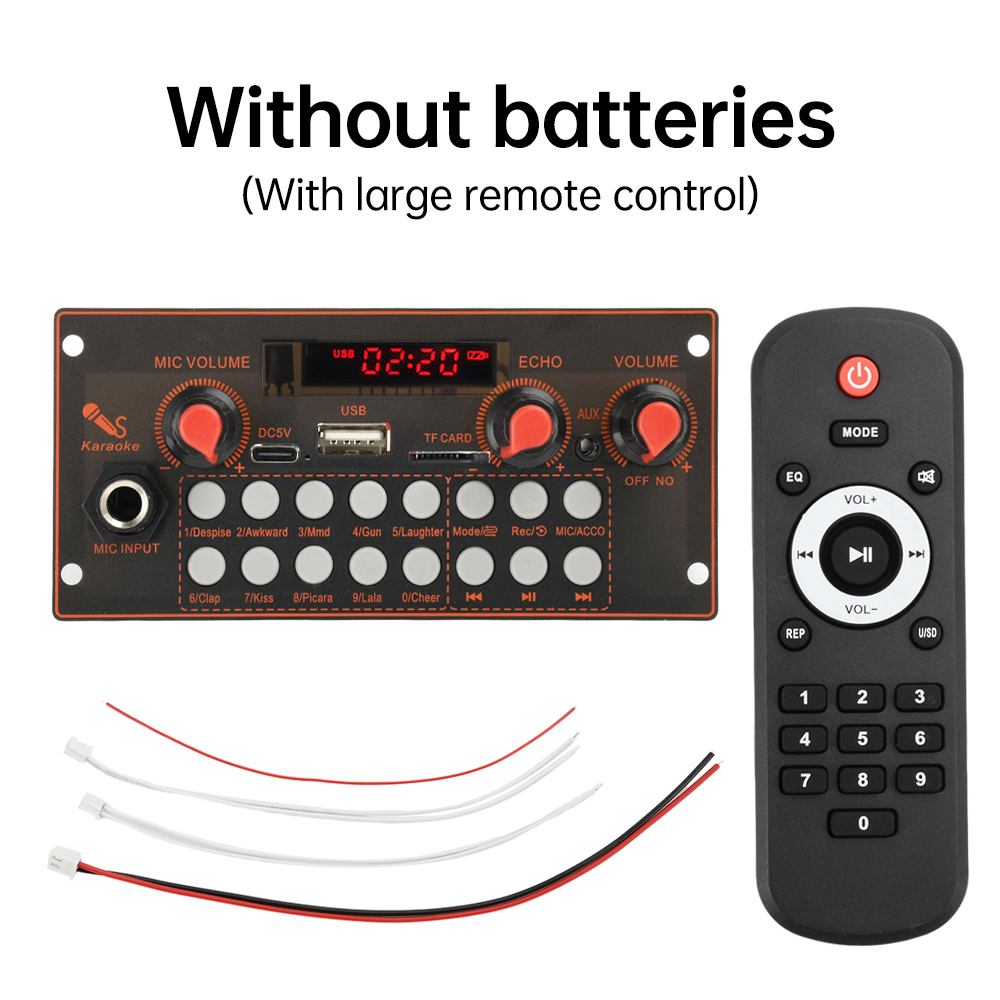

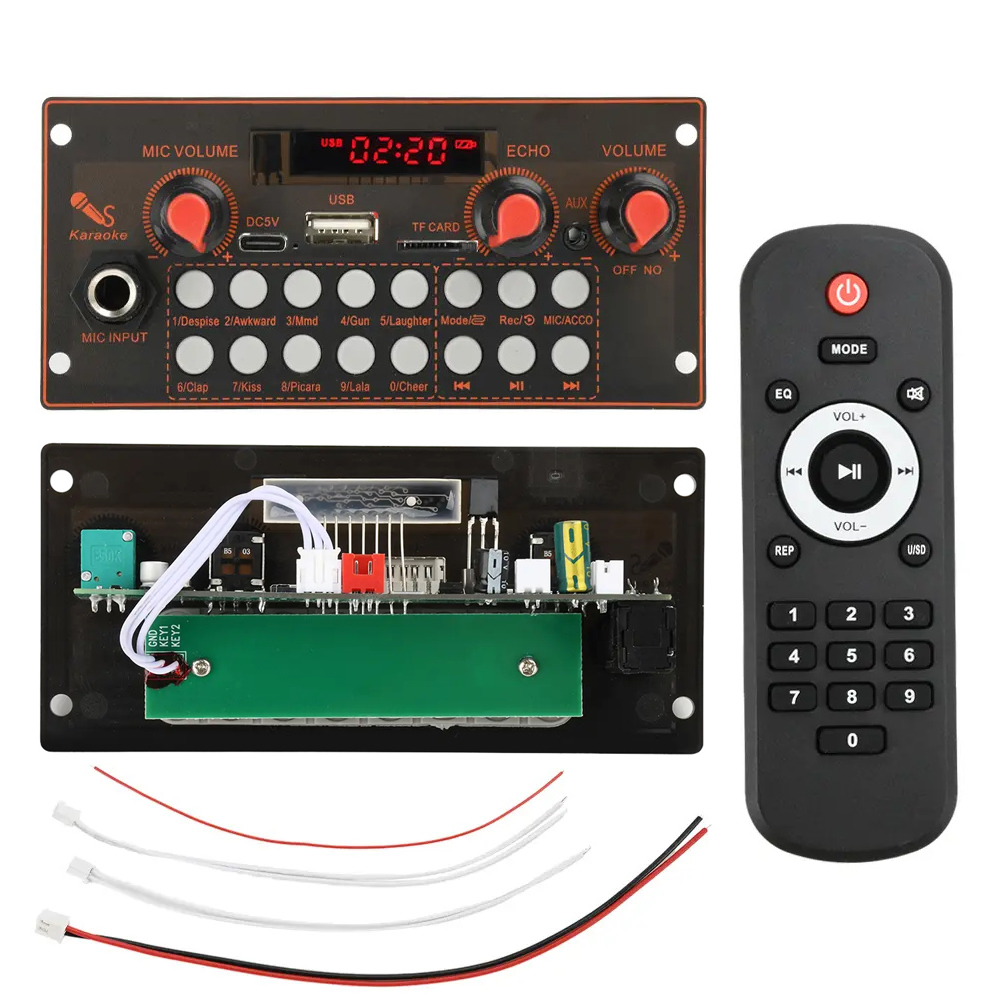

1 x Amplifier board

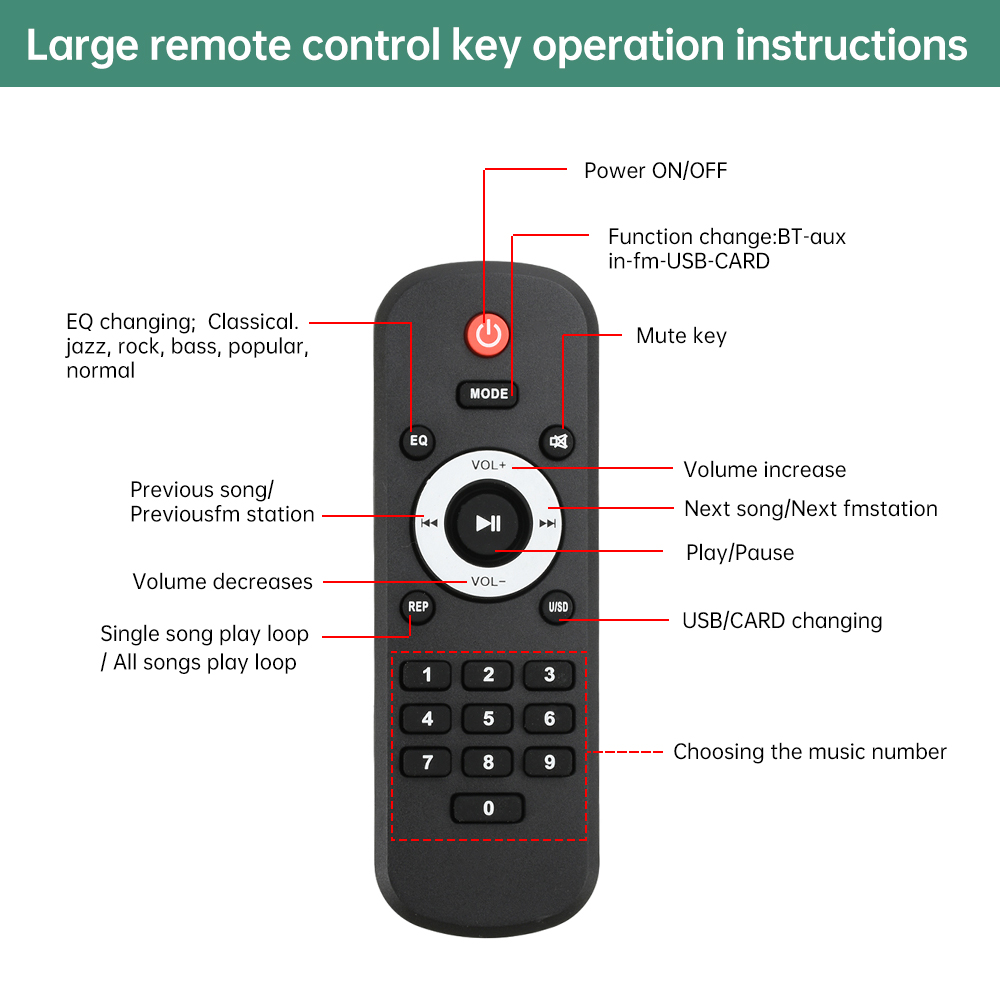

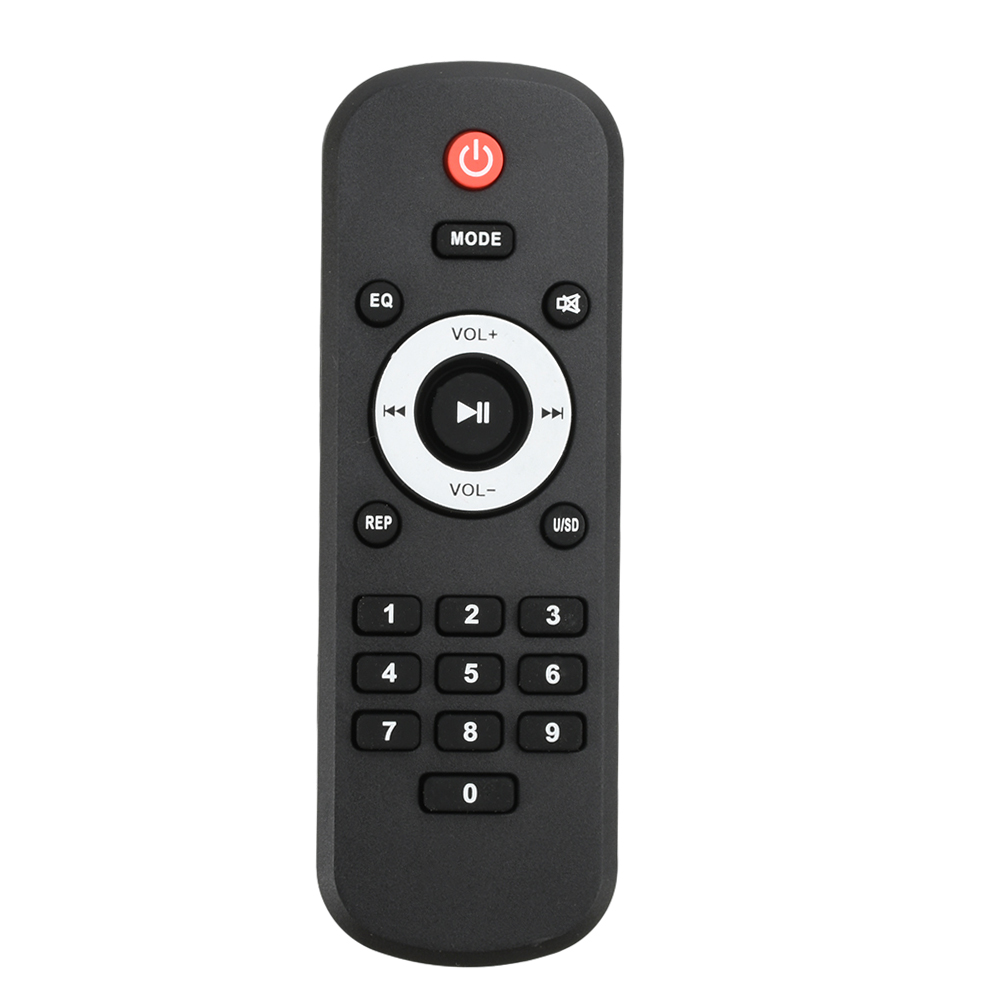

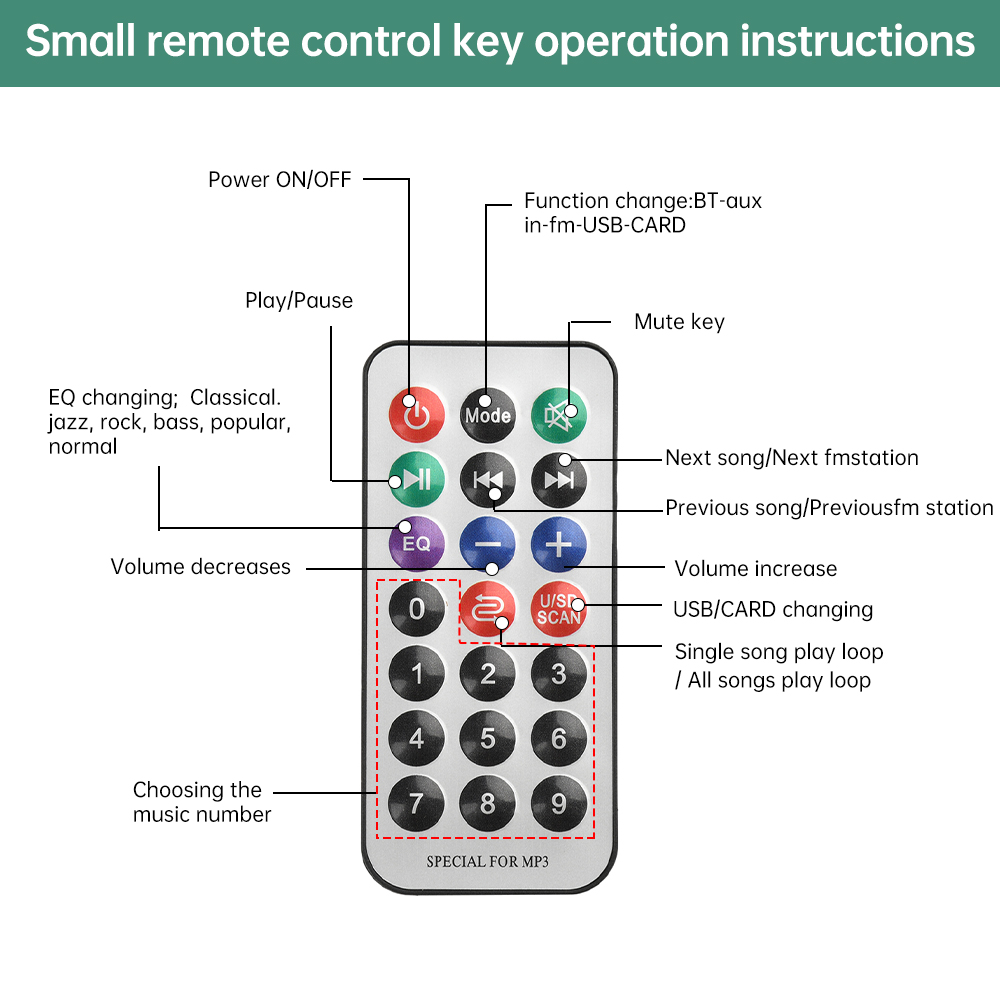

1 x Remote Control(Battery not included)
3 x 2P cable
1 x 1P cable
