MZ-ZK automatic submerged arc welding trolley can be matched with common descending feature, slow descending feature, flat feature and arc welding power supply to perform automatic welding under the protection of flux layer. In addition to the same function with the common submerged arc welding trolley in the market, it also has the following advantages: adopting double-drive wire feeding, long life, fast dynamic response, low inertia, high torque. Flexible structure, easy to adjust, adapt to a variety of positions welding trolley, especially welcome submerged arc welding machine manufacturers to customize. The company adheres to the quality of products - excellence, service - perfect, technology - all the way to the forefront, commitment - never change the purpose, and do our best to create excellent products for the welding machine industry.
|
行走機構額定輸入電壓 |
伺服电机DC110V(永磁) |
机头可调节距离 |
100 ×100 × 70 |
|
Rated input voltage of wire feeder |
Servo motor DC110V |
橫臂繞小車回轉角度 |
±90° |
|
適用焊絲直徑 |
2.0/3.0 3.0/4.0/5.0 4.0/5.0/6.0 |
焊槍偏轉角度 |
45° |
|
送絲方式 |
弧压反馈变速送丝、 |
机头偏转角度 |
45° |
|
Welding speed range |
0.2-1.5m/min |
Flux capacity |
6L |
|
Wire feed speed range
|
0.25-2.5m/min
|
Spool capacity
|
25kg
|
|
Applicable welding current rating
|
630A、800A、
1000A、1250A |

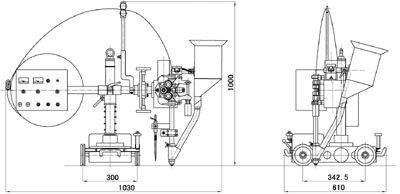

External dimensions
(length × width × height) |
1020 × 480 × 740
|
|
橫梁可升降高度
|
100mm
|
重 量
|
54kg
|
