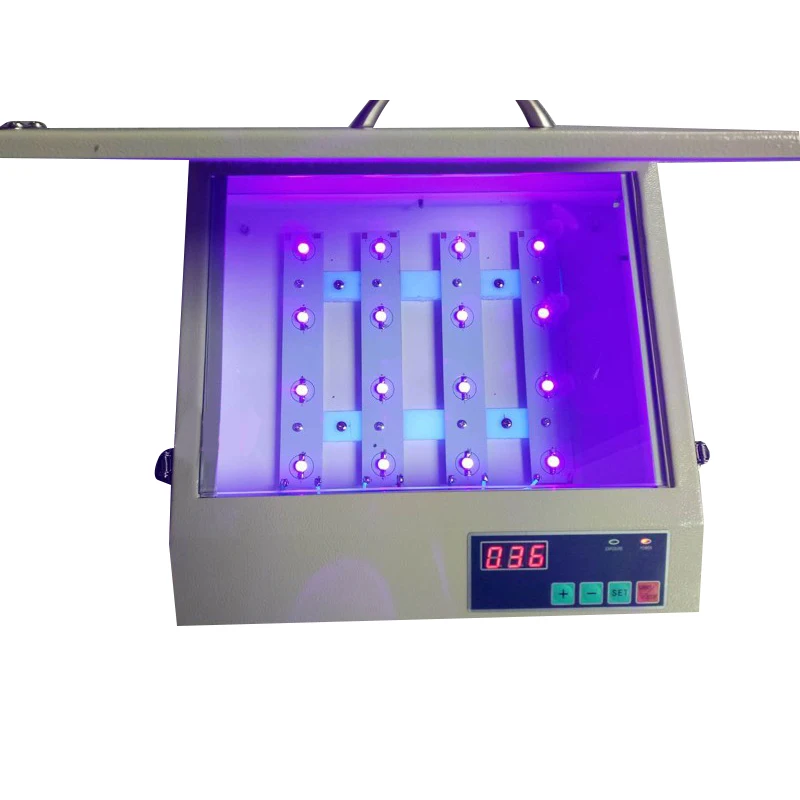

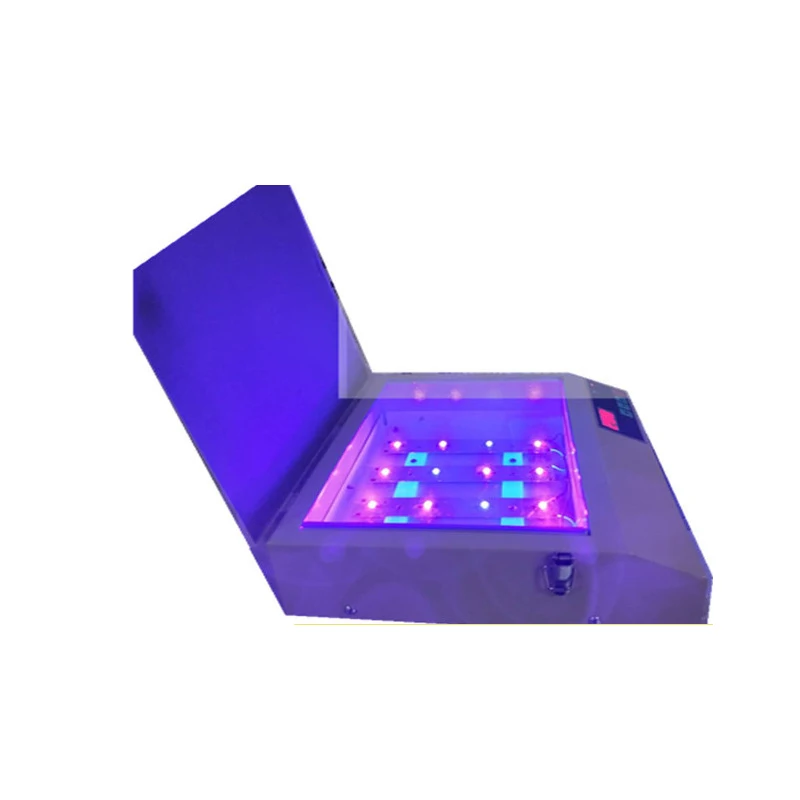

The machine adopts intelligent design, easy and quick to operate. The light source for printing plate adopts LED ultraviolet tube. It can be widely used to make PS plates and resin plates.

Main Specifications:

1. Voltage: 150~230V Power: 50W

2. Light source: LED light

3. Wavelength: 3500 * 4599 Angstroms

4. Exposure time: 0~999 minutes continuously adjustable

5. Printing area: 210 * 260mm

6. Volume: 320 * 310 * 90mm

Panel operation: Plug in the power, turn on the machine power switch, the POWER indicator light, press the SET button, the exposure indicator flashes, press the +, - keys to adjust the exposure time, adjust and press SET to exit the setting, press STARRT/STOP to start the exposure, automatically Control until end of exposure.

Printing operation:

Exposure: Place the front surface of the film or plate transfer close to the exposure plate, lay it flat on the glass, press it on the cover, and expose it for ** seconds (depending on the plate material, it depends on the actual use, the general resin plate is 90-180 seconds. , steel plate, screen version 20-40 seconds, sand carved film 6-15 seconds, the classical printing process 250-800 seconds is uncertain, the set time is only for reference), set the countdown to complete the end of the exposure
