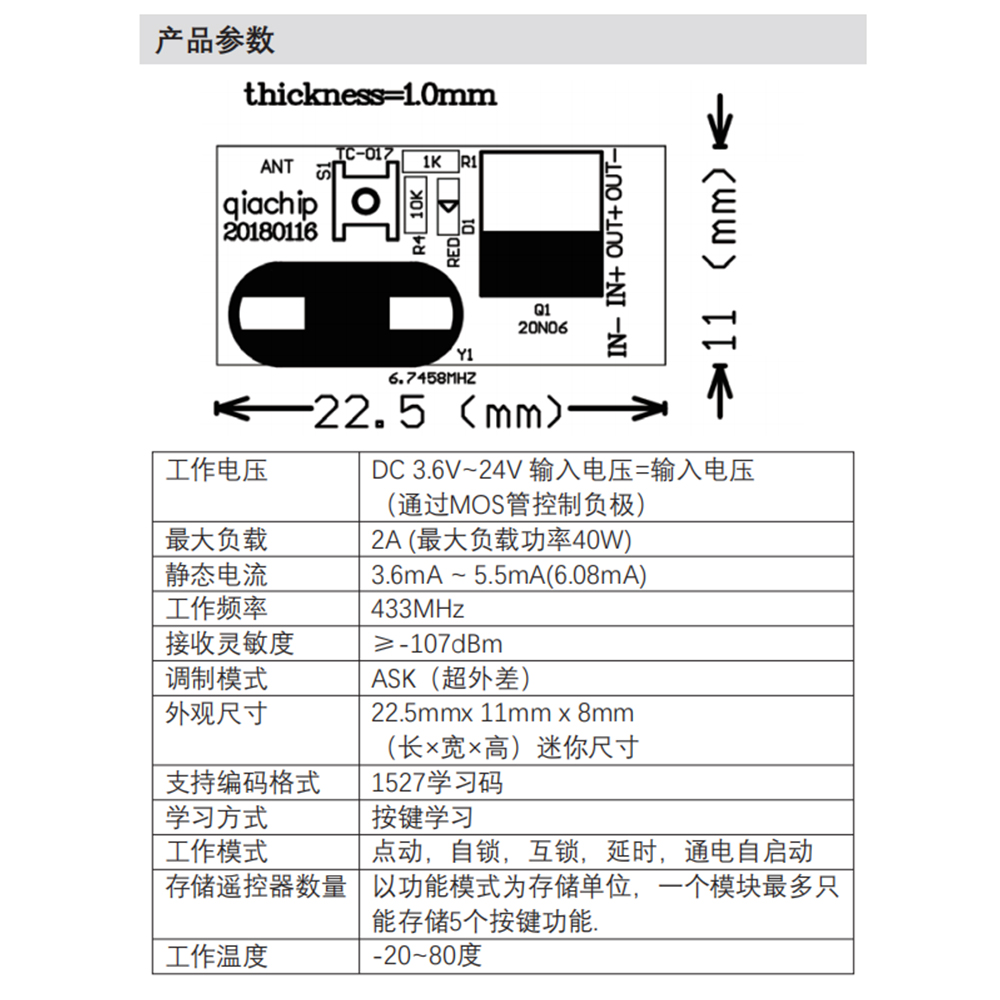

Product Details
Working voltage: DC3.6V~24V
Maximum load: 2A (maximum load power 48W)
Quiescent current: 3.6mA~5.5mA(6.08mA)
Operating frequency: 433MHz
Receiving sensitivity: ≥-107dBm
Output voltage: input DC3.6V~DC24V, output DC3.6V~DC24V
Modulation Mode: ASK (Super Heterodyne)
Supported encoding format: 1527 learning code
The number of remote controllers stored: ≤10
Working mode: jog, self-locking, interlocking
Working temperature: -20~80°C
Input voltage = input voltage (control negative electrode through MOS tube)
Learning method: button learning (click to jog, click twice to self-lock, press three times to interlock)
Working mode: jog, self-locking, interlocking
Taking the function mode as the storage unit, a module can only store up to 5 (pairs) functions, such as:
The module can remember 5 "jog keys", or remember 5 pairs of "interlock keys", or remember 5 "self-lock keys", or it can be a mixture of 5 functions, such as remember two jog keys key, two self-locking keys, a pair of interlocking keys
Remote control distance: about 30 meters in open environment, can be used by partition
Precautions:
The button time is required to be more than 0.8 seconds. If you press too fast, you will not receive the signal.

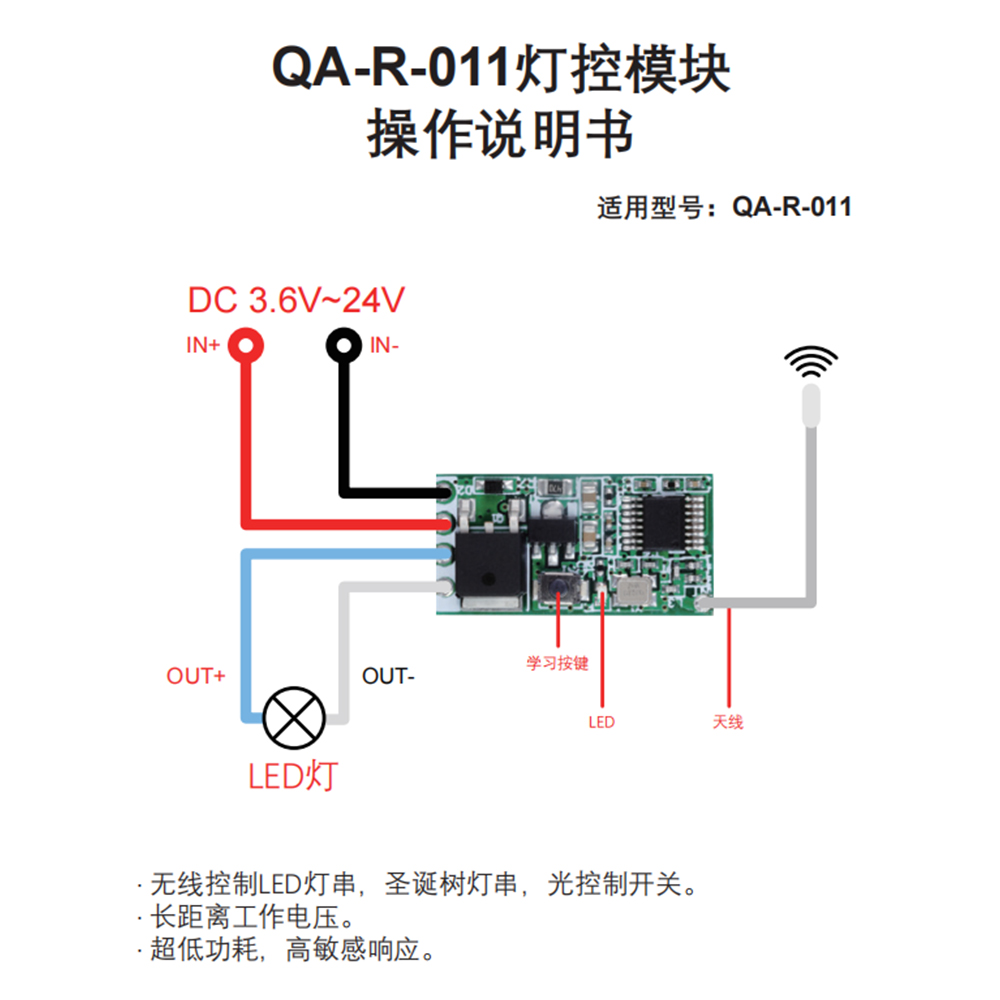

Pay attention to the wiring method and see it clearly to avoid short circuit

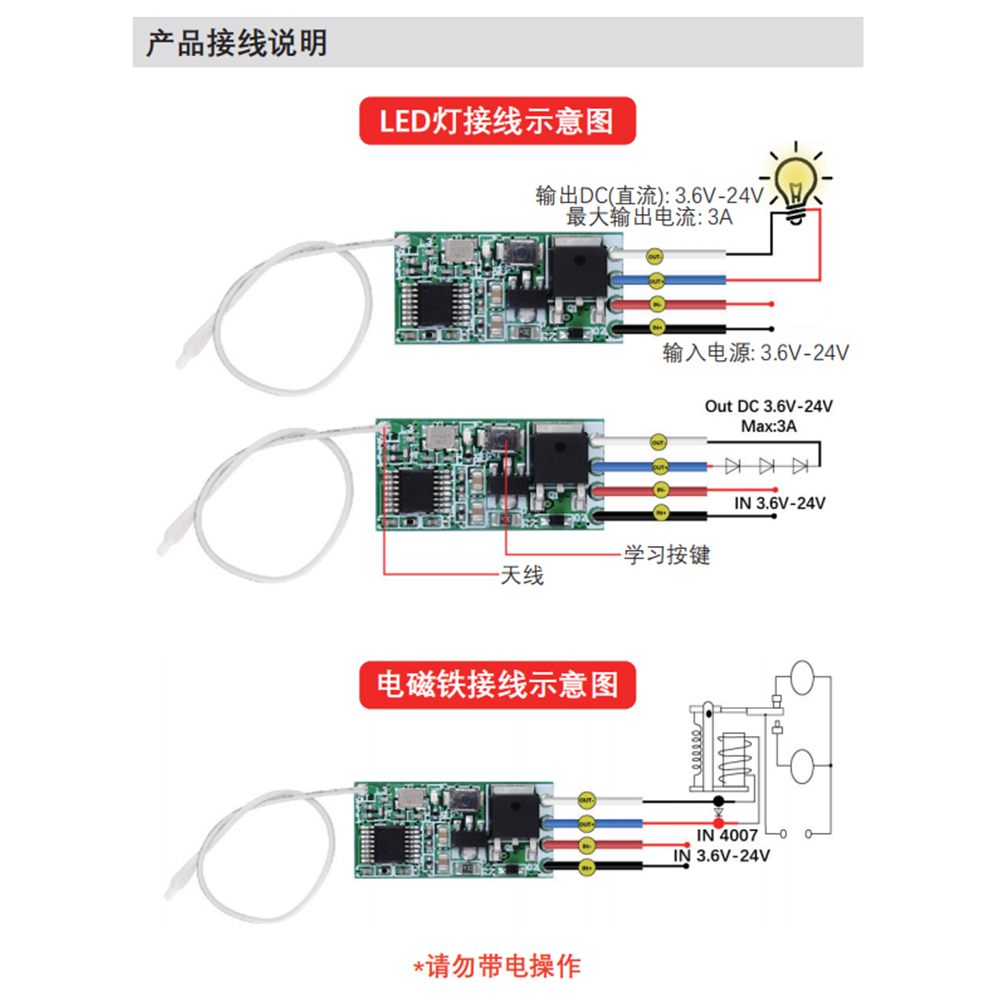

Black (- negative pole) red (+ positive pole) [power input terminal]
White (- negative pole) yellow (+ positive pole) [load output terminal]
Note:
When switching the working mode, please plug in the power supply to clear the code and check the code after the power is turned off
Package includes:
Module x1
