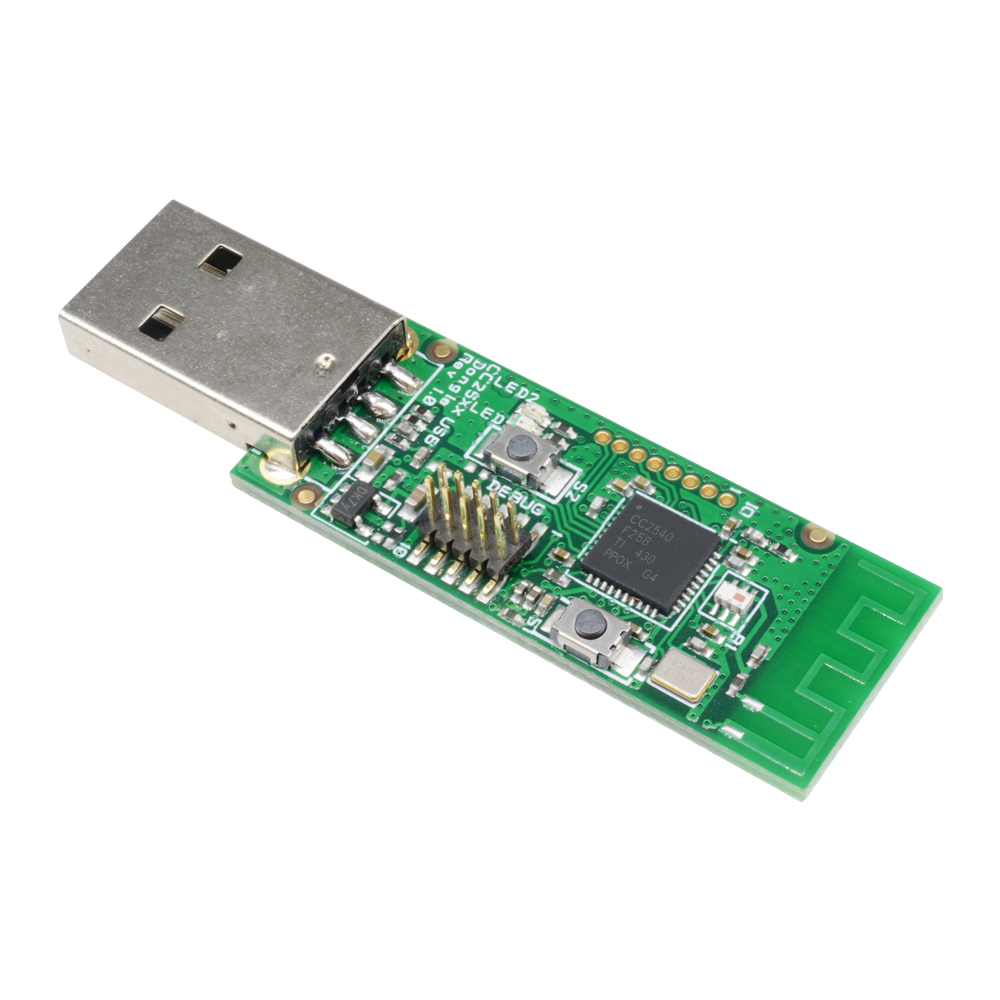

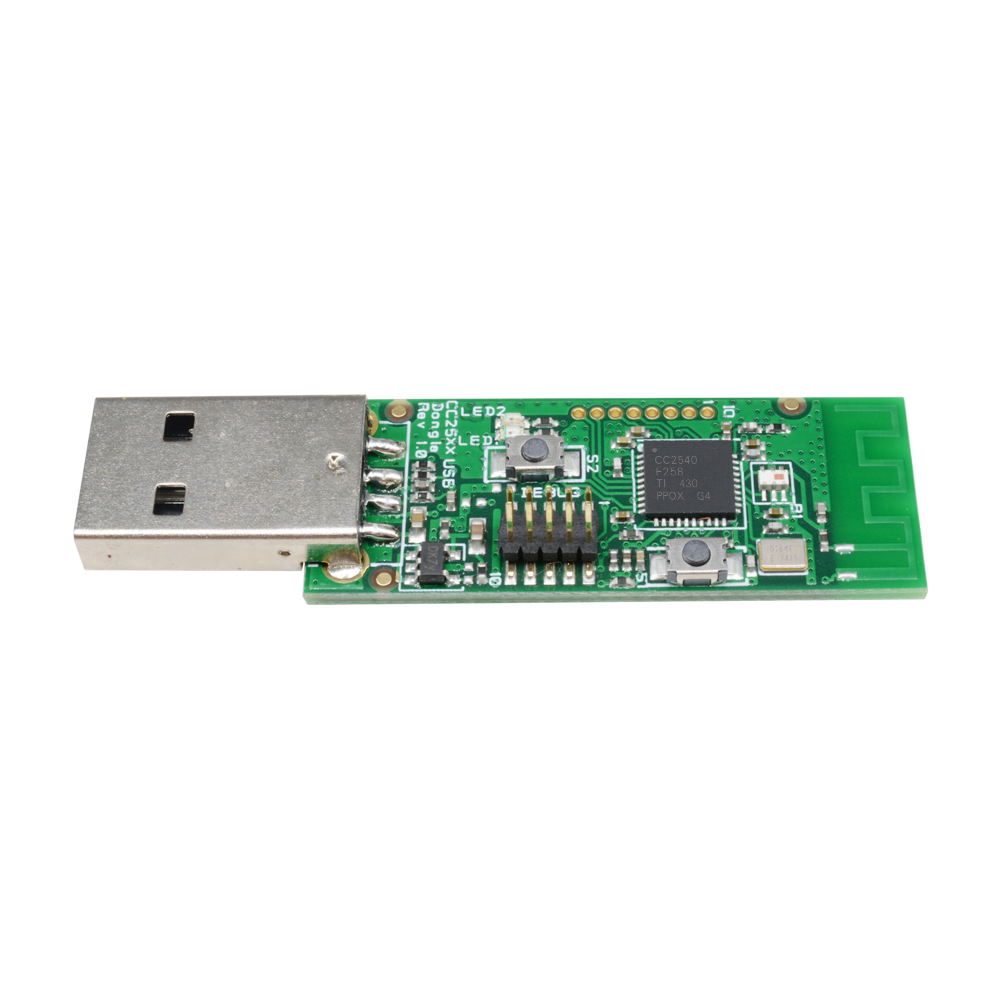

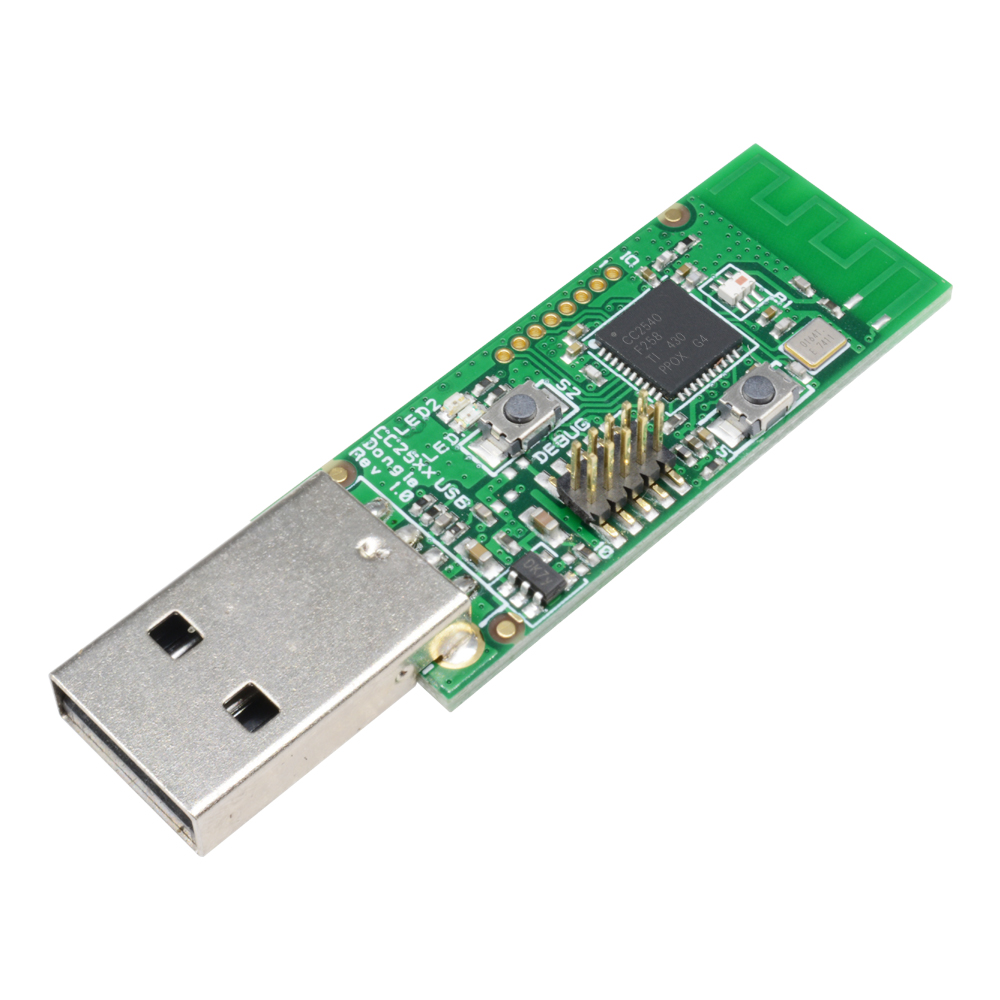

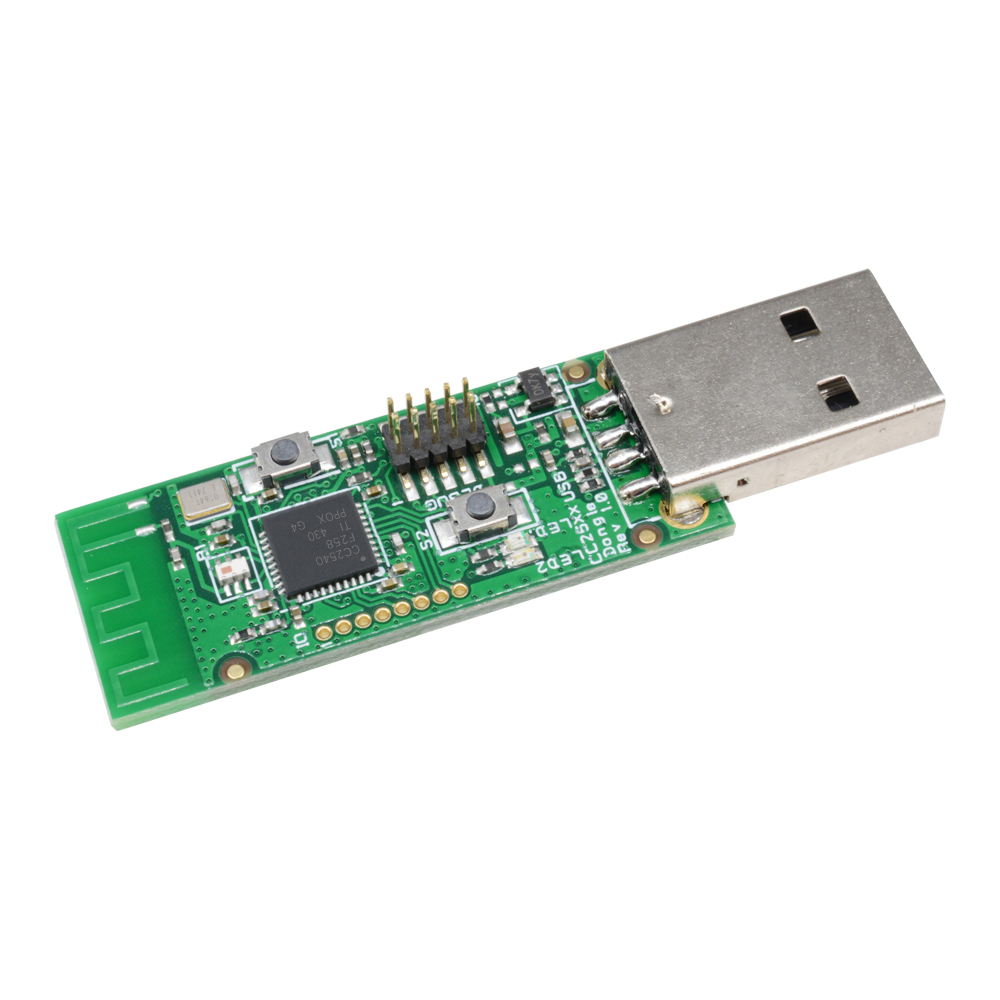

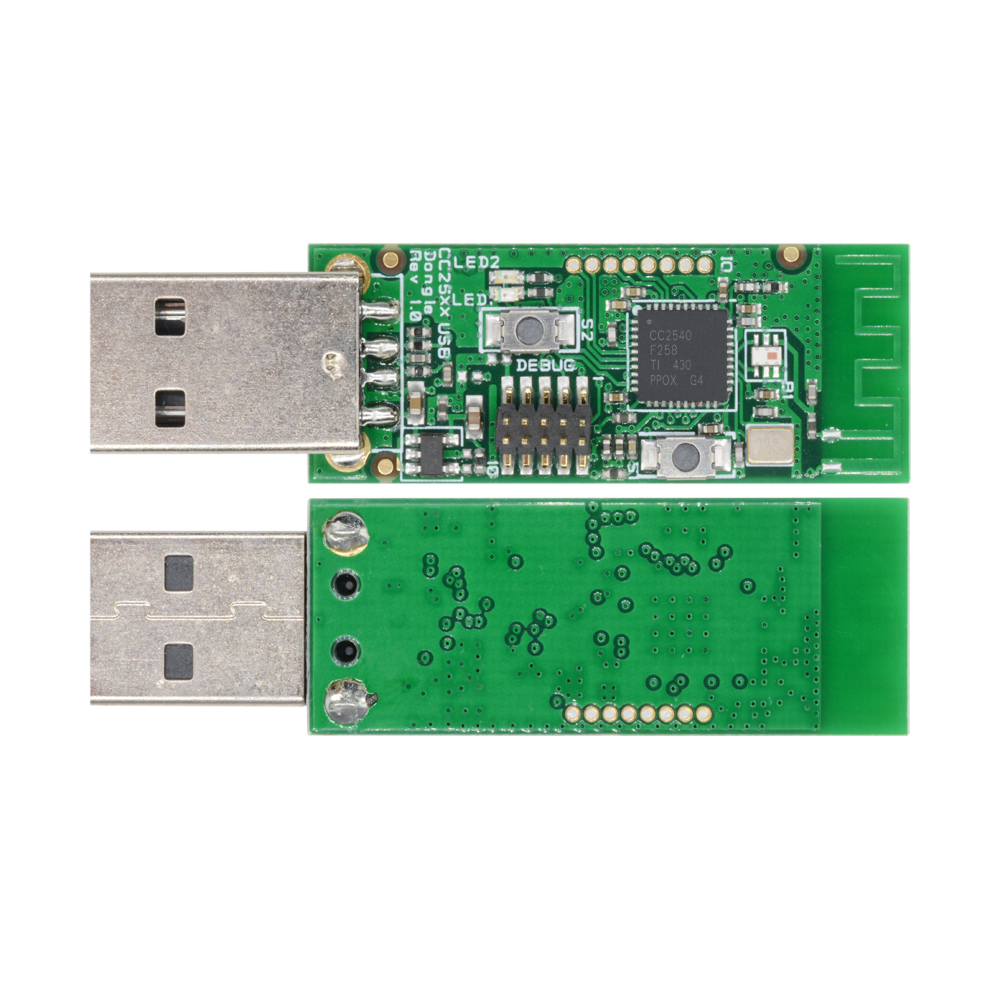

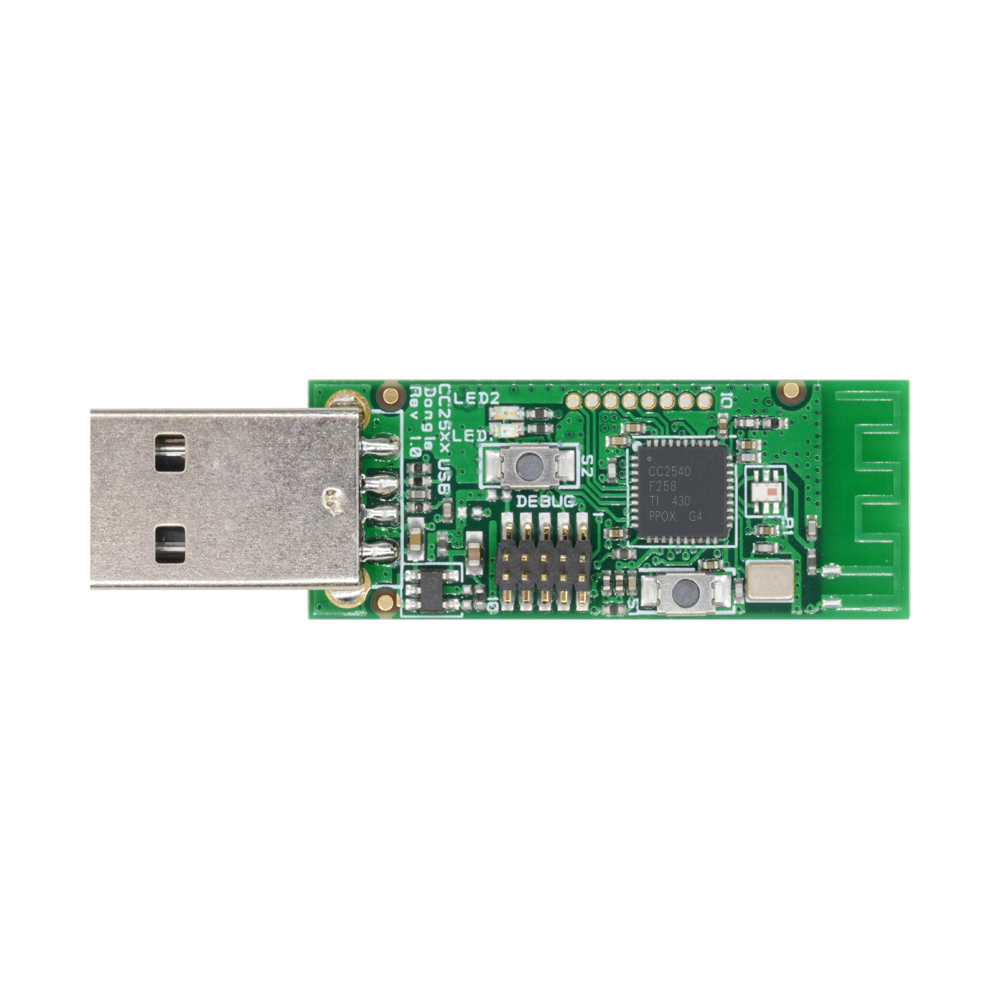

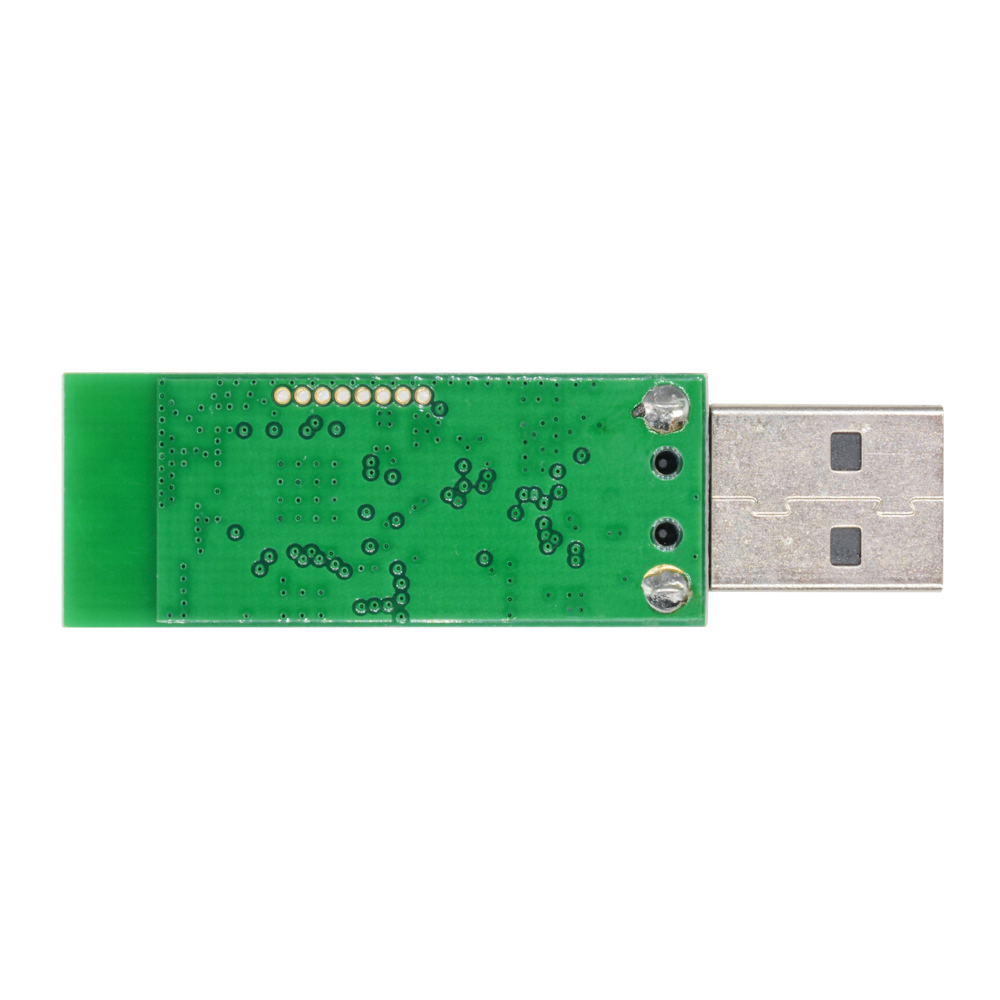

Product Details
Features:
1.Small size: 4.1 * 1.6 cm, ultra narrow edge design to avoid conflicts with other USB devices;
2.The product is sturdy and small in size, with a board thickness of 1.6mm, and 8 IO ports and DEBUG pins are introduced;
3.The working frequency is 2.405-2.485GHz, and the wireless transmission rate reaches 250Kbps;
4.Power consumption: receiving current<20mA, transmitting current<25mA;
5.Implement protocol analyzer functionality in conjunction with firmware;
6.Select BALUN design (2450BM15A0002E), with minimal influence of distributed parameters and superior, stable and reliable performance;
7.This DONGLE can burn its own program as a transceiver module;
8.This DONGLE can be used as a MINI type Bluetooth 4.0 development board.
Parameters:
1. Size: 4.1 * 1.6 cm
2. Wood thickness: 1.6mm
3. Operating frequency: 2.405-2.485GHz
4. Wireless transmission rate: 1Mbps
5. Power consumption:<20mA (receiving)< 25mA (transmission)
The usage method is as follows:
The packet sniffer is installed on the computer and the software can be downloaded from the WWW.TI.COM website
1. After the installation is completed, open the software and select BLUETOOTH LOW ENERGY,
2. Click "Start" to enter, insert the CC2540 Sniffer USB dongle device, and the software will recognize it,
3. Select, click on the triangle, and start grasping the air. At this point, we can proceed with protocol analysis.
Some customers will use CC2540 for DONGLE, and at this time, the device will need to burn CC2540_ USBdongle_ HostTestRelease_ All. hex, open BTOOL after use.
Package include:
1/5/10PC Module
