Product Details

Overview

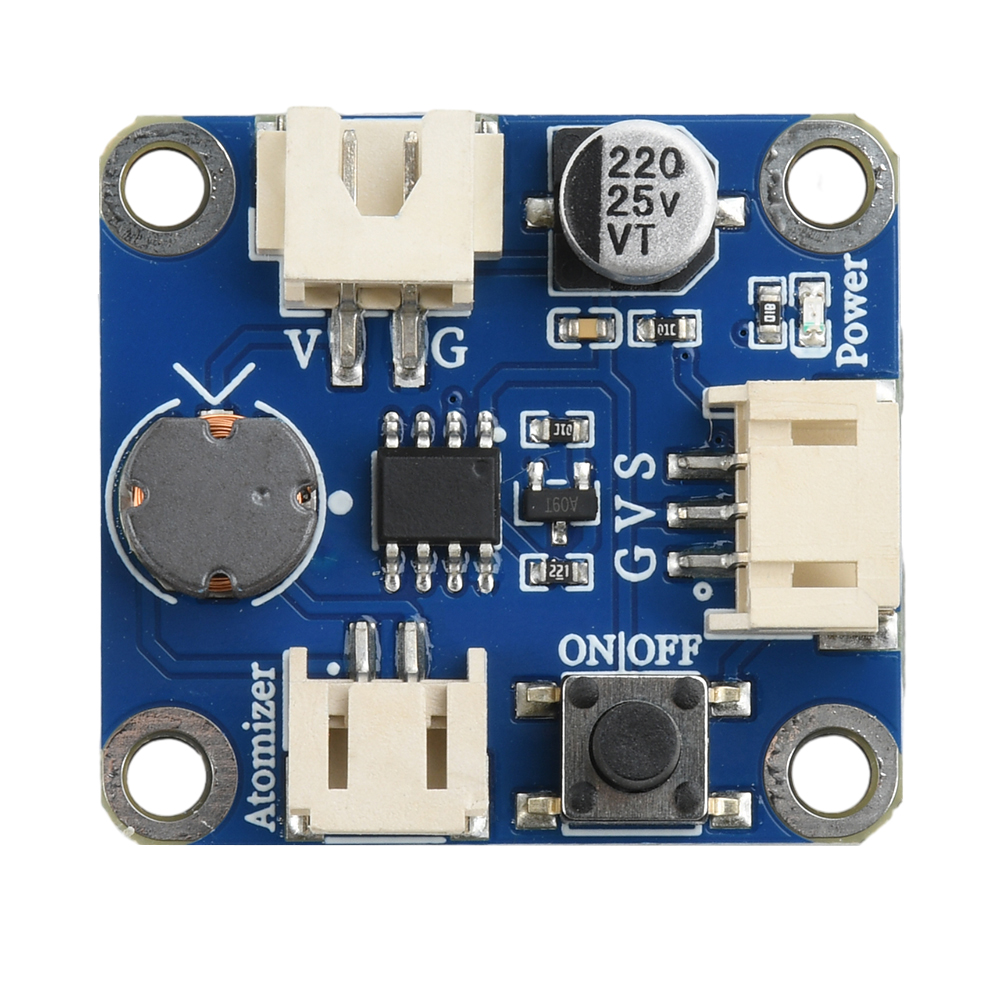

A humidifier misting module is a core component in a humidifier that converts water into a fine mist and releases it into the air.
Principle of operation: The humidifier misting module typically uses ultrasonic technology to generate the water mist. It contains a piezoelectric ceramic disc that begins to vibrate when a high-frequency voltage is applied through it. The vibration causes small droplets to form on the surface of the water and disperse them to form a fine mist.
Water Mist Quality: Humidifier atomisation modules can effectively convert water into tiny water particles, usually in the range of 1 to 5 microns. This fine water mist is easier to evaporate and diffuse in the air, thus providing a more effective humidification effect.
Linkage with microcontroller: The humidifier module is equipped with a microcontroller control interface, which can be programmed through the microcontroller to control its work.

Features
1. ultrasonic technology: use piezoelectric ceramic sheet to generate high frequency vibration, convert water into 1-5 micron micro-fine water mist.
2. High-efficiency humidification: fine water mist is easy to evaporate and diffuse, providing more efficient air humidification effect.
3. low operating voltage: operating voltage range of 3-4.5V, suitable for a variety of power supply environment, low power consumption.
4. Intelligent control: equipped with a microcontroller interface, can be programmed to flexibly control the humidifier's working status.
5. Compact design: Compact size (3.3cm x 3.0cm x 0.9cm), easy to integrate into various devices.

Specification
Name: humidifier atomisation module

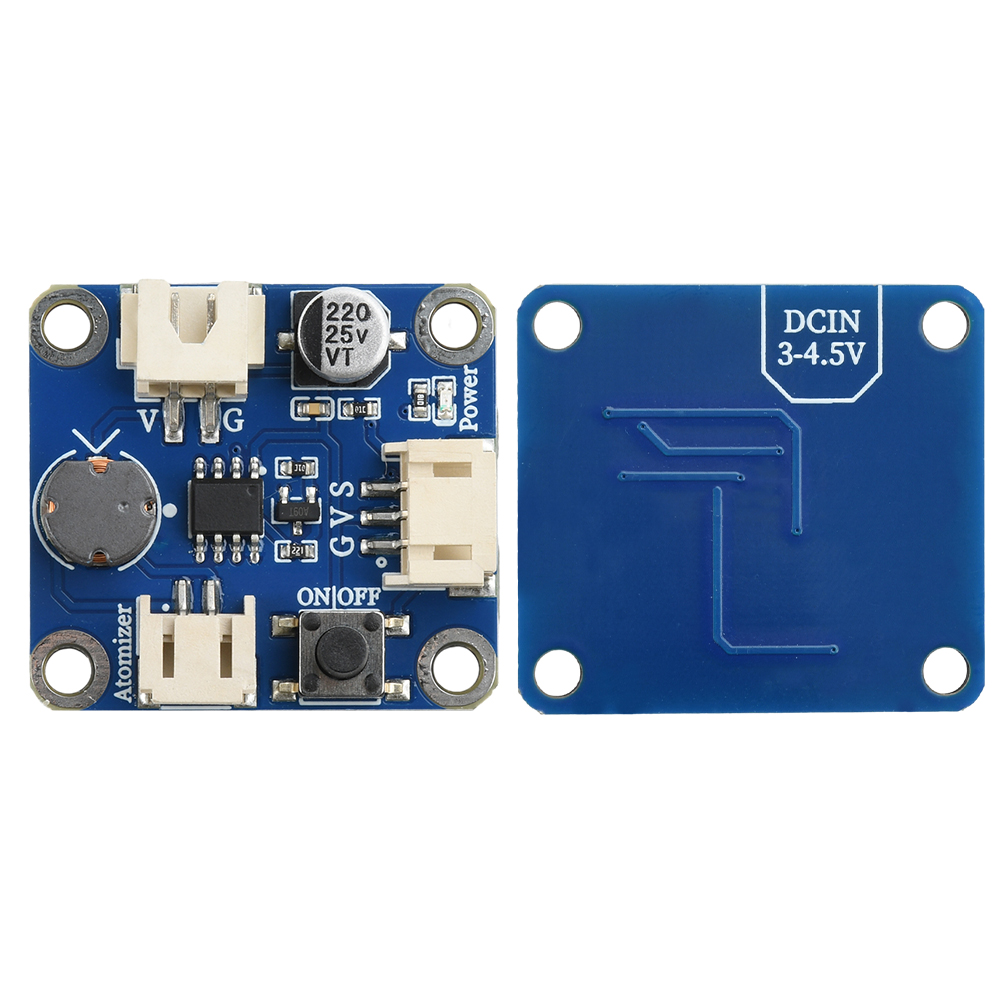

Operating voltage: 3-4.5V

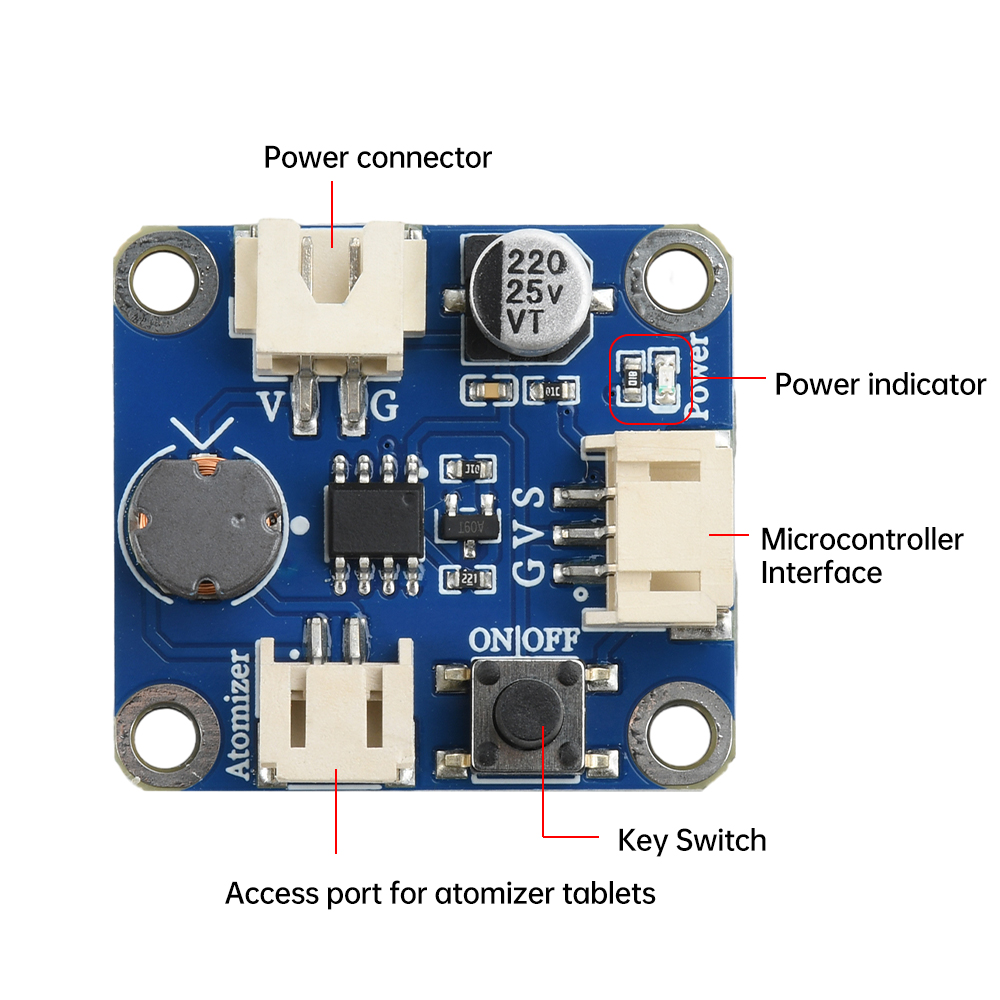

Interface type: power supply interface WT2.54 female, atomiser interface PH2.0 female, microcontroller interface PH2.0 female

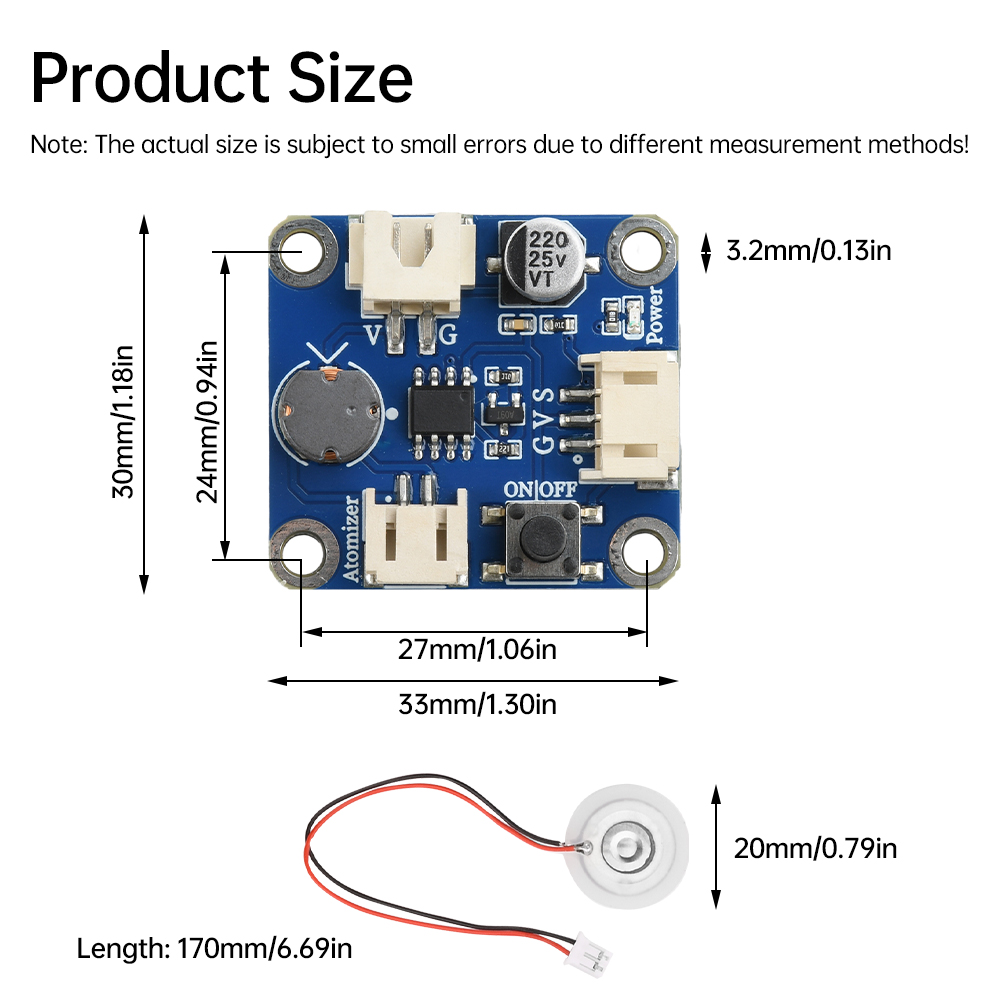

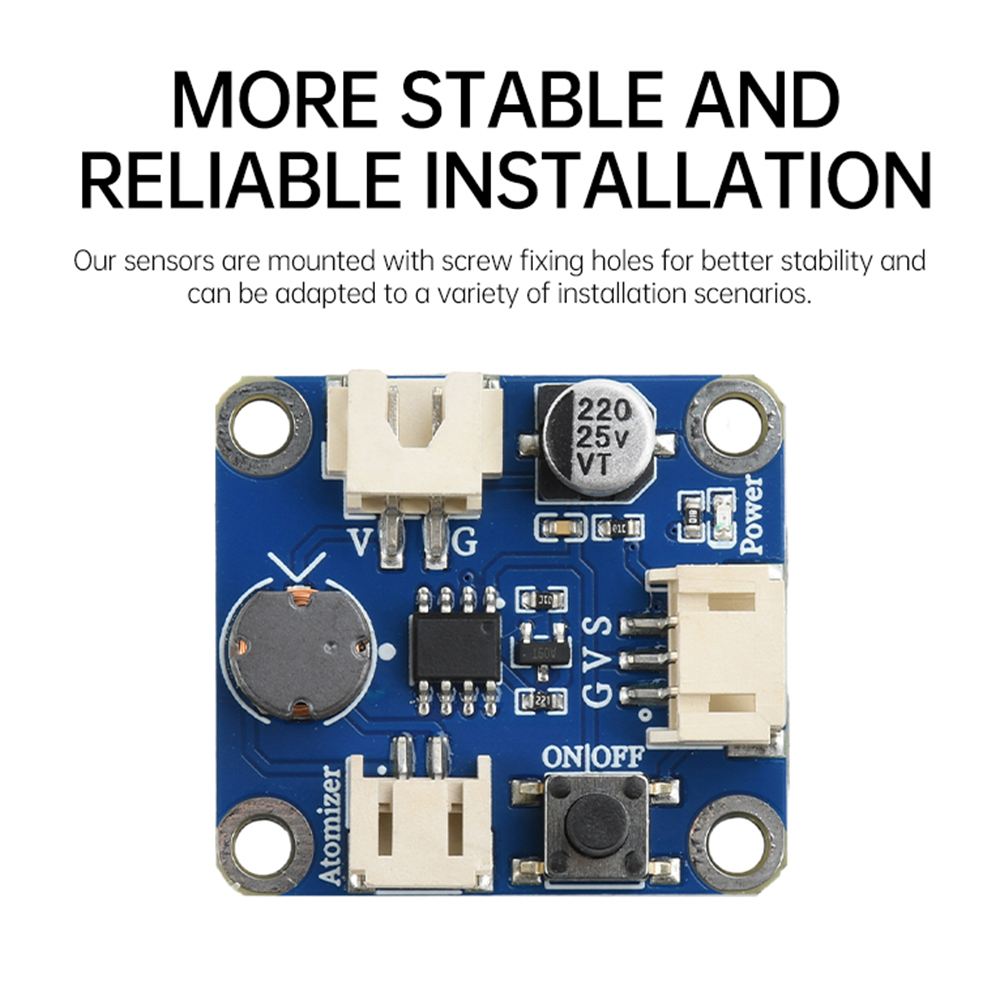

Mounting hole parameters: hole diameter 3.2mm, hole distance 3.0cm/2.4cm
Module size: length 3.3cm, width 3.0cm, height 0.9cm
Interface:G|V power input interface
Function:Used to convert water into fine water mist and release it into the air

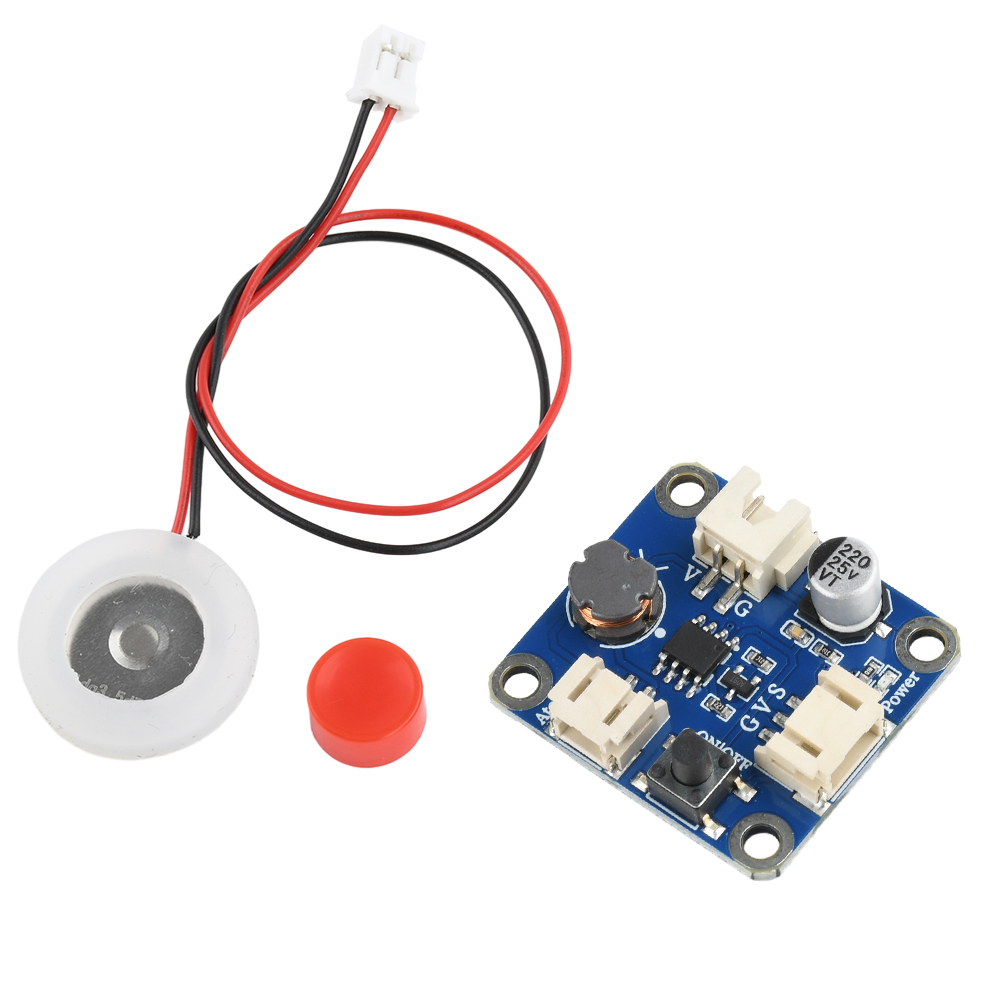

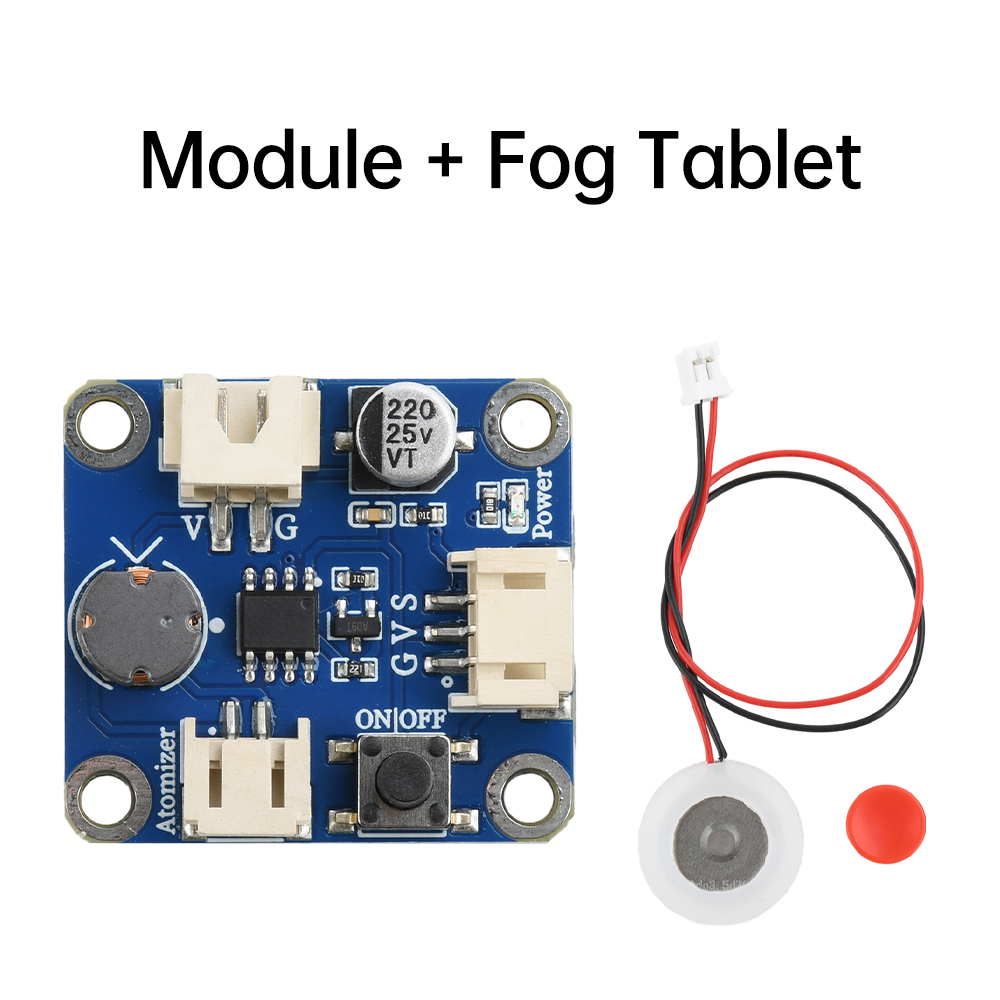

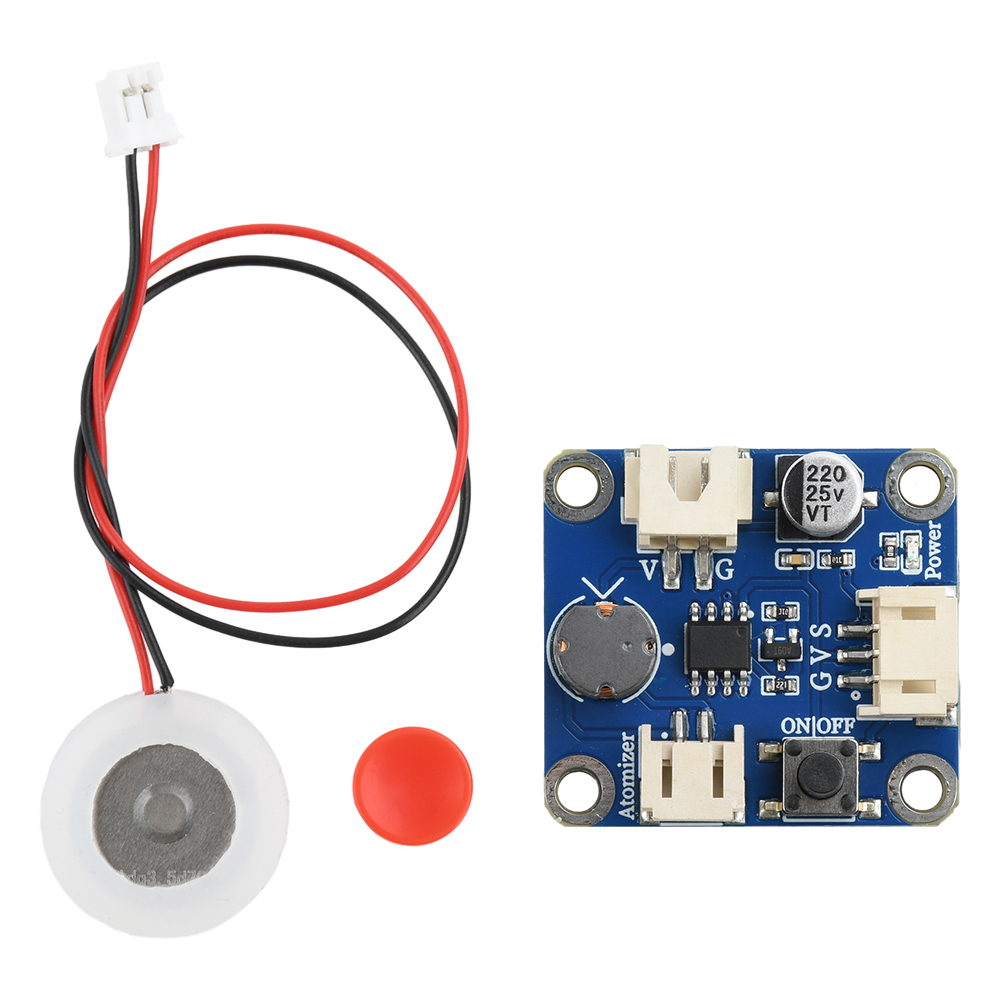

Package Includes

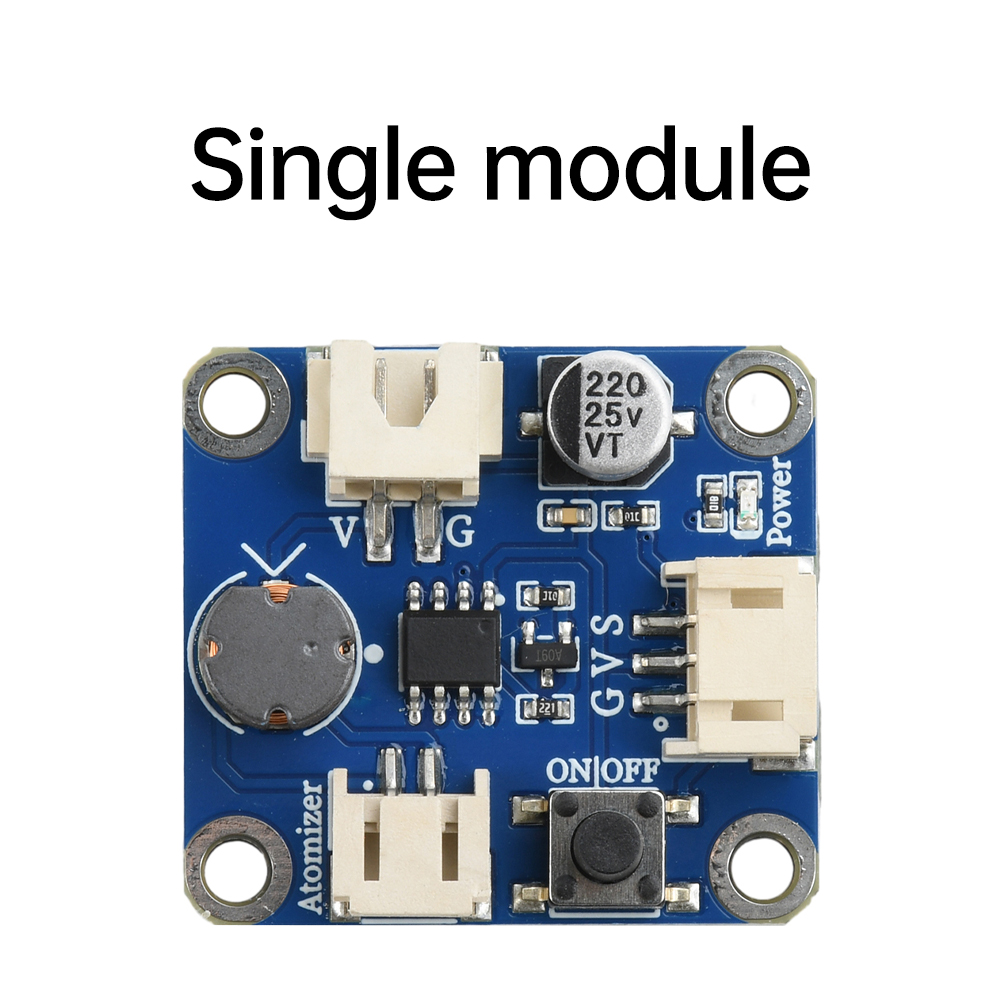

1 x Module
1 x Misting sheet(optional)
