Features

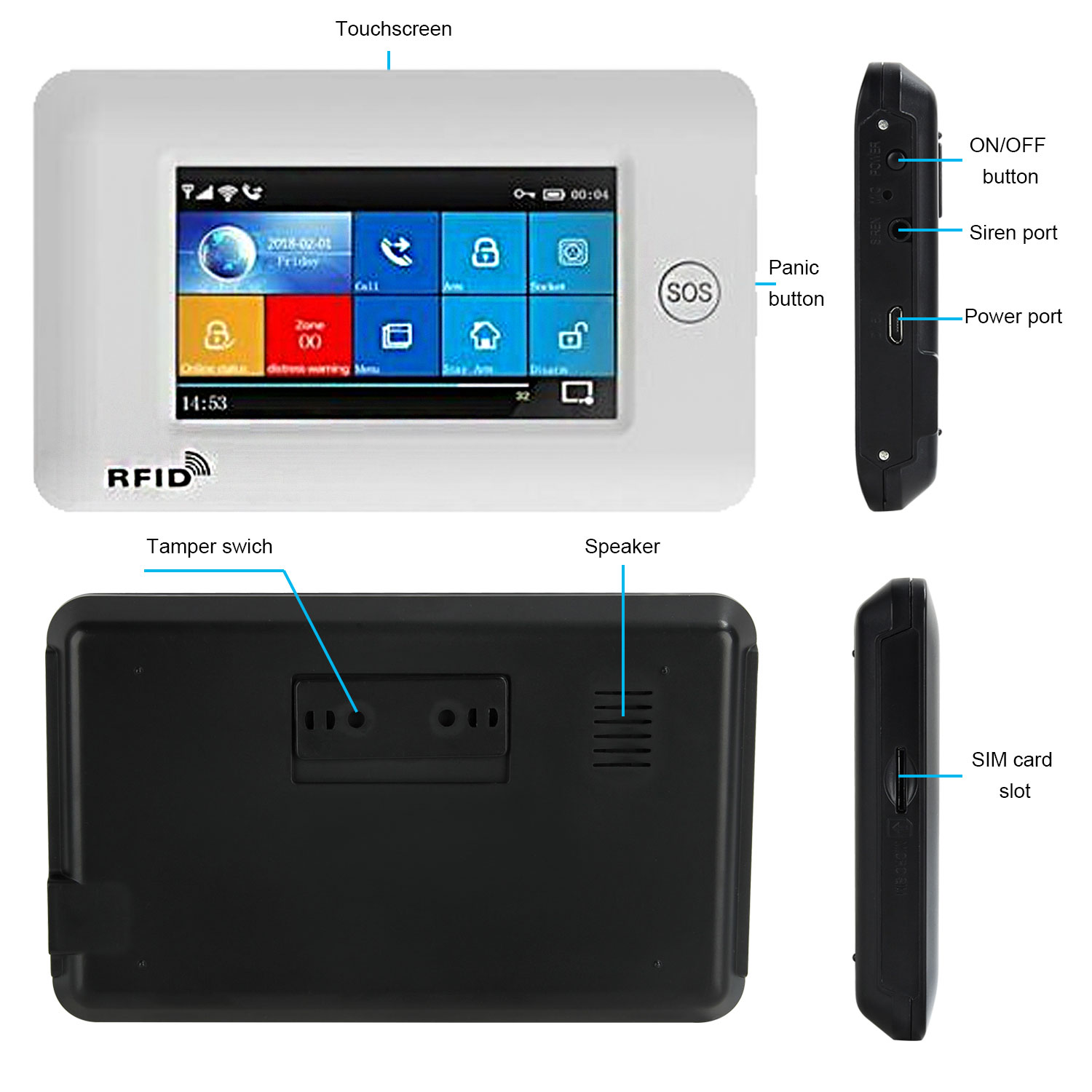

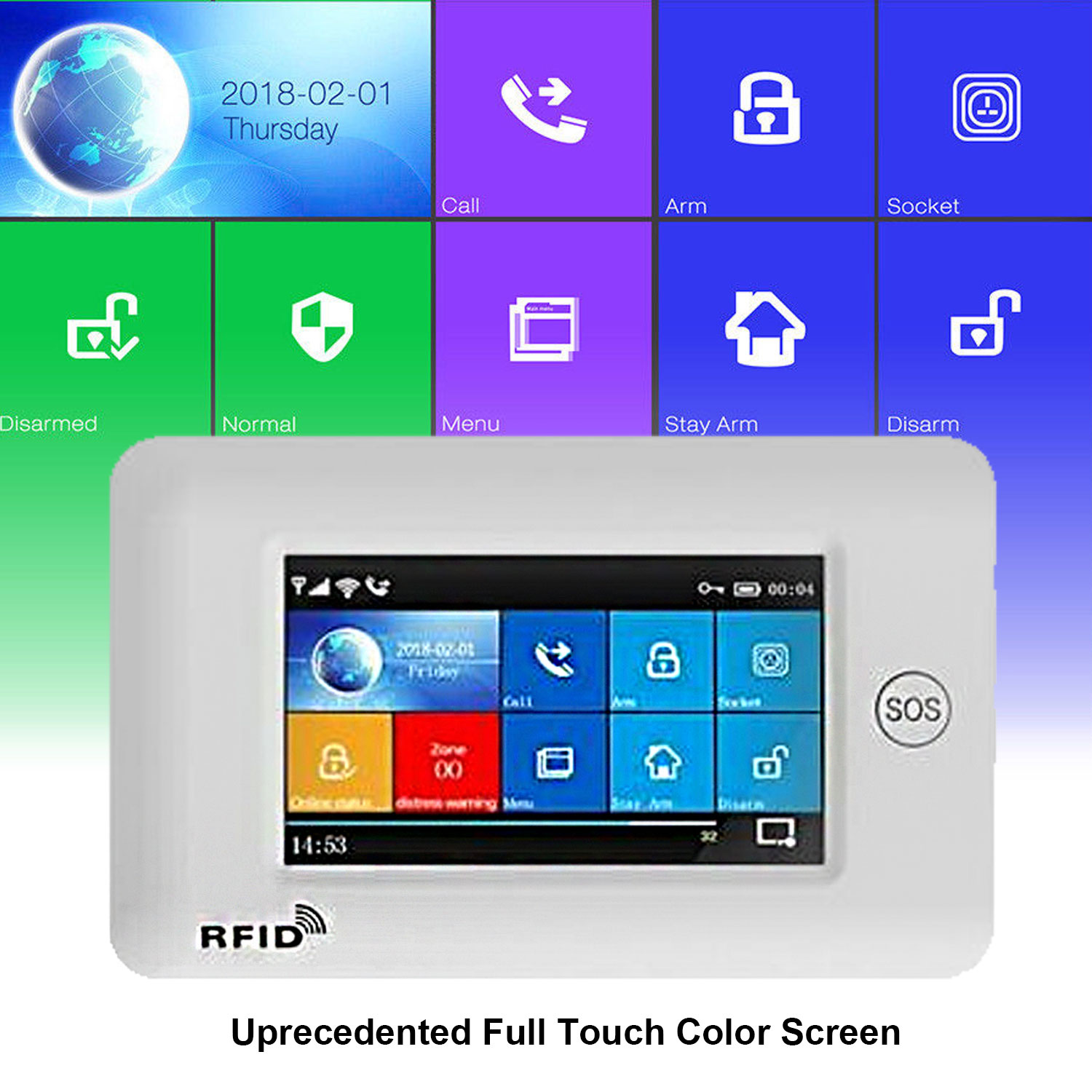

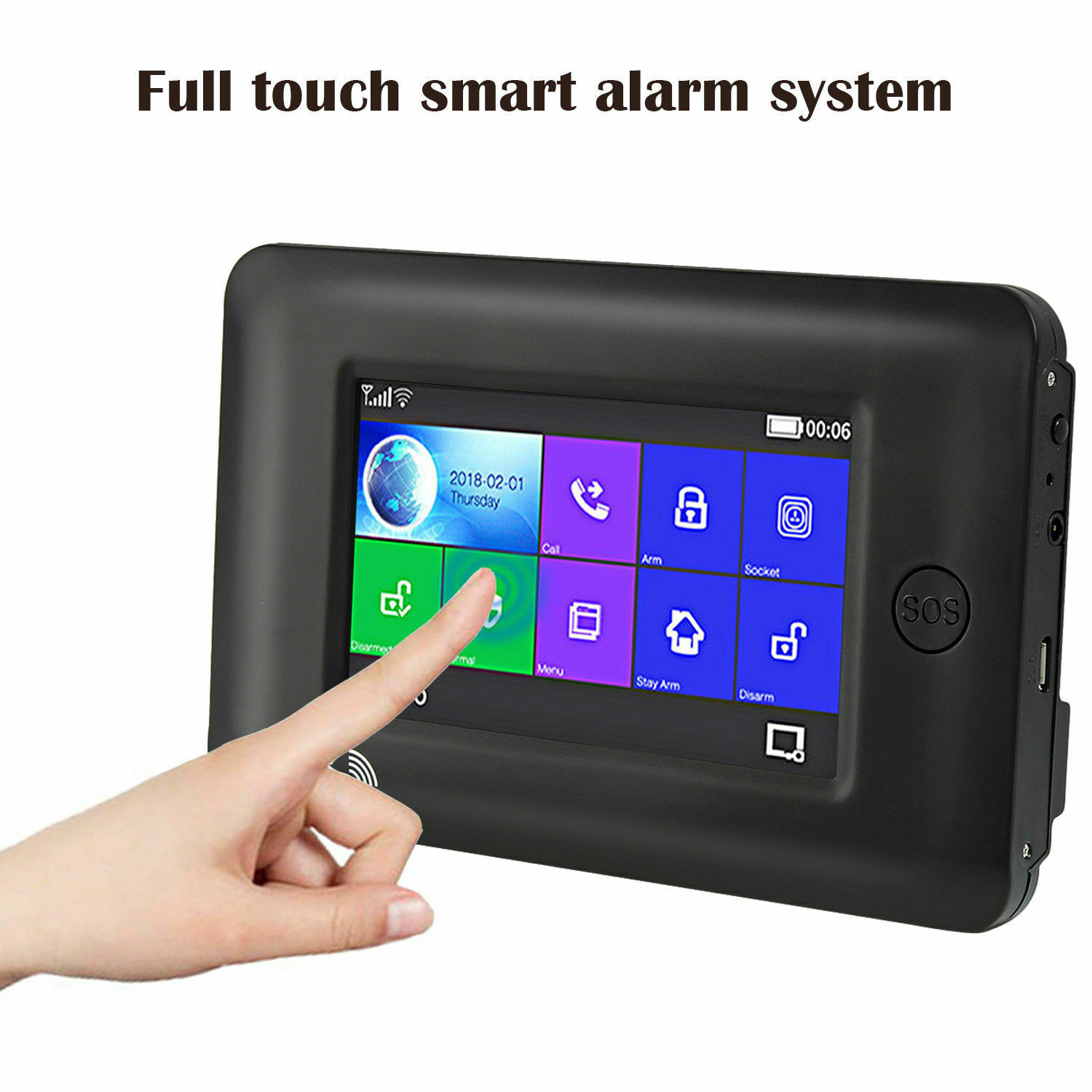

• 4.3inch TFT color full touching screen, used the simple style human computer interface
• Main interface status, State magnetic paste, date and time display, main interface clearly.
• Built-in powerful CPU master based on 32-bit Cortex-M3 core.
• Muti-tasking design, great user operation practice.

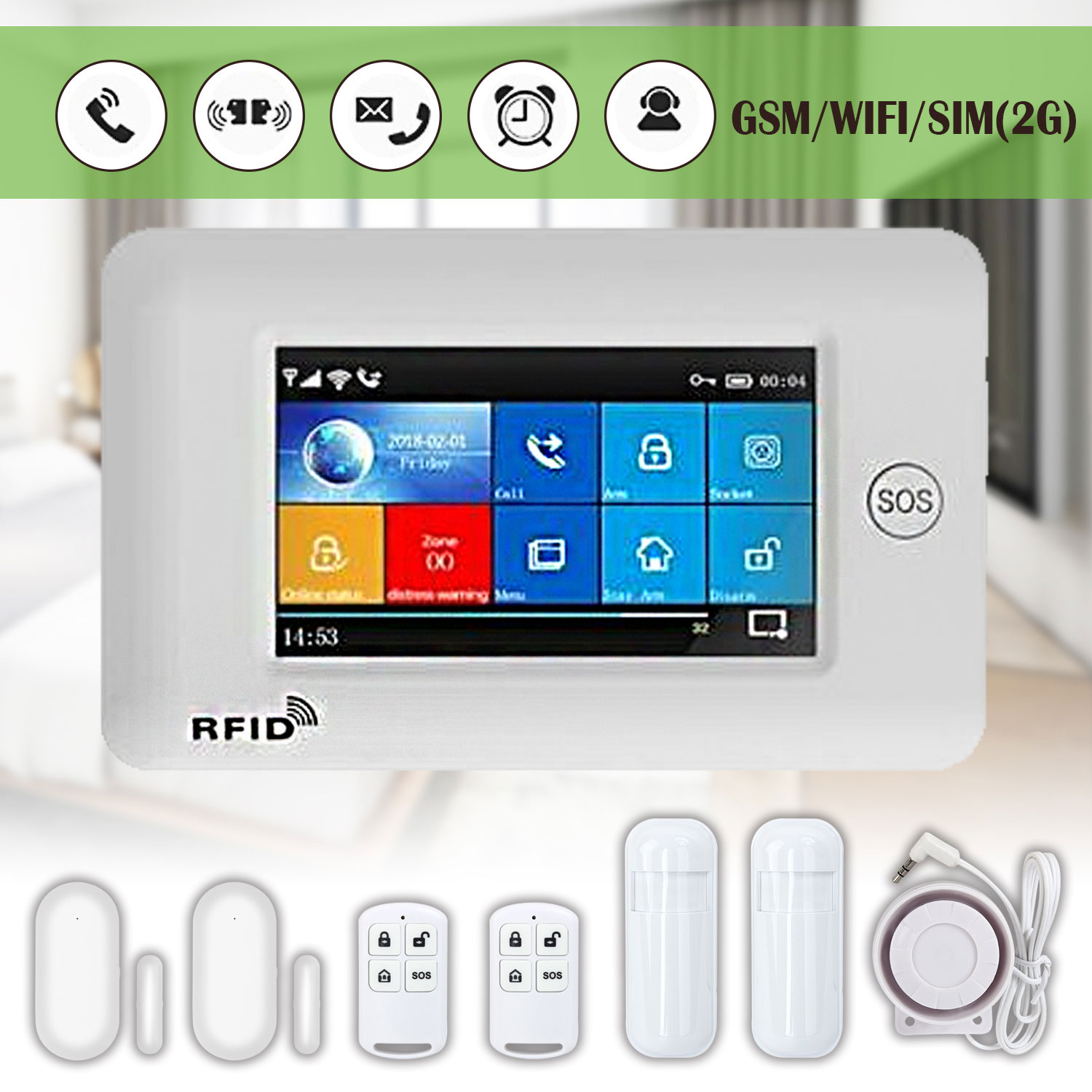

• Wifi/GSM/2G/GPRS networking alarm system, support mobile app, SMS, invoice monitoring, alarm center and other multi channel alarm module, make the alarm function stable.
• Support SMS arm/Disarm and parameters setting, support invoice arm/Disarm.
• Support main gate, hall, SOS, bedroom, window, balcony, perimeter, smoke.
• Cooking gas, CO gas, leak water and other zone setting.
• Support the alarm such as battery problem, low power battery anti-pry alarm etc.
• Support low power for wireless parts, Tamper alarm function.
• Door/window not closed notice while armed.
• Support in/out zone, internal zone, peripheral zone, 24 hours zone, doorbell and other zone setting.
• Support 5 groups alarm phone number setting, can set the SMS open/close, dialing
• Open/close respectively.
• External wired alarm connectors: 1 channel external wireless siren, 1 channel
• alarm linked wireless intelligent socket.
• APP or host can control several socket, so control the home electrical appliances.
• Timed arm/disarm function.
• Support multi record storing/searching for daily operation.
• GSM/WiFi network time correcting automatically, ensure the time and date keep correct, support multi language menu, invoice operation notice and SMS alarm setting.
• Support 20 seconds message and invoice alarm.



TECHNICAL PARAMETER FOR ALARM CONTROL HOST

Input Voltage: DC5V (micro USB standard connector supply)

Operating current: screen off<120mA, screen on<200mA

Standby current：<80uA

Siren output：<500mA

Wireless Frequency：315/433/868/915Mhz

Wireless code：eV1527

GSM system：850/900/1800/1900MHz

WIFI system：IEEE802.11b/g/n wireless standard

Spare battery：3.7V/500mAh Li battery

Operating temperature：0~55℃

Relative humidity：<80%（no condensation）

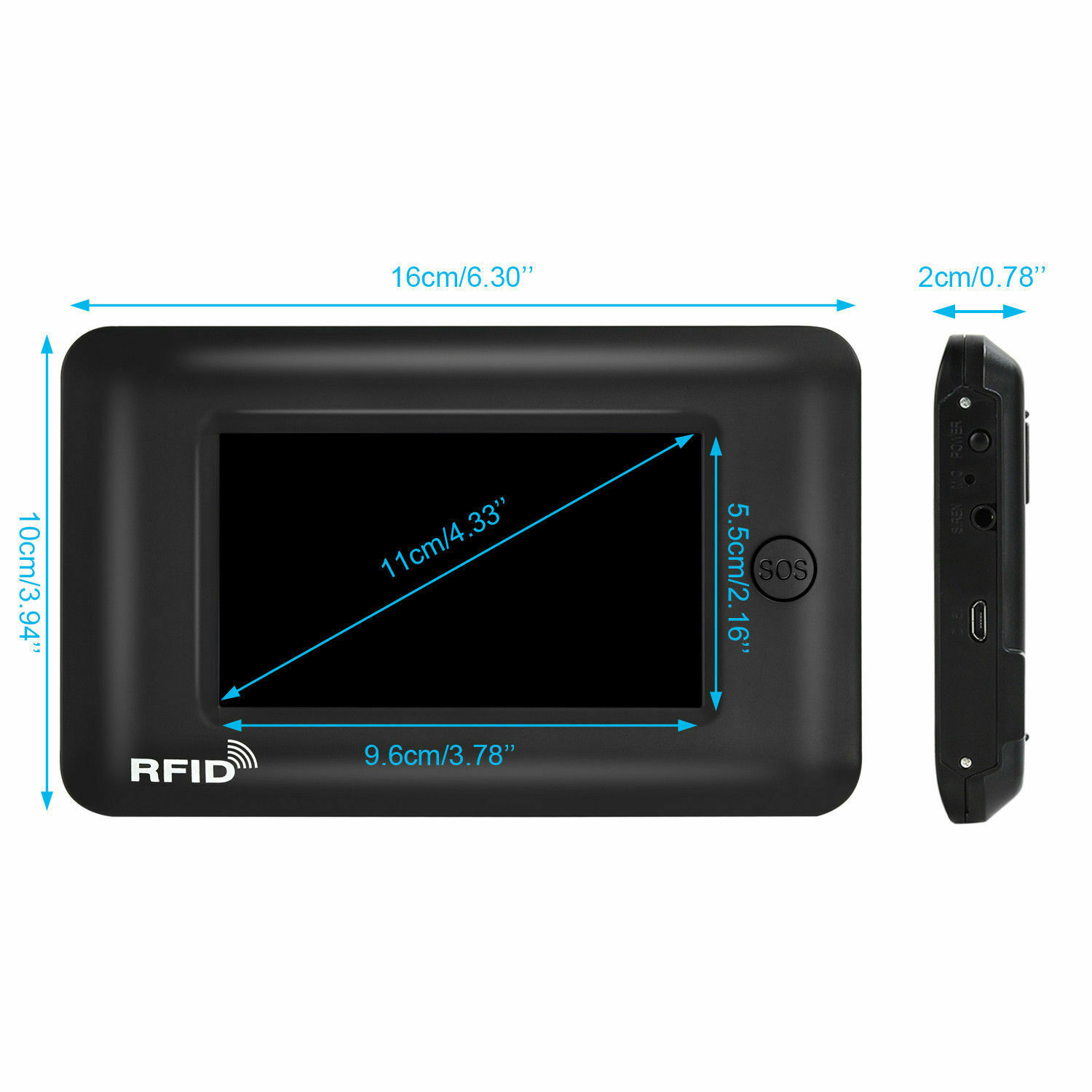

Product size：160mm x98mm x18mm（Length x Height x thickness)

Wireless PIR Motion Detector

• Working Voltage：2x AAA Battery (Not included)
• Working Current：<=25ma
• Static Current ：<= td=""><=25ma
• Detecting Distant：8-12m (Depending on different house situation)
• Emission Distance：>=80m (Open Area )
• Detect Angle：120°
• Installation Height：Recommend 1.8m-2.2m
• Operation Temperature：-10℃-55℃
• Wireless Frequency ：433MHz



Wireless Smoke Alarm

• Using infrared photoelectric sensor. A device that detects smoke and issues an alarm to alert nearby people that there is a   potential fire. It has built-in buzzer and will send signal to make the system alarms
• Battery: DC9V, 6F22 (Not included)



Wireless Remote Controller

• To control this system including arm/disarm/partial arm, emergency help.
• Battery: 27A 12V (Not included)

Wireless Alarm System Siren

• Power output :DC5V 1000mA
• Standby current ≤13mA
• Alarm current ≤230mA
• Frequency :433MHz/315MHz
• Code:SC 2262IC/4.7MΩ
• Temperature:-20℃~+55℃
• Humidity:40%~80%RH
• Backup Battery:Lithium-ion battery 3.7V/280mA



​​​​​​​External Wired Alert Siren

• Working Voltage：12DC
• Rated Current：320 / 600 / 1000 / 1200 mA
• Output Power：15W
• Connector：3.5mm
• Decibel Super loud：110 /+3dB
