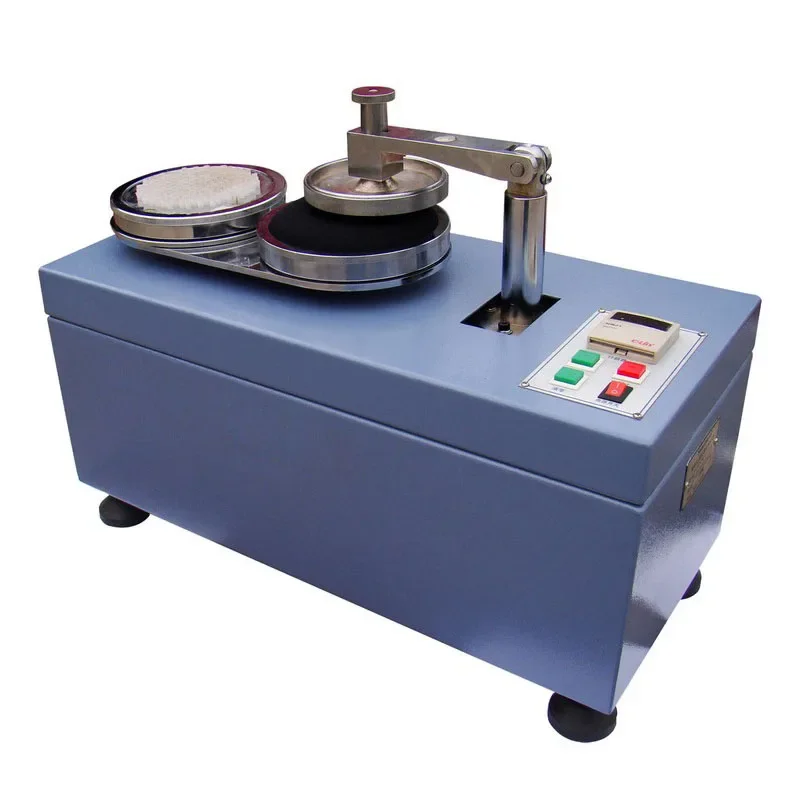

Features of this machine.
Circle track method” to test all kinds of fabrics resistance (anti-pilling) to pilling performance. Adopting digital counter to control two sets of sinusoidal mechanism, make the test sample and the abrasive table form a circular track at a certain speed relative motion.
Sample and grinding table to form a circular track at a certain speed relative movement, the use of nylon brushes and abrasives or single abrasive, so that the chemical fiber silk knitted
The use of nylon brushes and abrasives or single-use abrasives, so that chemical fiber silk knitted fabrics, chemical fiber woven fabrics, combed blended, combed woolen fabrics, coarse and loose woolen fabrics and other fabrics friction pilling, against the pilling samples.

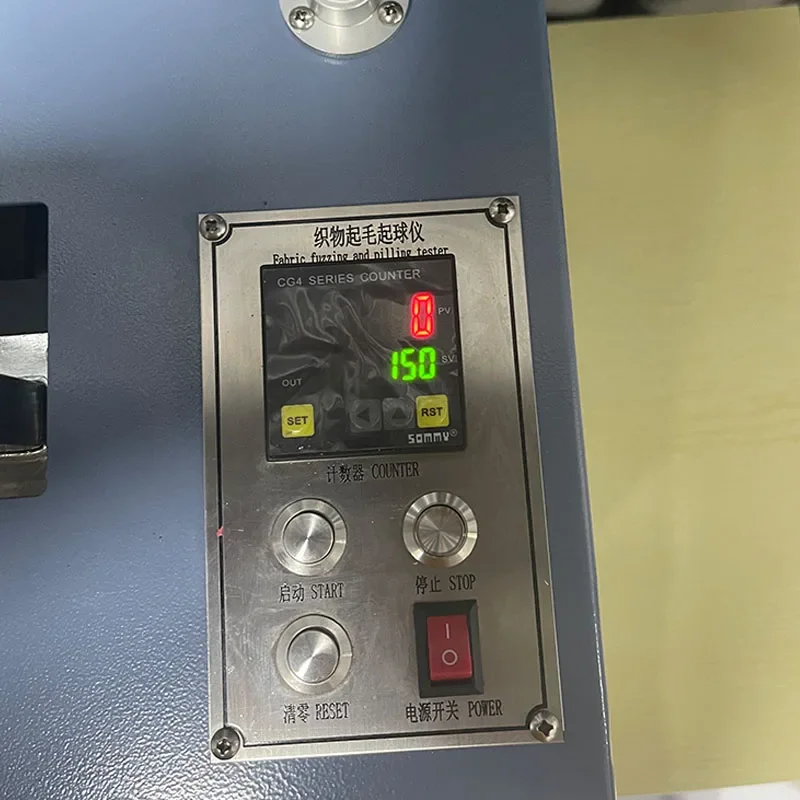

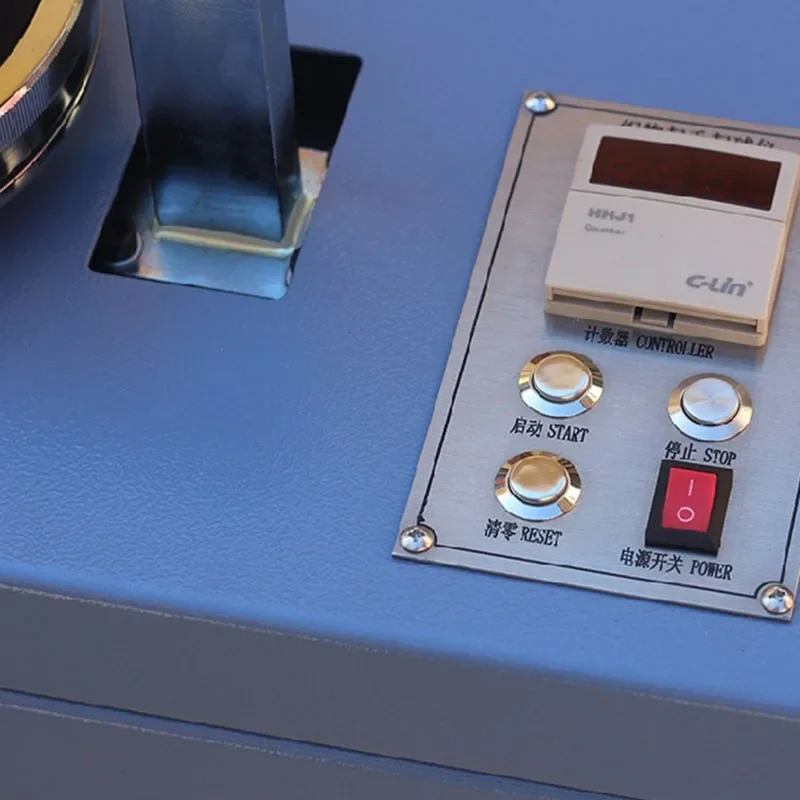

Rating against pilling samples. The number of times can be set, automatic counting, Hall components to collect the number of signals, LED display data.
Technical Parameters.
1、Pilling and pilling movement track: the diameter of 40mm circular track movement.

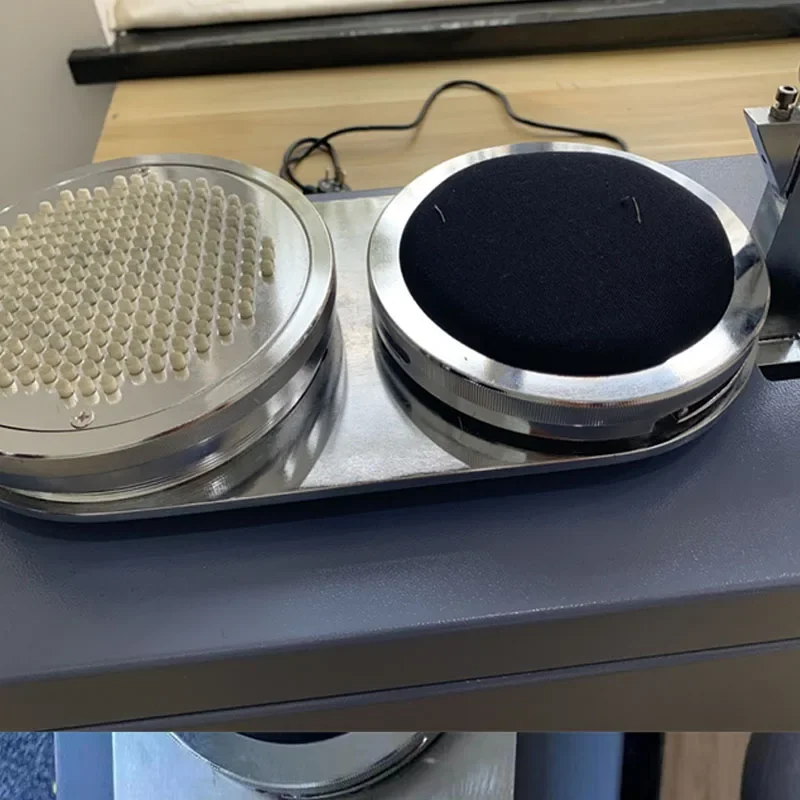

2, adjustable brush: nylon brush height adjustable (2mm-10mm)
3, test standard regulations.
a. Chemical fiber silk knitted fabrics: the pressure is 590cN, the number of pilling is 150 times.
b. Chemical fiber woven fabrics: pressure is 590cN, the number of times of pilling and pilling is 50 times.
C. Combed woolen fabrics pressure is 780cN, the number of times of pilling is 600 times.
d. Coarse combed woolen fabrics pressure of 490cN, measured the number of times the ball is 50 times
e munitions clothing (combed blended): pressure of 490cN, test the number of times for 30 times, test the number of times for 50 times the number of times of pilling
4, specimen specifications: diameter 112.8mm round, area 100 square centimeters.
5, the number of times to choose: 1 ~ 9999 times.
6, grinding table reciprocating speed: 60 times / min
7, grinding head weight:490cN
8、Large weight:290cN
9, small weight weight: 100cN
10、Power supply:Ac220V
50Hz
11、Dimensions:540(L)X250 (W)X345(H) mm
12、Weight:about 35kg
I. Introduction

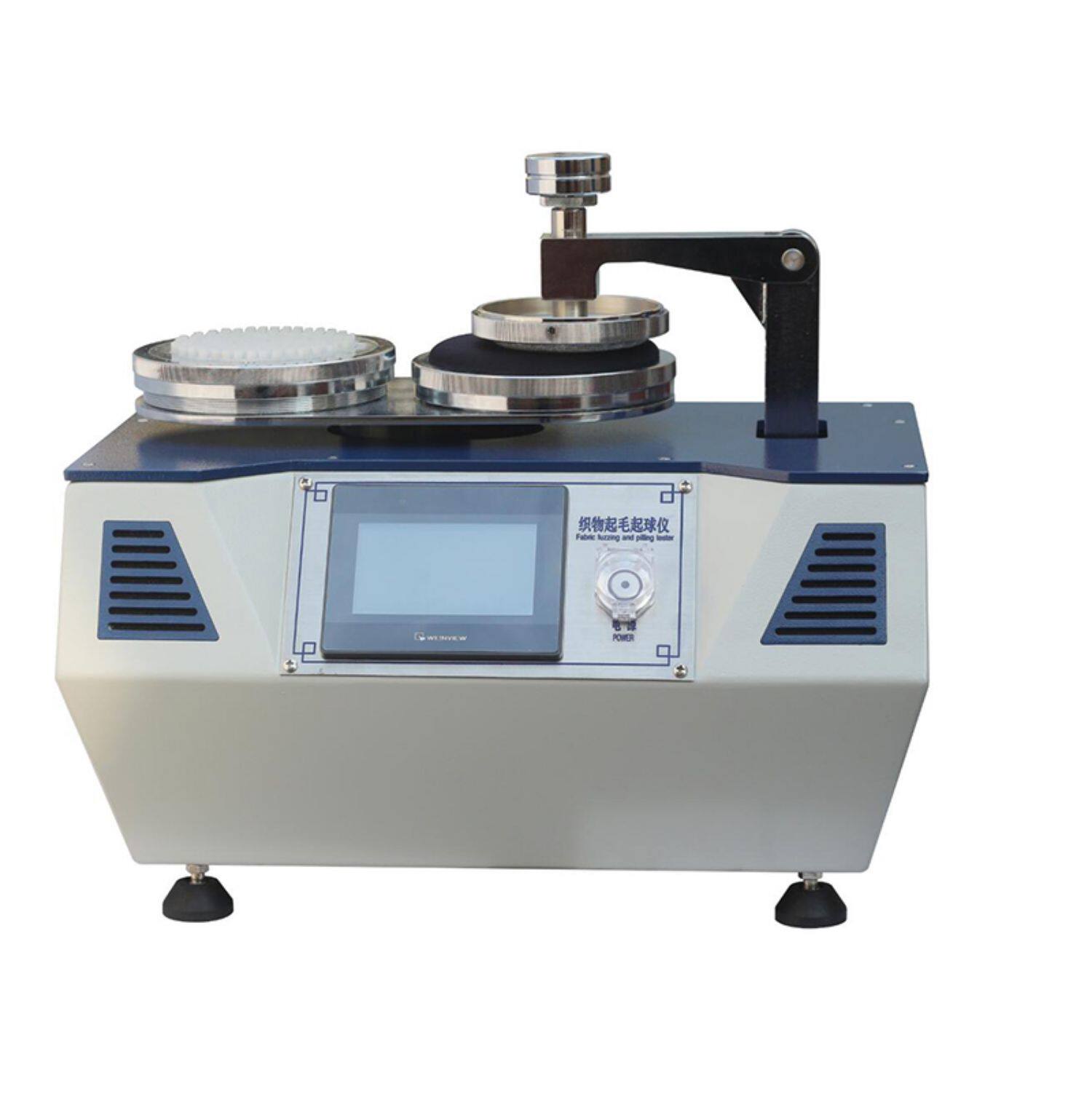

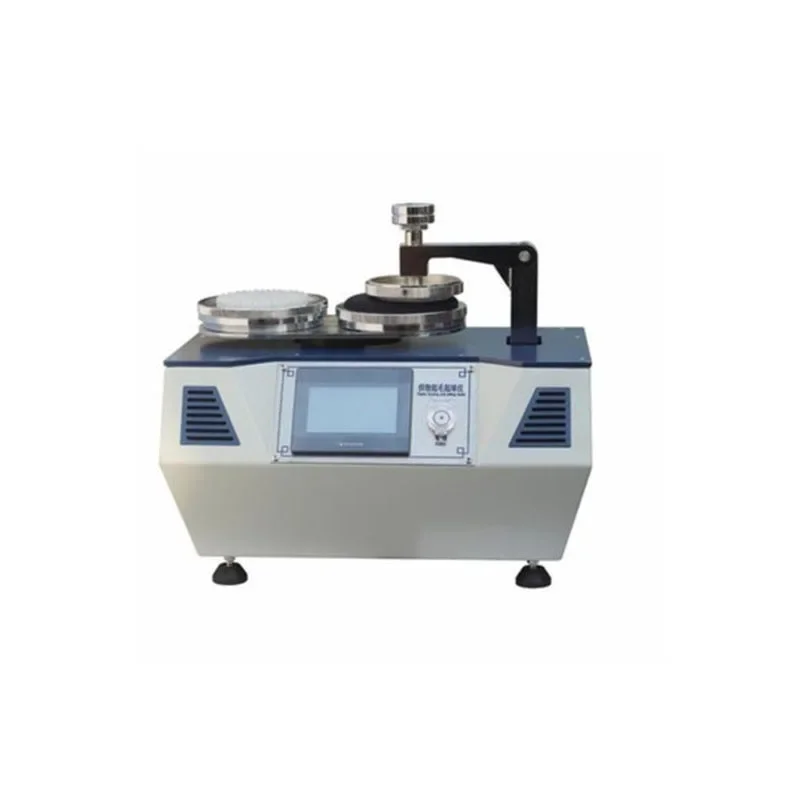

1、YG502C type pilling instrument is an ideal instrument to test the pilling condition of various fabrics.
2, the instrument adopts touch screen control, can be given to the number of times, automatic counting, Hall components to collect the number of times the signal, data touch screen display.
It is characterized by accurate, stable, reliable and soft sound.
3、Applicable standards: GB/T4802.1 “Textiles
The textile pilling test round track method”.
Second, the main technical indicators of the instrument
1, the movement track: 40mm ± 1mm in the round track
2, movement speed: 60r/min ± 1r/min
3, brush height: 2mm ~ 10mm adjustable
4, counting range: 1 ~ 999,900 times
5、Power supply:AC220V±10% 50Hz
6, external size: 560mmX260mmX360mm
7、Weight:32Kg
About the choice of weights: This machine comes with two weights of different weights, respectively, 100cN, 290cN, users can choose different weights according to different
Users can choose different weights according to different experimental requirements. When you need to replace the weights, please hold the weights and rotate them counterclockwise to unload the weights.
Three compression weights: 490cN without any weight; 590cN with 100cN; 590cN with 100cN; 590cN with 100cN; 590cN with 100cN.
590cN with 100cN weights.
780cN with 290cN weights.
