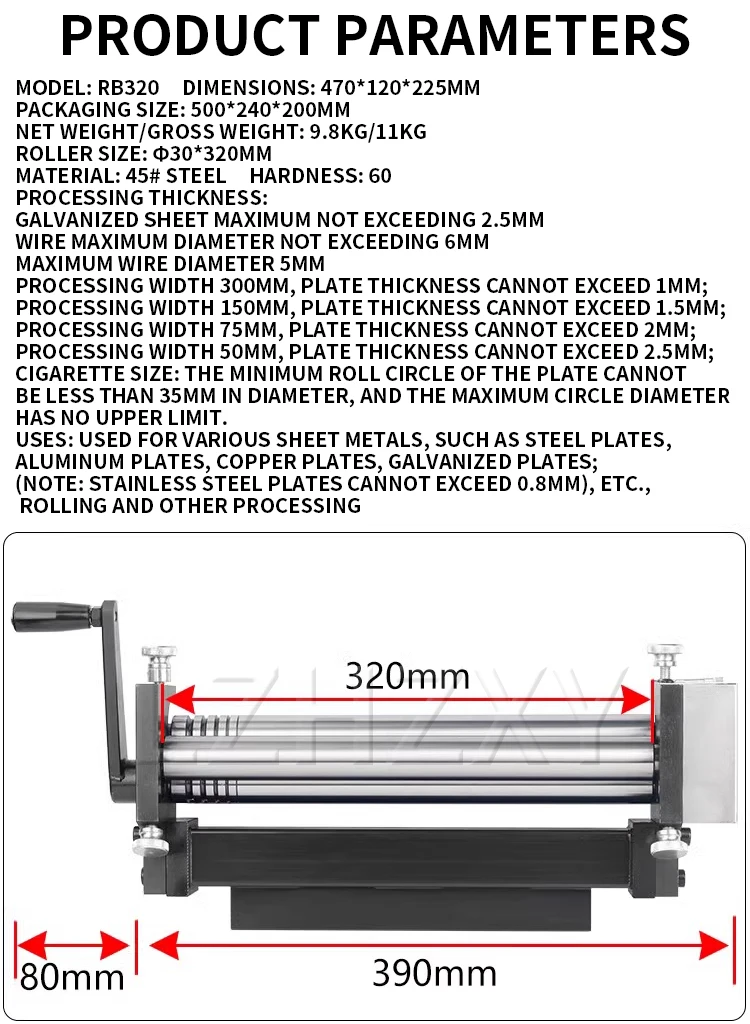

Name: Manual plate rolling machine
Model: RB320
Dimensions: 470*120*225MM
Packaging size: 500*240*200MM
Net weight/gross weight: 9.8KG/11KG
Roller size: Φ30*320MM
Material: 45# steel
Hardness: 60
Processing thickness:
Galvanized sheet maximum not exceeding 2.5MM
Wire maximum diameter not exceeding 6MM
Maximum wire diameter 5MM
Processing width 300MM, plate thickness cannot exceed 1MM;
Processing width 150MM, plate thickness cannot exceed 1.5MM;
Processing width 75MM, plate thickness cannot exceed 2MM;
Processing width 50MM, plate thickness cannot exceed 2.5MM;
Cigarette size: The minimum roll circle of the plate cannot be less than 35MM in diameter, and the maximum circle diameter has no upper limit.
Uses: Used for various sheet metals, such as steel plates, aluminum plates, copper plates, galvanized plates;
(Note: stainless steel plates cannot exceed 0.8MM), etc., rolling and other processing

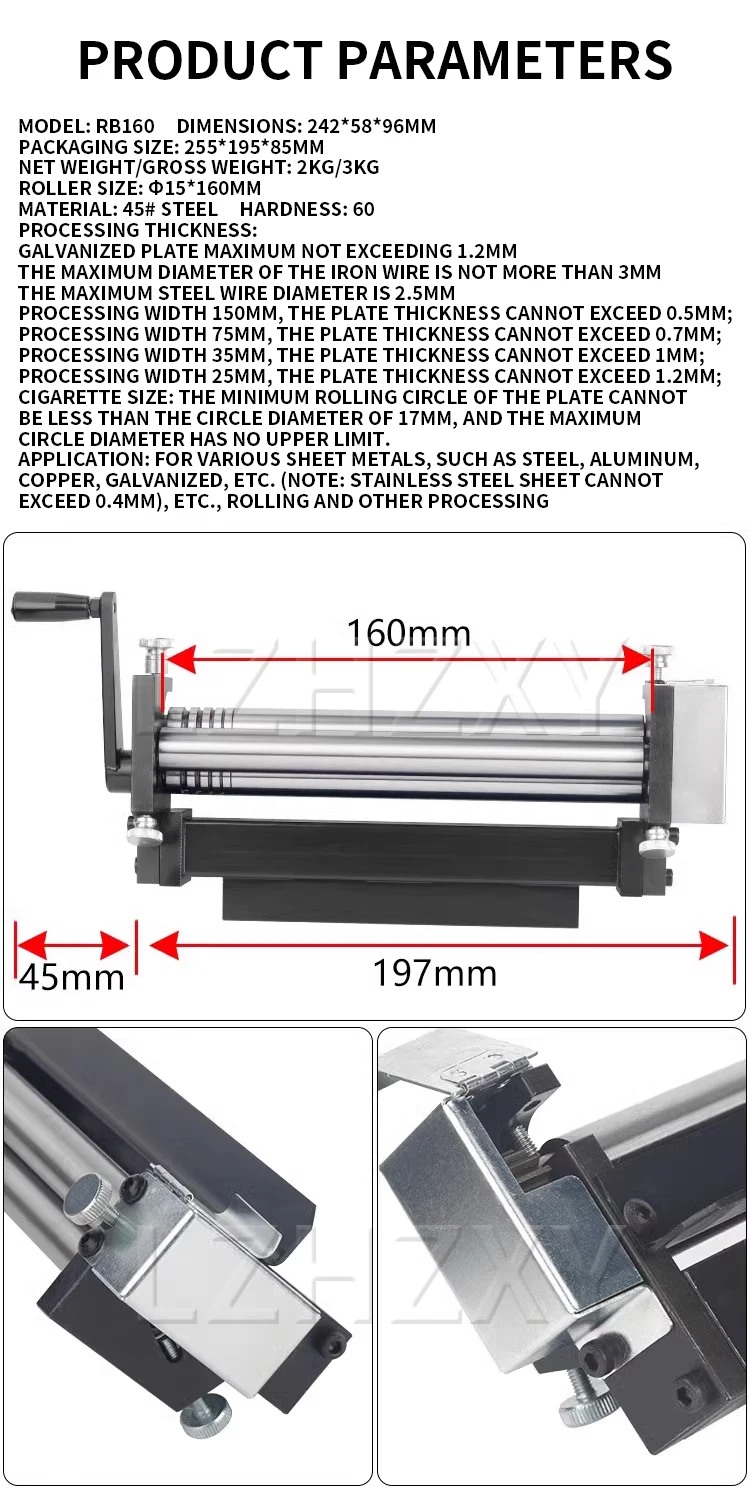

Model: RB160
Dimensions: 242*58*96MM
Packaging size: 255*195*85MM
Net weight/gross weight: 2KG/3KG
Roller size: Φ15*160MM
Material: 45# steel
Hardness: 60
Processing thickness:
Galvanized plate maximum not exceeding 1.2MM
The maximum diameter of the iron wire is not more than 3MM
The maximum steel wire diameter is 2.5MM
Processing width 150MM, the plate thickness cannot exceed 0.5MM;
Processing width 75MM, the plate thickness cannot exceed 0.7MM;
Processing width 35MM, the plate thickness cannot exceed 1MM;
Processing width 25MM, the plate thickness cannot exceed 1.2MM;
Cigarette size: The minimum rolling circle of the plate cannot be less than the circle diameter of 17MM, and the maximum circle diameter has no upper limit.
Application: For various sheet metals, such as steel, aluminum, copper, galvanized, etc. (Note: stainless steel sheet cannot exceed 0.4mm), etc., rolling and other processing
