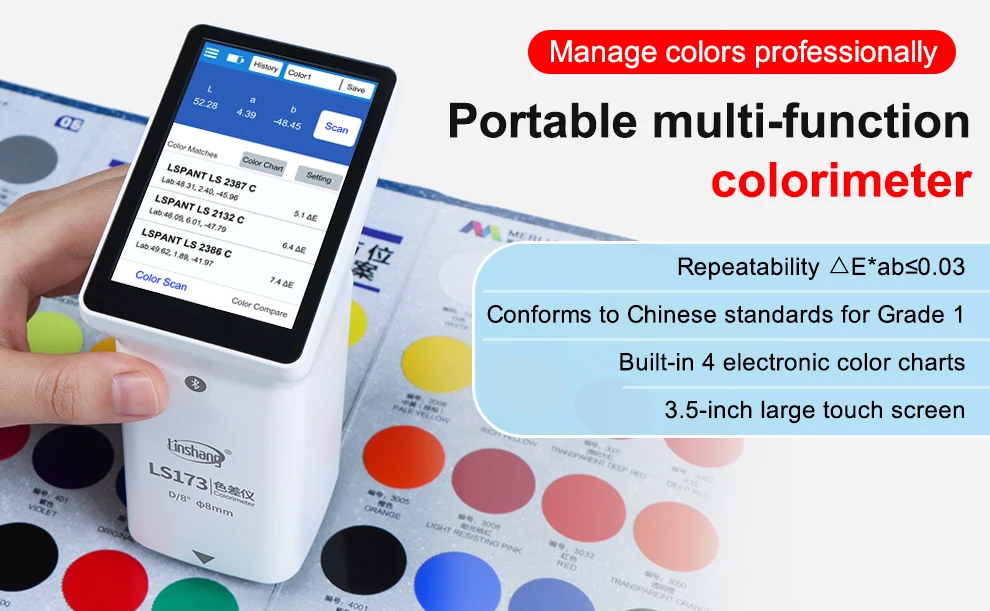

LS173 colorimeter for coating equipped with 3.5-inch IPS color capacitive touch screen. LS173 colorimeter for coating adopts D/8° illumination design, which is usually used in automotive paint, hardware processing, stone, decoration materials, plastic industries, etc.. It built-in multiple electronic color charts, which can quickly match the measured color with three closest color codes. The high precision color checker comes with the mobile APP and PC software that supports color sharing. It has CE certificate, which guarantees products quality.

Specifications

1. Illumination geometry: D/8, specular component include (SCI)

2. Illumination light source: Full spectrum LED light source

3. Measuring aperture: 8mm

4. Measurement conditions: Light source D65, field of view 10°

5. Measuring time: About 1s

6. Color space: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex

7. Color difference formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE*cmc(1.4:1)

8. Repeatability: Standard deviation ΔE*ab≤0.03(Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration)

9. Dimension: 86mm×62.5mm×158mm

10. Weight: About 245g

11. Power supply: Rechargeable lithium battery3.7V@4000mAh, can measure 10,000 times continuously under full charge

12. Display: 480×320 dot matrix IPS color screen

13. Language: Simplified Chinese, English

14. Charging port: USB (Type-C)

Features

1. It comes with a 3.5-inch touch screen making operation more convenient.

2. LS173 adopts D/8° illumination design, which is usually used in general industries.

3. Multiple color charts that can rapidly match the measured color to three closest color codes.

4. Support mobile APP and PC software to share the color.

5. Stable value, repeatability △E*ab≤0.03.

6. Large amount of color data can be stored, which solves the problem of fading.

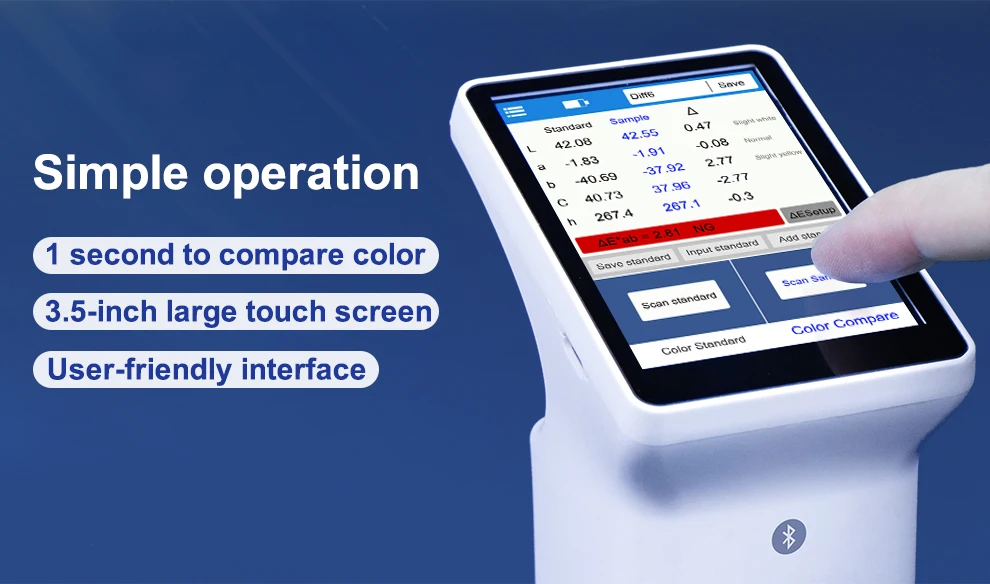

Easy to use

The color analyzer comes with a 3.5-inch touch screen making operation more convenient.

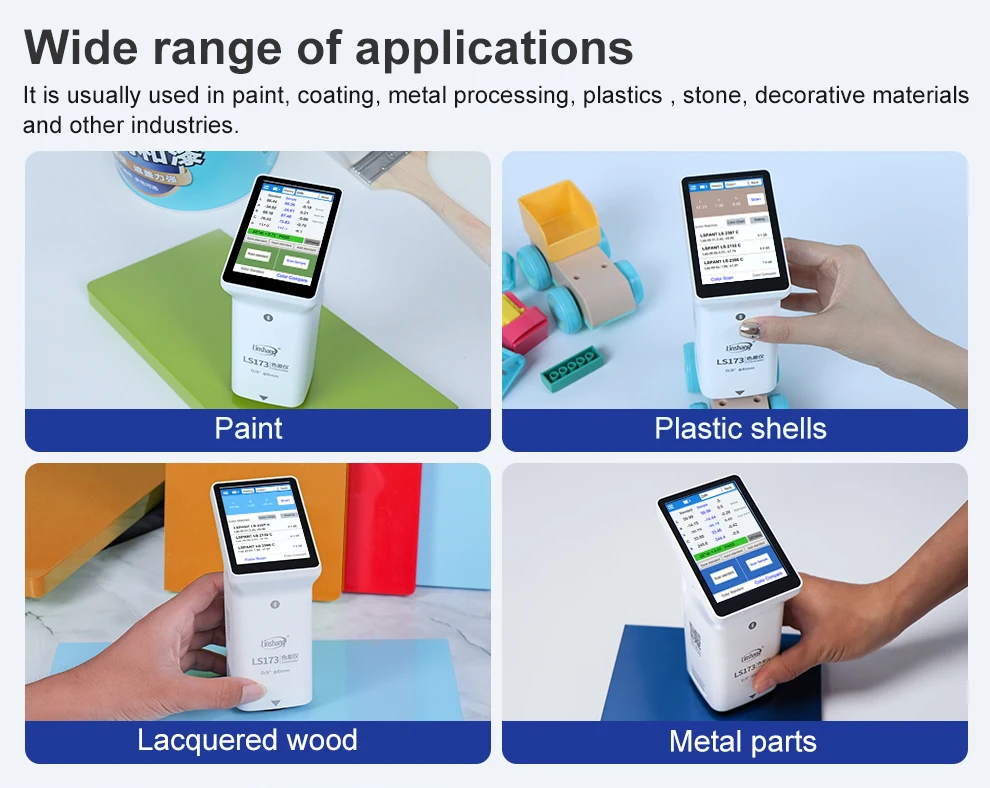

Broad range of applications

It is usually used in paint, plastic, stone, decoration materials, etc..

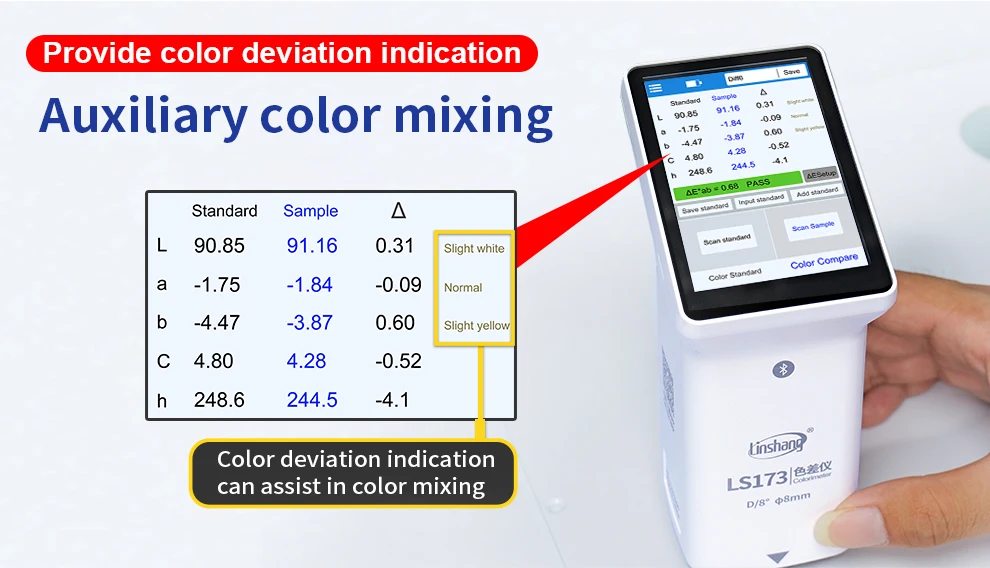

Auxiliary color mixing

Whether it is more white or black, slightly green or red can be seen at a glance. The influence of perceived factors on color judgments can be eliminated.

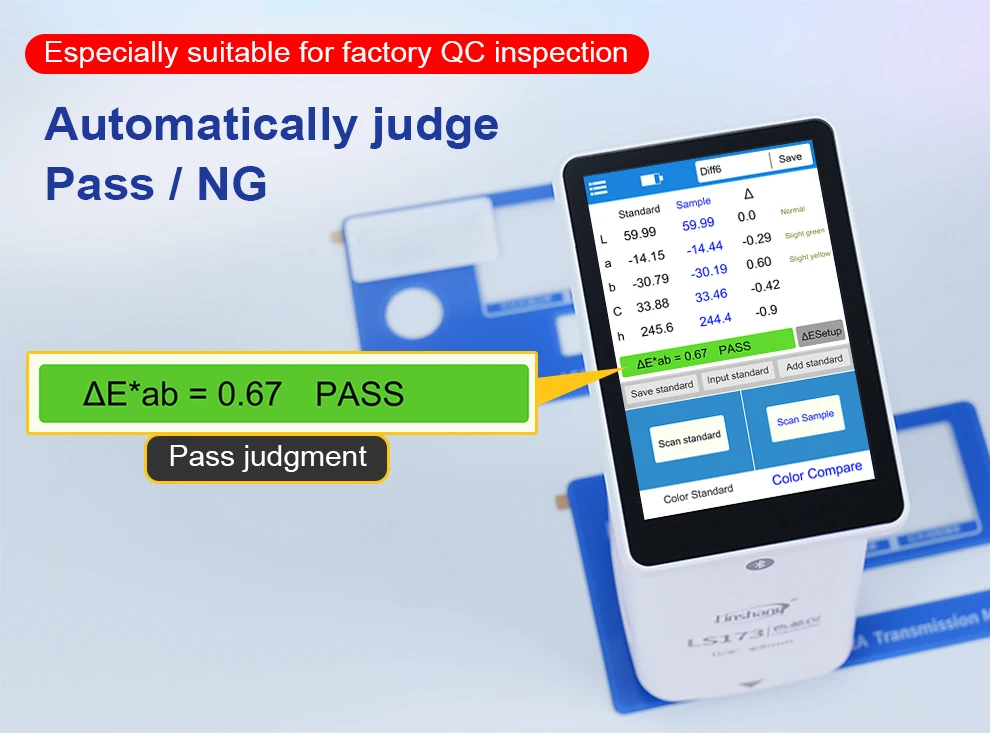

Especially suitable for factory QC inspection

The high precision color checker automatically judge Pass/NG

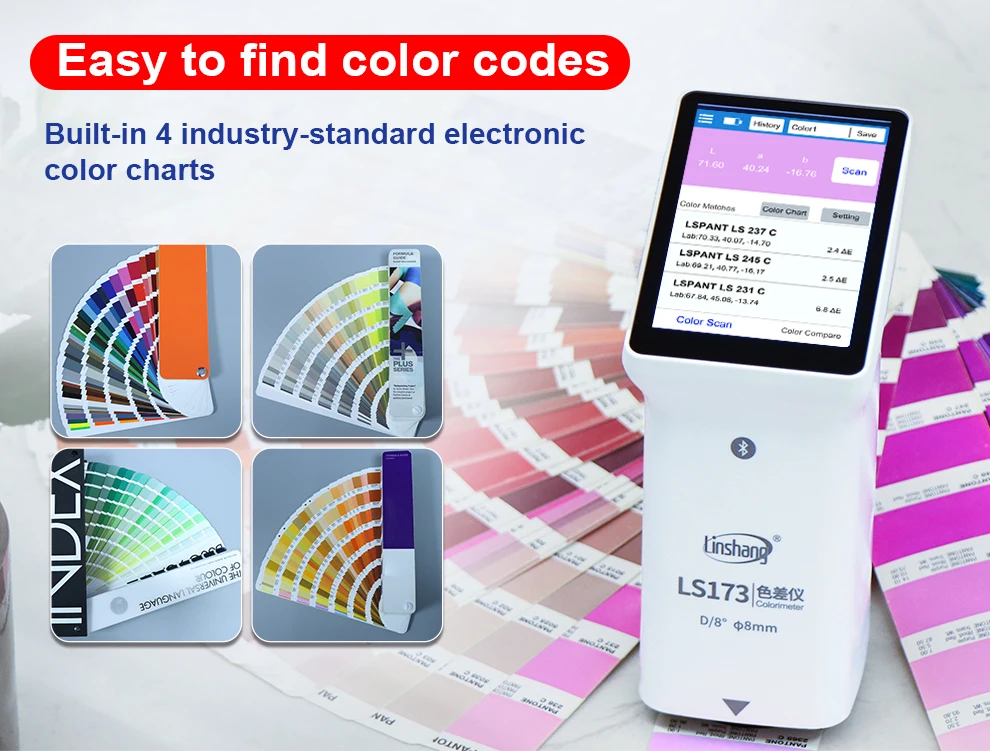

Easy to find color codes

The portable digital colorimeter built-in 4 industry-standard electronic color charts.

Color measurement can be quickly matched to 3 closest color codes from industry-standard electronic color charts, making it easy to find the color.

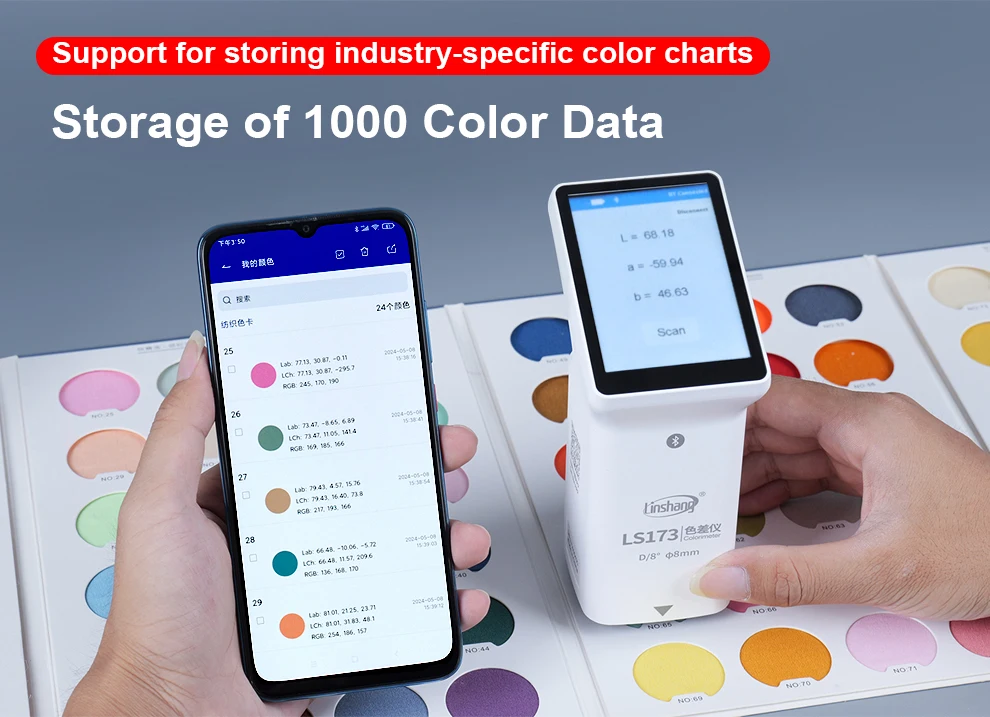

Support for storing industry-specific color charts

Mass storage of colors, which can record industry-specific color charts for paints, fabrics, coatings and so on. No need to carry and flip through the paper color cards, avoiding the standard sample aging and fade.

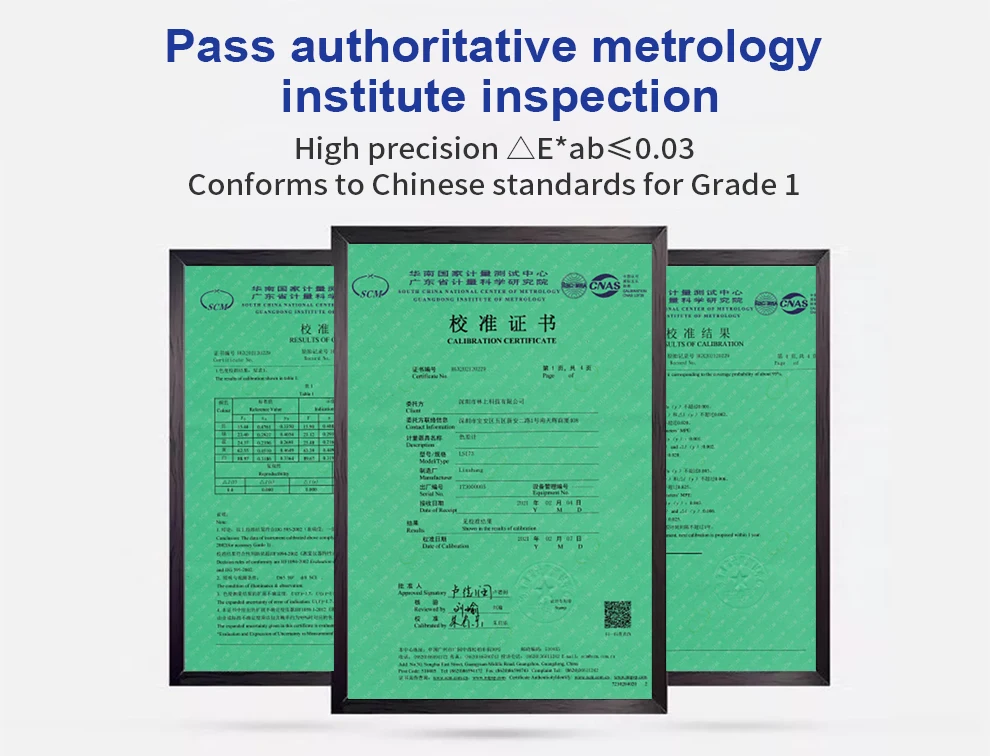

Pass authoritative metrology institute inspection

The paint colorimeter conforms to authoritative metrology institute inspection

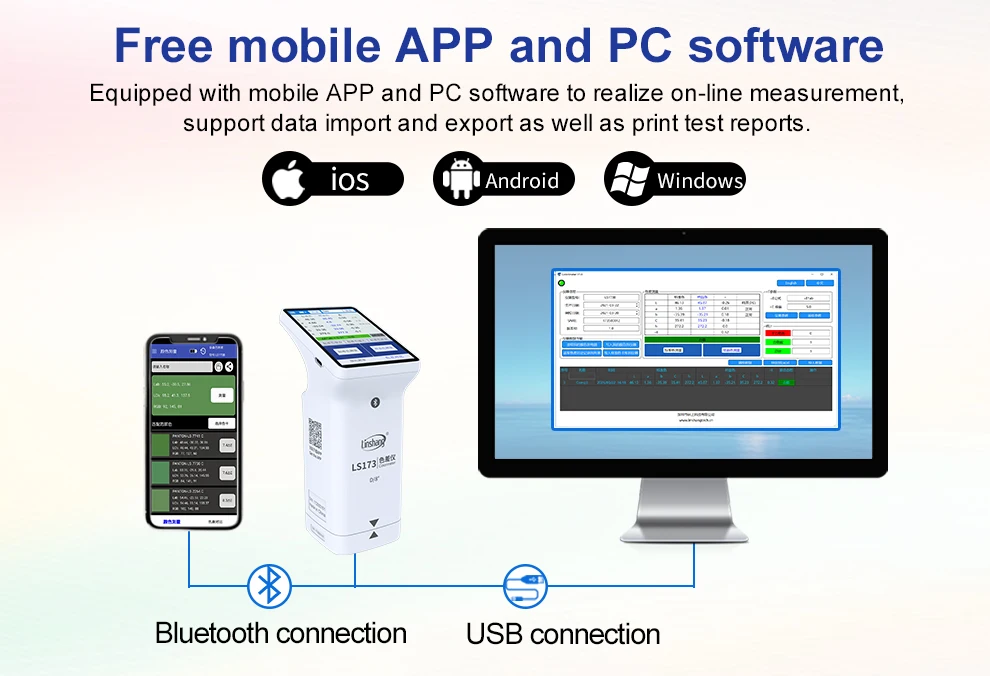

Free mobile APP and PC software

The portable digital colorimeter equipped with mobile APP and PC software to realize on-line measurement, support data import and export as well as print test reports.

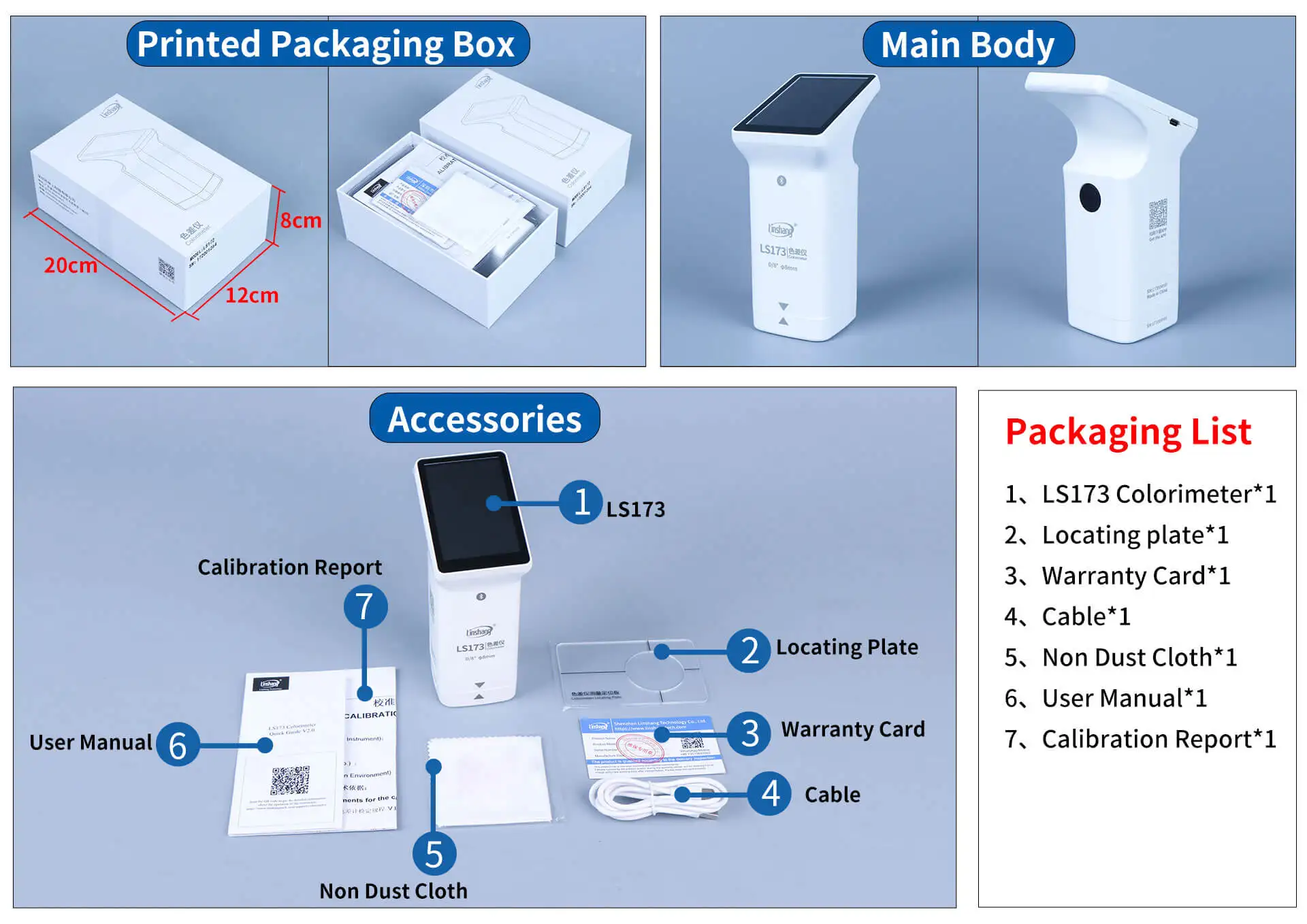

1. LS173 Colorimeter*1

2. USB data cable*1

3. Cleaning cloth*1

4. Locating plate*1

5. User manual*1

6. Certificate / Warranty card*1

Note

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-2cm measuring deviation due to manual measurement.
