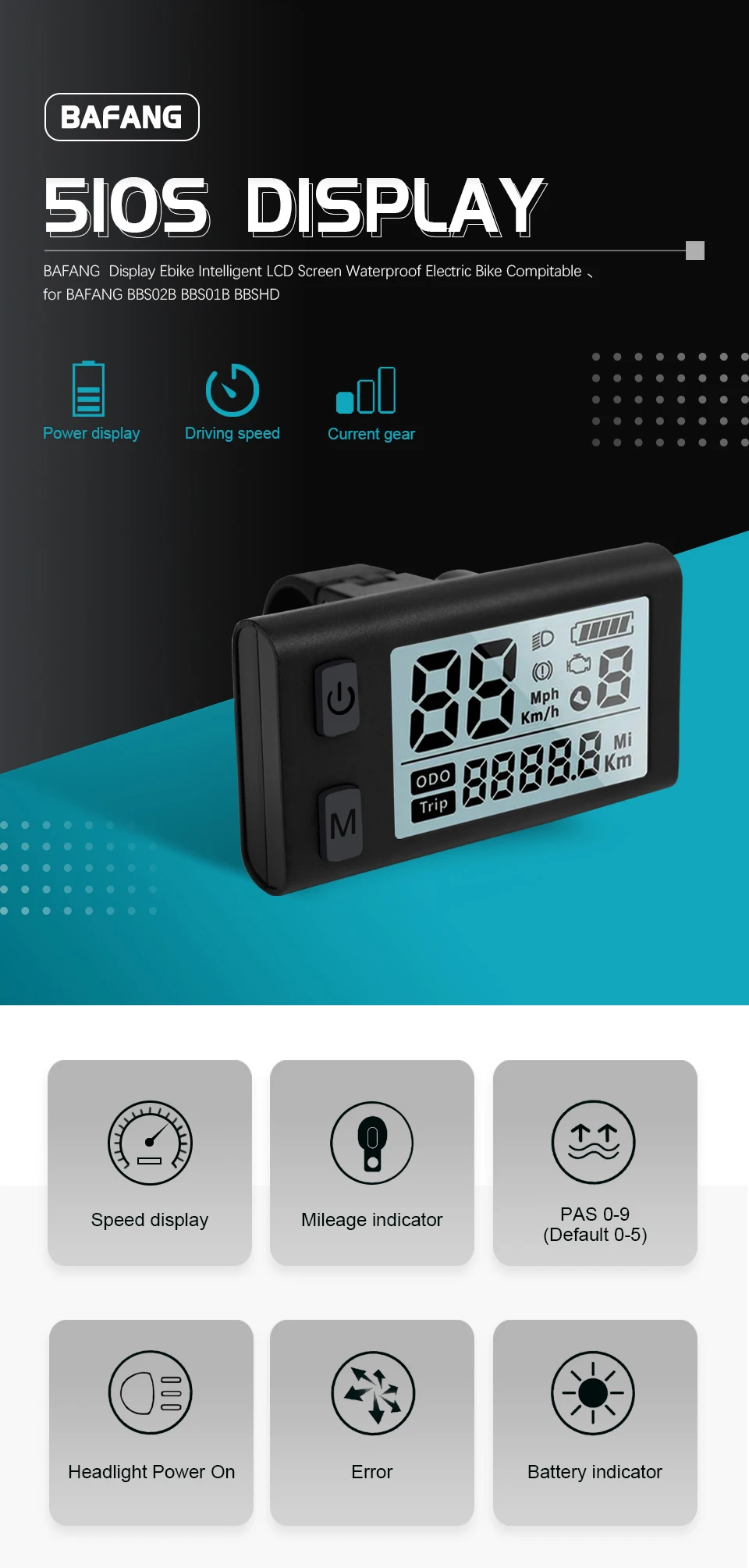

510S display

Bafang 510S Display LCD Screen with 5 Pin Female Plug Waterproof Connector Use for BBS01 BBS02 BBSHD Motor Conversion Kit

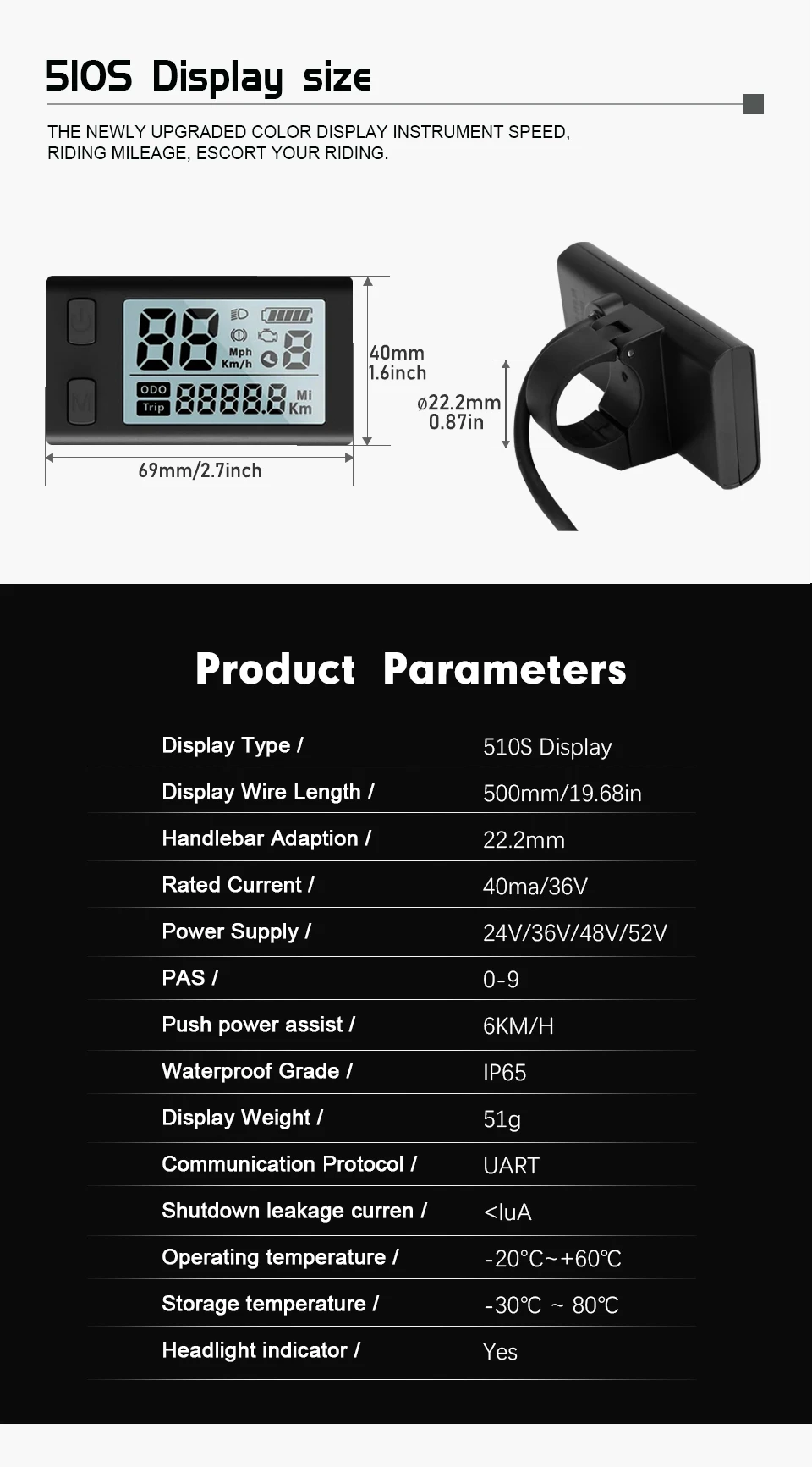

  Specification

•Power supply:DC 24V/36V/48V/52V

• Weight:51g

•Interface type: 5-pin waterproof interface

•Applicable handle size: 22.2mm/0.9 inches

•Support level mode: 0-9

•Storage temperature: -30-80 ℃

•Working temperature: -20-70 ℃

•Communication method: UART

•Turn off leakage current<1uA

•Waterproof rating: IP65

•Compatible motor: Suitable for BAFANG BBS01 BBS02 BBSHD mid mounted motor

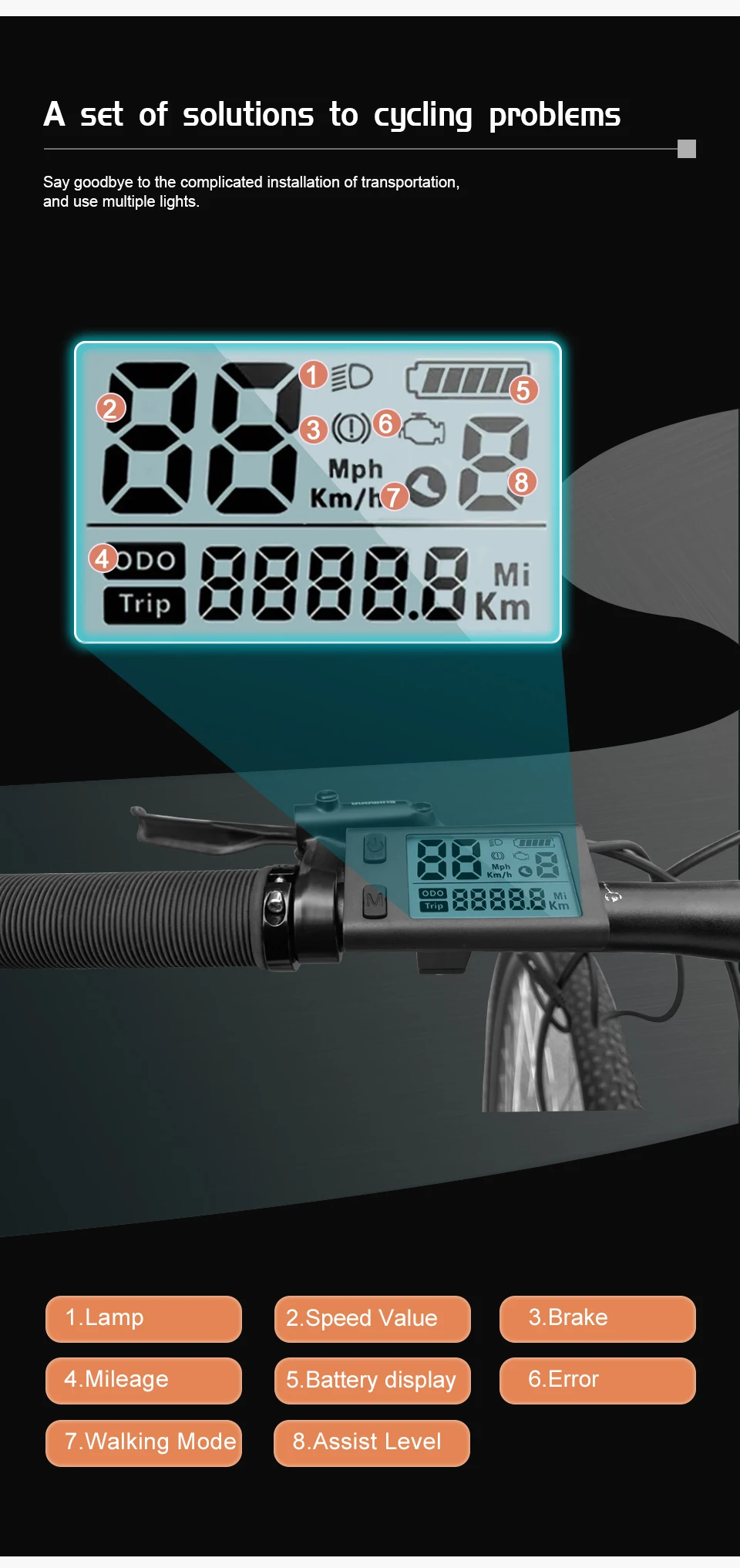

  Function Introduction

•Suitable for low temperature，Max -20℃.

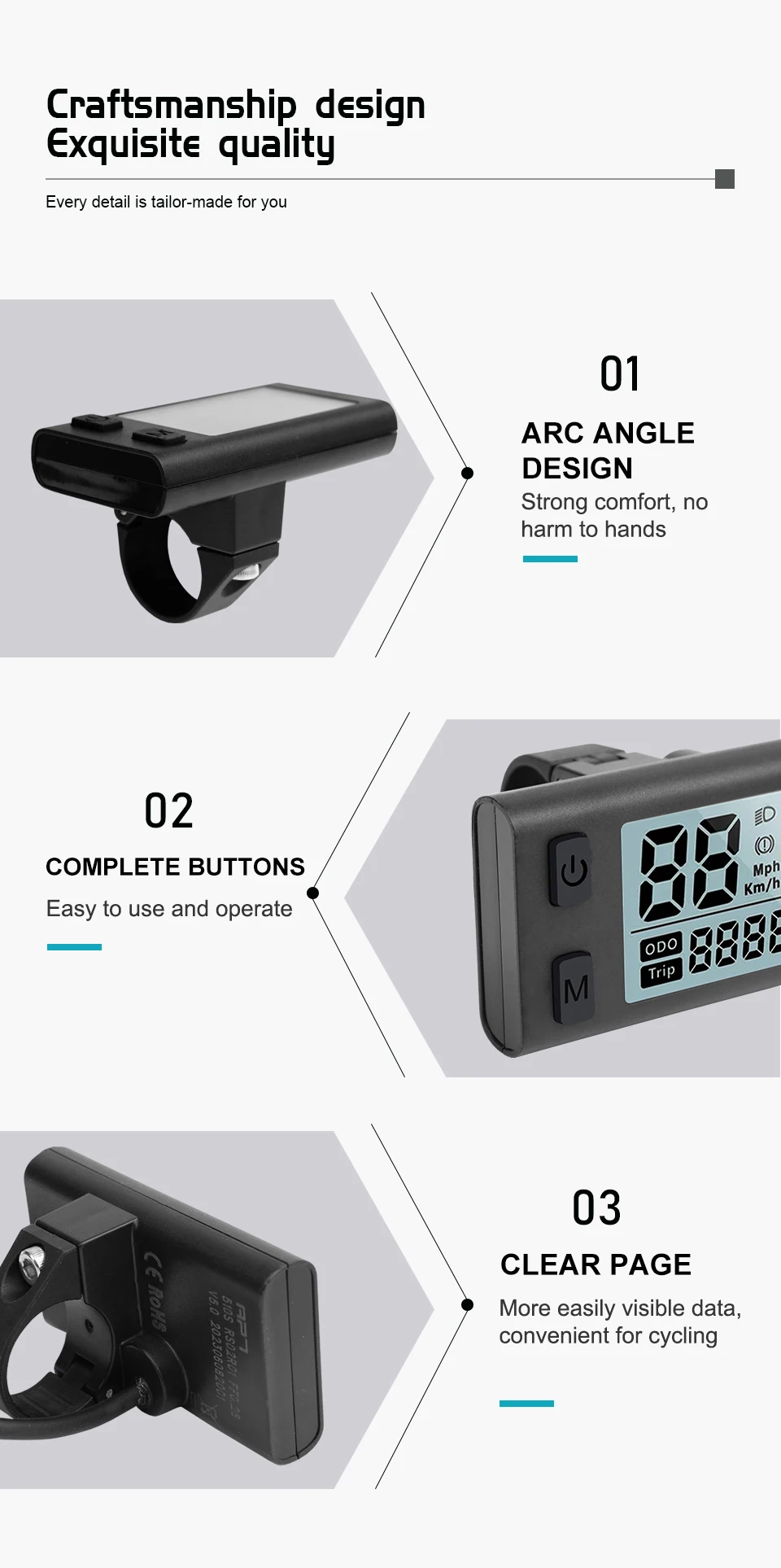

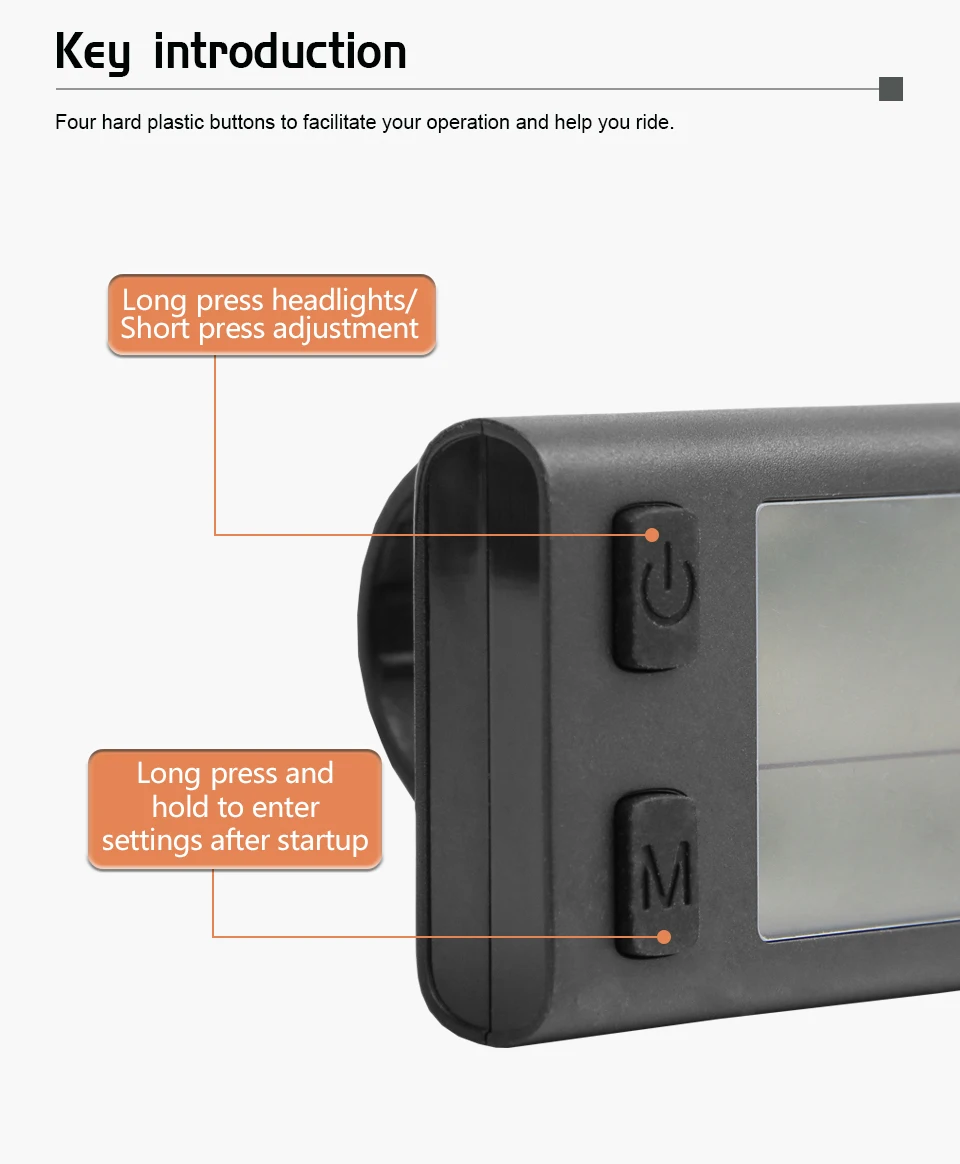

•Ergonomic external button design, easy to operate.

•Speed display: SPEED (Real-time).

•Kilometer / Mile : Can be set according to customers’ habits.

•Brightness: Can be set according to customers’ habits. Level 1 is the darkest and level 5 is the brightest.

•Assist level: 9-level optional.

•Mileage indicator: Odometer/Trip distance.

•Error code indicator.

•Software upgraded: Software can be upgraded through UART.

  PACKING LIST

1.Bafang LCD display

2.Display holder and gaskets
