High-Performance Digital-to-Analog Audio Converter
The ZD3 is a audiophile-grade balanced stereo DAC meticulously developed by Fosi Audio after thoroughly understanding user needs. It features the ES9039Q2M high-precision DAC chip, delivering rich and superior sound.
- Input: USB, HDMI ARC, Optical, Coaxial, Bluetooth; Output: XLR, RCA
- SNR≥126dB; THD+N<0.00008%
- Bluetooth Codecs: SBC, AAC, aptX, aptX HD
- Power Supply: 12V 1.5A
- Flagship Desktop DAC: A fully balanced digital-to-analog converter preamp with multiple inputs and outputs. Fosi Audio's first DAC to support HDMI ARC input and comes equipped with a high-performance ES9039Q2M chip to deliver rich and superior sound

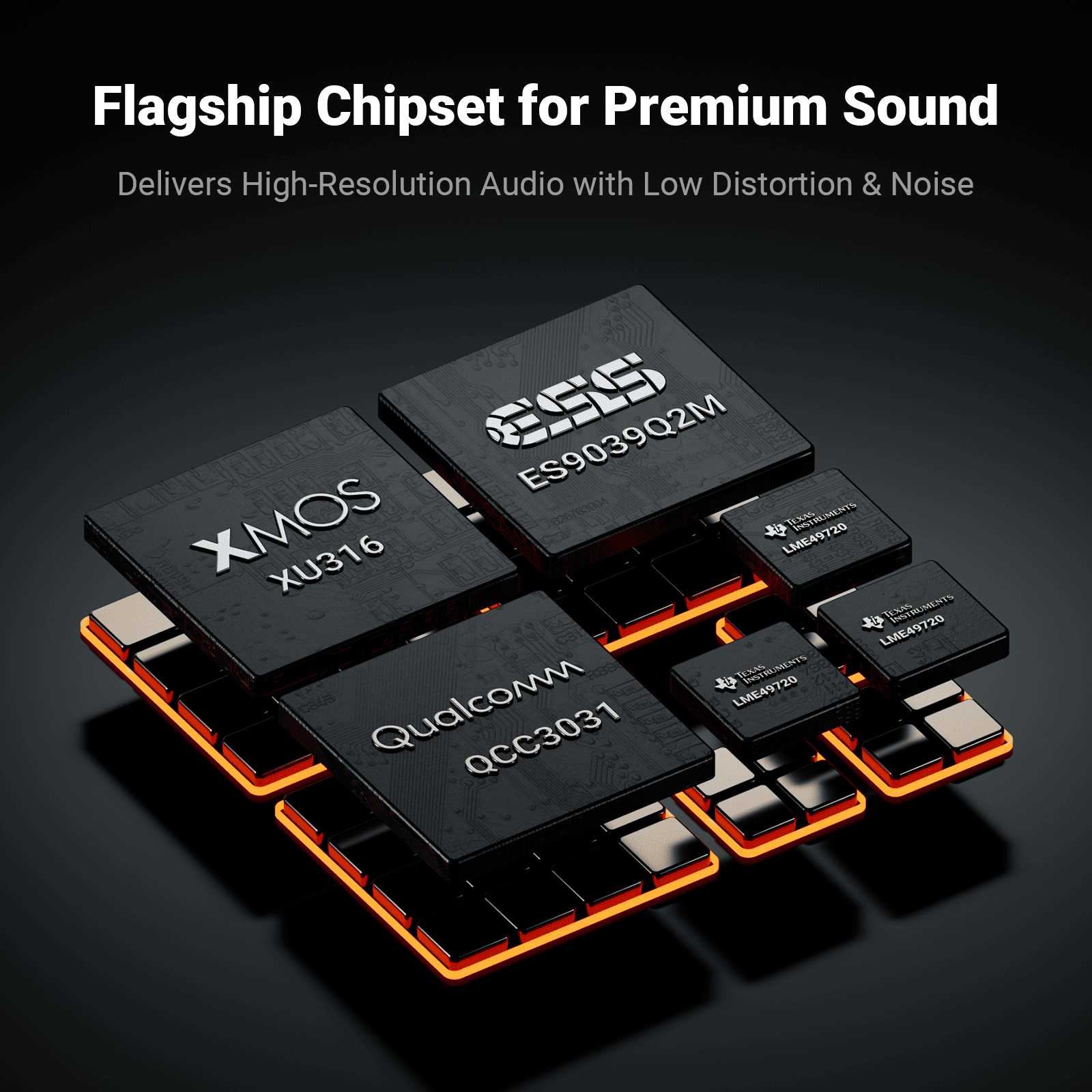

- Premium Chipset: The ZD3 features the chipset consisting of XMOS XU316+ES9039Q2M+QCC3031+LME49720. It supports high audio resolution, with a maximum capability of DSD512 and PCM 32bit/768kHz sampling rates, providing unparalleled clarity and depth
- Versatile & Flexible: The ZD3 offers comprehensive connectivity, supporting inputs like Bluetooth, USB, OPT, COAX, HDMI ARC, and balanced XLR/RCA outputs. This flexibility allows you to customize your audio system to suit various setups and scenarios

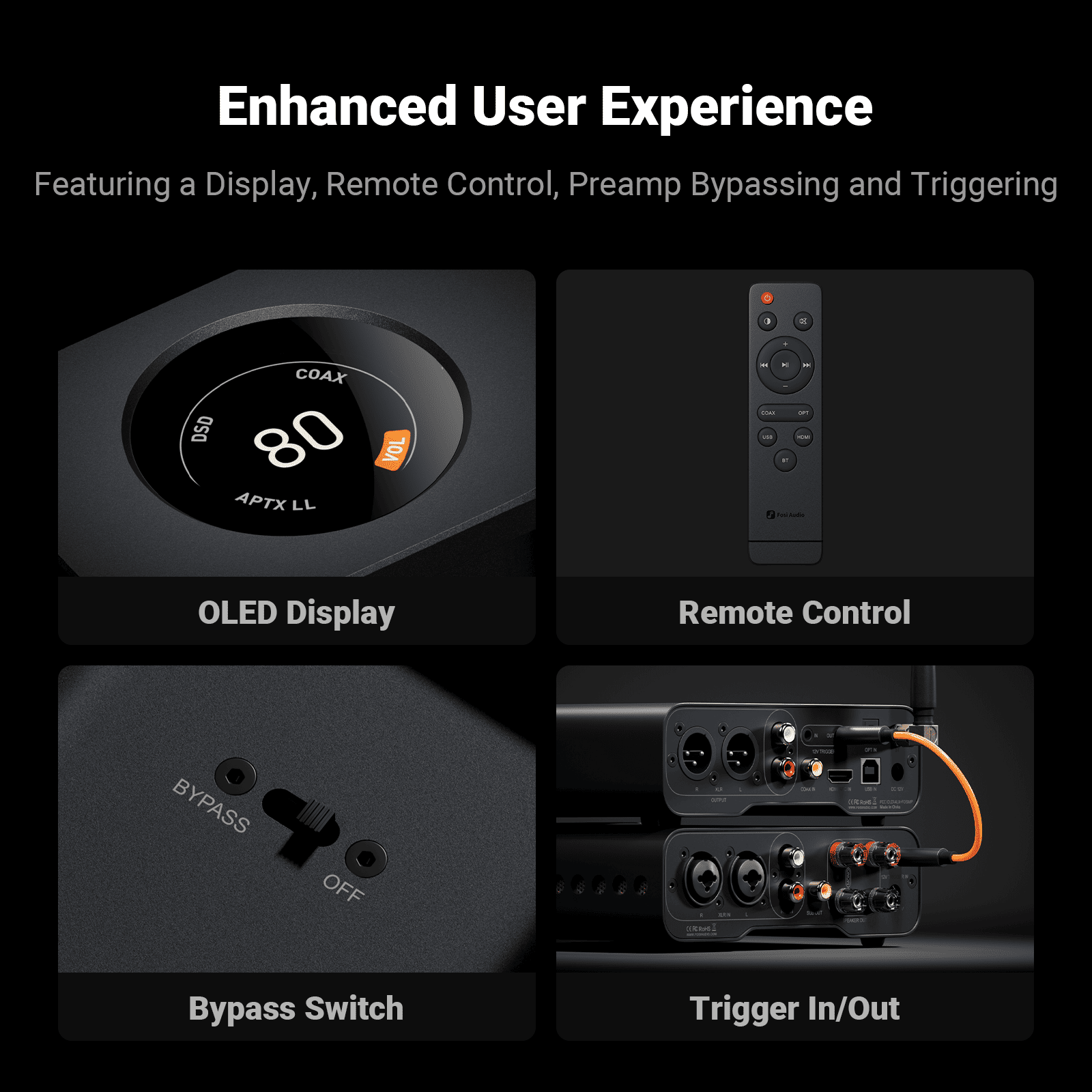

- Ease of Use: The ZD3 adopts a 1.5-inch OLED display, remote control, preamp bypass switch, and 12V trigger in/out interfaces, allowing synchronized power on/off with other home audio devices, all for a good user experience

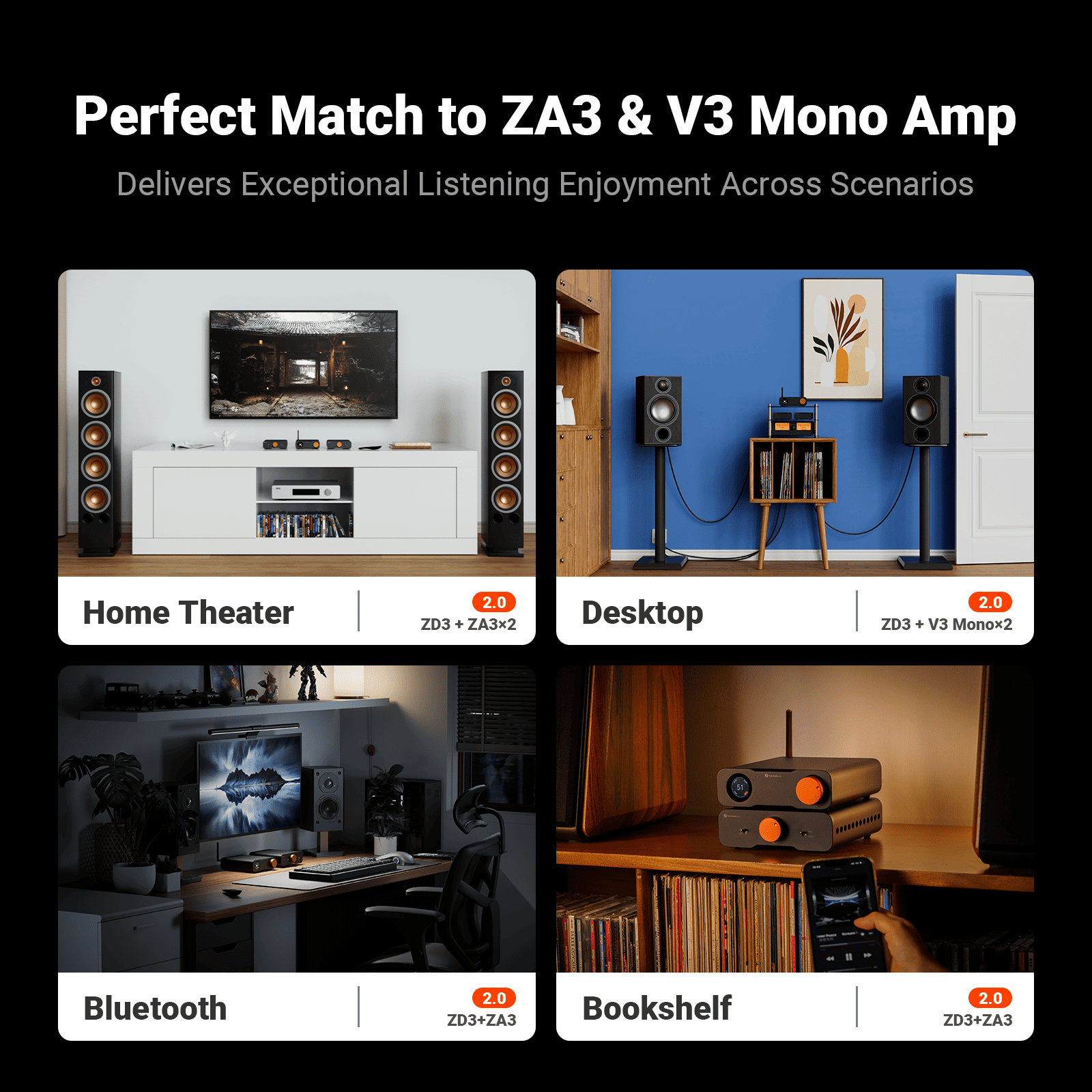

- Family Design: Featuring the same design language as the ZA3 amplifier: compact and exquisite appearance and audiophile-grade components for high performance and excellent sound quality. Pair it with the ZA3 to create a robust home audio system
Q&A
Q: Does the ZD3 have HDMI CEC? Can I use my TV’s remote for volume control?
A: The ZD3 does have HDMI CEC. In HDMI ARC input mode, you can control the ZD3’s volume with your TV remote, but it does not support HDMI EARC.
Q: Does the ZD3 have a built-in headphone amplifier? Does it have an analog input AUX?
A: No. The ZD3 does not have a built-in headphone amplifier and cannot connect headphones; it also does not support an analog input AUX.
Q: Does the ZD3 support ASIO and WASAPI drivers in Windows 11?
A: Yes, the ZD3 supports both ASIO and WASAPI drivers in Windows 11.
Q: Can I use the Trigger Out from the ZD3 to control two ZA3 amplifiers?
A: Yes, you can use a dual 3.5mm male splitter cable to control two ZA3 amplifiers synchronously.
Q: How many Sparkos SS3602 op-amps do I need for the ZD3?
A: For RCA output, replace one op-amp. For XLR balanced output, replace two op-amps corresponding to the left and right channels.
