Smart Remote Control Bluetooth Ewelink WiFi Switch Relay Module 2/3/4CH 7-32V

Features:

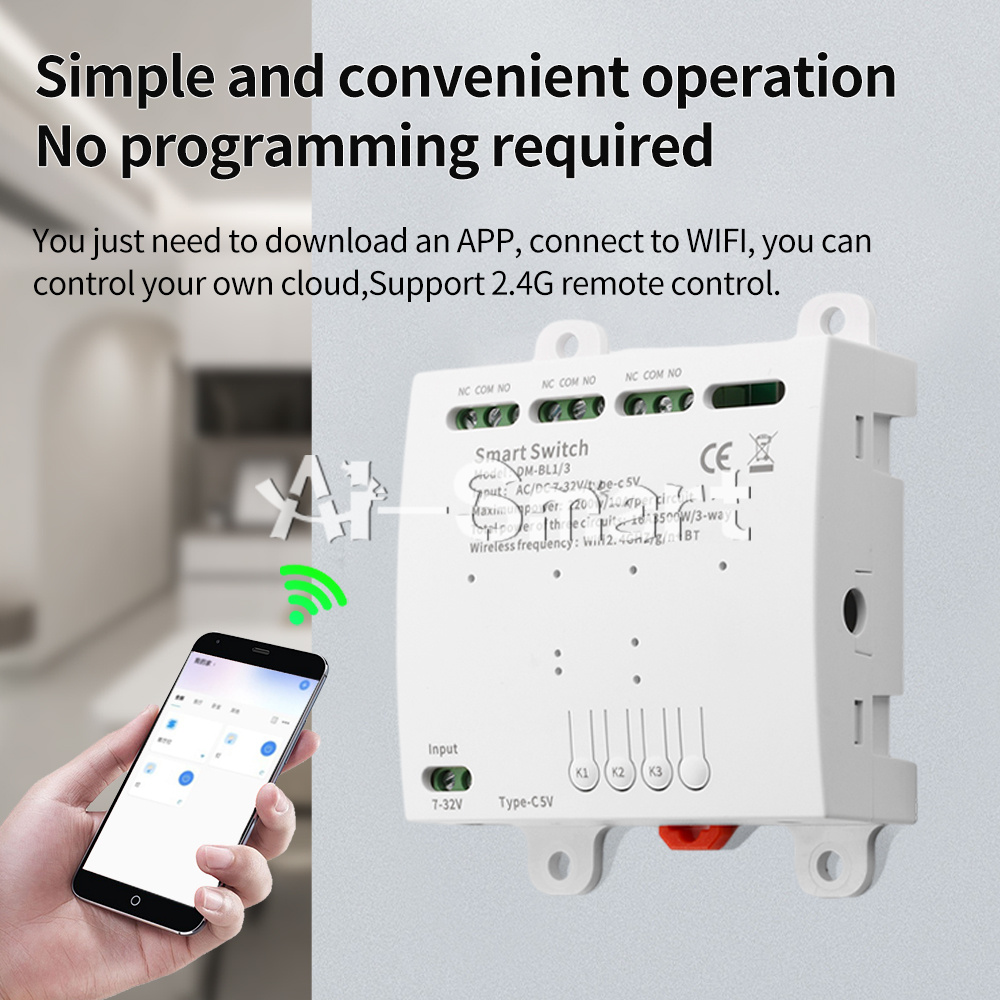

1. Easy to use, this WiFi control module does not require programming, just download an app and connect to the WiFi to control the built-in cloud, supporting 2.4G remote control.
2. Multi functional mode, supporting jog/self-locking/interlock switch modes.
3. Low power consumption, high power, maximum power can reach 2200W/10A per circuit.

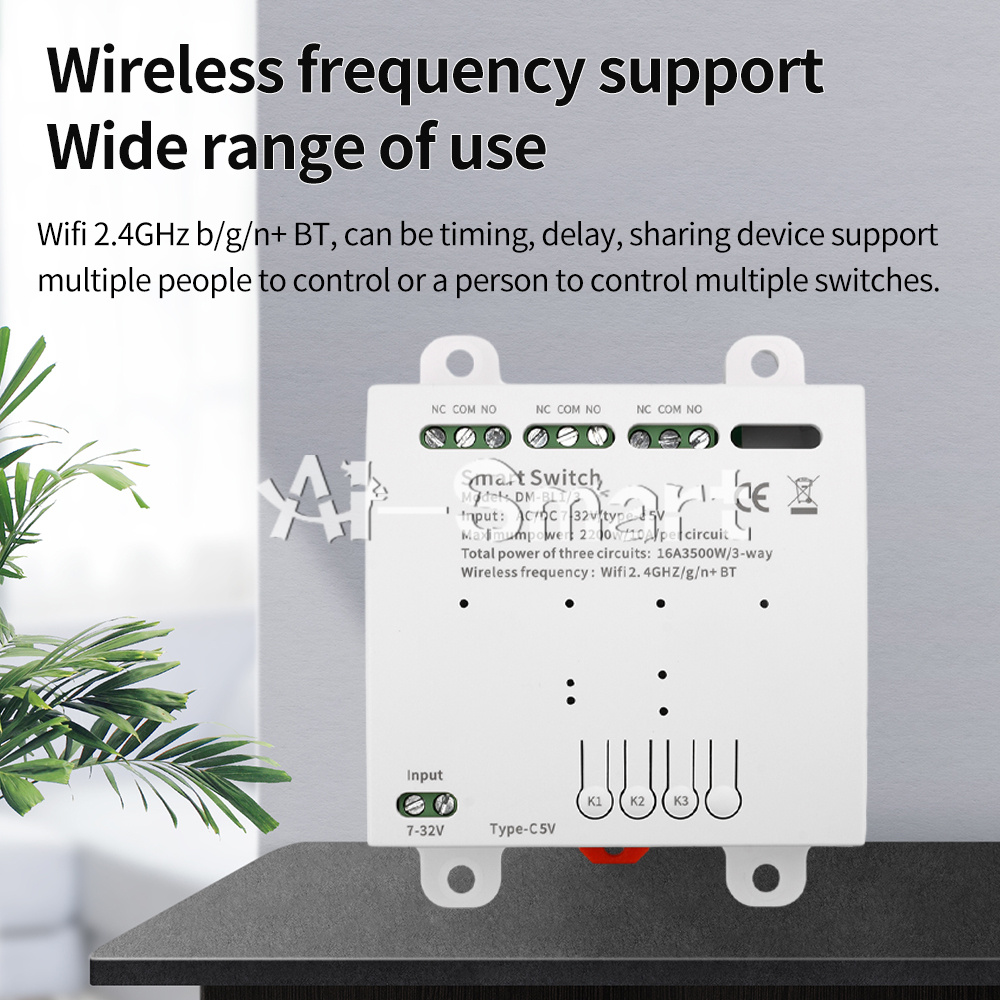

4. Supports wireless frequency, WiFi 2.4GHz b/g/n+Bluetooth, can be timed, delayed, and the sharing device supports multiple people controlling together or one person controlling multiple switches.
5. It has a wide range of applications and can be applied to smart homes, WiFi control, short distance remote control, etc. It can be connected to different types and brands of household appliances.

Parameter:

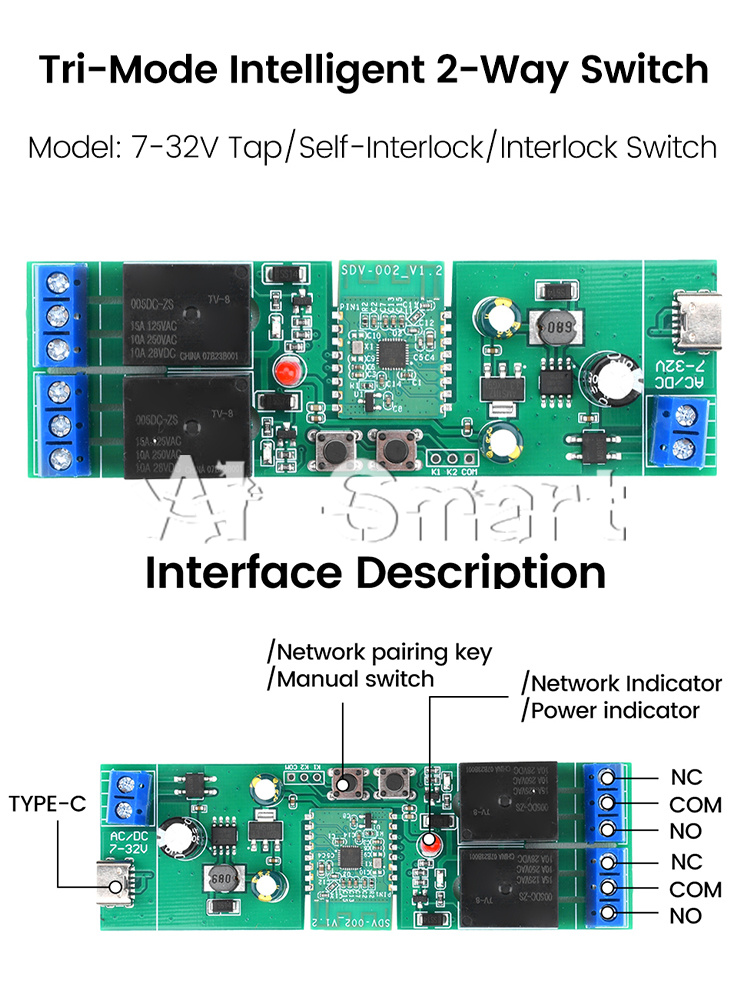

Style 1: Intelligent 2-way relay module
Model: 2-way 7-32V jog/self-locking/interlock switch
Input voltage: DC/AC7-32V or Type-C 5V
Maximum power: 2200W/10A/per circuit
Wireless frequency: WiFi 2.4GHz b/g/n+Bluetooth
Working temperature: -20 ° C~70 ° C
Size: 104 * 33 * 17mm

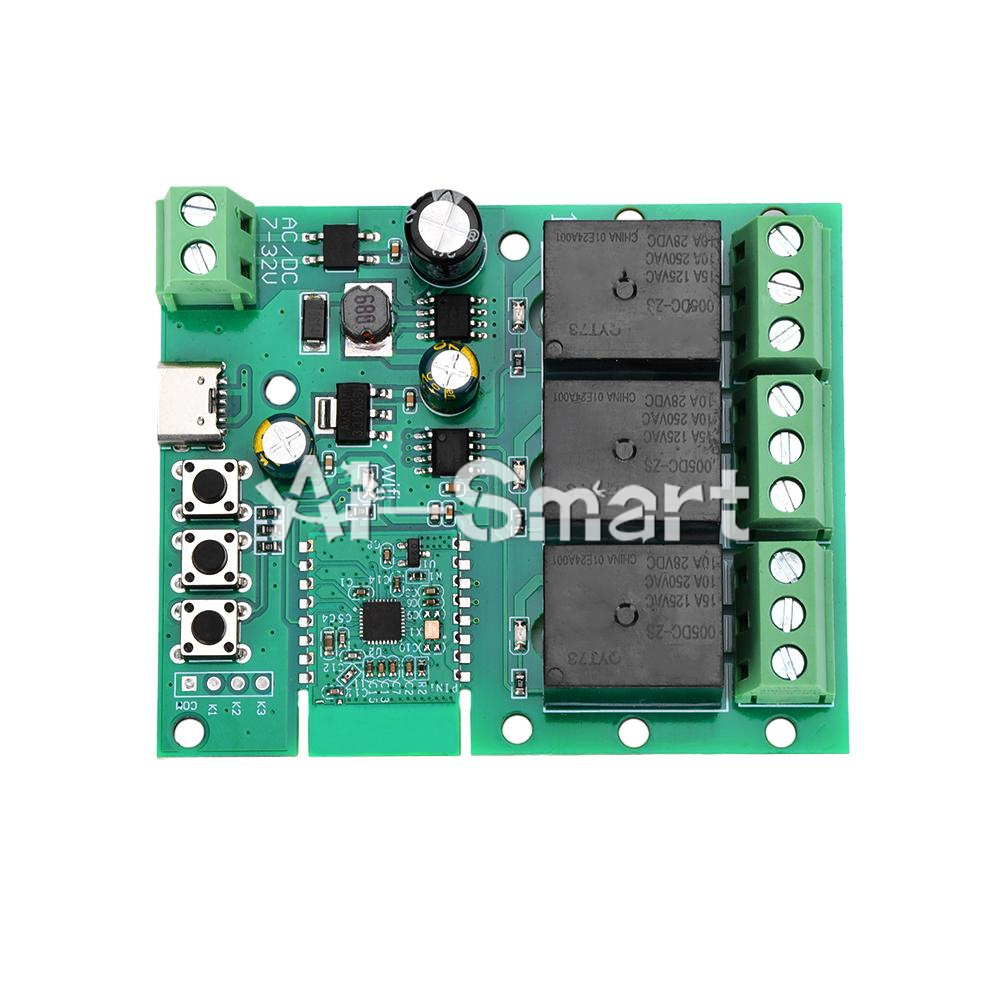

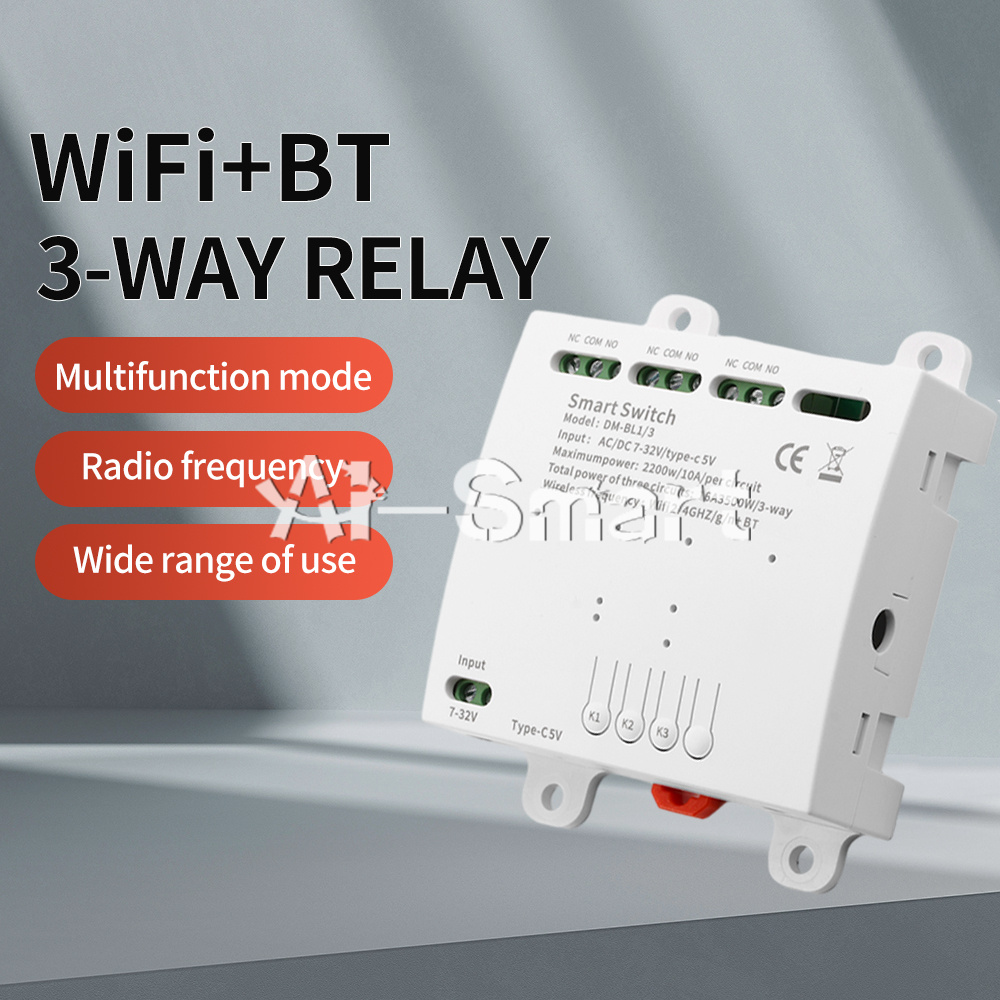

Style 2: Intelligent 3-way relay module
Model:3-way 7-32V Tap/Self-Interlock/Interlock switch
Input Voltage:DC/AC7-32V or Type-C 5V
Maximum power:2200W/10A/each way
Total power:16A 3500W
Wireless Frequency:Wifi 2.4GHzb/g/n+Bluetooth
Operating Temperature:-20°C~70°C
Size:59.5*73*17mm

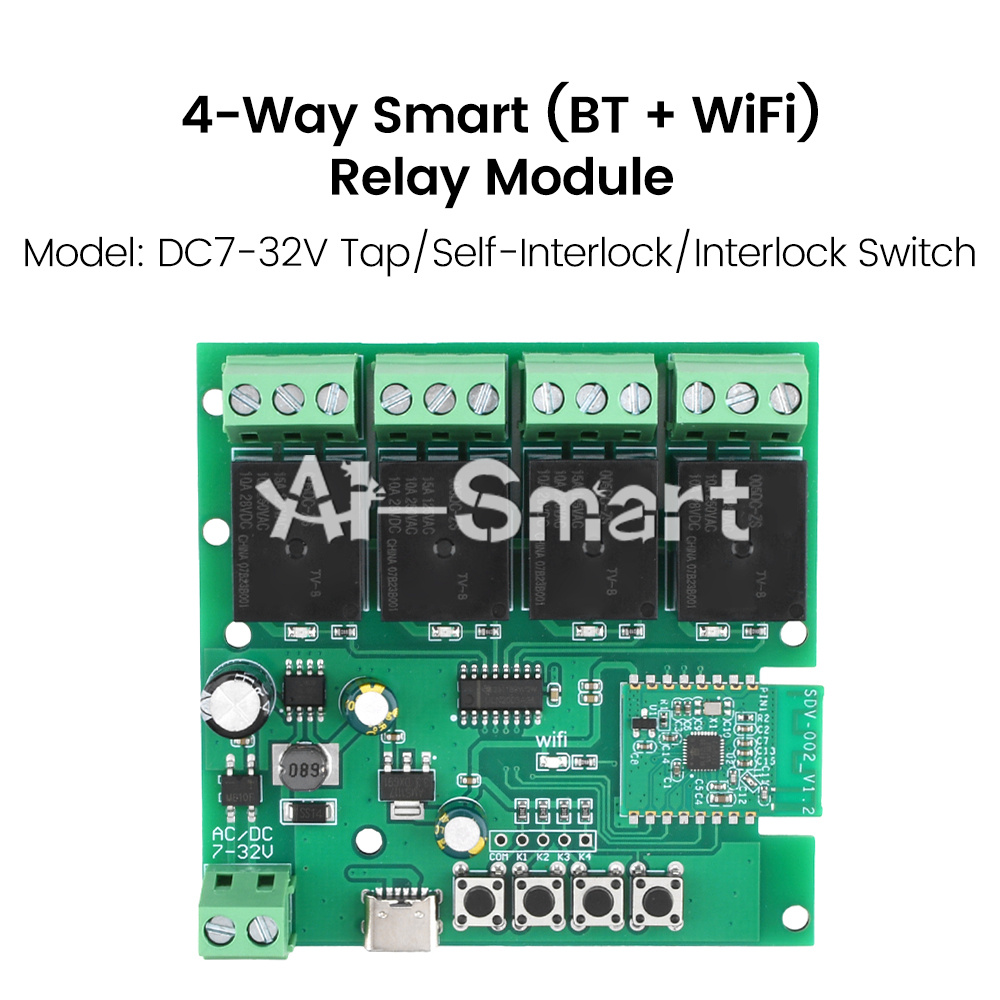

Style 3: Intelligent 4-way relay module
Model: 4-way 7-32V jog/self-locking/interlock switch
Input voltage: DC/AC7-32V or Type-C 5V
Maximum power: 2200W/10A per circuit
Total power of four circuits: 16A 3500W/4 circuits
Wireless frequency: WiFi 2.4GHz b/g/n+Bluetooth
Working temperature: -20 ° C~70 ° C
Size: 75 * 73 * 17mm

Before using this device, please check the following:
1. Your smartphone or tablet is connected to a 2.4G WIFI that can access the internet (5G WIFI is currently not supported).
2. Turn on Bluetooth on your phone.
3. For mobile phones or tablets using the Android system, the system must be version 4.0 or higher.
4. When using an iPhone or iPad, you must be able to access the app store and download the app.
5. If your wireless router has set MAC address filtering, please first enter the router background to disable MAC filtering function.
Product Instructions
① Search for "Yiweilian" in major application markets to download and install.
② If there is a permission request prompt during the installation process, please select Allow.
③ Register an account and log in to Yiweilian.
*Connect the wires correctly according to the schematic diagram.
④ Power on after completing the wiring. The device defaults to off for incoming calls and can be changed to on or off for incoming calls in the app.

Note: The switching principle of this device is to control the on/off of the live wire in the circuit, thereby achieving the operation and stopping of the electrical appliance.

Package include:
1X Module
