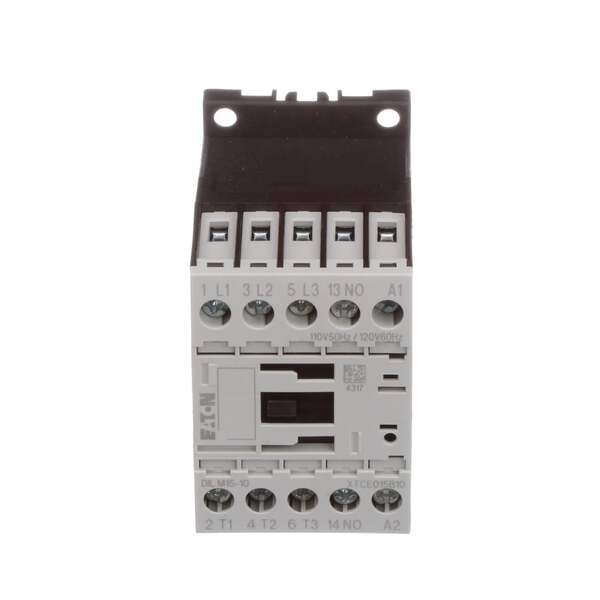

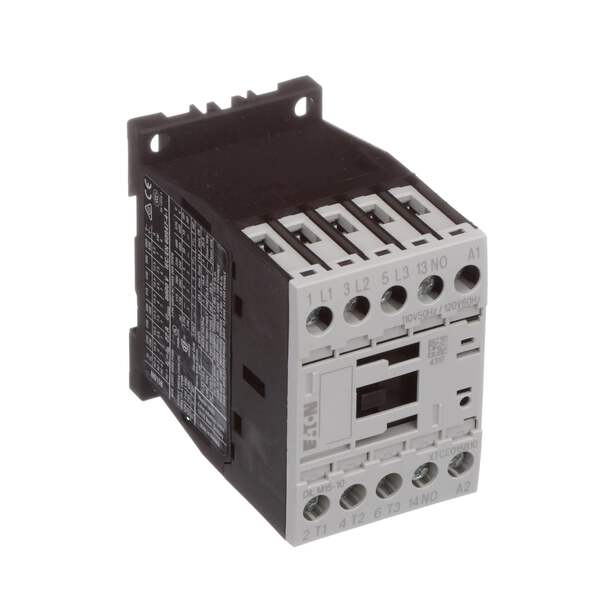

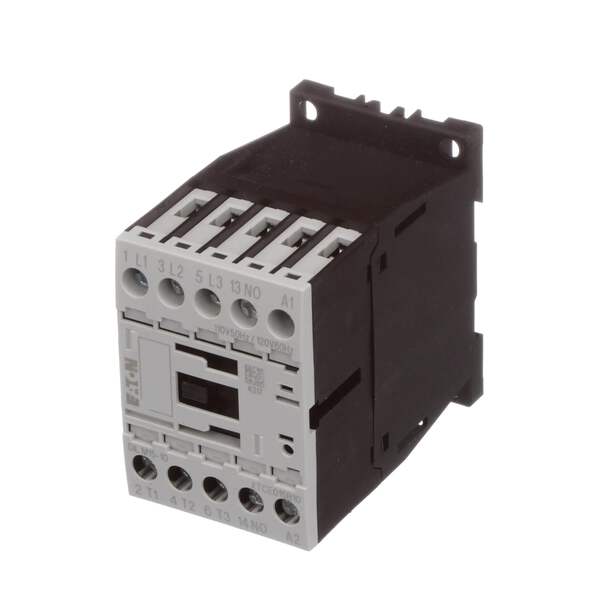

XTCE015B10A - Cutler Hammer 15A 120VAC 3-Pole IEC Contactor Frame B with 1NO Auxiliary Contact
XTCE015B10A is a Cutler Hammer 3-pole IEC contactor designed for motor control applications with a 15 amp rating and 120 VAC coil voltage.This contactor features a 45 mm Frame B size, 1 normally open (1NO) auxiliary contact, and supports motor switching up to 15A AC3. It operates at 110 VAC 50 Hz or 120 VAC 60 Hz coil voltage and is suitable for controlling motors up to 10 HP at 460V 3-phase. The device conforms to IEC 60947 standards and is compatible with overload relays such as C396, XTOB, and XTOT.
XTCE015B10A
XTCE015B10A is a Cutler Hammer 3-pole IEC contactor designed for motor control applications with a 15 amp rating and 120 VAC coil voltage.This contactor features a 45 mm Frame B size, 1 normally open (1NO) auxiliary contact, and supports motor switching up to 15A AC3. It operates at 110 VAC 50 Hz or 120 VAC 60 Hz coil voltage and is suitable for controlling motors up to 10 HP at 460V 3-phase. The device conforms to IEC 60947 standards and is compatible with overload relays such as C396, XTOB, and XTOT.
- Key Specifications
- Amperage: 15A
- Coil Voltage: 110/120 VAC, 50/60 Hz
- Poles: 3 Normally Open (3NO)
- Frame Size: B (45 mm)
- Auxiliary Contacts: 1 Normally Open (1NO)
- Max Motor HP: 10 HP at 460V 3-phase
- Standards: IEC 60947
- Termination: Screw
- Compatible Overload Relays: C396, XTOB, XTOT
- Weight: 0.5 lbs
- Part Number: XTCE015B10A
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : XT Series
- Type : XTCE015B
- Voltage : 600
- Amperage : 15
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 5 hp HP @ 3 Phase - 240V 5 hp HP @ 3 Phase - 480V 10 hp
- Configuration : Non-Reversing
- Aux Contacts : 1 NO
- Coil Voltage Maximum : 120
- Full Load Amps : Full Load Amps-Inductive 15A Full Load Amps-Resistive 22A
- Coil Voltage Minimum : 120
- Compatible Frames : PDG,PDG Frame 4
- Frequency : 50 Hz
- UPC : 015082900551
- GTIN : 04015080000000
- Country of Origin : Romania
- Dimensions : 1.77 in x 1.77 in
- Weight : 1 lb
- Certification : CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
Additional Information
This IEC Non-Reversing Contactor includes a 110 VAC coil.
