QDP22200TM - Square D 200A 240V 2-Pole Thermal Magnetic Molded Case Circuit Breaker
QDP22200TM

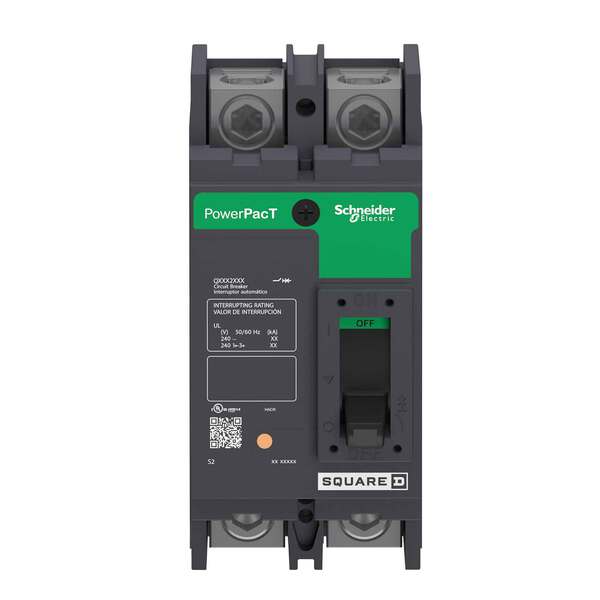

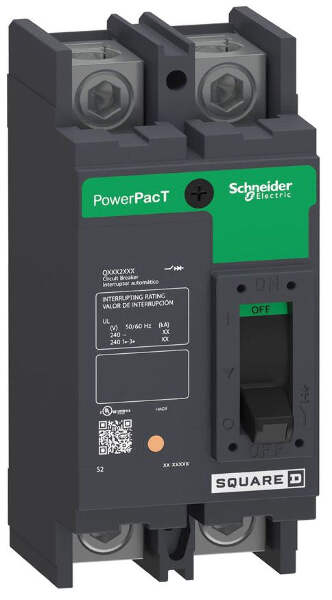

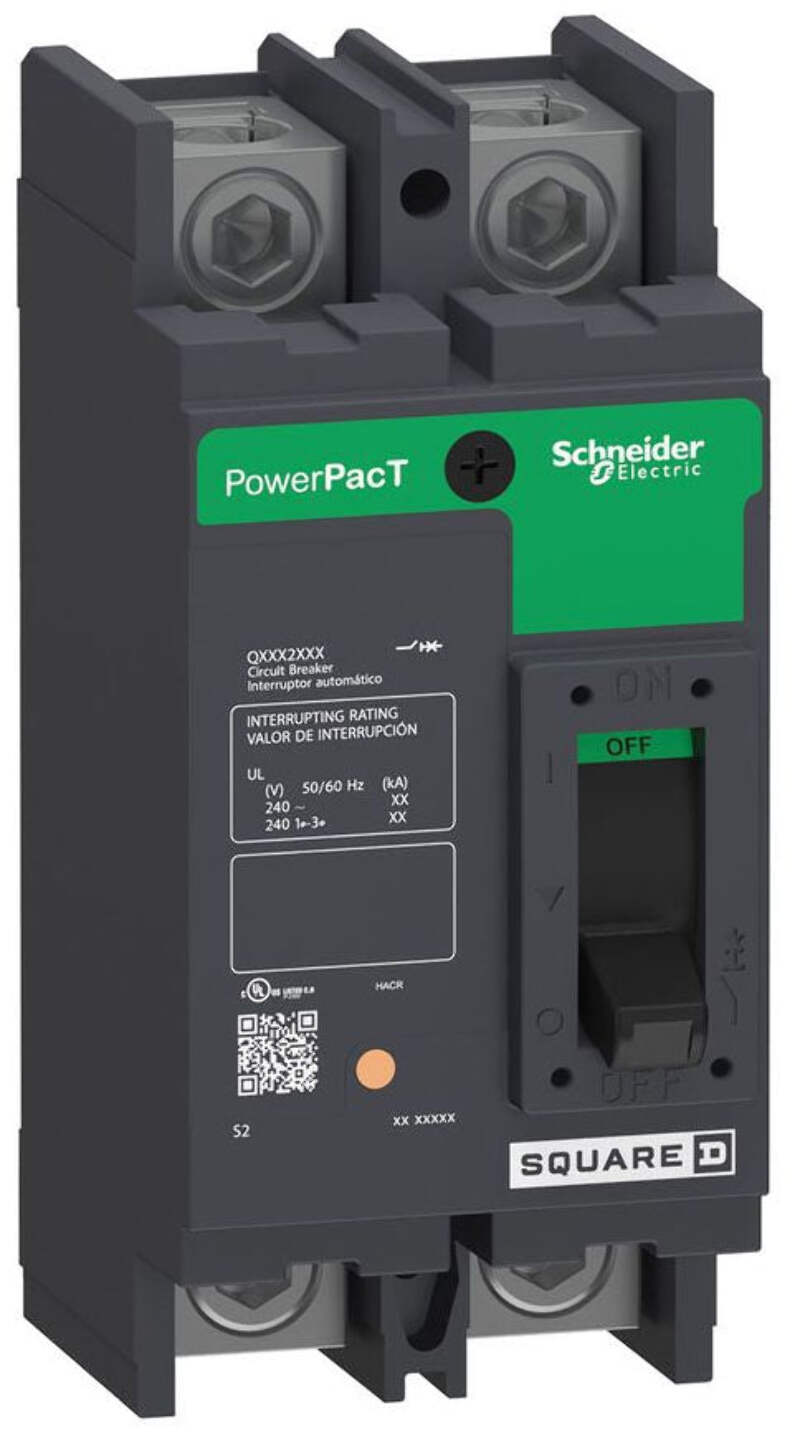

QDP22200TM is a Square D 2-pole thermal magnetic molded case circuit breaker rated for 200 amps and 120/240 volts AC.This circuit breaker features a PowerPact Q frame with a 25kA interrupting rating at 240V, unit mount design, and bolt-on connection type. It provides long time and instantaneous trip protection and is UL, CSA, and IEC certified. The breaker supports wire sizes from 1/0 AWG copper up to 250/600 KCMIL aluminum and is compatible with MPL Lever Bypass Meter-Pak metering equipment.
- Key Specifications
- Amperage: 200A
- Voltage: 120/240VAC
- Poles: 2
- Mounting Type: Unit Mount
- Interrupting Rating: 25kA @ 240V
- Frame Type: PowerPact Q
- Trip Unit: Thermal Magnetic
- Connection Type: Bolt-On
- Certifications: UL, CSA, IEC
- Wire Gauge: 1/0 AWG Copper, 250/600 KCMIL Aluminum
- Compatible with MPL Lever Bypass Meter-Pak
- Protection: Long Time and Instantaneous Trip
Specifications
- Part Number: QDP22200TM
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QDP
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 25kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug, Terminal Nut
- Frame Size : Q
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901672487
- GTIN : 00785901672487
- Country of Origin : Mexico
- Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
- Weight : 3.25
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Certification : UL, CSA, NOM
- Wire Size : 1/0 AWG Copper, 250/600KCmil Aluminum
