SC-20

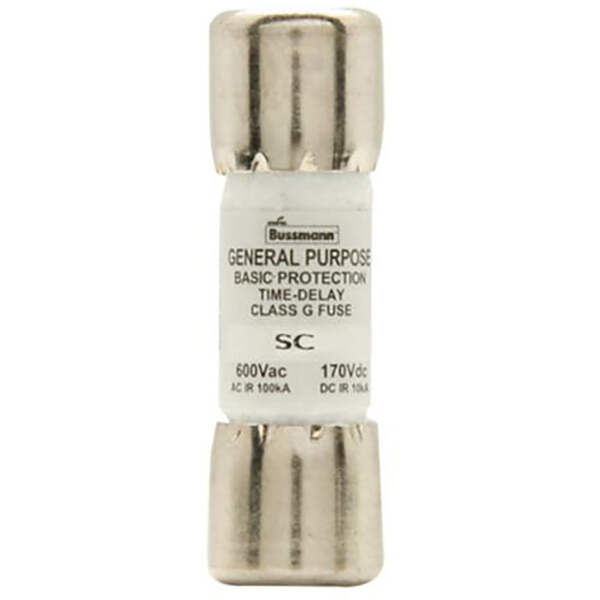

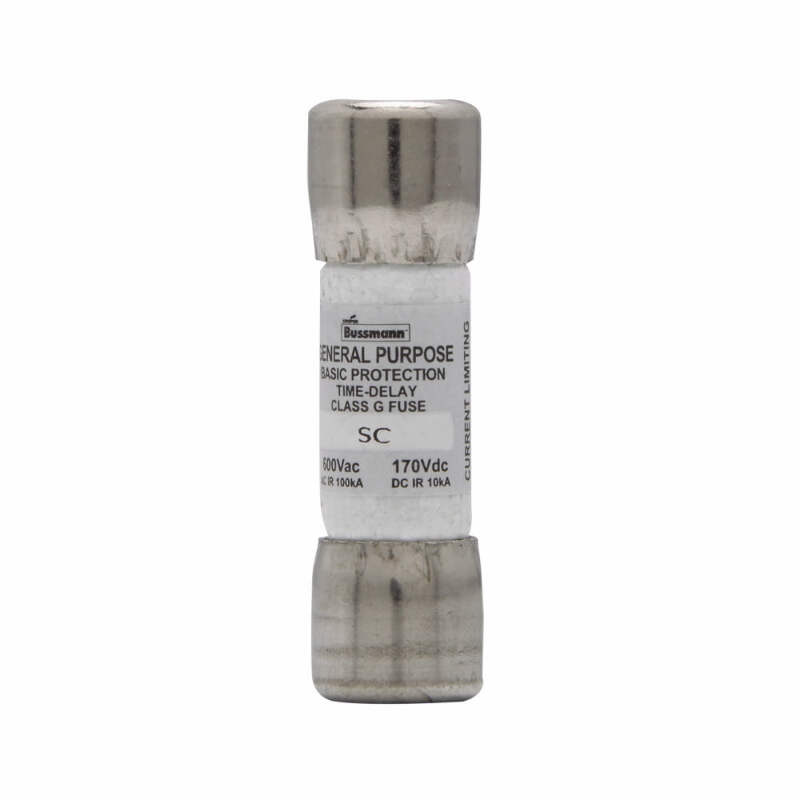

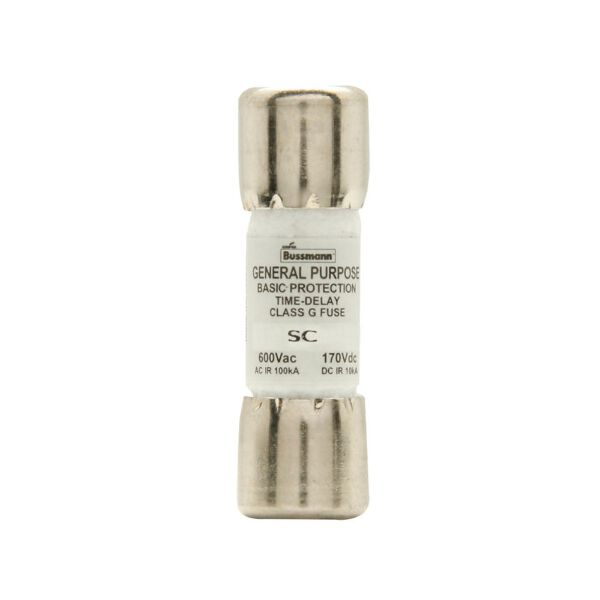

SC-20 is a 20 Amp, 600 Volt AC Class G time delay fuse from Bussmann, also branded Cooper Bussmann and Eaton.

This SC-20 fuse provides reliable circuit protection with a 100,000 A interrupting rating at 600 VAC and 10,000 A at 170 VDC. It features current limiting and time delay characteristics, making it suitable for protecting motors and circuits with temporary overloads. The fuse is UL Listed to Standard 248-5, Class G, and CSA Certified, ensuring compliance with industry safety standards. It has a physical size of 0.41" x 1.41" and is a size-rejecting fuse to prevent overfusing.

Key Specifications
• Amperage: 20 Amps
• Voltage Rating: 600 VAC, 170 VDC
• Fuse Class: UL Class G
• Time Delay: Yes
• Interrupting Rating: 100,000 AIC RMS @ 600 VAC, 10,000 AIC @ 170 VDC
• Current Limiting: Yes
• Physical Size: 0.41" x 1.41"
• Certifications: UL Listed, CSA Certified
• Mounting Type: Size-rejecting fuse
• Series: Bussmann SC Series

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SC-20
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : SC Series
• Type : SC
• Voltage : 600
• Amperage : 20
• AIC rating : 100kA@600V
• Diameter : 0.41
• Class Rating : G
• Barrels : 1

Product Data

• UPC : 051712250207
• GTIN : 00051712250207
• Country of Origin : Mexico
• Dimensions : 1.375 in x 0.375 in x 0.375 in (Length/Depth x Height x Width)
• Weight : 0.016
• Certification : CE, CSA Guide 1422-01, UL 248-5 Guide JDDZ
