FRS-R-60

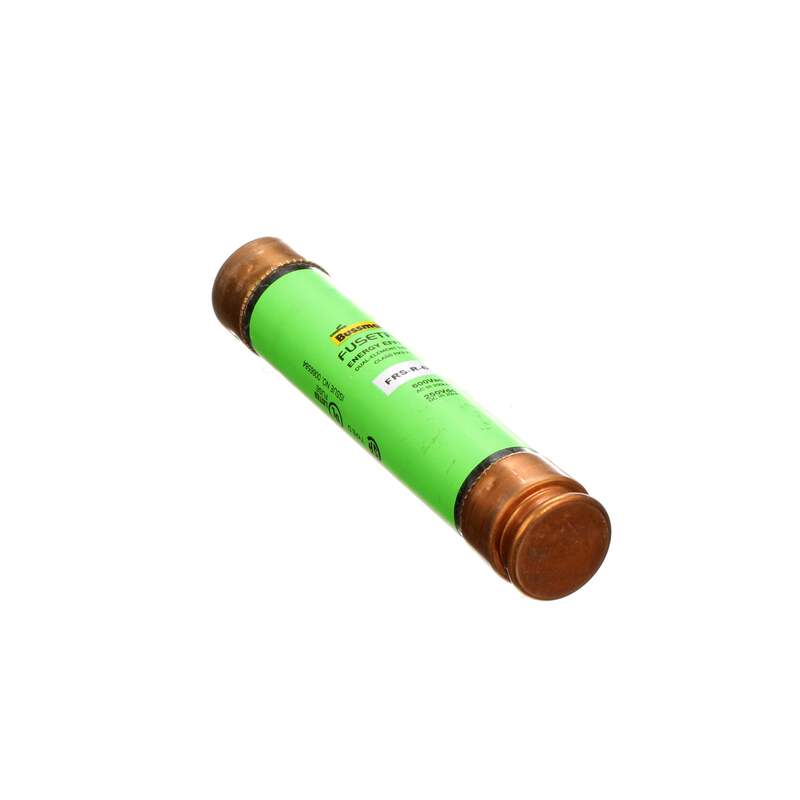

FRS-R-60 is a Eaton Bussmann Class RK5 time-delay dual element fuse rated for 60 amperes and 600 volts AC. It provides reliable circuit protection with a high interrupt rating.

This fuse features a 10-second minimum response time at 500% overload, a dual-element design for current limiting, and a ferrule end to ferrule end connection. It has an interrupt rating of 200 kA at 600 VAC and 20 kA at 250 VDC, making it suitable for demanding electrical applications. The fuse is CE marked and non-indicating, designed for use in branch circuit protection.

Key Specifications
• Amperage Rating: 60 A
• Voltage Rating: 600 VAC, 250 VDC
• Interrupt Rating: 200 kA at 600 VAC, 20 kA at 250 VDC
• Class: RK5
• Fuse Type: Time-Delay, Dual Element
• Connection: Ferrule end x ferrule end
• Response Time: 10 seconds at 500% overload
• Fuse Indicator: Non-indicating
• Certifications: CE Marked
• Dimensions: 5.5 in length, 1.84 in width and height

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FRS-R-60
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 60
• AIC rating : 200kA@600V
• Diameter : 1.06
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 051712508391
• GTIN : 00051712508391
• Country of Origin : Mexico
• Dimensions : 5.5 in x 1.84 in x 1.84 in (Length/Depth x Height x Width)
• Weight : 0.305
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
