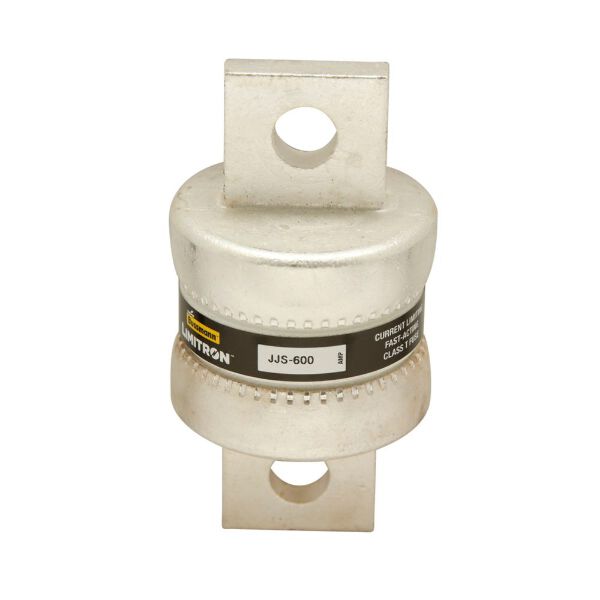

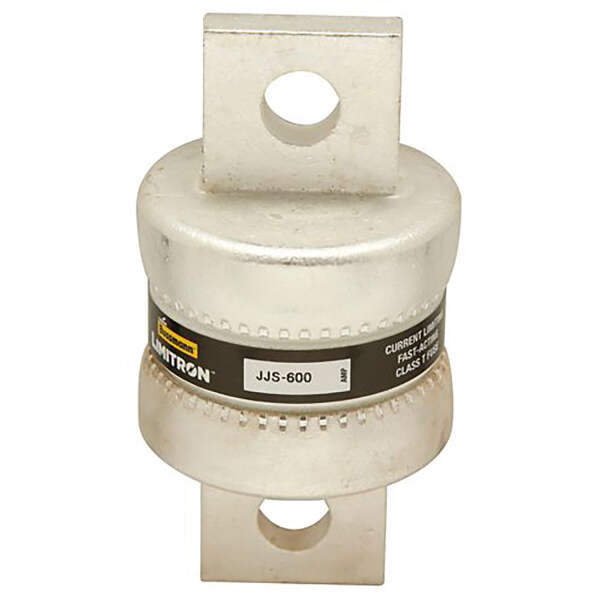

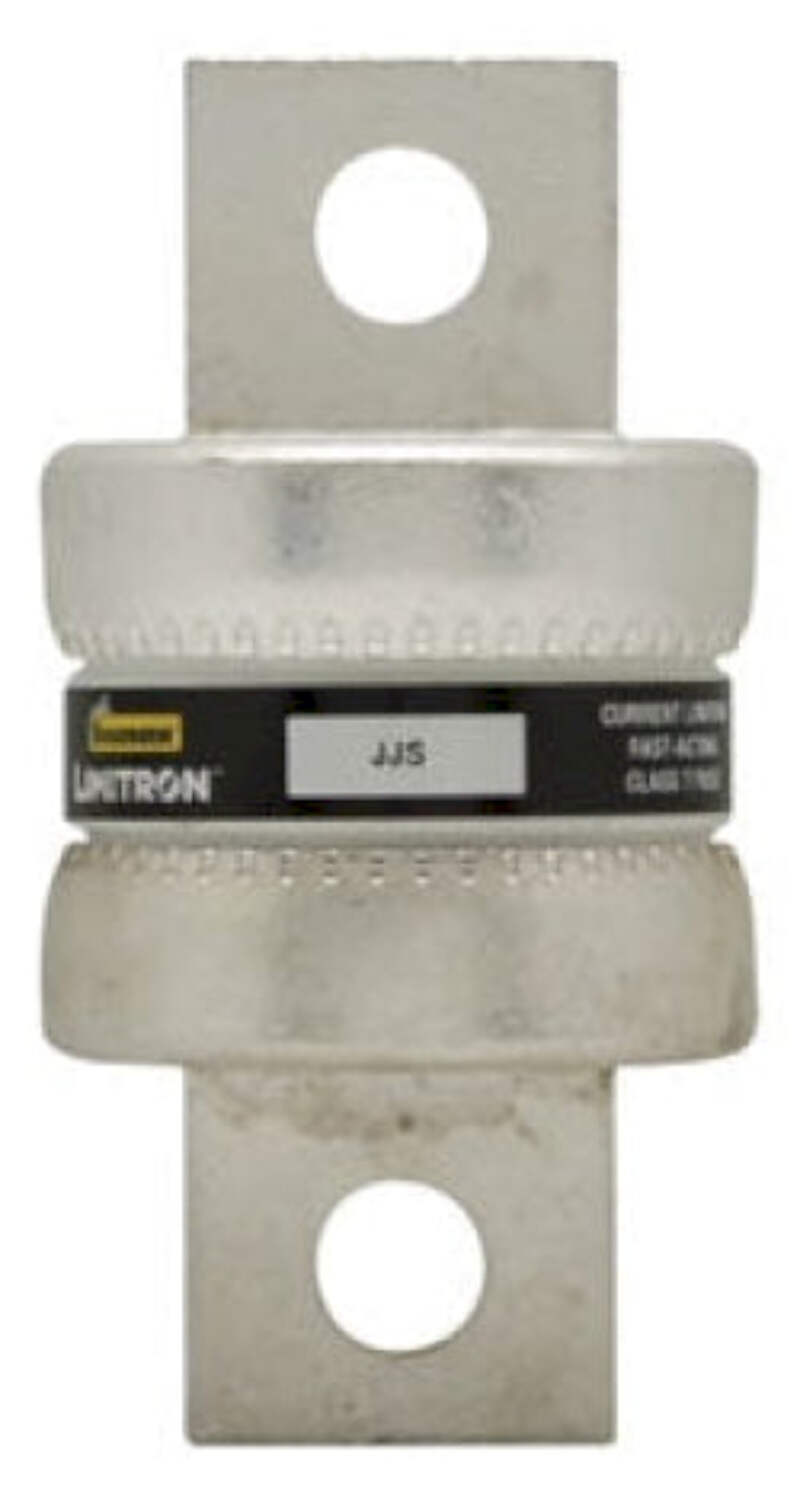

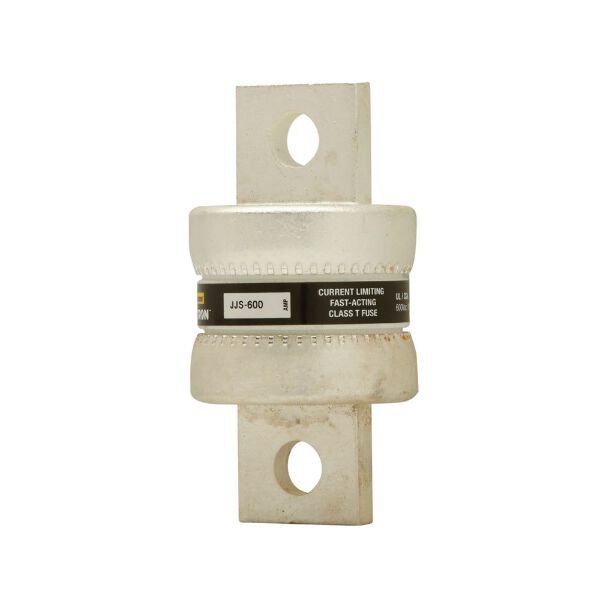

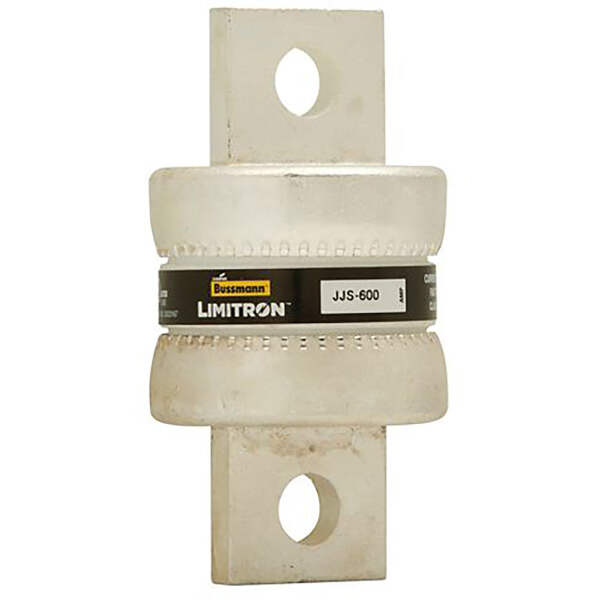

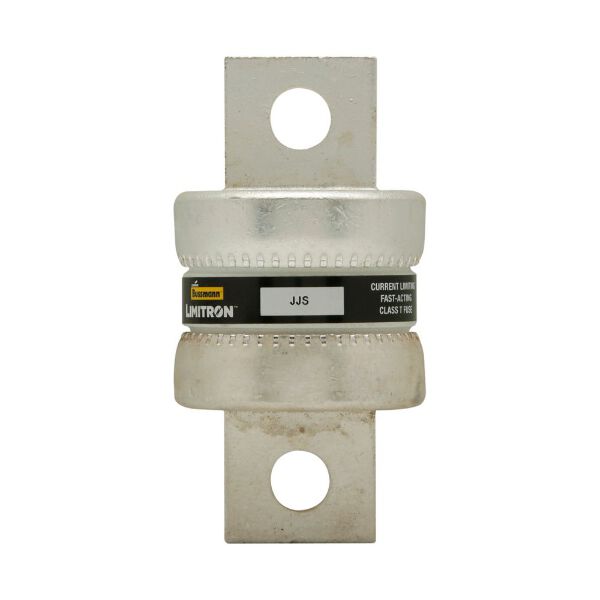

JJS-500 - Bussmann 500A 600V Class T Very Fast Acting Current-Limiting Fuse, Bolted Blade End, 200kAIC
JJS-500
JJS-500 is a 500 amp, 600 volt Class T very fast acting current-limiting fuse from Bussmann, designed for reliable circuit protection in compact applications.This Eaton Bussmann JJS series fuse features a bolted blade end connection, a 200,000 amp interrupting rating at 600 volts AC, and is non-indicating. It provides very fast acting protection with a small footprint ideal for VFD line protection and other demanding electrical environments. The fuse is UL and CSA certified and built to withstand high fault currents safely.
- Amperage: 500 A
- Voltage Rating: 600 VAC
- Fuse Class: T
- Characteristic: Very Fast Acting
- Interrupt Rating: 200 kA at 600 V
- Connection Type: Bolted Blade End x Bolted Blade End
- Series: JJS
- Trip Unit: Non-indicating
- Certifications: UL, CSA
- Mounting Type: Center Bolted
- Body Length: 3.98 inches
- Weight: 0.95 lbs
Specifications
- Part Number: JJS-500
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : T-Tron
- Type : JJS
- Voltage : 600
- Amperage : 500
- AIC rating : 200kA@600V
- Diameter : 1.25
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 051712628556
- GTIN : 00051712628556
- Country of Origin : Mexico
- Dimensions : 3.98 in x 1.25 in x 1.25 in (Length/Depth x Height x Width)
- Weight : 1
- Certification : CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
