QDL22070 - Square D PowerPacT Q 70A 2 Pole 240VAC Molded Case Circuit Breaker, Thermal Magnetic, 25kA Interrupt, Unit Mount, UL 489 Listed, Feed-Thru, Line & Load Lugs
QDL22070

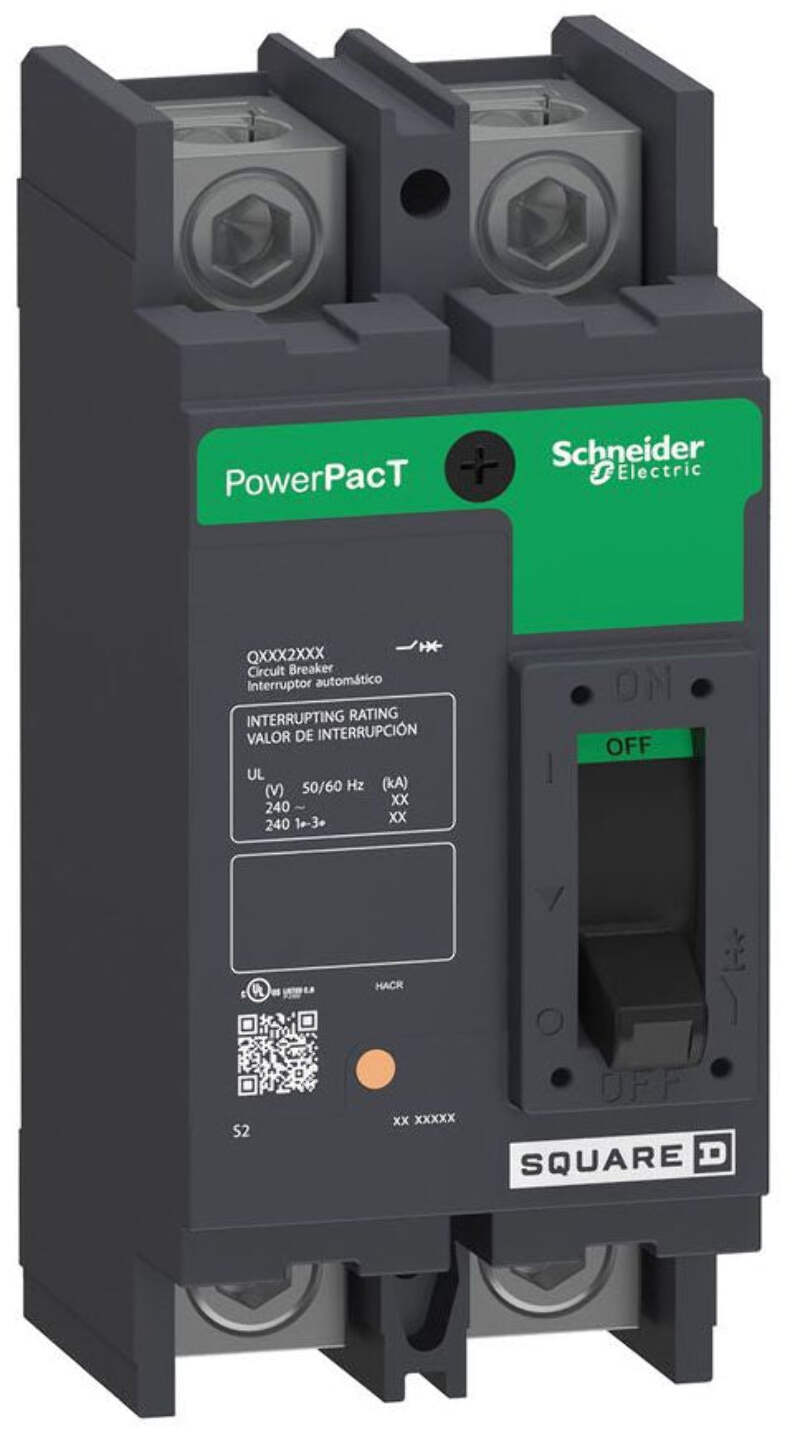

QDL22070 is a Square D PowerPacT Q-frame molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.
This thermal-magnetic, two-pole breaker features a 70A current rating, 240VAC voltage rating, and a 25kA interrupt rating. It is unit mount with line and load side lug terminals, offers feed-thru capability, and includes non-interchangeable trip with long-time and instantaneous trip functions. The QDL22070 is UL 489 listed and part of the PowerPacT Q series, ensuring compatibility and safety in panelboard and switchboard installations.
Key Specifications
- Part Number: QDL22070
- Manufacturer: Square D by Schneider Electric
- Amperage: 70A
- Voltage: 240VAC
- Poles: 2
- Mounting Type: Unit mount (lug connection)
- Interrupt Rating: 25kA at 240VAC
- Series/Frame: PowerPacT Q (QDL)
- Trip Unit: Thermal-magnetic, non-interchangeable
- Certifications: UL 489 Listed
- Trip Functions: Long-time and instantaneous
- Terminals: Line & load side lugs (feed-thru)
- Application: Panelboard/switchboard, suitable for 4 AWG to 300 kcmil conductors
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QDL22070
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QDL
- Voltage : 240
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 25kA@240V
- Connection : Plug In Panelboard
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 250A/QD
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Not Applicable
Product Data
- UPC : 785901408048
- GTIN : 00785901408048
- Country of Origin : Mexico
- Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
- Weight : 3.318
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Certification : UL, CSA, NOM
- Wire Size : 4 AWG Min, 300 KCMIL Max
