FLSR-001

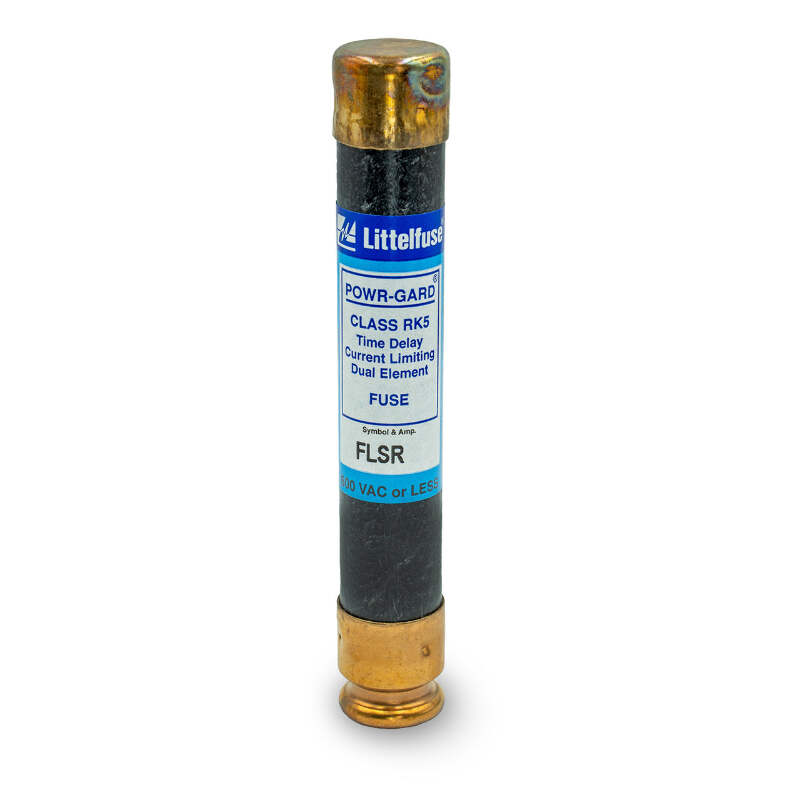

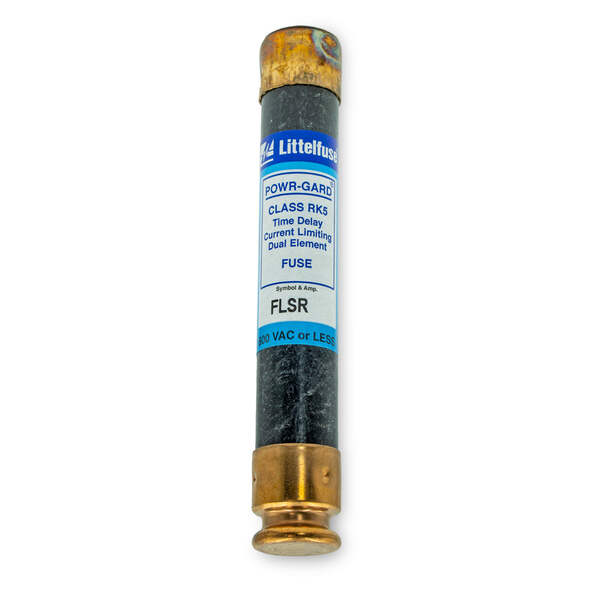

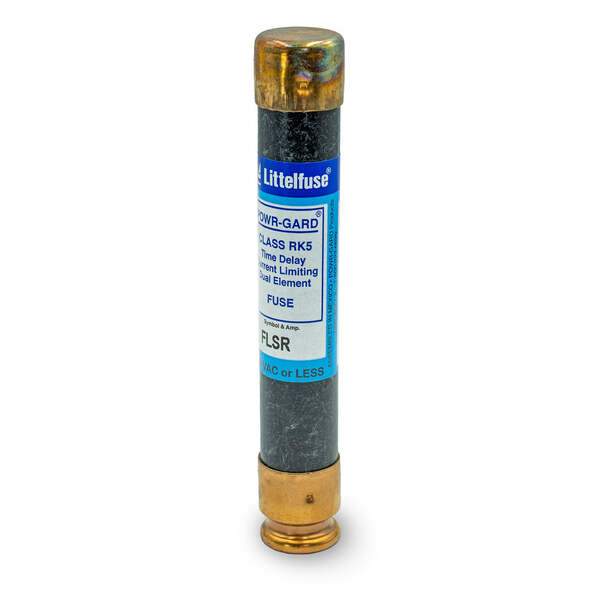

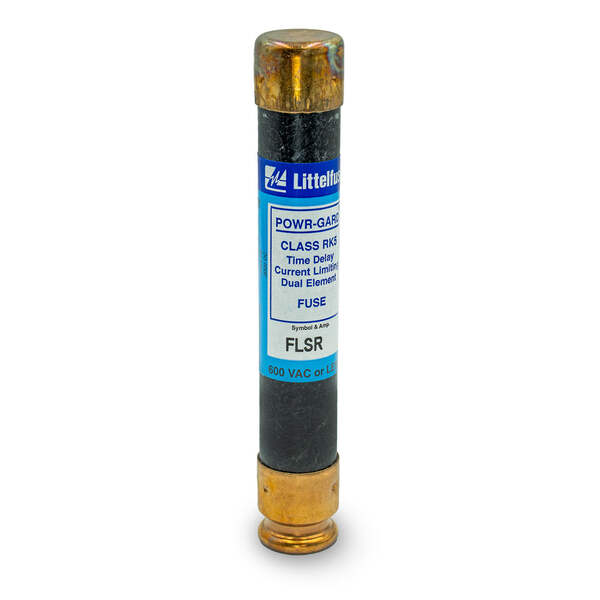

FLSR-001 is a Littelfuse 1 amp, 600 volt, Class RK5 dual-element time-delay fuse designed for superior circuit protection.This fuse features a dual-element design providing advanced short-circuit and overload protection with a time-delay characteristic ideal for motor and general purpose circuits. It has a 200 kA interrupting rating at 600 VAC and 20 kA at 300 VDC, meeting UL 248-12 Class RK5 standards. The fuse uses a ferrule connection and is suitable for service entrance switches, transformers, switchboard mains, feeders, and motor control circuits.

Key Specifications
• Amperage: 1 Amp
• Voltage Rating: 600 VAC, 300 VDC
• Interrupting Rating: 200 kA AC, 20 kA DC
• Fuse Type: Class RK5
• Fuse Response: Time-Delay (Dual Element)
• Connection Type: Ferrule
• Poles: 1 Barrel
• Mounting Type: Cartridge
• Standards: UL 248-12 Class RK5
• Country of Origin: Mexico
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FLSR-001
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : FLSR
• Voltage : 600
• Amperage : 1
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 07945817031
• GTIN : 00079458170313
• Weight : 5.19
