JDL50

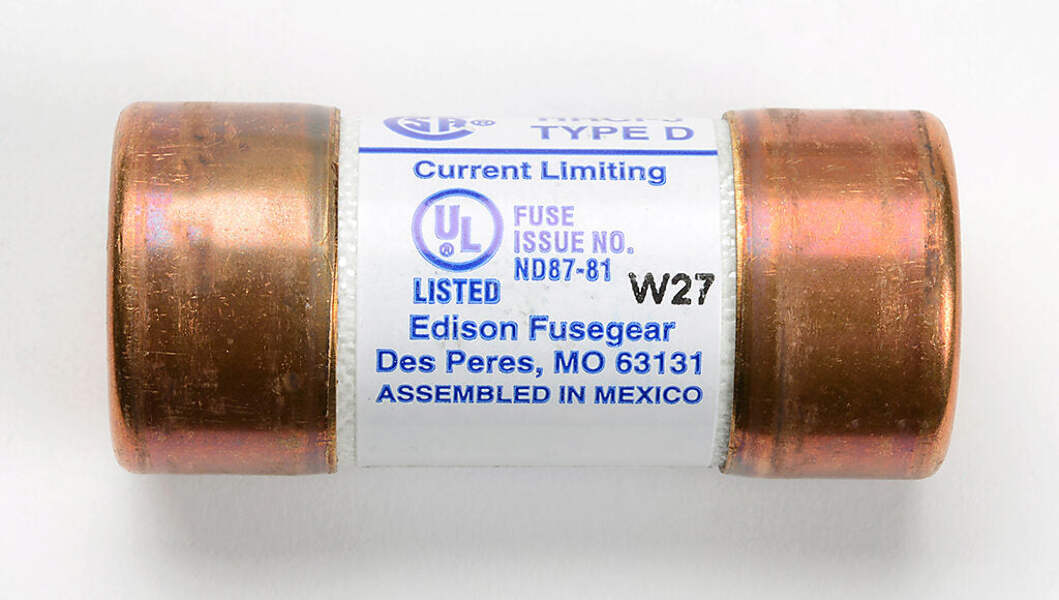

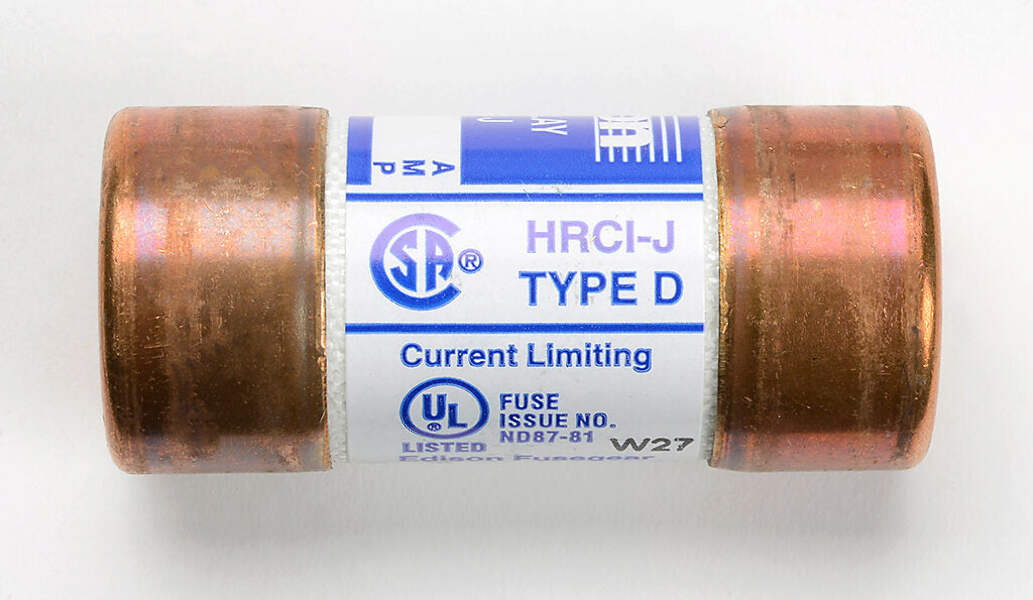

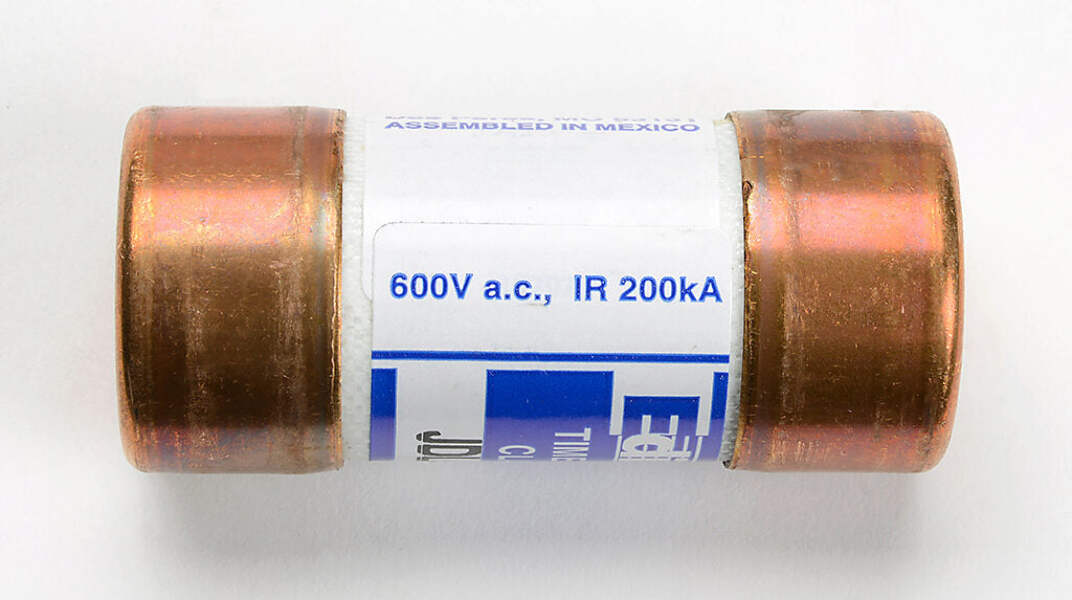

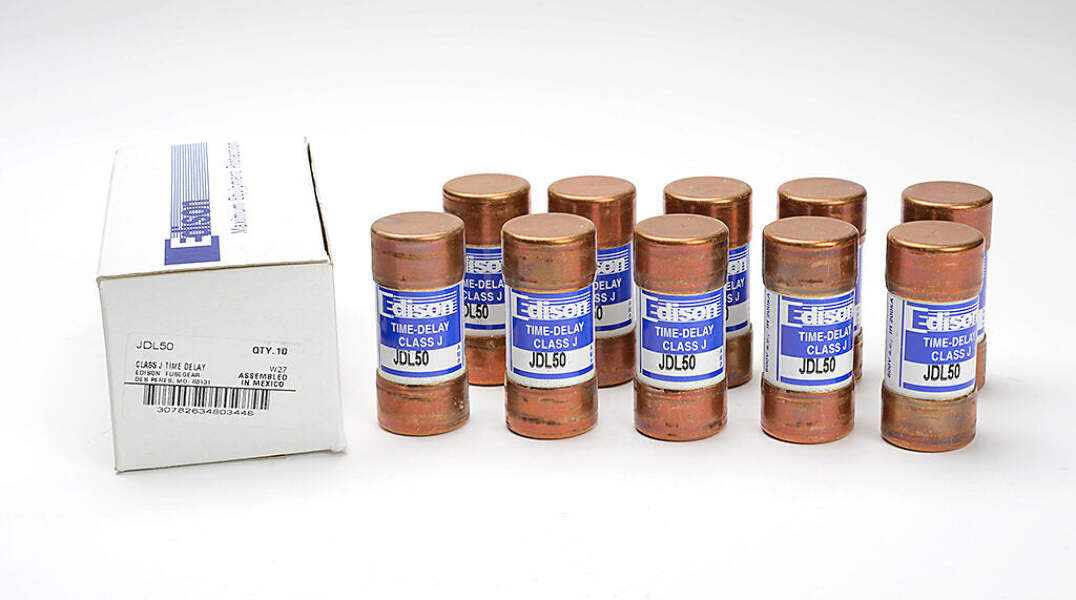

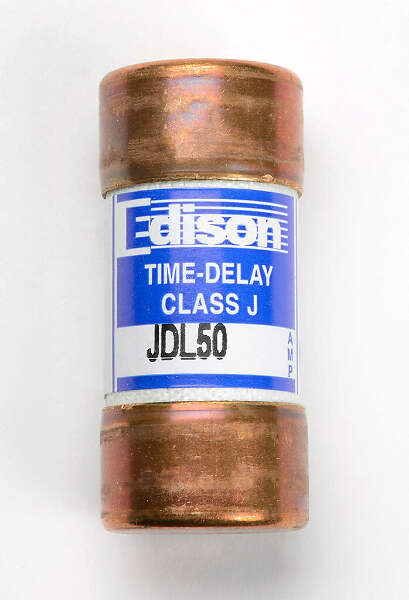

JDL50 is a 50A, 600V Class J time-delay fuse designed for reliable circuit protection in industrial and commercial applications. This Edison Fuses JDL50 is a dual-element, time-delay fuse with a current-limiting design, providing a minimum 10-second time delay at 500% overload. It features a single-barrel construction with a 1.06-inch diameter and is suitable for feeder and branch circuit protection. The fuse is rated for 600V AC and offers a high interrupting capacity, making it ideal for protecting sensitive equipment and downstream devices.

• Amperage: 50A
• Voltage: 600V AC
• Fuse Type: Class J
• Response Time: Time-Delay
• Interrupt Rating: 200kAIC (symmetrical)
• Mounting Type: Ferrule
• Series: JDL
• Frame: Single Barrel
• Approvals: UL, CSA C22.2
• Dimensions: 1.06" diameter, 2.38" length
• Application: Feeder/branch protection
• Features: Dual-element, current-limiting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JDL50
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Type : JDL
• Voltage : 600
• Amperage : 50
• AIC rating : 300kA@600Vac
• Connection : Ferrule
• Diameter : 1.06
• Class Rating : J
• Barrels : 1
• Velocity : D

Product Data

• UPC : 782634803447
• GTIN : 00782634803447
• Dimensions : 2.38 in x 1.06 in x 1.06 in (Length/Depth x Height x Width)
• Weight : 1
