JDL25 - Edison Fuses 25A 600V Class J Time-Delay Current-Limiting Fuse, 200 kAIC, Ferrule Mount, UL/CSA Certified
JDL25

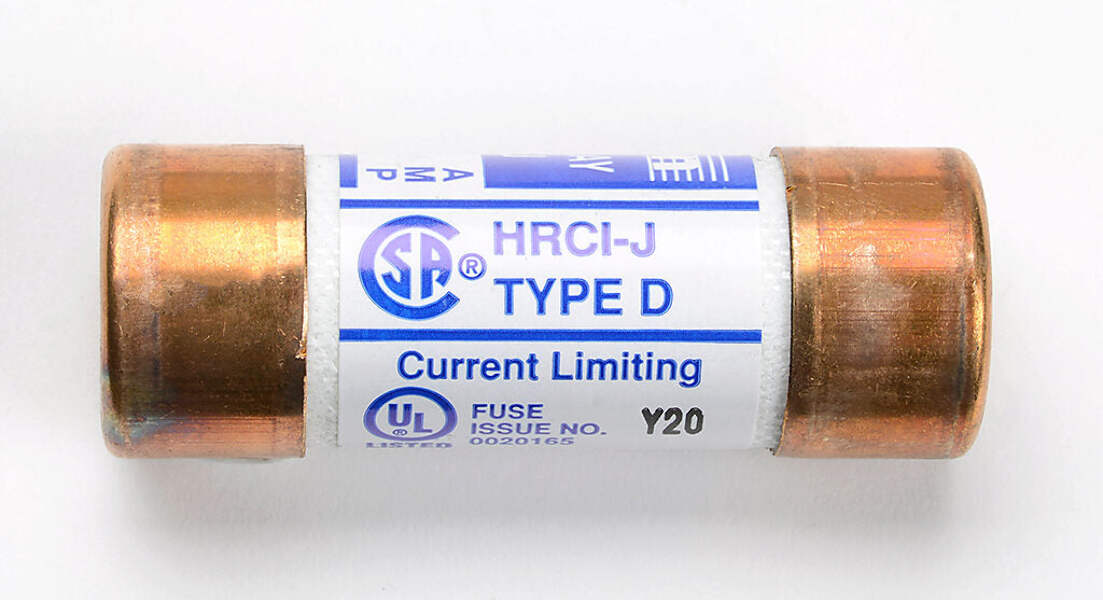

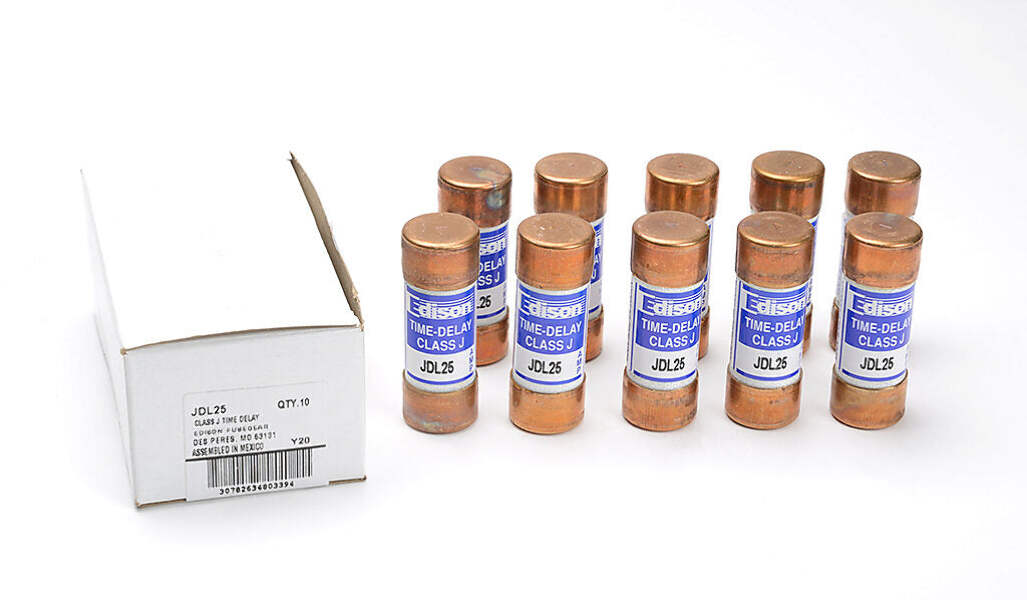

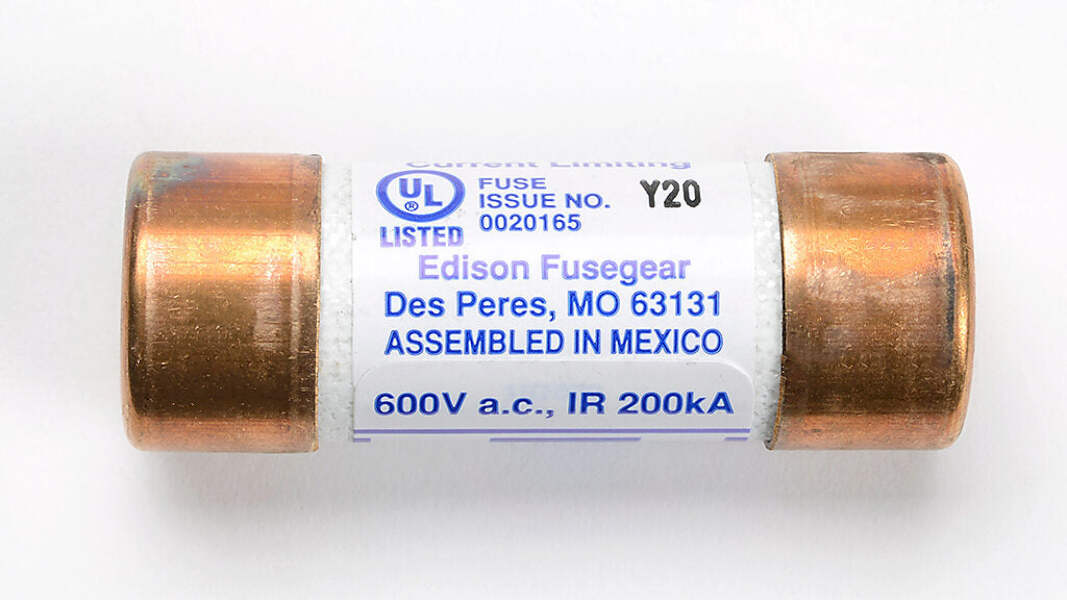

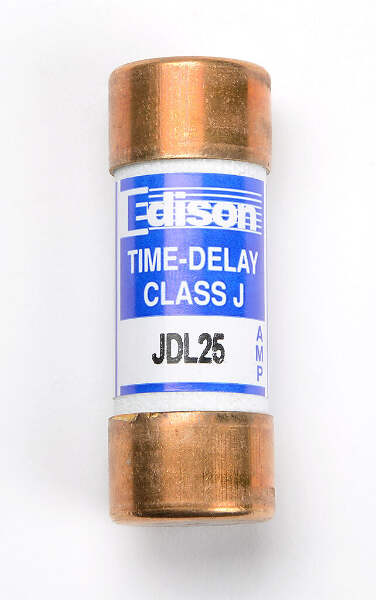

JDL25 is a Class J time-delay current-limiting fuse from Edison Fuses, engineered for reliable overcurrent protection in demanding industrial and commercial applications.
This non-indicating, single-barrel fuse features a robust 200 kAIC interrupting rating and is designed for feeder and branch circuit protection. Its compact ferrule design ensures easy installation in standard Class J fuse blocks, while the time-delay characteristic provides enhanced motor and transformer protection by allowing harmless inrush currents to pass.
-
Key Specifications
- Part Number: JDL25
- Manufacturer: Edison Fuses
- Category: Fuse
- Amperage: 25A
- Voltage: 600V AC
- Poles: 1
- Mounting Type: Ferrule
- Interrupt Rating: 200,000 AIC (symmetrical)
- Series/Frame: JDL
- Trip Unit: Time-Delay (Dual Element)
- Certifications: UL, CSA C22.2
- RoHS Compliant
- Dimensions: 0.81" diameter x 2.25" length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JDL25
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : JDL
- Voltage : 600
- Amperage : 25
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 782634803393
- GTIN : 00782634803393
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 1
