3TA225FD - Cutler Hammer 225A 600VAC Lug Terminal for Series C Circuit Breakers

{description}

3TA225FD - Cutler Hammer 225A 600VAC Lug Terminal for Series C Circuit Breakers



3TA225FD

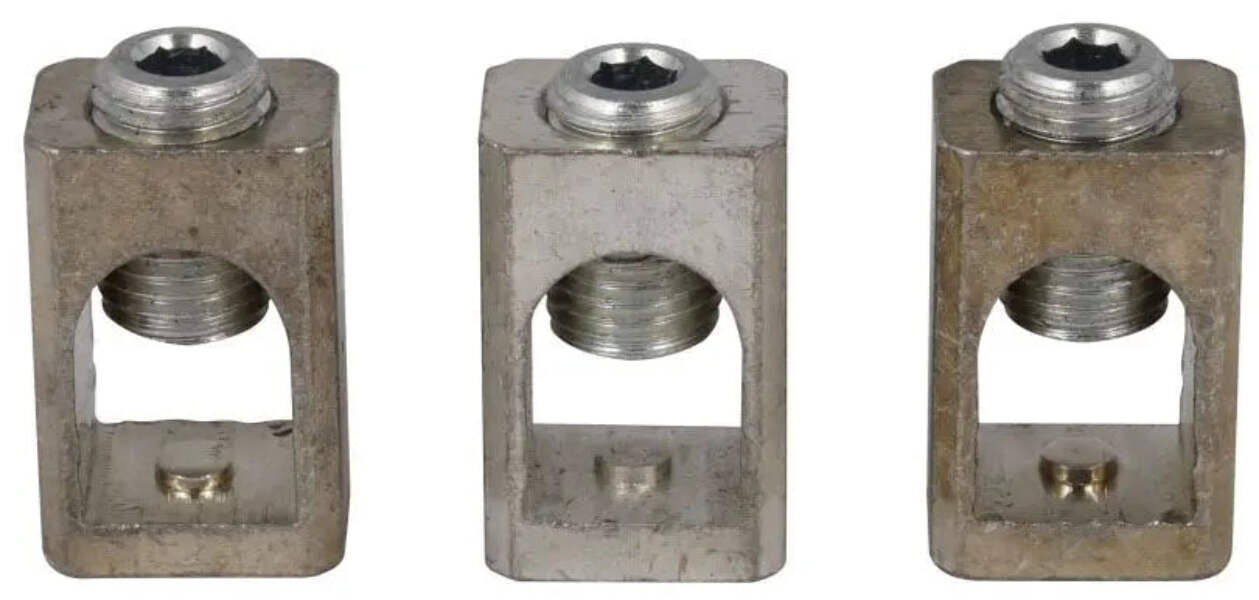

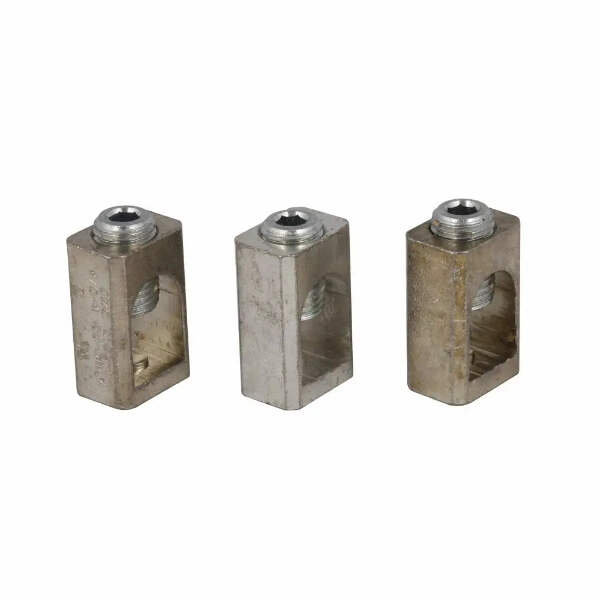

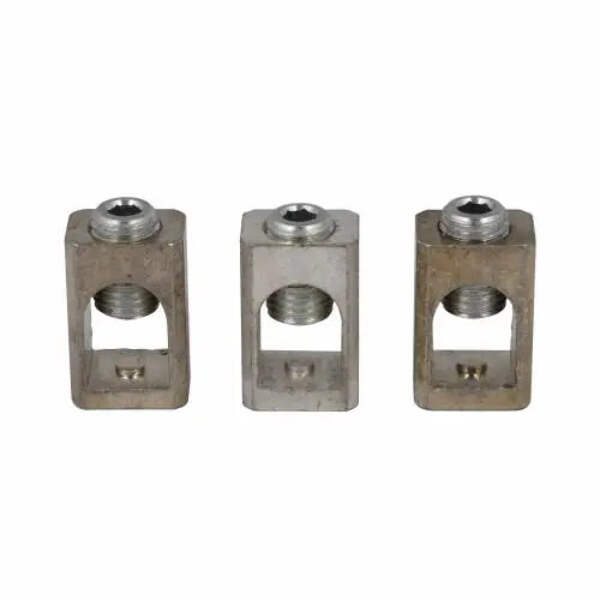

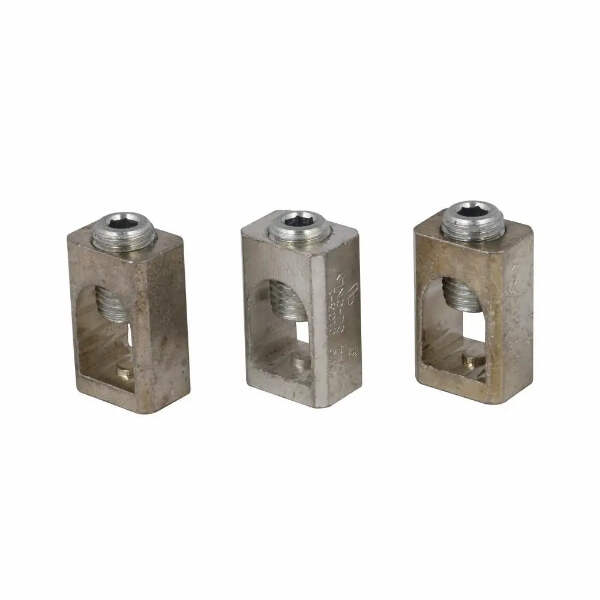

3TA225FD is an Eaton molded case circuit breaker accessory featuring pressure type line and load terminals rated at 225 A for Series C F-Frame.

Eaton 3TA225FD line and load terminals support #4-4/0 AWG Cu/Al wire with a torque rating of 120 lb-in (13.6 Nm), designed specifically for F-Frame Series C molded case circuit breakers including FB, FD, HFD, FDC, FG, and HFDDC frames at 225 A rating. This terminal kit includes 18 pressure type terminals for reliable electrical connections in industrial applications.

Key Specifications

  • Part Number: 3TA225FD
  • Manufacturer: Eaton
  • Amperage Rating: 225 A
  • Series: Series C
  • Frame: F-Frame
  • Type: Line and load terminals
  • Terminals: Pressure type line and load
  • Wire Size: #4-4/0 AWG Cu/Al
  • Quantity: 18
  • Torque: 120 lb-in (13.6 Nm)
  • Certifications: UL Listed
  • UPC: 786679222409

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: 3TA225FD
  • Manufacturer : Eaton
  • Brand : Cutler Hammer
  • Category : Circuit Breaker
  • Item Subcategory : Lug Terminal Kit
  • Family : Series C
  • Type : C
  • Voltage : 600VAC
  • Amperage : 225
  • MCM Size : 212
  • Barrels : 1
  • Metal Type : Aluminum
  • Compatible Frames : FB, FD, HFD, FDC, FG, HFDDC, E2F, E2FM

Product Data

  • UPC : 786679222409
  • GTIN : 00786679222409
  • Country of Origin : United States
  • Dimensions : 2.2 in x 0.5 in x 1.2 in (Length/Depth x Height x Width)
  • Weight : 0.09
  • Standards : UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 4 to AWG 4/0, Cu/Al

×
×
×
×
×
