QO312L125G - Square D QO 125A 240V 3-Phase Main Lug Load Center NEMA 1 Indoor 12-Space

QO312L125G QO312L125G is a Square D QO series 3-phase main lug load center rated for 125A and 240V, designed for indoor use with NEMA 1 protection. This load center features a tin-plated copper busbar, 12 spaces for circuit breakers, and is suitable for both residential and commercial applications. It supports 3-wire and 4-wire configurations and includes a grounding bar. The cover must be ordered separately. Part Number: QO312L125G Manufacturer: Square D Series: QO Amperage: 125A Voltage: 208Y/120V, 240/120V Delta, 240V Delta Phase: 3-Phase Mounting Type: Indoor, NEMA 1 Interrupt Rating: 65kA Spaces: 12 Bus Material: Tin Plated Copper Wire Size: #6 to 2/0 AWG (Al/Cu) Certifications: UL Listed At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time. Specifications Part Number: QO312L125G Manufacturer : Square D Category : Circuit Breaker Item Subcategory : Load Center Family : QO Series Type : QO Voltage : 120/240 AC Amperage : 125 Phase : 3 Temp Rating : -13–158 °F (-25–70 °C) Wire : 4 Nema Rating : 1 Bus Type : Copper Product Data UPC : 785901295037 GTIN : 00785901295037 Country of Origin : United States Dimensions : 14.25 in x 17.91 in Weight : 4.99 Certification : RoHS Compliant, UL Listed Wire Size : AWG 6 to AWG 2/0, Aluminum/Copper

QO312L125G - Square D QO 125A 240V 3-Phase Main Lug Load Center NEMA 1 Indoor 12-Space



QO312L125G

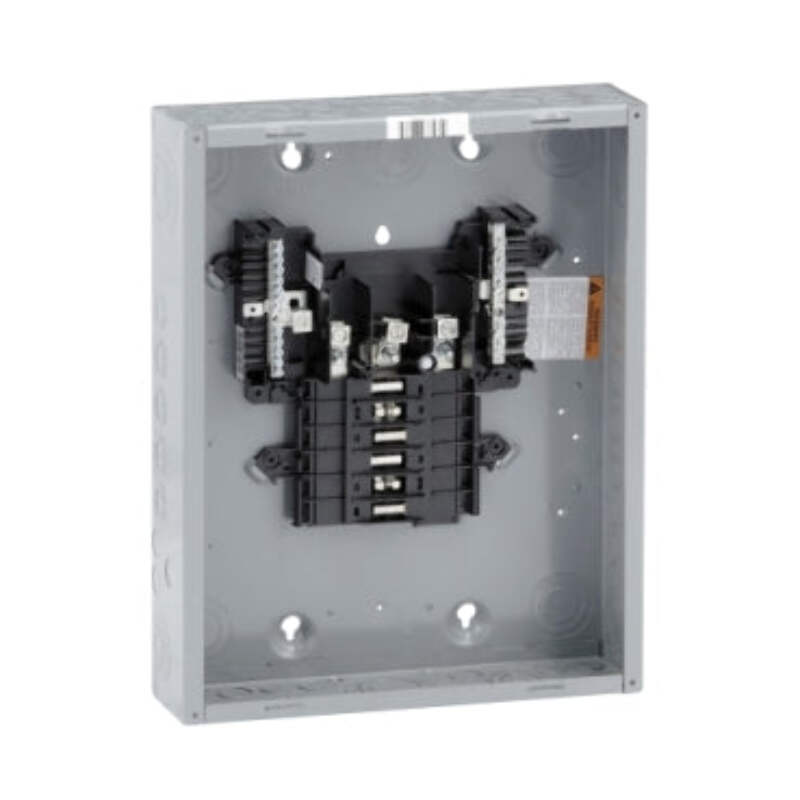

QO312L125G is a Square D QO series 3-phase main lug load center rated for 125A and 240V, designed for indoor use with NEMA 1 protection. This load center features a tin-plated copper busbar, 12 spaces for circuit breakers, and is suitable for both residential and commercial applications. It supports 3-wire and 4-wire configurations and includes a grounding bar. The cover must be ordered separately.
  • Part Number: QO312L125G
  • Manufacturer: Square D
  • Series: QO
  • Amperage: 125A
  • Voltage: 208Y/120V, 240/120V Delta, 240V Delta
  • Phase: 3-Phase
  • Mounting Type: Indoor, NEMA 1
  • Interrupt Rating: 65kA
  • Spaces: 12
  • Bus Material: Tin Plated Copper
  • Wire Size: #6 to 2/0 AWG (Al/Cu)
  • Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QO312L125G
  • Manufacturer : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Load Center
  • Family : QO Series
  • Type : QO
  • Voltage : 120/240 AC
  • Amperage : 125
  • Phase : 3
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Wire : 4
  • Nema Rating : 1
  • Bus Type : Copper

Product Data

  • UPC : 785901295037
  • GTIN : 00785901295037
  • Country of Origin : United States
  • Dimensions : 14.25 in x 17.91 in
  • Weight : 4.99
  • Certification : RoHS Compliant, UL Listed
  • Wire Size : AWG 6 to AWG 2/0, Aluminum/Copper

×
