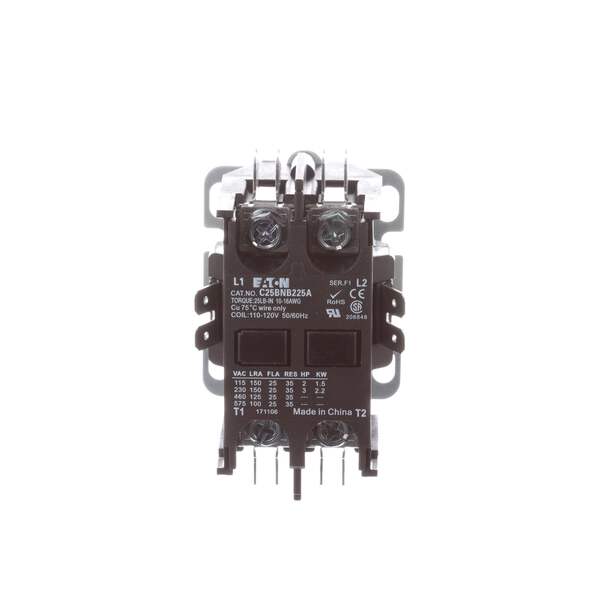

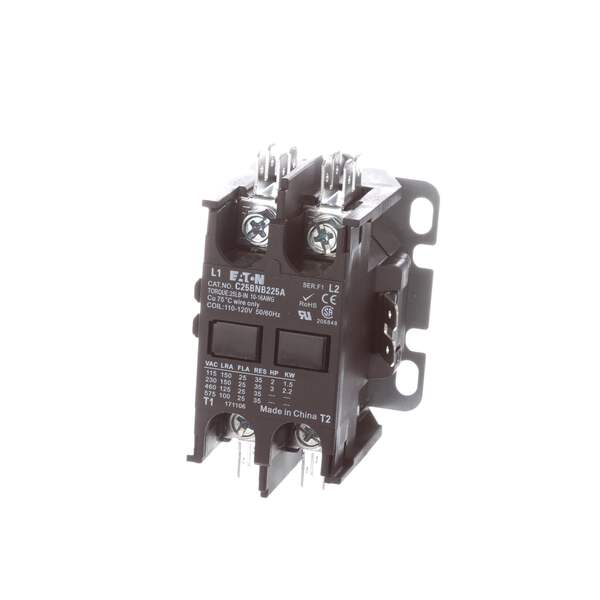

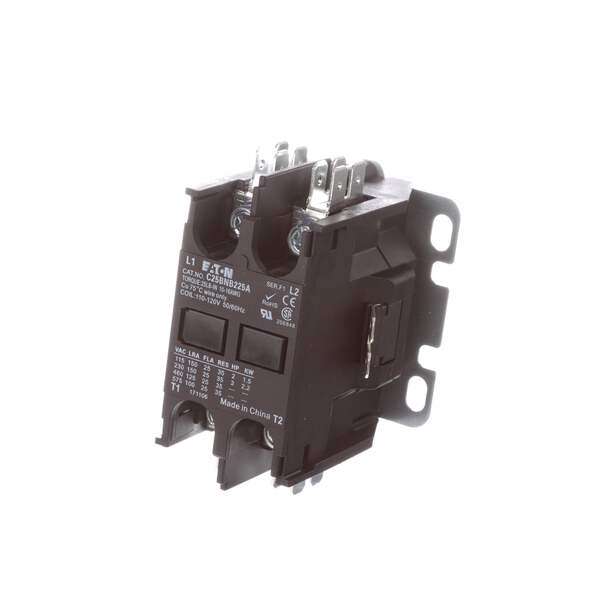

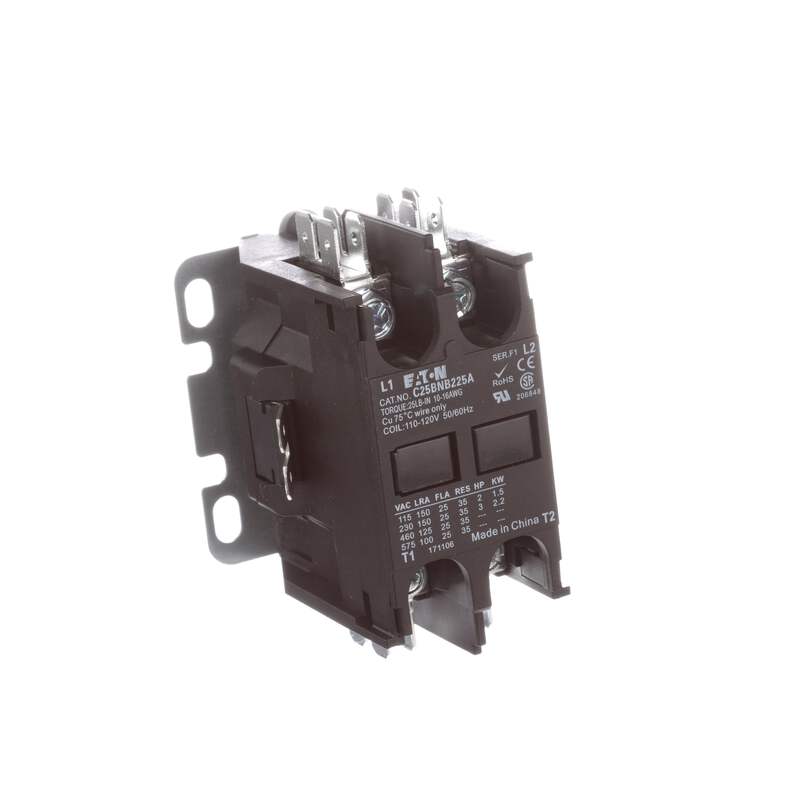

C25BNB225A - Cutler Hammer 25A 2 Pole 120V Coil Definite Purpose Contactor
C25BNB225A
C25BNB225A is a Cutler Hammer definite purpose contactor designed for motor control applications.C25BNB225A features a 25 ampere rating with two poles and a 120V AC coil suitable for 1-phase systems up to 600V. It is a non-reversing contactor from the C25 series, offering reliable switching performance.
- Key Specifications
- Amperage: 25A
- Voltage: 600V max, 120V coil (110-120 VAC, 50/60 Hz)
- Number of Poles: 2 (two-pole)
- Type: Non-reversing definite purpose contactor
- Mounting: Open with metal mounting plate
- Series/Frame: C25 Series
- Coil Voltage: 110-120 VAC
- Application: Motor control and definite purpose switching
Additional Information
This Definite Purpose Contactor includes a 24 VAC coil.
Specifications
- Part Number: C25BNB225A
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : C25 Series
- Type : C25
- Voltage : 600
- Amperage : 25
- Phase : 1
- Poles : 2
- Configuration : Non-Reversing
- Coil Voltage Maximum : 120
- Full Load Amps : Full Load Amps-Inductive 25A Full Load Amps-Resistive 30A
- Coil Voltage Minimum : 120
- Frequency : 50 Hz
Product Data
- UPC : 78668511599
- GTIN : 00786685115993
- Country of Origin : China
- Dimensions : 2.32 in x 3.19 in x 1.97 in (Length/Depth x Height x Width)
- Weight : 0.6 lb
- Certification : CSA, RoHS, UL Listed
