AP20044E - Appleton 200A 600V 4-Pole Powertite Grounding Style 1 Plug
AP20044E

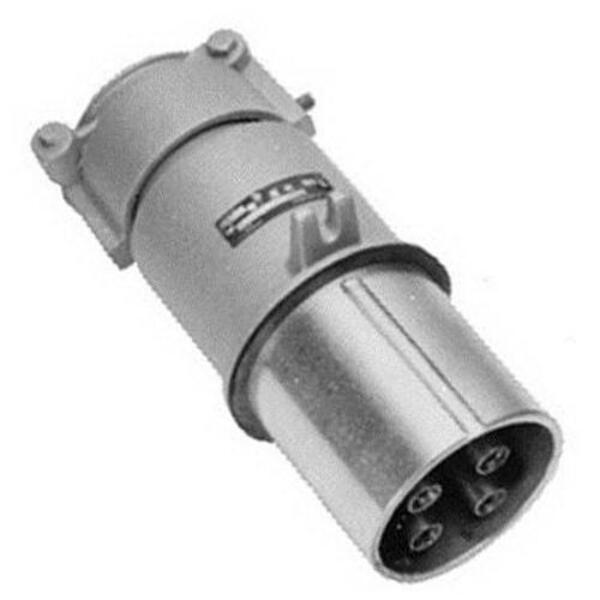

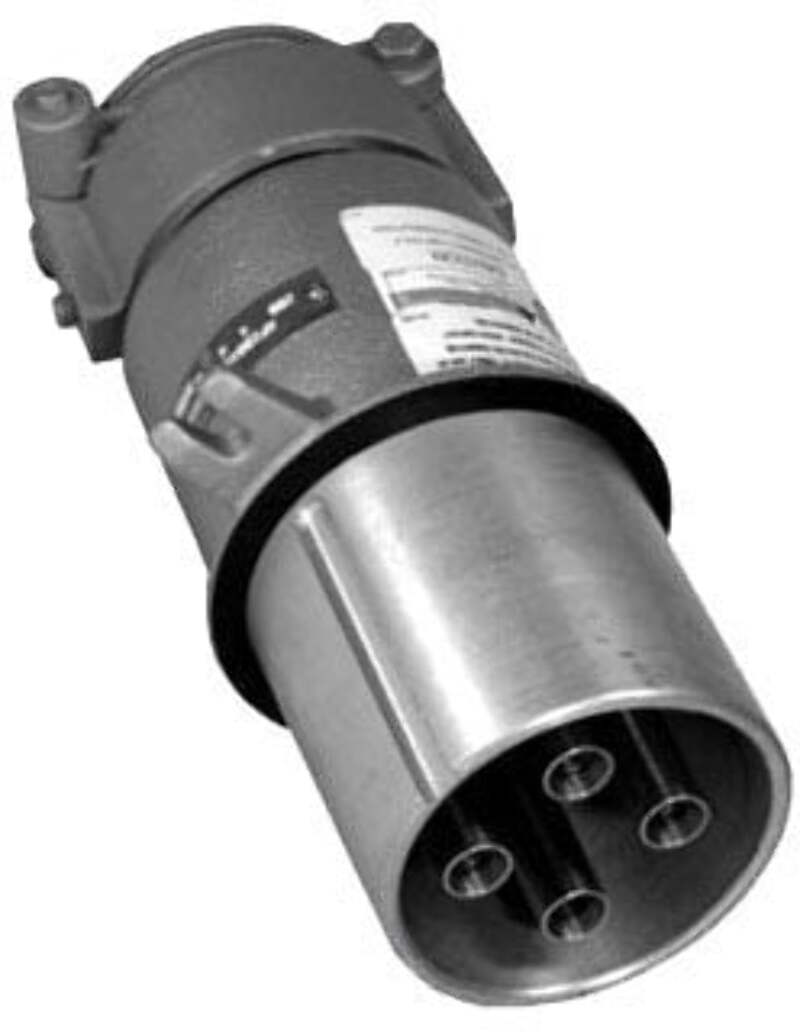

AP20044E is a 200 amp, 600 volt, 4-pole Powertite Grounding Style 1 plug from Appleton designed for reliable industrial power connections. This plug features a straight connection type and is constructed from copper-free aluminum for durability and corrosion resistance. It supports 4 wires with wire sizes ranging from 2/0 AWG to 250 MCM and is rated for 3-phase power at 50-400 Hz frequency. The device is pressure wired and CSA and UL approved for ordinary locations.
- Amperage Rating: 200 A
- Voltage Rating: 600 VAC, 250 VDC
- Number of Poles: 4
- Number of Wires: 4
- Wire Size Range: 2/0 AWG to 250 MCM
- Connection Type: Straight Plug
- Material: Copper-Free Aluminum
- Frequency: 50-400 Hz
- Phase: 3-Phase
- Certifications: CSA, UL
- Locking Screw Type
- Operating Temperature Range: -40 to 225°F
Additional Information
Industrial duty; interlocked/with-switch options
Specifications
- Part Number: AP20044E
- Manufacturer : Appleton
- Brand : Appleton
- Category : Wiring Devices
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Family : AP Series
- Voltage : 250/600 250/600 /DC
- Amperage : 200A
Product Data
- UPC : 781381131292
- GTIN : 00781381131292
- Dimensions : 11.94 in L x 6.81 in W
- Weight : 14 lb
