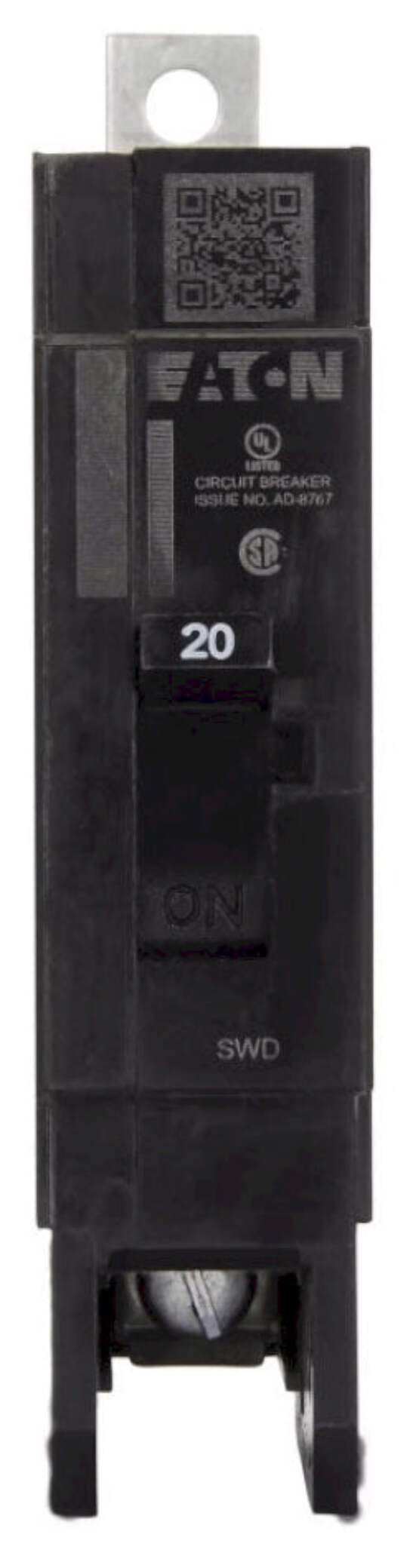

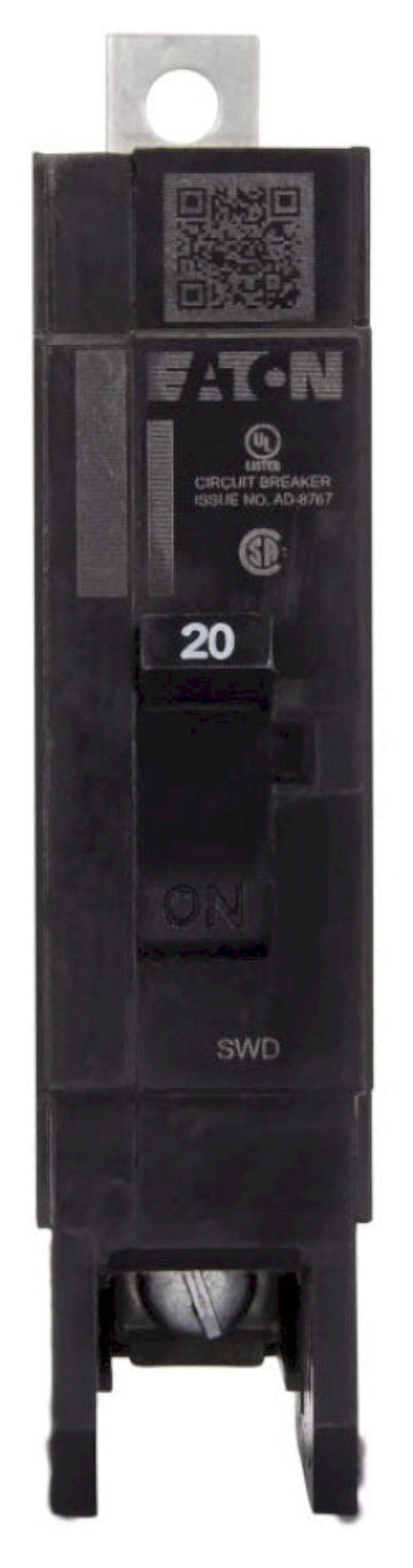

HGHB1020 - Eaton 20 Amp 1 Pole Molded Case Circuit Breaker, 277V, Series C G-Frame, Bolt-On
HGHB1020
HGHB1020 is a 20 Amp, 1 Pole molded case circuit breaker from Eaton's Series C G-Frame designed for reliable circuit protection.The Eaton HGHB1020 features a fixed thermal and fixed magnetic trip unit with a 14 kA interrupt rating at 277 Vac. It is a bolt-on type breaker suitable for use in Eaton Powerline panelboards, rated for 277 Vac and 125 Vdc operation at 50/60 Hz frequency. This breaker is UL listed and CSA certified, providing dependable protection with long-time and instantaneous trip functions.
- Key Specifications
- Amperage: 20 A
- Voltage Rating: 277 Vac, 125 Vdc
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 14 kAIC at 277 Vac
- Series/Frame: Series C, G-Frame
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Certifications: UL Listed, CSA
- Frequency: 50/60 Hz
- Connection Type: Bolt-On
- Actuator Type: Toggle
- Compatible with Eaton Powerline Panelboards
Specifications
- Part Number: HGHB1020
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HGHB
- Voltage : 277
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 25kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : G Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679114186
- GTIN : 00786679114186
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.67
- Certification : UL Listed
