HOM230GFI - Square D Homeline 30 Amp 2 Pole 120/240V Plug-In GFCI Circuit Breaker, 10kA Interrupt, HOM Frame, Thermal Magnetic Trip, UL Listed
HOM230GFI

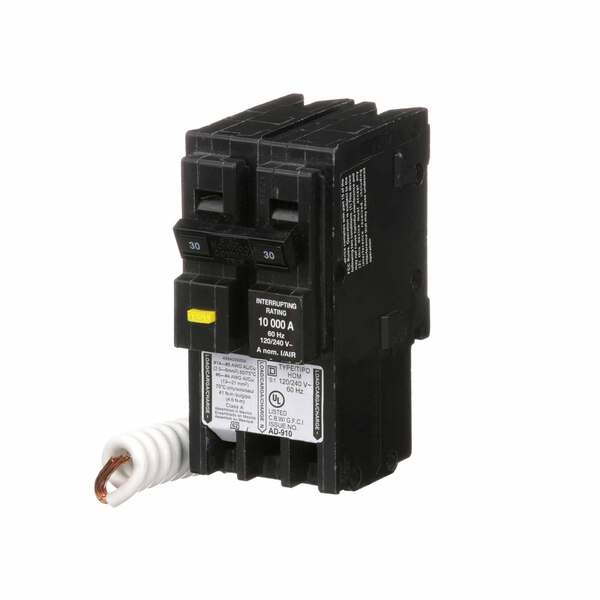

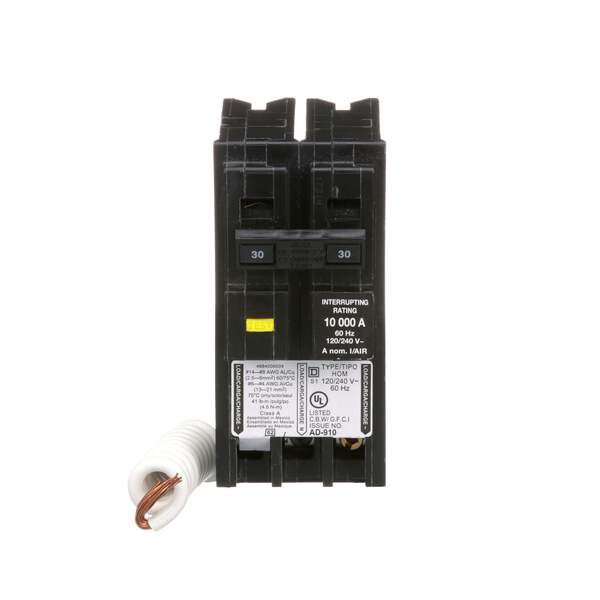

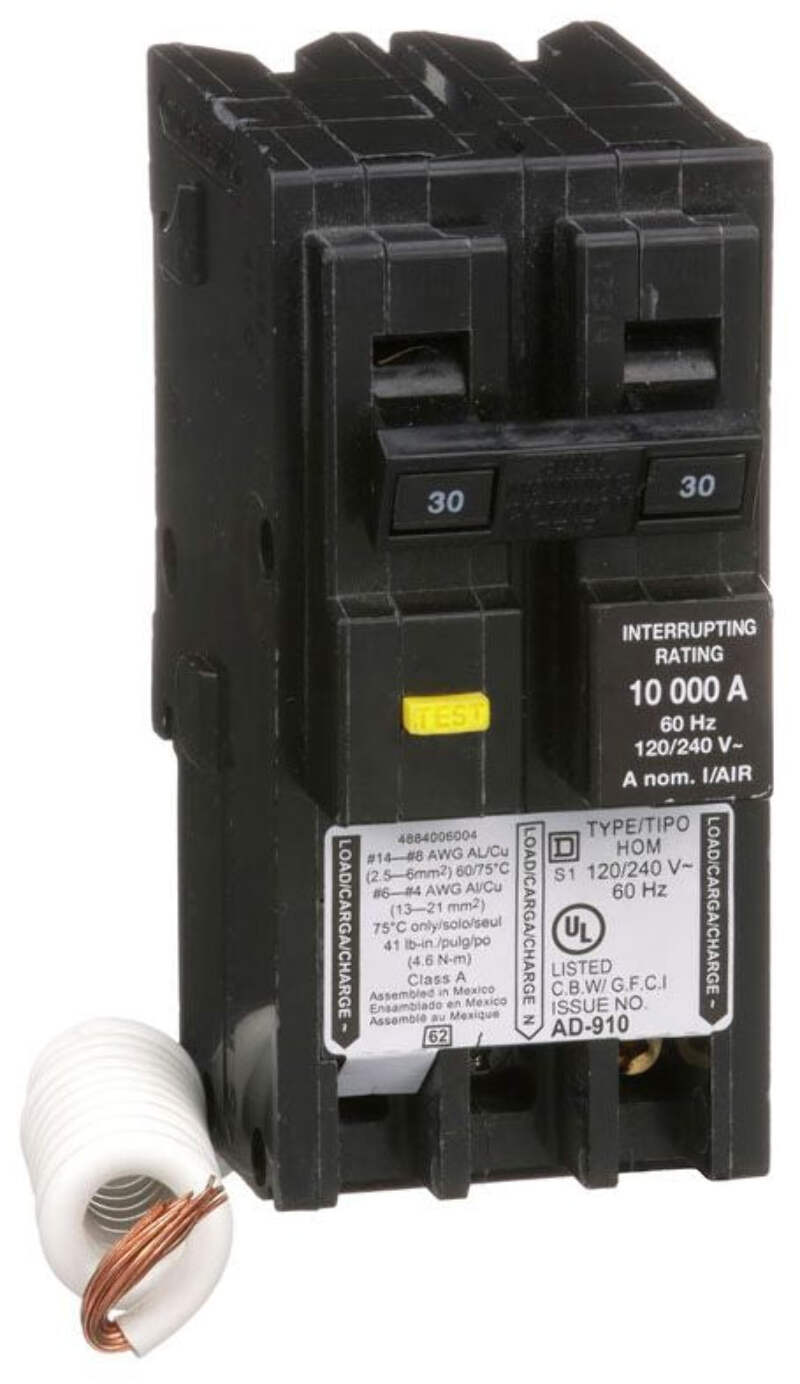

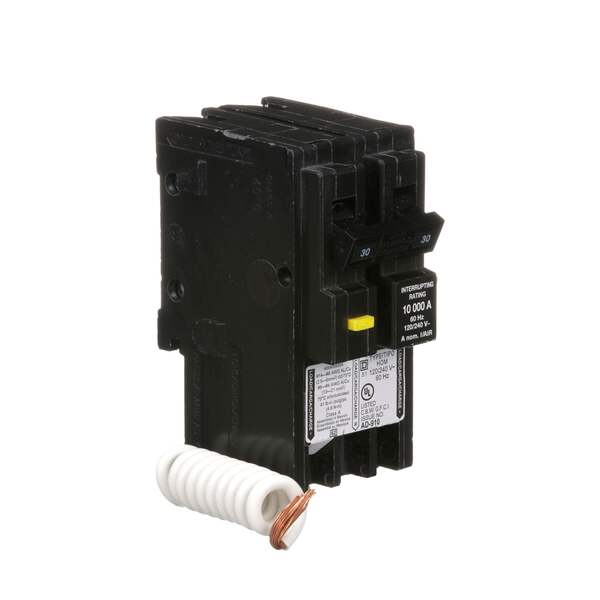

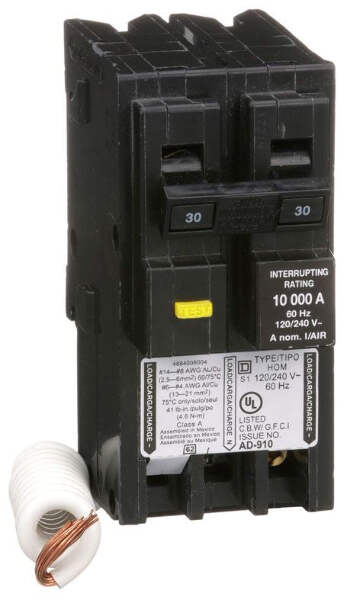

HOM230GFI is a Square D Homeline 2 pole, 30 Amp, 120/240V plug-in ground fault circuit breaker designed for reliable protection in residential and light commercial applications.
This circuit breaker features a plug-in mounting style for fast installation in Homeline load centers, offering both overload and short circuit protection plus Class A ground fault protection (trips at 6mA or more). It includes a pigtail neutral, thermal magnetic trip unit, and is rated for 10kA interrupting capacity at 240V. The HOM230GFI is UL listed and HACR rated, ensuring compliance with safety standards.
-
Key Specifications
- Part Number: HOM230GFI
- Manufacturer: Square D
- Series/Frame: Homeline (HOM)
- Amperage: 30A
- Voltage: 120/240V AC
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10kA at 240V
- Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
- Certifications: UL Listed, HACR
- Protection: Overload, Short Circuit, Ground Fault (Class A)
- Neutral: Pigtail
- Wire Range: 14–8 AWG Copper or 12–4 AWG Aluminum
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HOM230GFI
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOM
- Voltage : 120/240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Screw Clamp
- Frame Size : 100A/HOM
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901303237
- GTIN : 00785901303237
- Country of Origin : Mexico
- Dimensions : 3.13 in (79.50 mm) x 2 in (50.8 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
- Weight : 1.16 lb
- Panel Type : Homeline Load Center
- Standards : CSA Certified, HACR, UL Listed
- Certification : CSA Certified, HACR, UL Listed
- Wire Size : 1x AWG 12 to AWG 4, Aluminum, 1x AWG 14 to AWG 6, Copper
