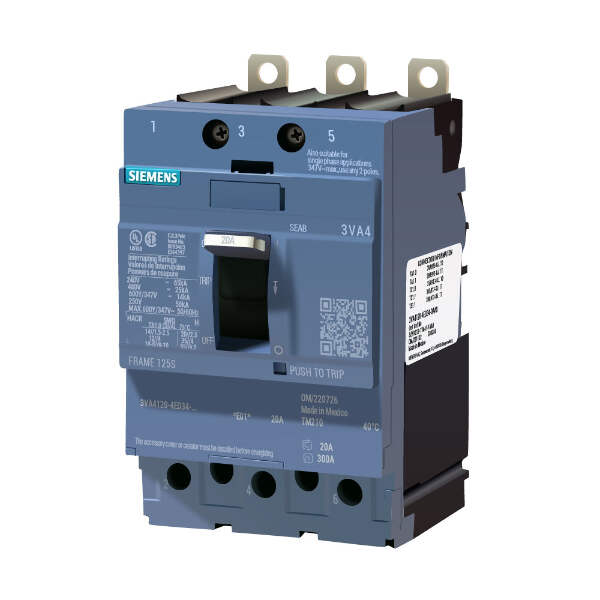

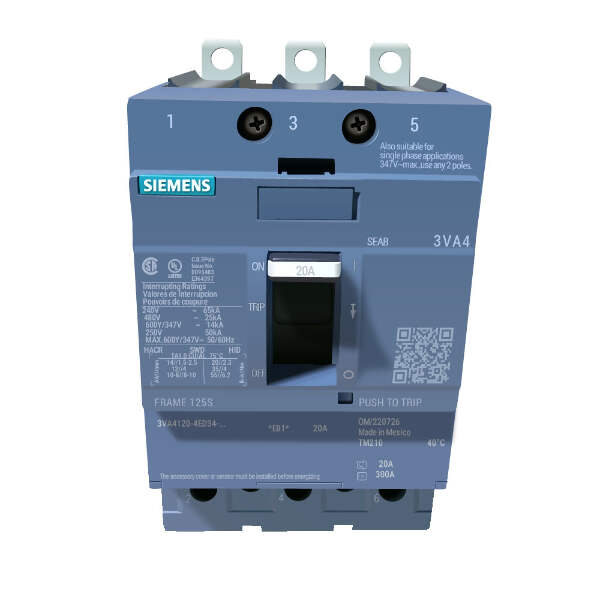

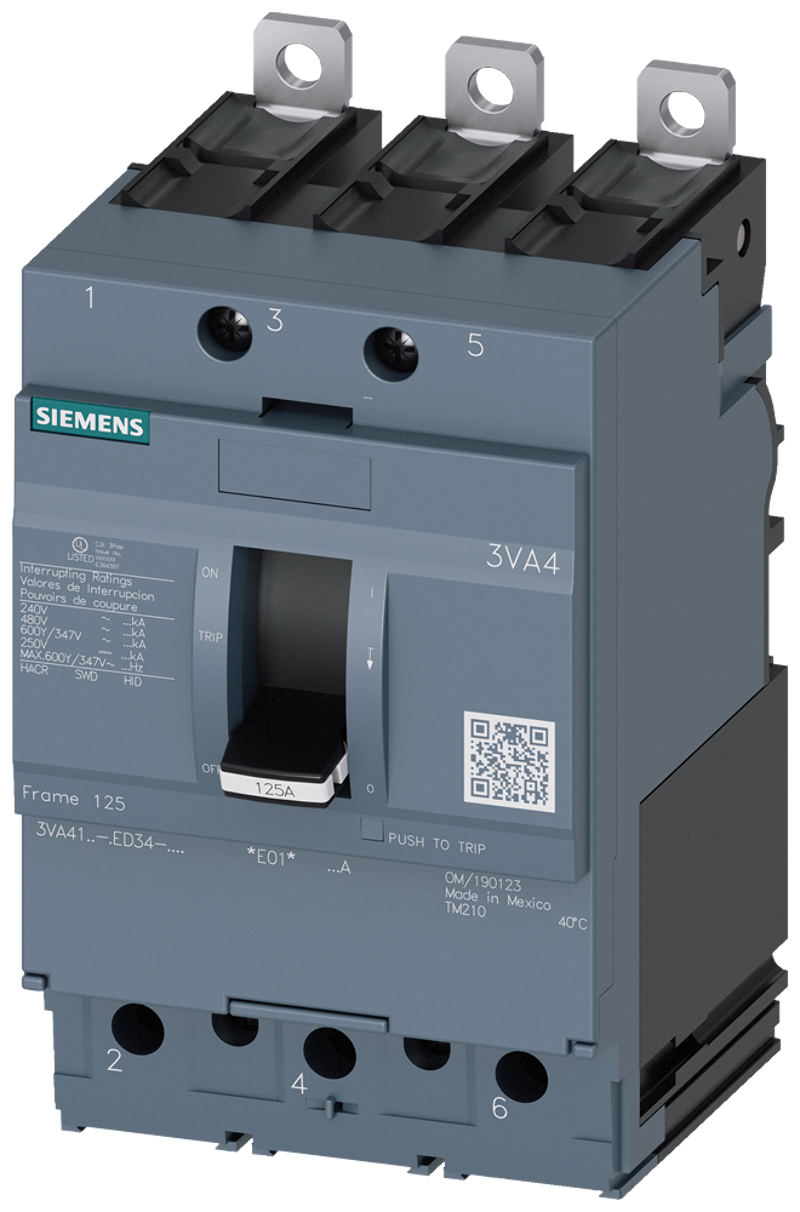

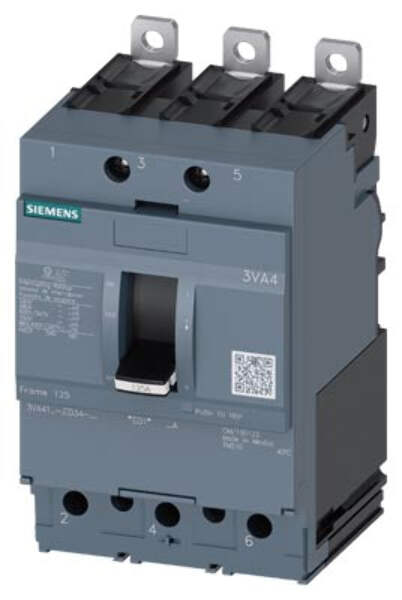

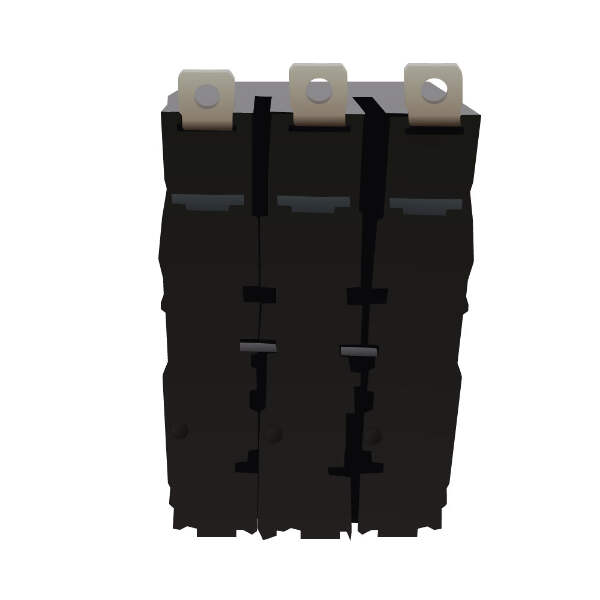

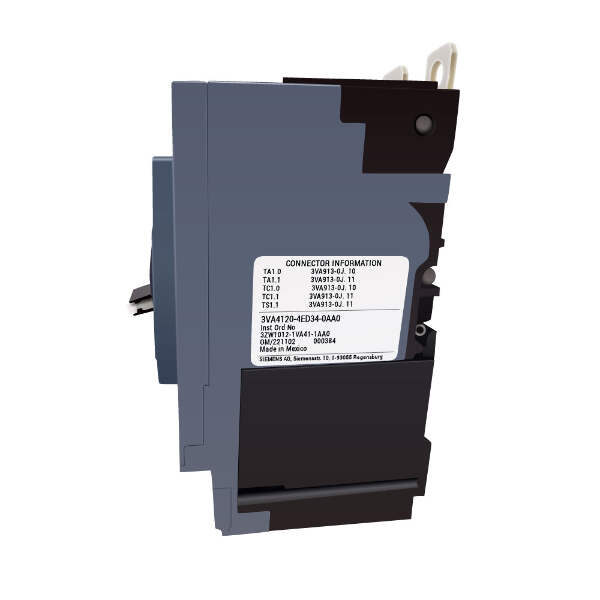

3VA4120-4ED34-0AA0 - Siemens 20A 3-Pole 480V Molded Case Circuit Breaker TM210 Trip Unit Class S 25kA UL Frame 125
3VA4120-4ED34-0AA0
3VA4120-4ED34-0AA0 is a Siemens 3VA molded case circuit breaker with thermal-magnetic trip unit for line protection.This 3-pole breaker features 3VA4 UL frame size 125, TM210 trip unit with fixed thermal and fixed magnetic settings, In=20A overload protection Ir=20A, and permanently set short-circuit protection Ii=15xIn. It offers breaking capacity class S at 25kA @ 480V, rated operational voltage up to 600V AC, and terminal connections. Design complies with UL 489 including HID and SWD types.Key Specifications
- Part Number: 3VA4120-4ED34-0AA0
- Manufacturer: Siemens
- Series/Frame: 3VA4 UL Frame 125
- Poles: 3
- Amperage: 20A
- Voltage: 600V AC
- Trip Unit: TM210, FTFM, LI protection
- Overload Protection: Ir=20A
- Short-Circuit Protection: Ii=15xIn
- Interrupt Rating: 25kA @ 480V (Class S)
- Certifications: UL 489, HID Type, SWD Type
Specifications
- Part Number: 3VA4120-4ED34-0AA0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : 3VA
- Voltage : 600V AC
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI
- Terminal Connection : Load Side Lug
- Frame Size : 125
- Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
- Protection : Thermal Magnetic
- Trip Type : TM210
Product Data
- UPC : 804766943560
- GTIN : 00804766943560
- Country of Origin : Mexico
- Dimensions : 6.299 x 5.315 x 3.465 inch
- Weight : 1.638
- Standards : UL Listed
- Certification : UL Listed
