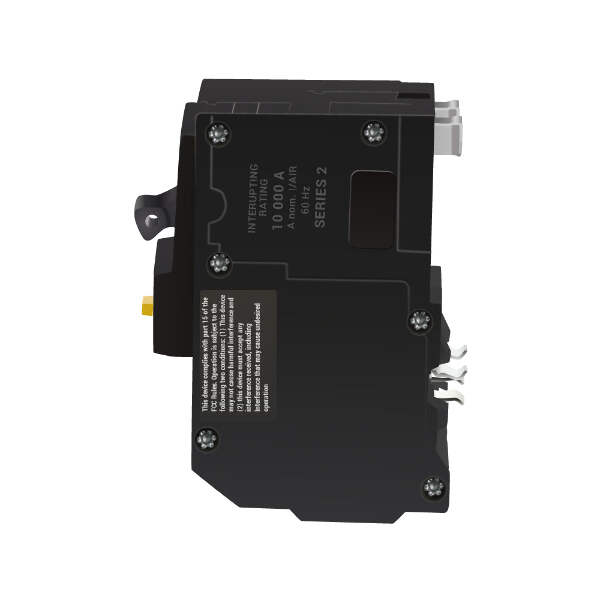

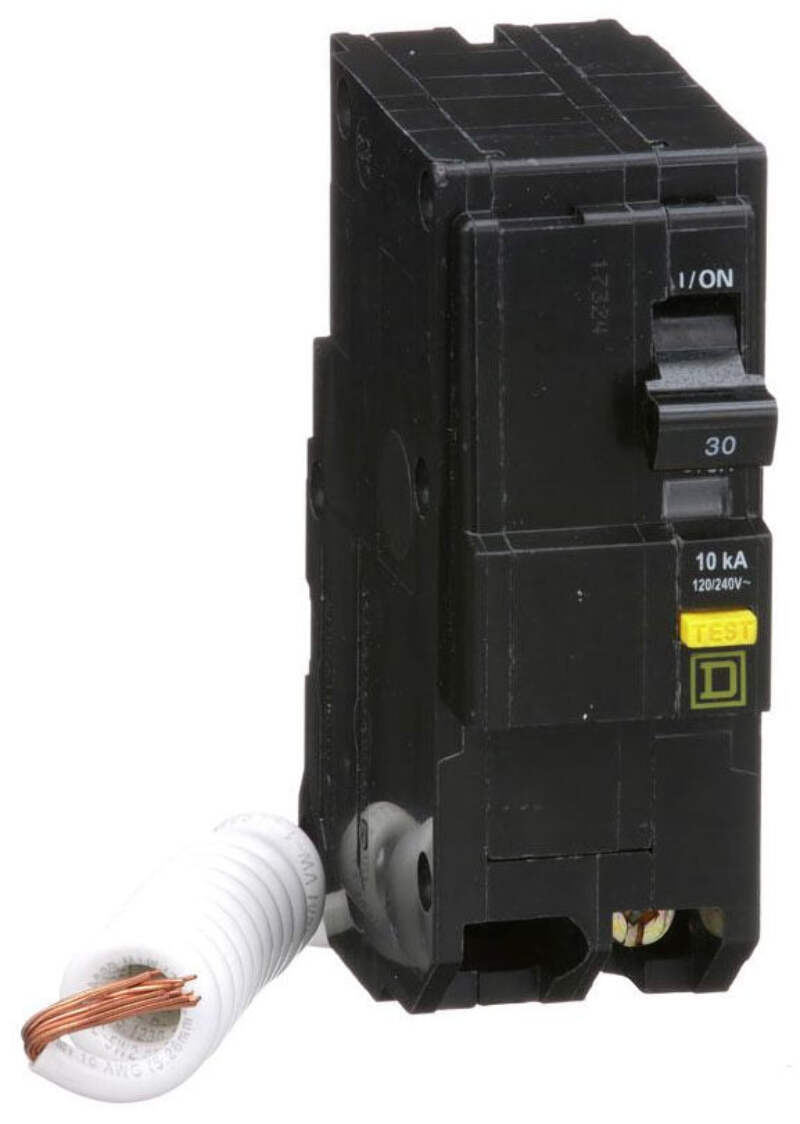

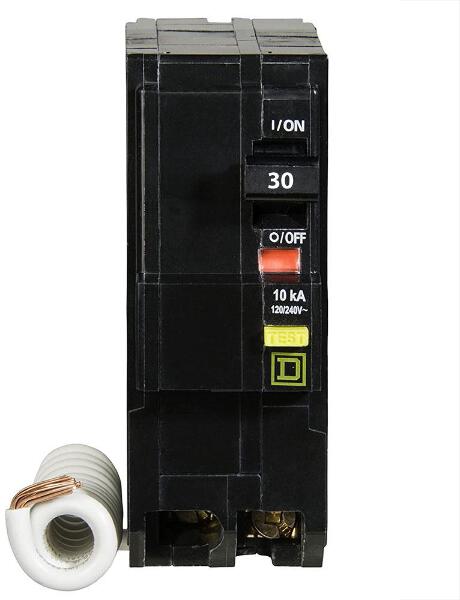

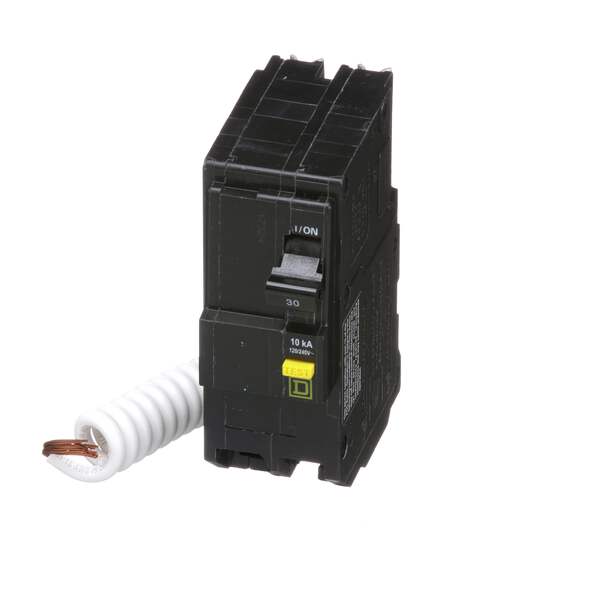

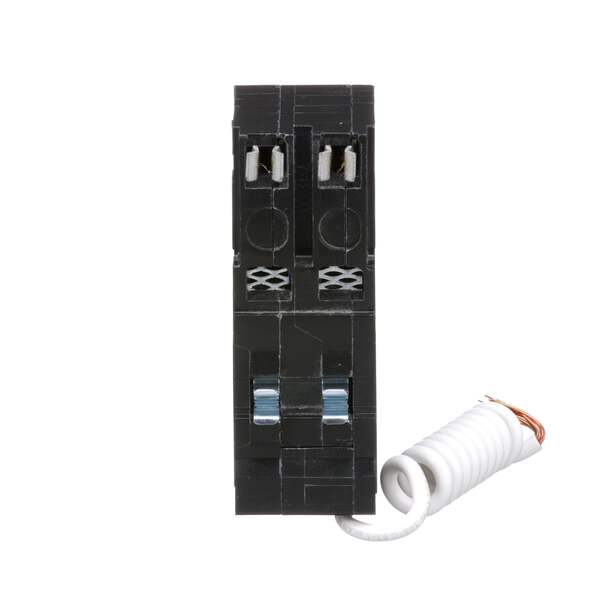

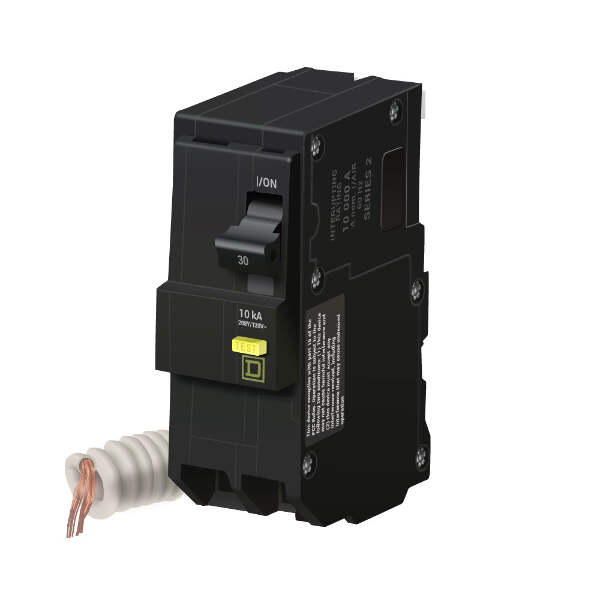

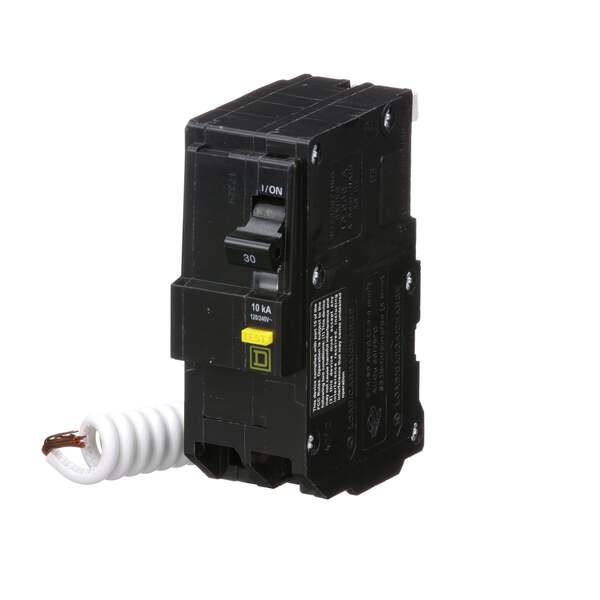

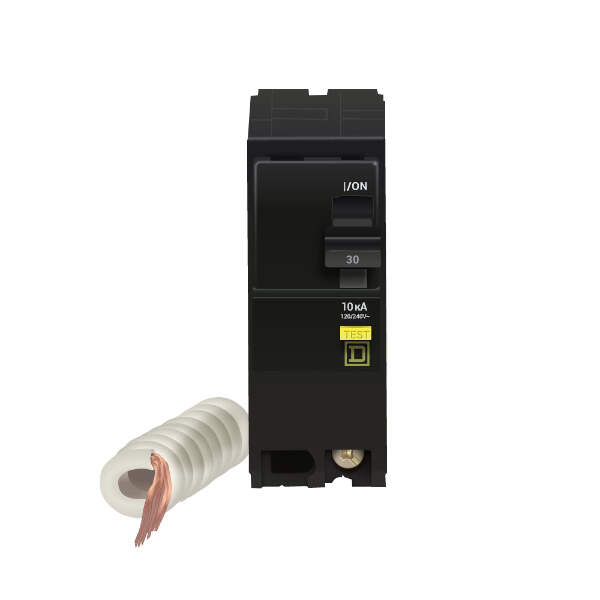

QO230GFI

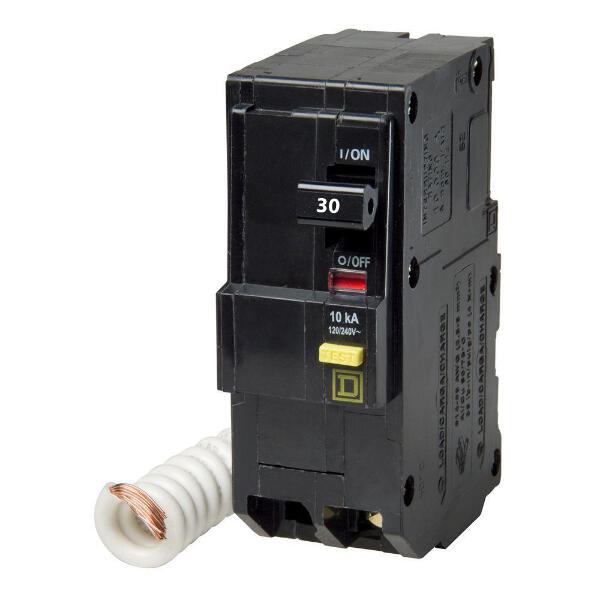

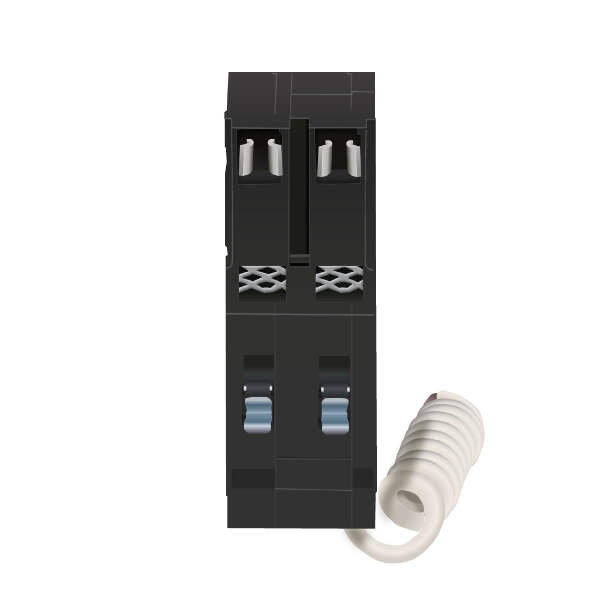

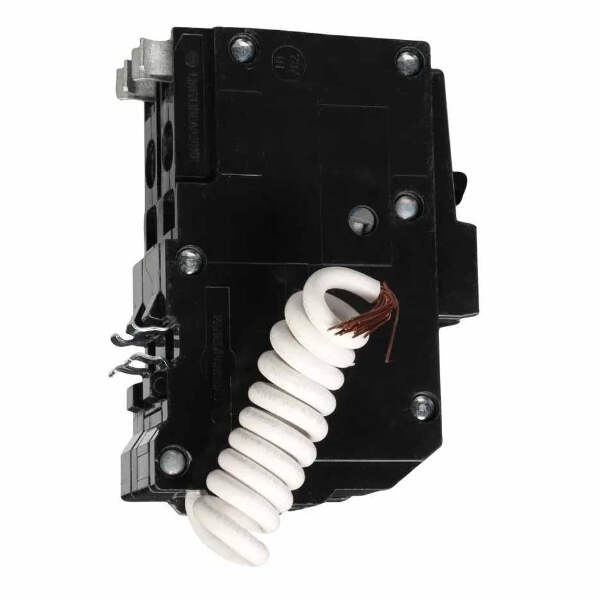

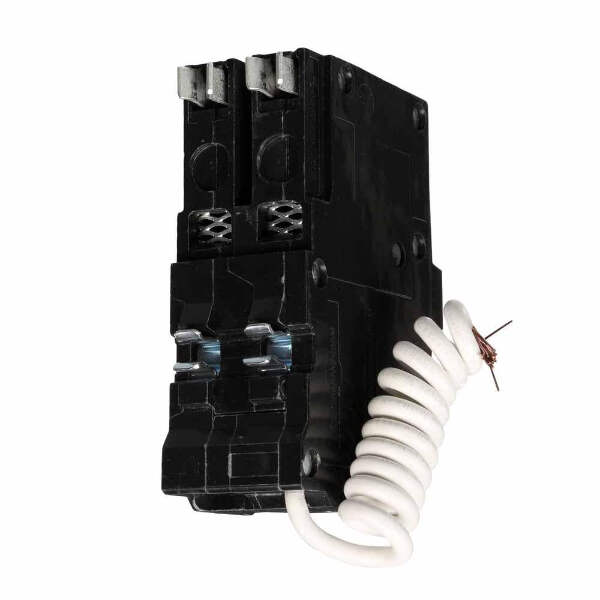

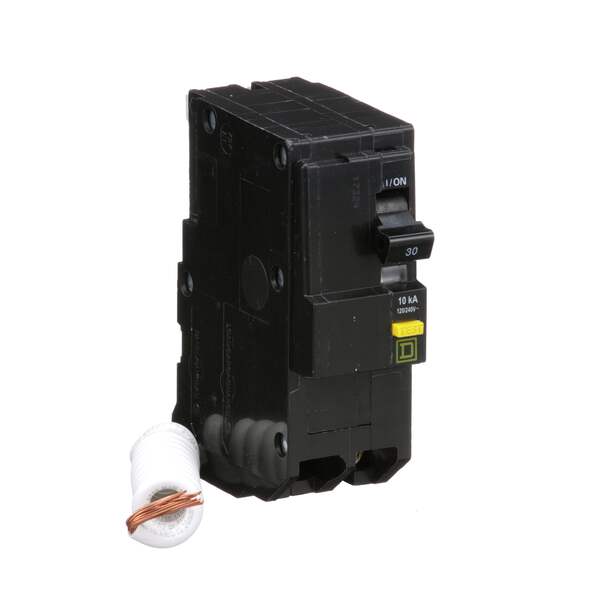

QO230GFI is a Square D 30 Amp, 2-pole, 120/240V plug-in ground fault circuit breaker designed for QO Series load centers.

This thermal magnetic trip breaker provides Class A ground fault protection (6mA trip), features a common trip mechanism, and is compatible with copper and aluminum wiring. It is UL and CSA certified for safety and reliability in residential and light commercial applications.

Key Specifications
• Amperage: 30A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Plug-in
• Interrupt Rating: 10kAIC at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic, LI (Long-Time & Instantaneous)
• Ground Fault Protection: Class A, 6mA
• Connection Type: Pressure plate
• Wire Size: 14–8 AWG copper, 12–8 AWG aluminum
• Certifications: UL 489, CSA 22.2 No. 144, RoHS Compliant
• Dimensions: 4.12" H x 1.5" W x 2.91" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO230GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO-GF
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901563006
• GTIN : 00785901563006
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.94
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum
