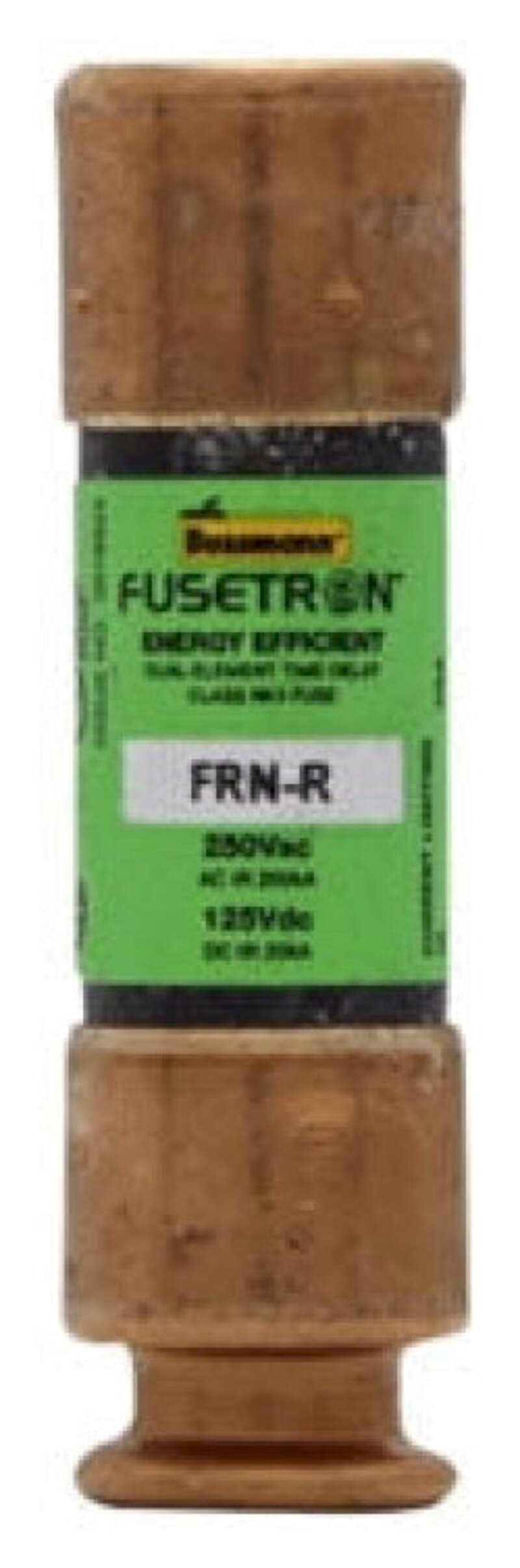

FRN-R-15/100 - Bussmann 15/100A 250V AC RK5 Time Delay Fuse Cylindrical Body

{description}

FRN-R-15/100 - Bussmann 15/100A 250V AC RK5 Time Delay Fuse Cylindrical Body



FRN-R-15/100


FRN-R-15/100 is a Bussmann RK5 class fuse rated for 15/100 amperes and 250 volts AC with a cylindrical body design.This dual-element, time-delay fuse provides reliable circuit protection with an interrupting rating of 200,000 AIC at 250 VAC. It features a physical size of approximately 2 inches in length by 9/16 inch diameter and fits fuse block style rejection mounts. The FRN-R series fuse is UL listed and designed for use in industrial and commercial electrical applications.
  • Amperage: 15/100 A
  • Voltage Rating: 250 V AC, 125 V DC
  • Fuse Class: RK5
  • Time Delay: Dual Element
  • Interrupting Rating: 200,000 AIC @ 250 VAC
  • Physical Size: 2 in L x 9/16 in diameter
  • Body Style: Cylindrical
  • Mounting Type: Fuse block style rejection
  • Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: FRN-R-15/100
  • Manufacturer : Eaton
  • Brand : Bussmann
  • Category : Fuse
  • Item Subcategory : Low Voltage Fuse
  • Family : Fusetron
  • Type : FRN-R
  • Voltage : 250
  • Amperage : 15
  • AIC rating : 200kA@250V
  • Diameter : 0.56
  • Class Rating : RK5
  • Barrels : 1

Product Data

  • UPC : 051712507011
  • GTIN : 00051712507011
  • Country of Origin : Mexico
  • Dimensions : 2 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
  • Weight : 0.04
  • Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ

×
