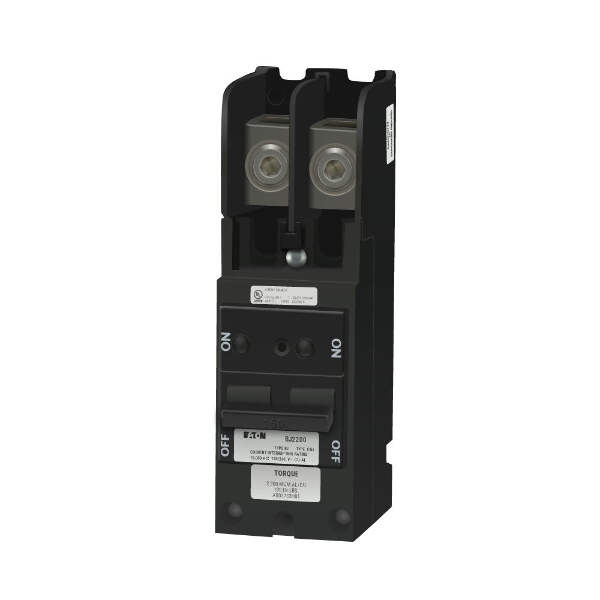

BJ2200 - Eaton Cutler-Hammer 200 Amp 2-Pole 120/240V Plug-On Main Circuit Breaker, BJ Series, 10kAIC, Thermal Magnetic Trip, UL 489, CSA
BJ2200
BJ2200 is a 200 Amp, 2-pole, plug-on main circuit breaker from Eaton Cutler-Hammer, designed for reliable protection in residential and light commercial applications.
This thermal magnetic molded case circuit breaker features a 120/240V voltage rating, a 10kA interrupting capacity at 240V, and a compact, easy-to-install design. It is UL 489 and CSA certified, ensuring compliance with North American safety standards. The BJ2200 uses a common trip mechanism and is part of the BJ series, compatible with load centers rated for at least 150A. It accepts #2 AWG to 300 kcmil copper or aluminum wire, making it versatile for various installations.
-
Key Specifications
- Amperage: 200A
- Voltage: 120/240V
- Poles: 2
- Mounting Type: Plug-on
- Interrupt Rating: 10kAIC at 240V
- Series/Frame: BJ
- Trip Unit: Thermal magnetic, common trip
- Certifications: UL 489, CSA
- Connection: Plug-in
- Wire Size: #2 AWG to 300 kcmil (Cu/Al)
- Dimensions: 6.5" x 3.5" x 2.5"
- Weight: 1.8 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BJ2200
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BJ Series
- Type : BJ
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786676367202
- GTIN : 00786676367202
- Country of Origin : Dominican Republic
- Dimensions : 6.5 in x 2.5 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 1.8 lb
- Certification : UL 489,Federal Specifications Classification W-C375
- Wire Size : AWG 2 to 300KCmil, Cu/Al
