Product Details
1.Low power consumption dual-core 32-bit CPU, can be used as application processor.

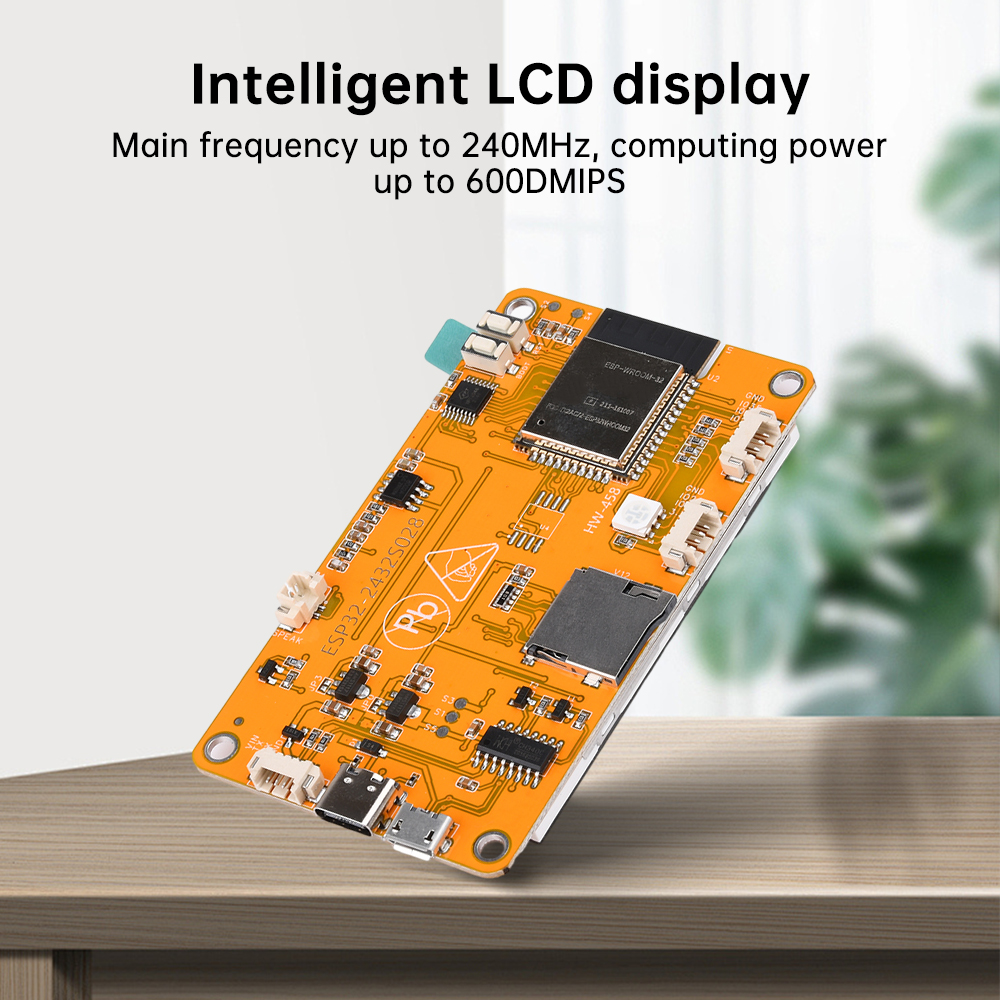

2. Main frequency up to 240MHz, computing power up to 600DMIPS
3. Built-in 520KB SRAM

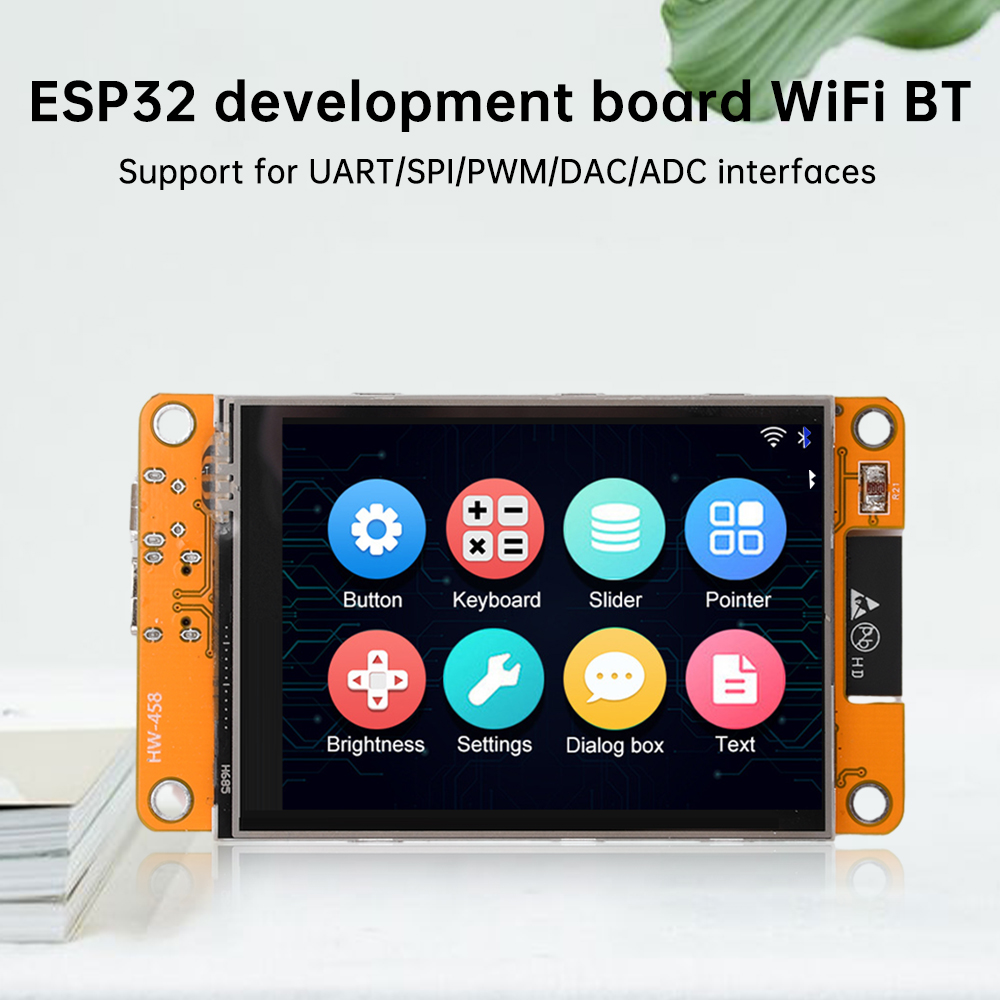

4. Support UART/SPI/PWM/DAC/ADC interfaces.
5. With TF card slot, easy to expand storage

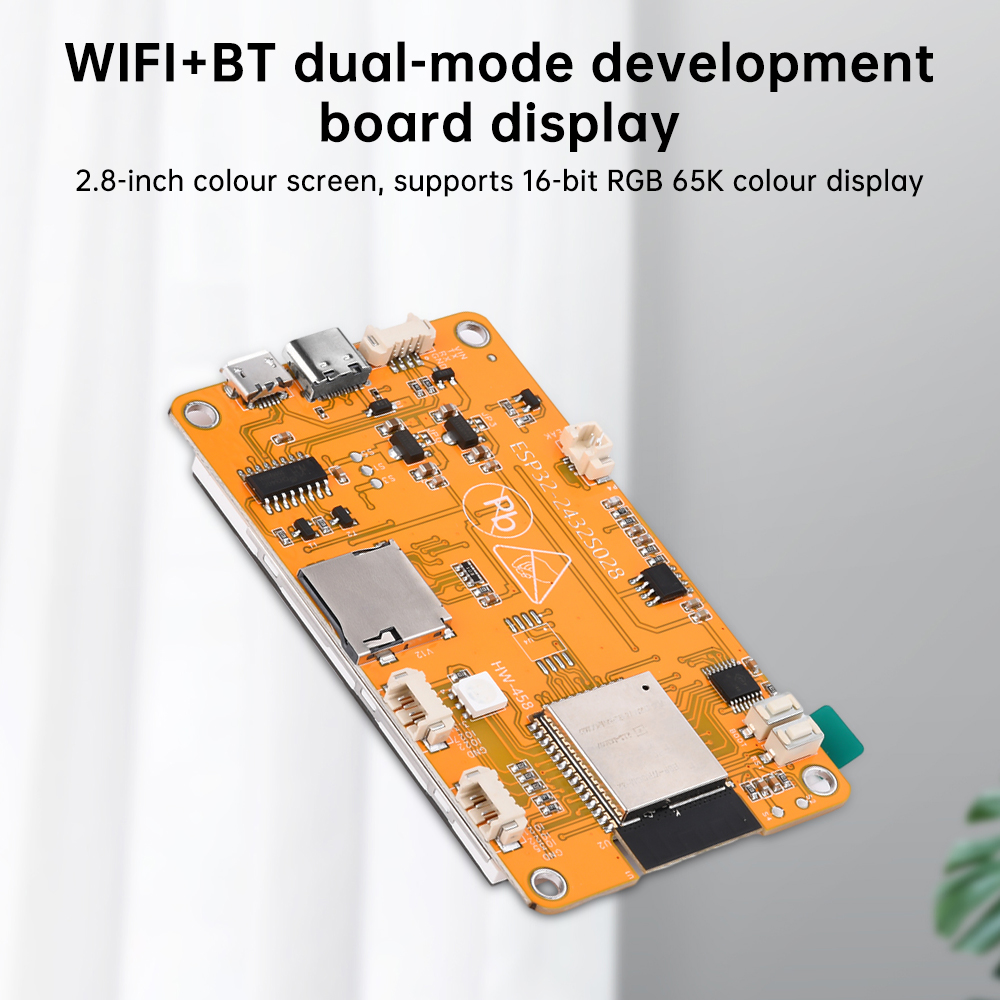

6.2.8-inch colour screen, support for 16-bit RGB 65K colour display

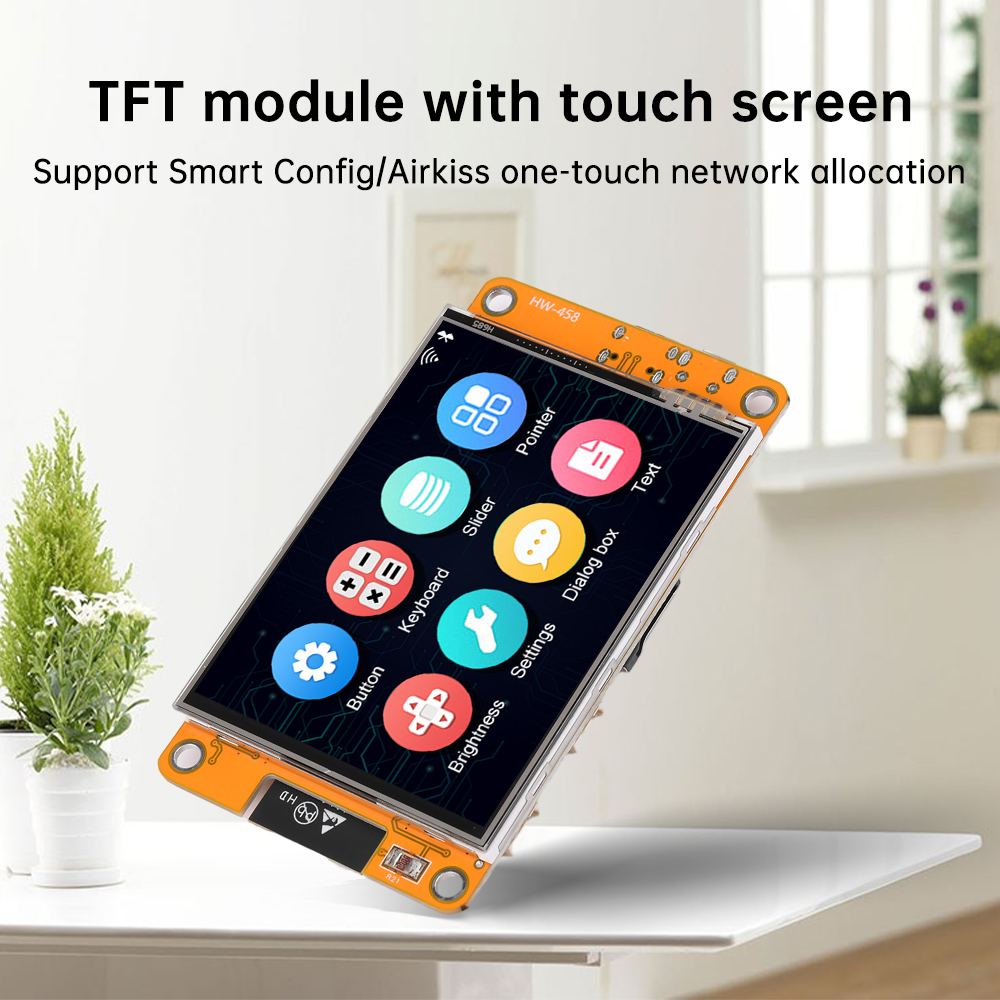

7.Support Smart Config/Airkiss one-key networking

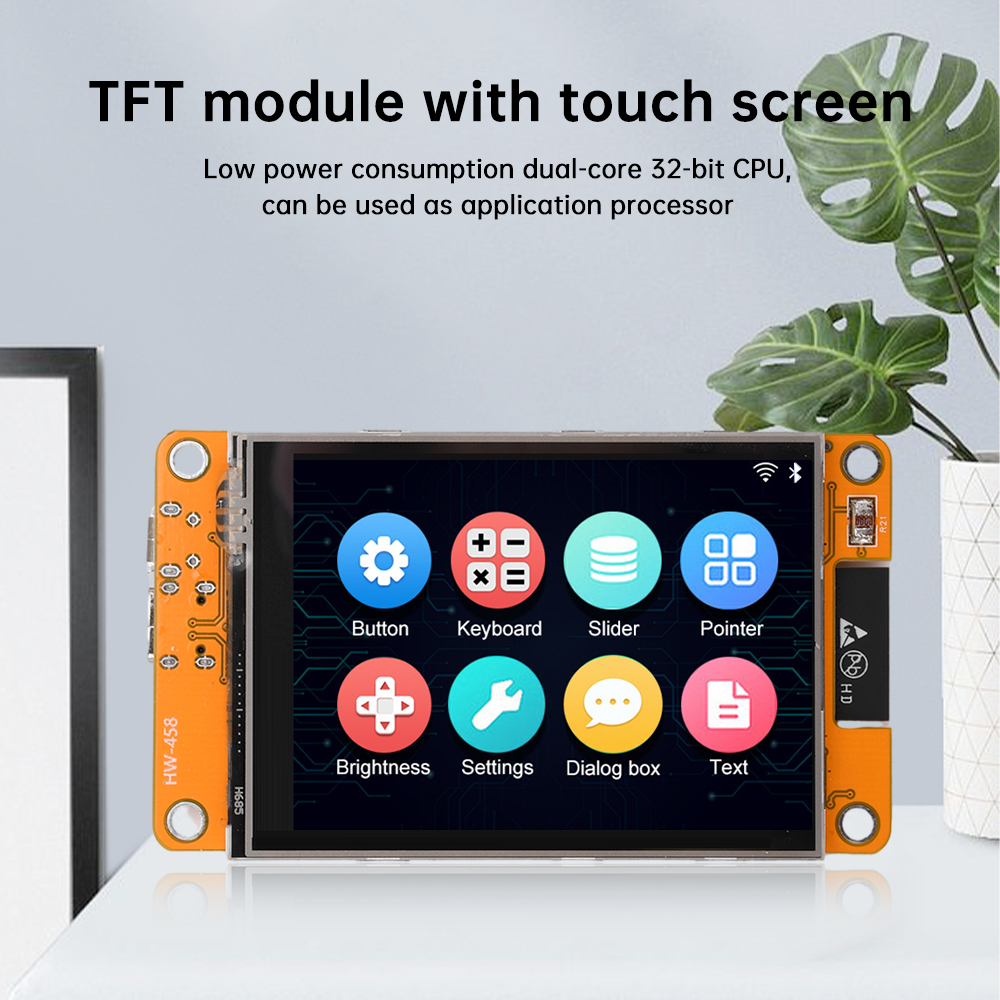

Product name: ESP32 WIFI + BT dual-mode development board display
Display colour: RGB 65K colour

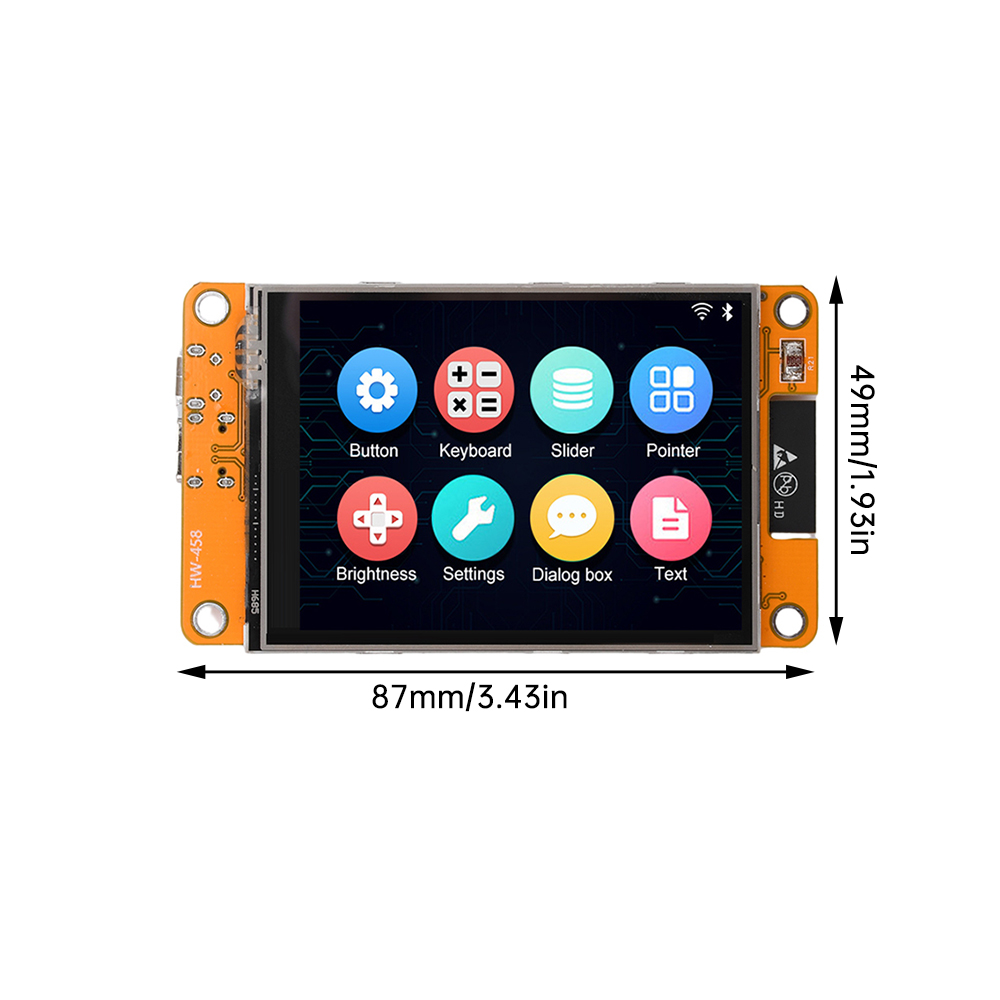

Size: 2.8 inch
Type: TFT
Driver chip：ILI9341
Resolution: 320*240
Viewing area: 43.2*57.6mm
Viewing Angle：＞60°
Operating Temperature: -20~70°C
Operating voltage: 5V
Power consumption: 115mA
Bluetooth: Bluetooth 4.2BR/EDR and BLE standard
WIFI: 802.11b/g/n/
Support interface: UART, SPI, SDIO, I2C, IR, ADC, DAC, PWM
IO port: 22
Serial port rate: default 115200bps
Spectrum range: 2412~2484MHZ
Antenna Format: On-board PCB antenna, gain 2dBi
Security: WPA/WPA2/WPA2-Enterprise/WPS
Transmit Power: 802.11b:17±2dBm(@11Mbps) /802.11b:14±2dBm(@54Mbps) /802.11b:13±2dBm(@MC57)
Interface Sensitivity:
CCK,1Mbps:-90dBm
CCK,11Mbps:-85dBm
6Mbps(1/2BPSK):-88dBm
54Mbps(3/464-QAM):-70dBm
MCS7(65Mbps,72.2Mbps)-67dBm

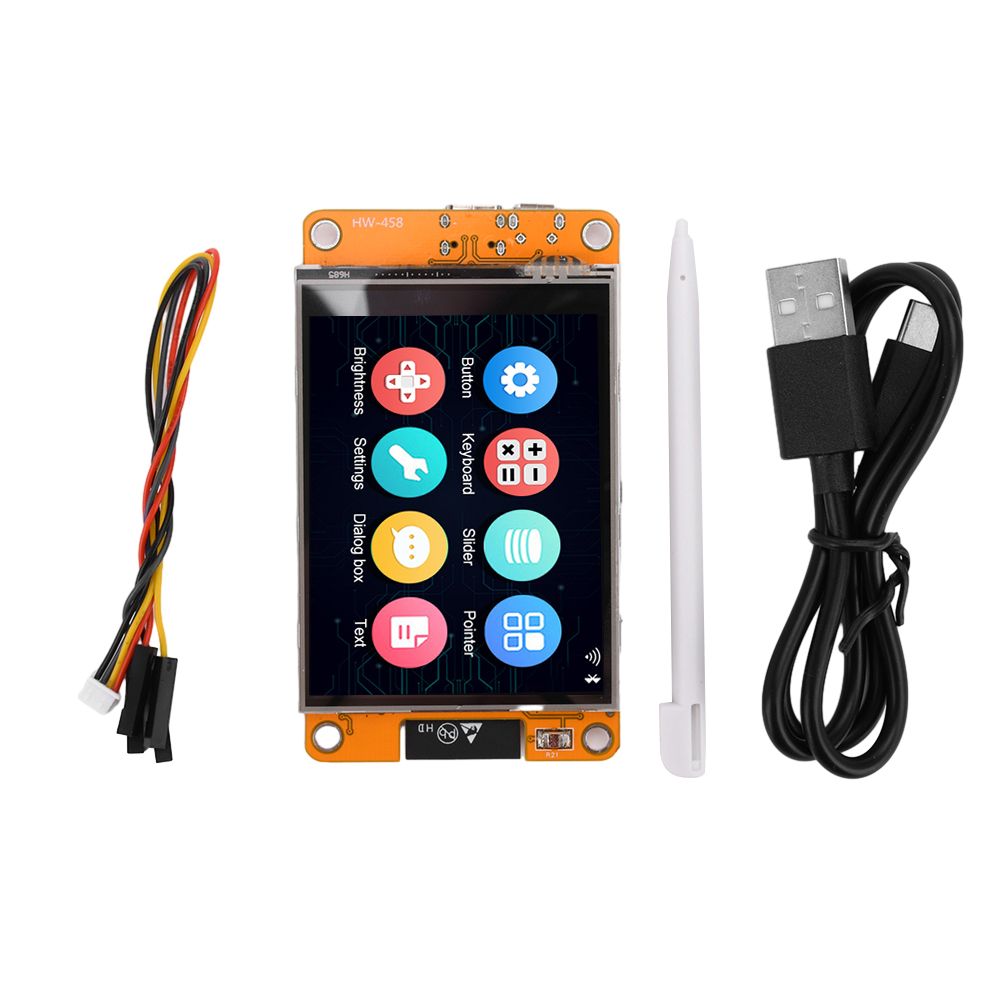

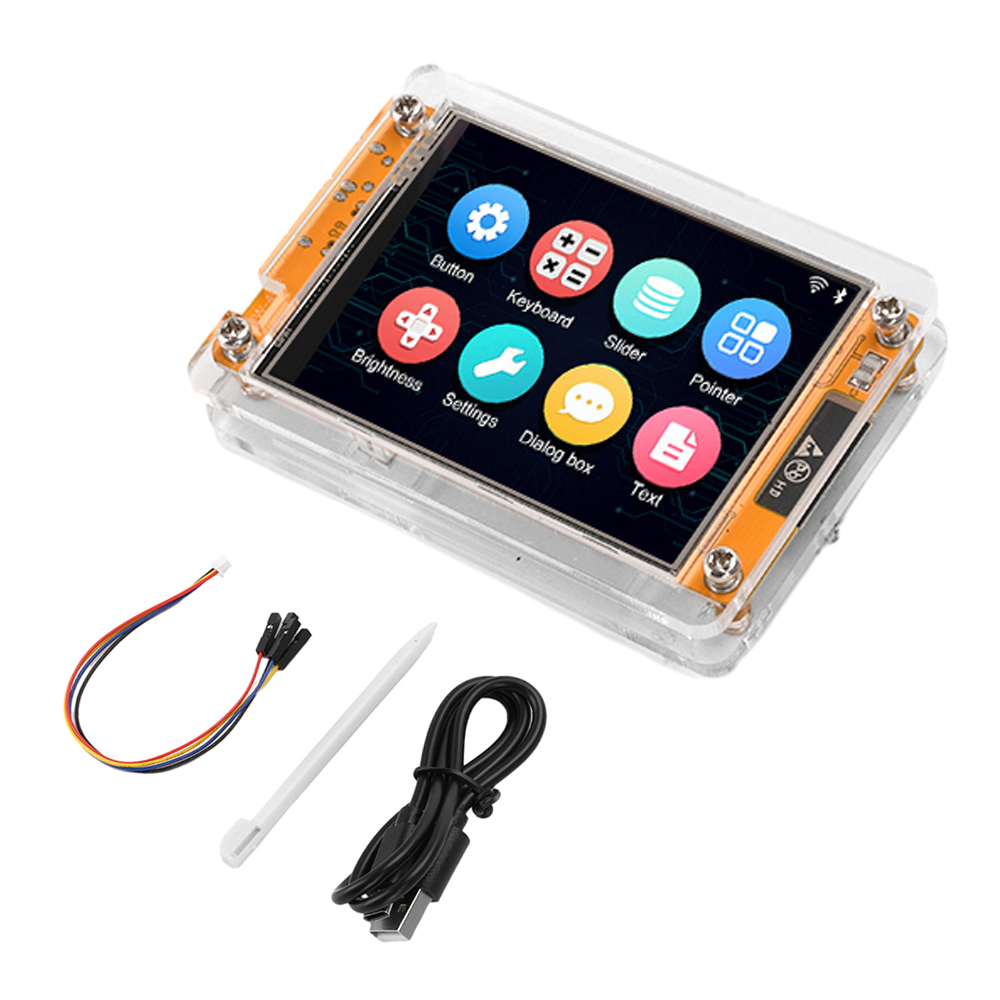

1 x Display(With or without a case depending on your choice)
1 x Touch pen
1 x TYPE-C cable
1 x 4P terminal to Dupont cable
