Product Details

Product Features
1. Plug and play, simple assembly method
2. The farthest sensing distance can reach up to 5 meters
3. Large detection angle, coverage range up to+60 °
4. Accurate identification within the interval, support for sensing range division, and shield interference outside the interval
5. Multiple levels of intelligent parameter tuning can be achieved through Bluetooth or serial C to meet the changing needs of the scene

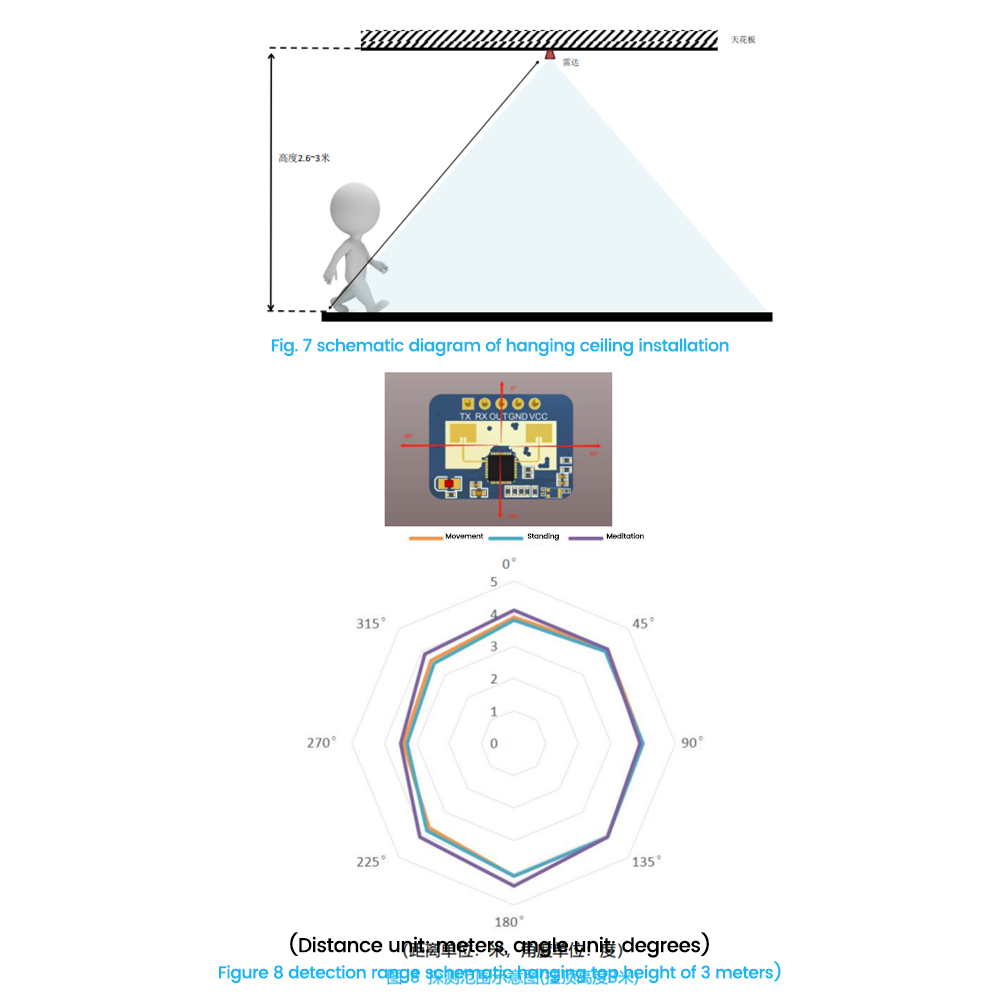

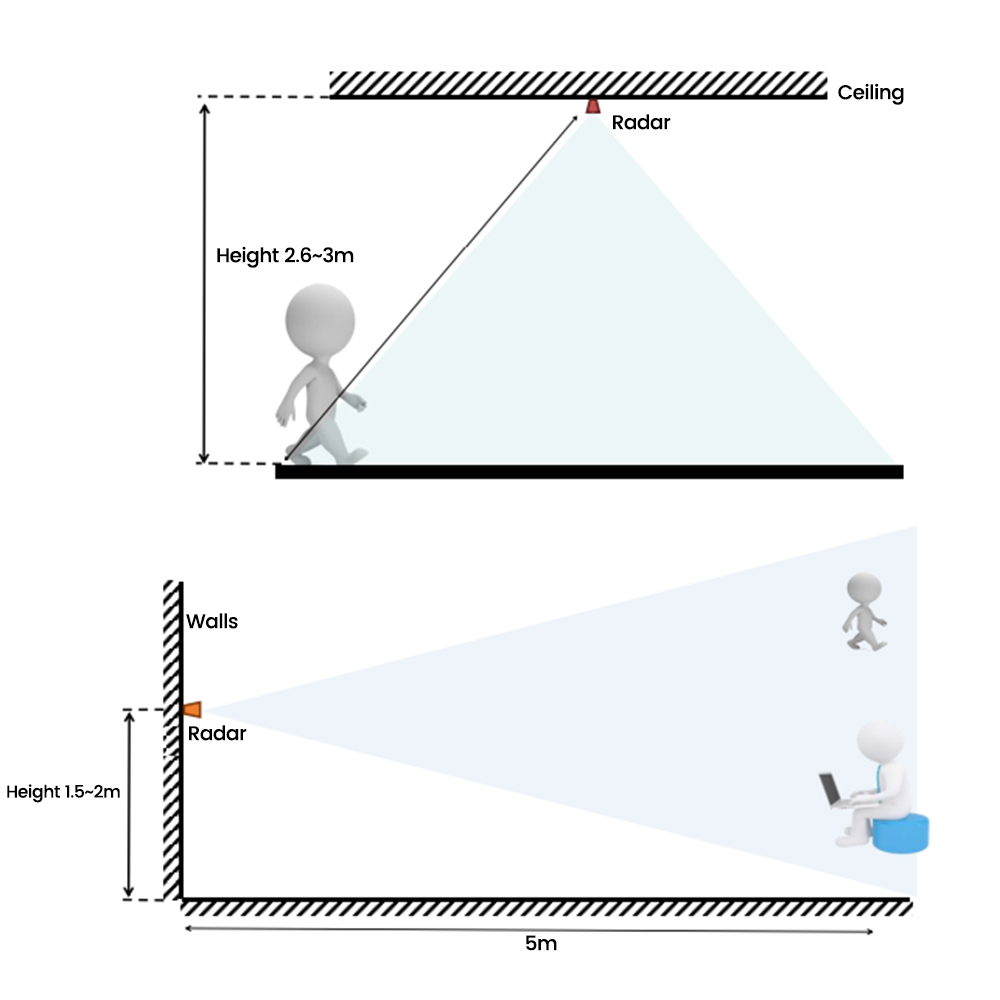

6. Visual debugging and configuration tools, supporting various installation methods such as ceiling and wall mounting

Product parameters
Working frequency range: 24GHz~24.25GHz
Power supply requirements: DC 5V, power supply capacity>200mA
Average working current: 79 mA
Modulation method: FMCW
Target application: human presence sensing
Detection distance: 0.75m~6m, adjustable
Detection angle:+60 °
Distance resolution: 0.75m
Sweep bandwidth: 250MHz
Environmental temperature: -40~85 ° C
External dimensions: 16mm x 22mm

Shipping List
Package 1:
Sensor module * 1
DuPont Line * 1

Package 2:
Sensor module * 1
