Motherboard chip:
Integrated chip: sound card/network card
Main chipset: Intel Z170
Chipset description: using Intel Z170 chipset
Display chip: CPU built-in display chip (requires CPU support)
Audio chip: integration Realtek ALC887 8-channel sound effect chip
Network card chip: onboard Intel I219V Gigabit network card
Processor specifications:
CPU type: 6th generation Core i7/i5/i3/Pentium/Celeron
CPU slot: LGA 1151
CPU description: supports Intel 14nm processors
Memory specifications:
Memory type: 4 × DDR4 DIMM
Maximum memory capacity: 64GB
Memory description: supports dual channel DDR4 3466 (overclocking)/3400 (overclocking)/3333 (overclocking)/3300 (overclocking)/3200 (overclocking)/3000 (overclocking)/2800 (overclocking)/2666 (overclocking)/2400 (overclocking)/2133MHz memory
Storage Expansion:
PCI-E standard: PCI-E 3.0
PCI-E slot: 2 × PCI-E X16 graphics card slot, 2 × PCI-E X1 slot
Storage interface: 1 × M. 2 interfaces, 1 × SATA Express interface, 6 × SATA III interface

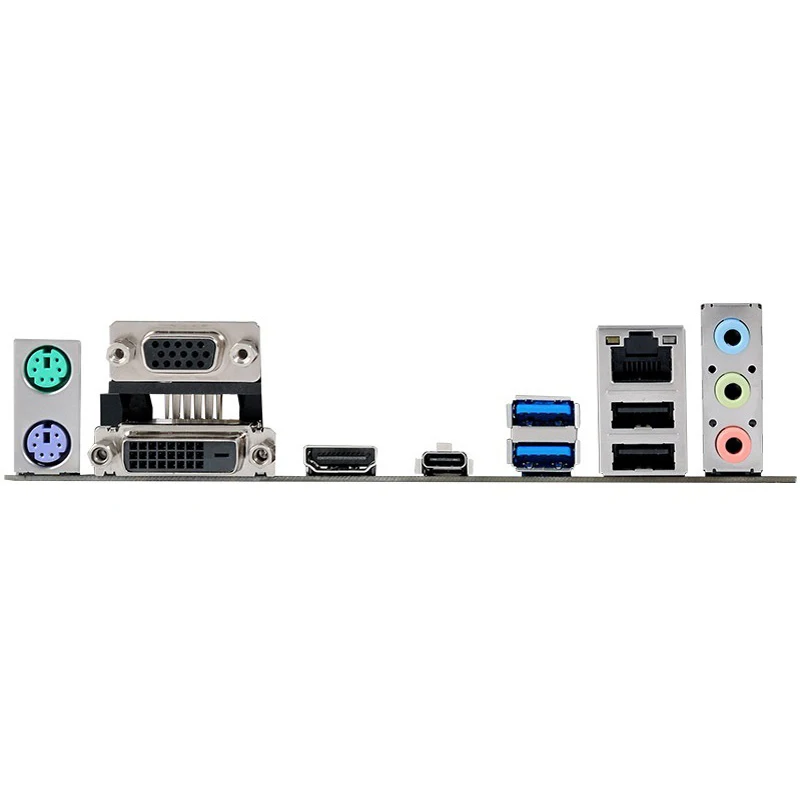

I/O interface:
USB interface: 1 × USB3.1 Type-C interface, 6 × USB3.0 interface (4 built-in+2 backplane), 6 × USB2.0 interface (4 built-in+2 backplane)
Video interface: 1 × VGA interface, 1 × DVI interface, 1 × HDMI interface
1x 8-pin power interface and 1x 24-pin power interface
Other interfaces: 1 × RJ45 network interface, audio interface, 1 × PS/2 mouse, 1 × PS/2 keyboard interface
Plate type:
Main board type: Micro ATX board type
Overall dimensions: 24.4 × 22.7cm
Other parameters:
Multi graphics card technology: supports AMD Quad GPU CrossFireX dual card quad core crossfire technology
Power supply mode: seven phase
Overfrequency function: support RAID function supports RAID 0, 1, 5, 10
