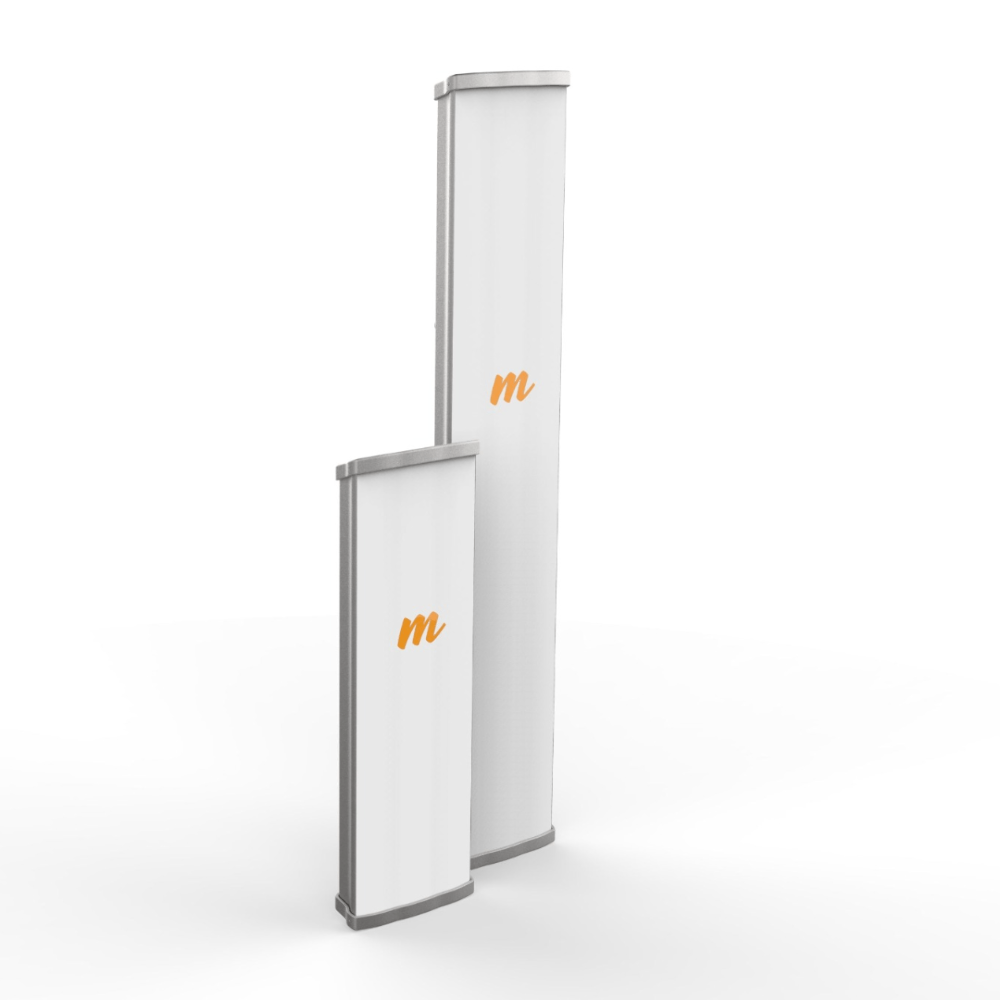

708747437393 Mimosa N5-45X2 | Sector Antenna | 19dBi, 45st, 4.9-6.4GHz, 2x N-fem

The Mimosoa N5-45x2 Sector Antenna is the industry’s first sector antenna to deliver the best of both worlds — incredible noise rejection and long-distance performance, with wideband 4.9–6.4 GHz operation for fixed wireless broadband. The dual-slant polarization, 45º sector can be used with any third-party 2x2 MIMO radio solution, or two N5-45x2 antennas can be connected to the 4x4 MIMO Mimosa A5c access point, aimed in different directions, for 2x spectrum reuse, superior range and noise rejection at collocation and tower sites. Key Features Industry-Leading Front-to-Back Ratio for 2x Spectrum Reuse World-Class Noise Rejection High-Gain for Long Distances Wideband 4.9–6.4 GHz Sector Reject Noise and Synchronise Overcoming noise at tower sites is key to scaling capacity. The N5-45x2 delivers industry-leading side lobe rejection and an unprecedented 43 dB front-to-back (FTB) performance — the highest FTB ratio of any sector or horn antenna in the industry. Compatible with any third-party, 2x2 MIMO radio solution, there’s no higher performance antenna in the industry. Wideband Operation Supporting 4.9 GHz public safety applications and multipoint licensed operation up to 6.4 GHz, where regulations allow, the N5-45x2 provides an additional 800 MHz of spectrum beyond the crowded 5.15–5.85 GHz unlicensed channels. Go the distance The Mimosa N5-45x2 offers the best of both worlds — a long distance, high gain sector with the superior noise isolation of a horn. Competitive sectors offer high-gain, but fail to reduce side lobe and front-toback noise. Symmetric horn antennas achieve good noise isolation, but typically offer lower gain and inefficient symmetrical ground coverage patterns. Compatible with Third-Party Radios Blending the best of sector antennas with the best features of a horn, the Mimosa N5-45x2 is a great sector antenna choice to use with any 2x2 MIMO radio. Even better, the ultra-wide 9º vertical beamwidth covers substantially more ground than other leading sector antennas. Product Features: Industry-Leading Front-to-Back Ratio for 2x Spectrum Reuse World-Class Noise Rejection High-Gain for Long Distances Wide-band 4.9GHz – 6.4GHz Sector Antenna Specifications: Gain: 19dBi Polarization: Slant 45° Azimuth Beamwidth (3 dB): 42° Elevation Beamwidth (3 db): 9° Electrical Downtilt: 2° Front-to-Back Ratio (min): 43dB Cross-Polar Isolation: >30dB Port-to-Port Isolation: >10dB Impedance: 50 Ω Max Input Power: 30dBm Physical Specifications: Dimensions: Height: 427mm (16.81”) Width: 143mm (6.63”) Depth: 76mm (3.0”) including connectors Shipping Box Dimensions: Height: 662mm (26.06”) Width: 166mm (6.53”) Length: 100mm (3.94”) Weight: 2.81kg (6.2lbs) RF Connectors: 2 N-type female (includes two 1 meter LMR 240 Type-N to Type-N cables) RF Connectors Position: Back of antenna, near center Enclosure Characteristics: Outdoor, UV stabilized, engineered polymer Mounting: Galvanized steel, dual attached pole mount with 20° mechanical up or down tilt. Two mounting brackets included. For pole sizes, maximum is 3.5” (90 mm) and minimum is 1.5” (38 mm). Wind Survivability: 200 km/h (125 mph) Wind Loading: 4.77 kg @ 160 km/h (10.49lbs @ 100 mph) Environmental: Outdoor Ingress Protection Rating: IP55 Operating Temperature: -40°C to +55°C (-40°F to 131°F) Operating Humidity: 5 to 100% condensing Operating Altitude: 4,420 m (14,500’) max Shock & Vibration: ETS 300-019-2-4 class 4M5 RoHS Compliance: Yes Product Includes:(1) N5-45x2 Sector Antenna(1) User Manual(2) Mounting Brackets
