Nominal 3000W grid tie inverter, can take solar input to 4500W, up to 500Vdc, up to 13 amperes. Output to 240Vac, 60Hz, 3000W, up to 16 amps, MPPT function to maximize solar energy capture. Wifi PV Pro app enables live power and historical power generation views. IP65 (double casing, inner casing is sealed to preserve dust and moisture protection). Many protection features, see below. High solar DC input voltage enables low current transmission to achieve same high wattage, hence thinner gauge wires can be used. Besides lowering cost, this also lowered fire risks. Similarly, high AC output at 240Vac instead of 120Vac, have similar advantages mentioned for DC.

Works with USA, Europe, and Asian grid voltages/frequency.

Solar Optimization: This inverter has MPPT function to optimize/maximize solar panels generated energy. In contrast some competitive inverters, eg, SolarEdge, requires EACH PANEL to have an optimizer. This raise system cost by about $50/panel, depending on the model. In other words, this inverter centralized the MPPT function into itself in contrast to other competitors' inverters which require the MPPT function be delegated to each solar panel's optimizer. Moreover, some of these competitors gridtie' inverters will not work (e.g. SolarEdge) without an optimizer attached to each panel. You would need to remove your optimizers if you want to connect an off-grid inverter to your solar array later. This inverter does not need optimizer to start with.

Advantages over competitors:

  • Using one of this inverter, your wiring decides types of output, either 120Vac or 240Vac. Compeitors would required two of their units to achieve 240Vac, raising system cost and points of failure.
  • MPPT is centralized in this inverter.You do not need an optimizer for each solar panel, e.g, SolarEdge inverters won't work without optimizer at each panel, which raises cost. Having an optimizer at each panel will prevent subsequent use of off-grid inverters with the panel array.
  • Built-in DC Control Switch (may be at side or bottom of chasis)
  • Future proof your lower wattage inverter, eg, 1000W to be upgraded to 6000W. This inverter will future proof your lower-wattage system, lowering total system cost over time.
  • Wifi monitoring of current and historical power generated. Not all competitors' inverter has this feaure.
  • Better heat dissipation and waterproofing, achieiving IP65 level.
  • Simple installation: Solar in and AC-out, plus hanging unit to structure.

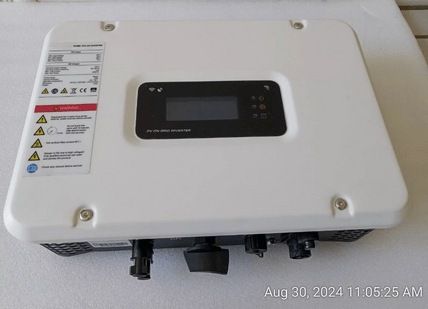

    6KW Grid Tie Inverter

User Reviews

How to connect inverter, see picture

Monitor power generation using PV Pro app App for cellphone that provide current and historical energy output views, etc. Specifications subject to changes, without notice, for product improvements.

Model
3000W
Input Data (DC, PV)
Number of Input MC4 Sockets
1 set (positive and negative)
MPPT Voltage Range
100-450V
Operation Voltage Range
75V-500V
Maximum Input Voltage
500V, higher voltage allows use of thinner wires
Startup Voltage
75V
Shutdown Voltage
100V
Night power consumptionr
< 0.2W
Maximum Input Power
4500W
Maximum input Current
13A
Output Data(AC)
Single-Phase Grid Type
240V
Rated Output Power
3000W
Maximum Output Power
3300W
Nominal Output Current
16A
Nominal Output Voltage
240VAC
Default Output Voltage Range
@240VAC:180V-270V. Good for USA, Europe, & Asia
Nominal Output Frequency
50Hz / 60Hz, auto select
Default Output Frequency Range
@50Hz:48Hz-51Hz/@60Hz:58Hz-61Hz
Power Factor
>0.99%
THDTotal Harmonic Distortion
THD<1.5%
Maximum Units per Branch
@120VAC:1units/@230VAC:2units
Efficiency
Peak Efficiency
97.5%
Nominal MPPT Efficiency
99.9%
Night Power Consumption
<1W
Mechanical Data
Operating Ambient Temperature Range
-25℃ to +60℃
Storage Temperature Range
-40°C to +85C
Dimensions(W*H *D)
370/277/155mm or 14.6/10.9/6.1"
Weight
7kg
Max Current of AC Bus Cable
16A
Waterproof Grade
IP65, suitable for outdoors (moisture/dust proof)
Cooling Mode
Natural Convection- No dust/moisture ingress into sealed chamber.
Other Features
Communication
WIFI(Cloud monitoring). Views of current and historical power generated.
Transformer Design
High Frequency Transformers,Galvanically Isolated
Integrated Ground
Equipment ground is provided by the PE in the AC cable. No additional ground is required.
Protection Functions
DC reverse-polarity, anti-islanding, overvoltage, short circuit, leakage current, grid monitoring, DC/AC SPD (thermal protection)

Package Includes:

For solar array with other voltage input and wattages, please take a look at our 60Vdc-1000W, 60Vdc-2800W,  500Vdc-6000W, and 550Vdc-10KW. You are welcome to visit us at Solartorrents for online User Manuals, Forums, & more.

Do not connect energized solar panels to any inverter because the sudden surge of current into inverter will damage your panels and inverter. Either do such connections before sunrise or after sunset. Alternatively, use our SparkFree device kill switch will enable anytime connections, sparks free, and safe for solar panels and inverter in daylight connections.
