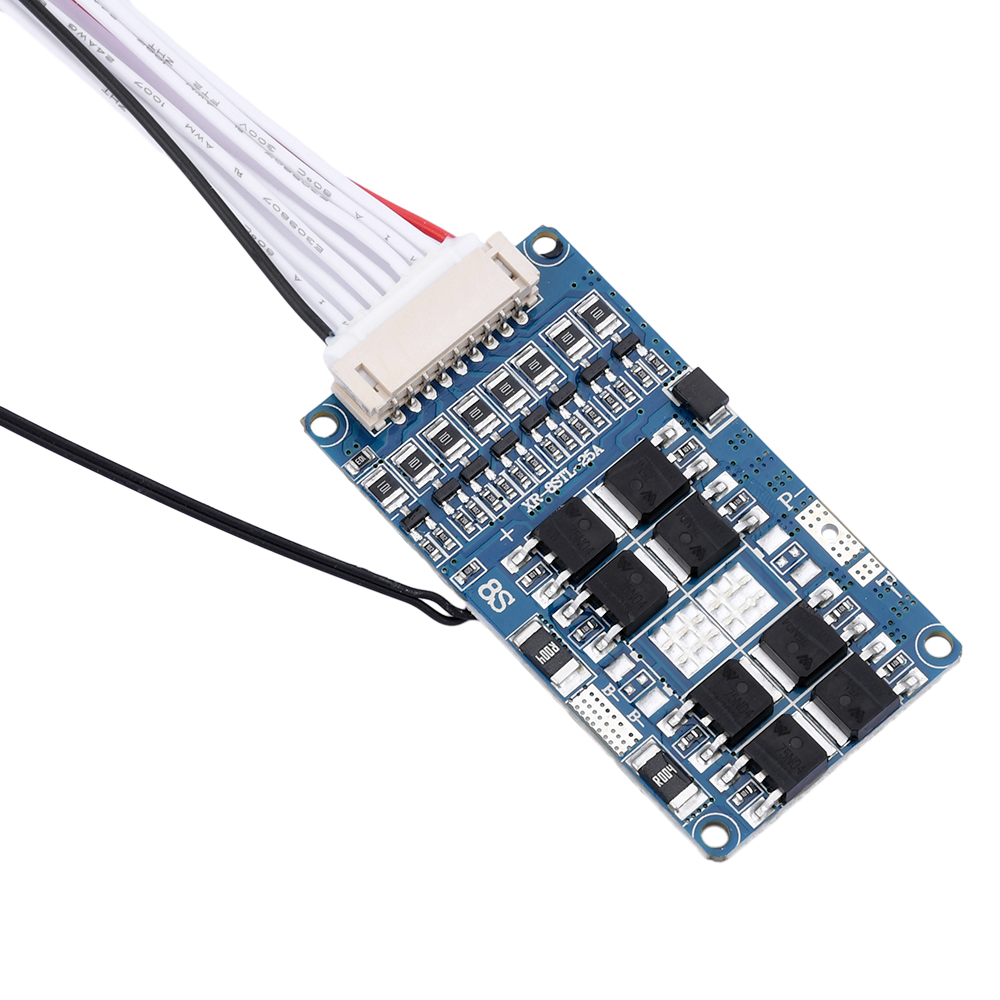

Product Details

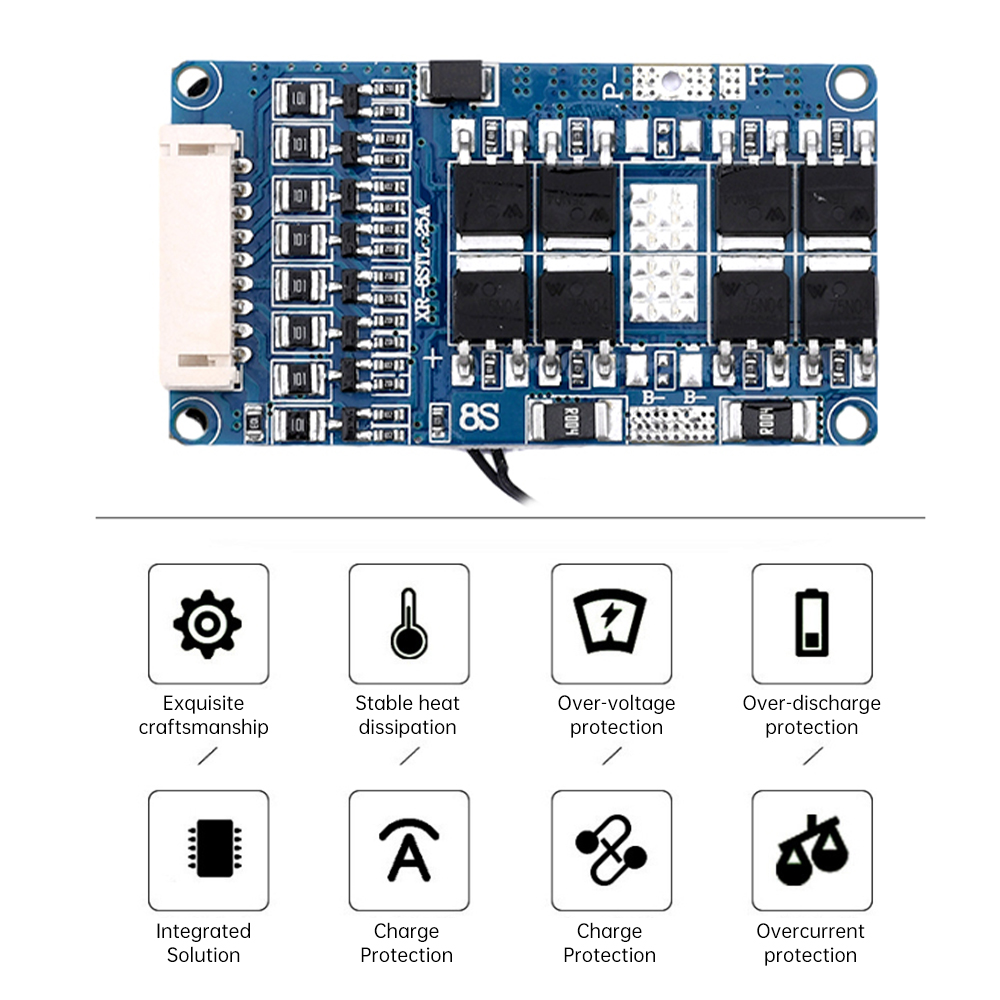

Features:
1. The use of high-quality materials, product quality assurance
2. Exquisite and compact appearance, beautiful arrangement of components
3. Using a single integrated circuit, more stable performance
4. The product has over-current protection, over-voltage protection, over-discharge protection, short-circuit protection, charging protection and other protection functions, the use of more secure and safe!
5. Wide range of applications, suitable for a variety of industrial DIY occasions
Parameter:

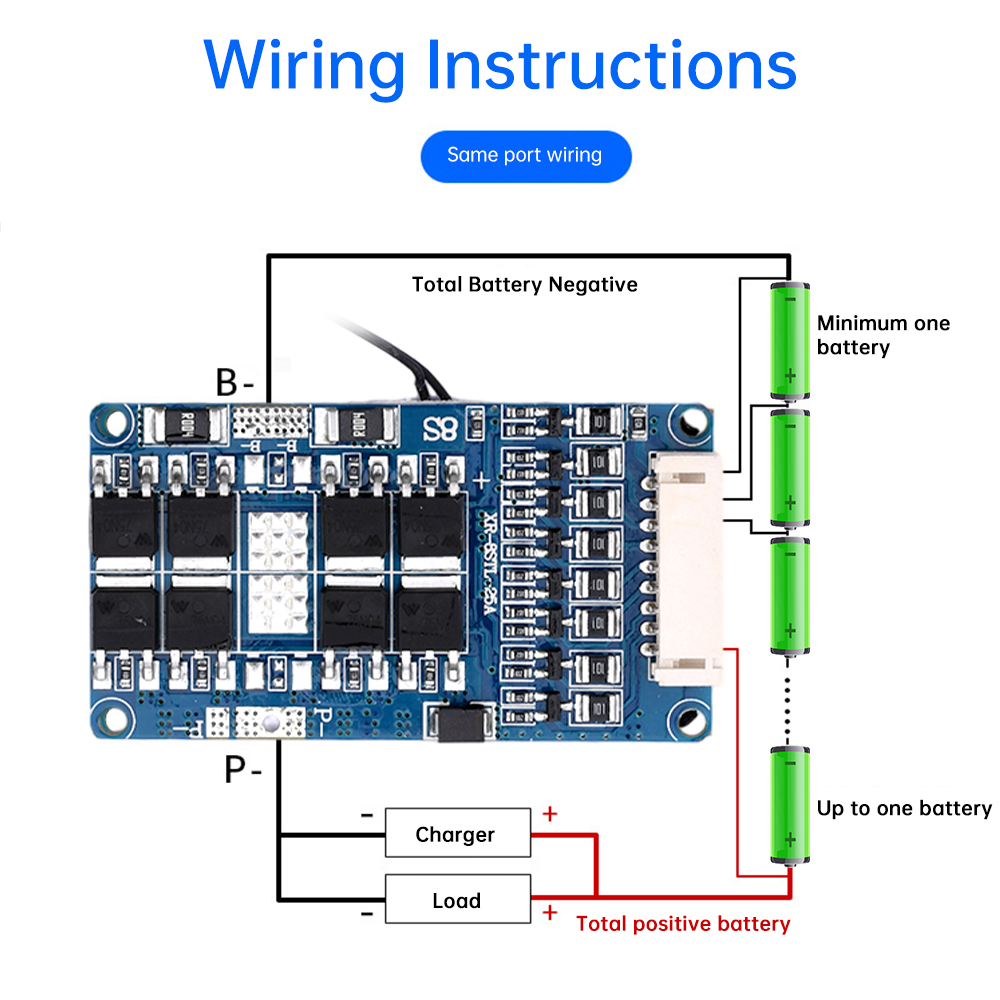

Wiring: same port
Over-discharge protection voltage: 2.3V±0.08V
Over-discharge recovery voltage: 2.5V±0.08V

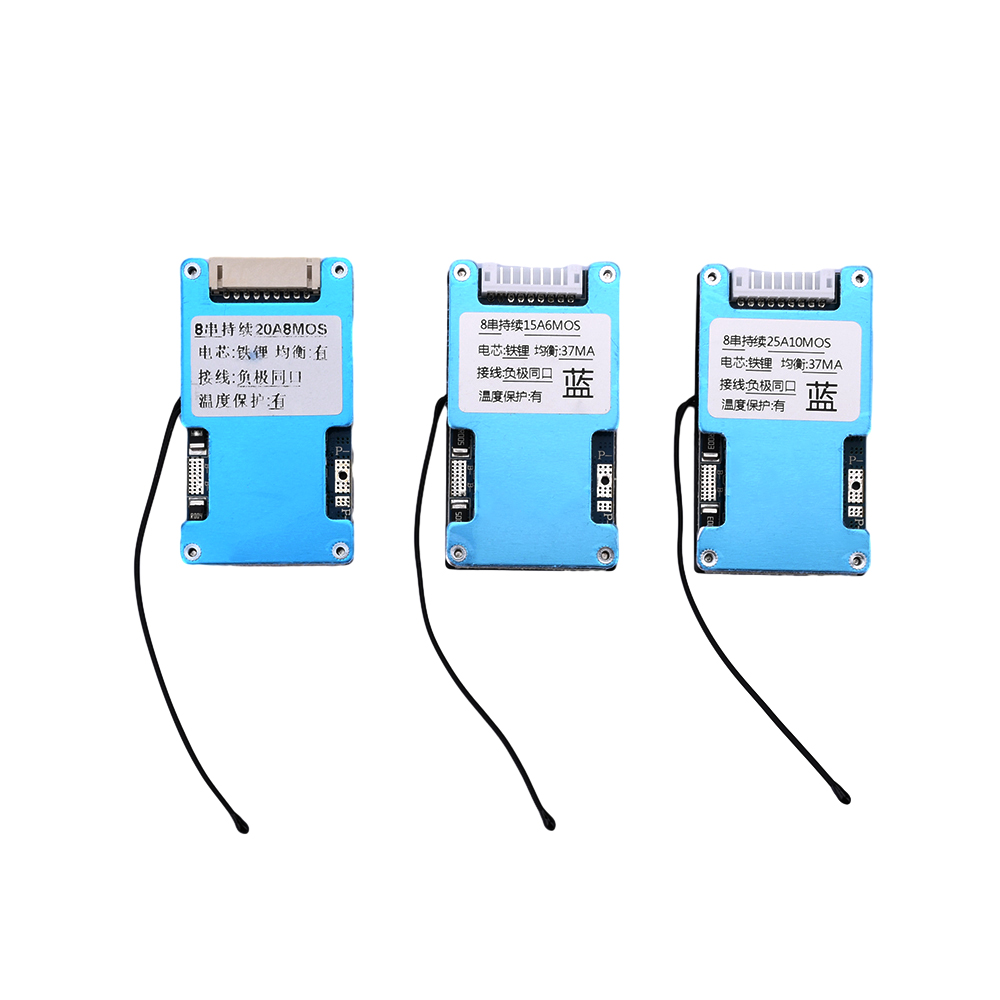

Continuous operating current: 15A/20A/25A three versions
Instantaneous protection current:
15A version = 45A, 20A version = 55A, 25A version = 65A
Overcurrent recovery condition: Charge recovery or load disconnection.
Short-circuit recovery condition: charging recovery or disconnecting the load
Overcharge protection voltage: 3.75V±0.025V
Overcharge recovery voltage: 3.55V±0.025V
Continuous charging current: 15A version = 15A, 20A version = 20A, 25A version = 25A
Charging equalization voltage: 3.75V±0.025V
Charge equalization current: 40MA (max)
Charger voltage: 30V (recommended)
Charging overtemperature: -2℃+55℃
Discharge overtemperature: -30℃+70℃
Operating power consumption: ≤40uA
Internal resistance of main circuit conduction: ≤15mΩ
Temperature range: -40+80°C
Disconnection protection: Yes
Wire size: 2.0MM pitch/9 wires/40CM length
Note
Activation mode: the first PACK two activation modes, B- and P- wire short circuit once or direct charging can be activated

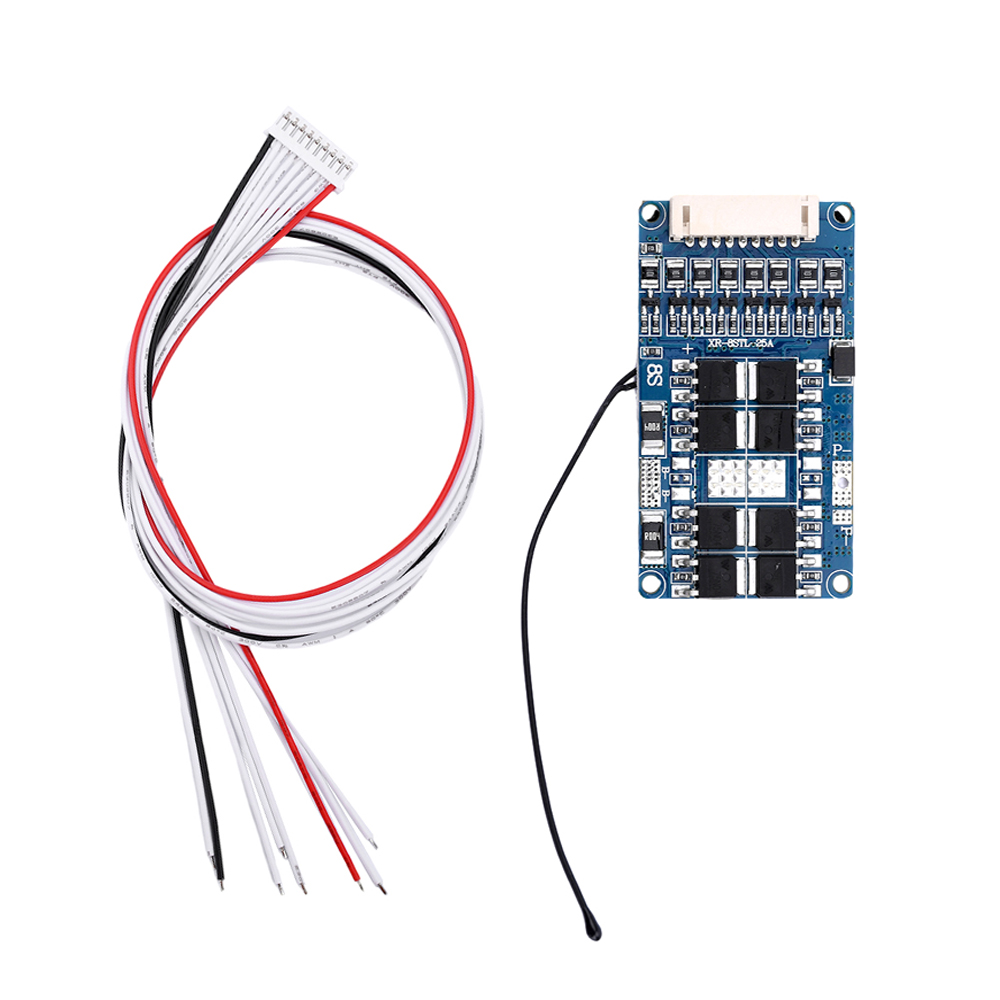

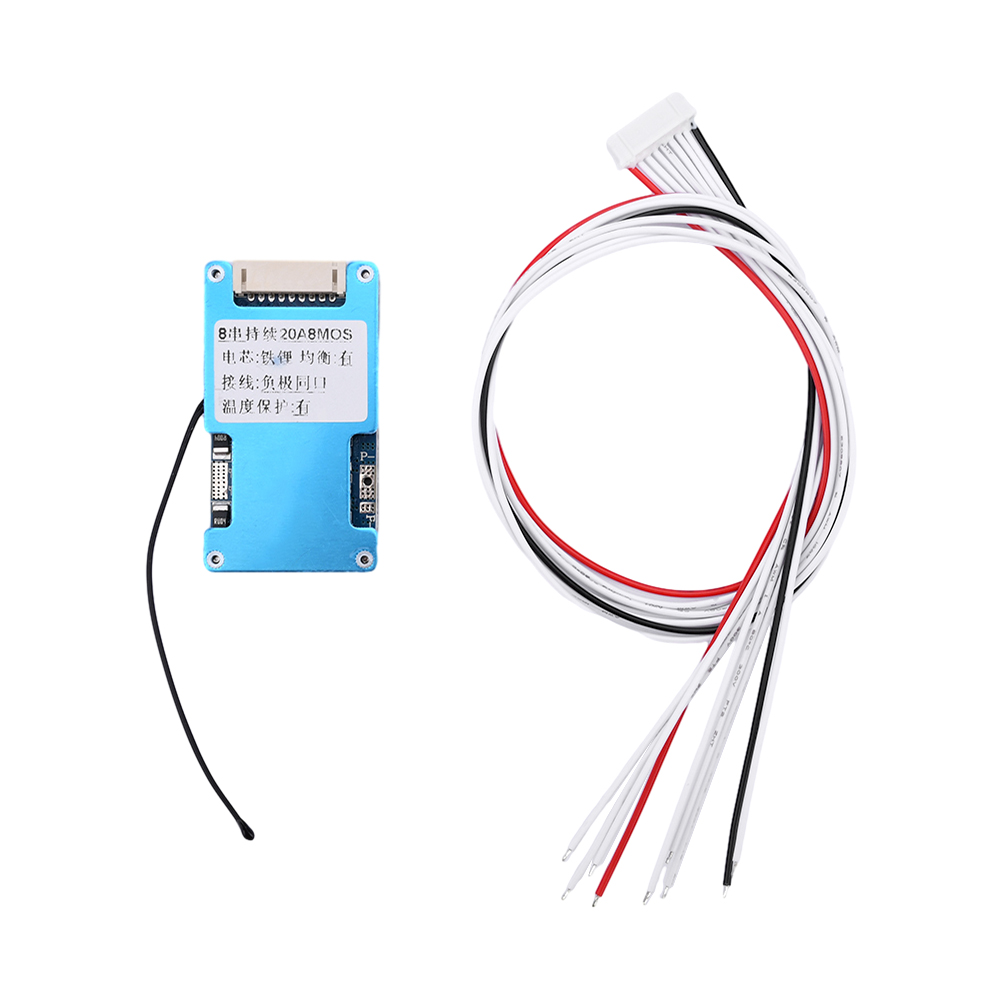

Package include:

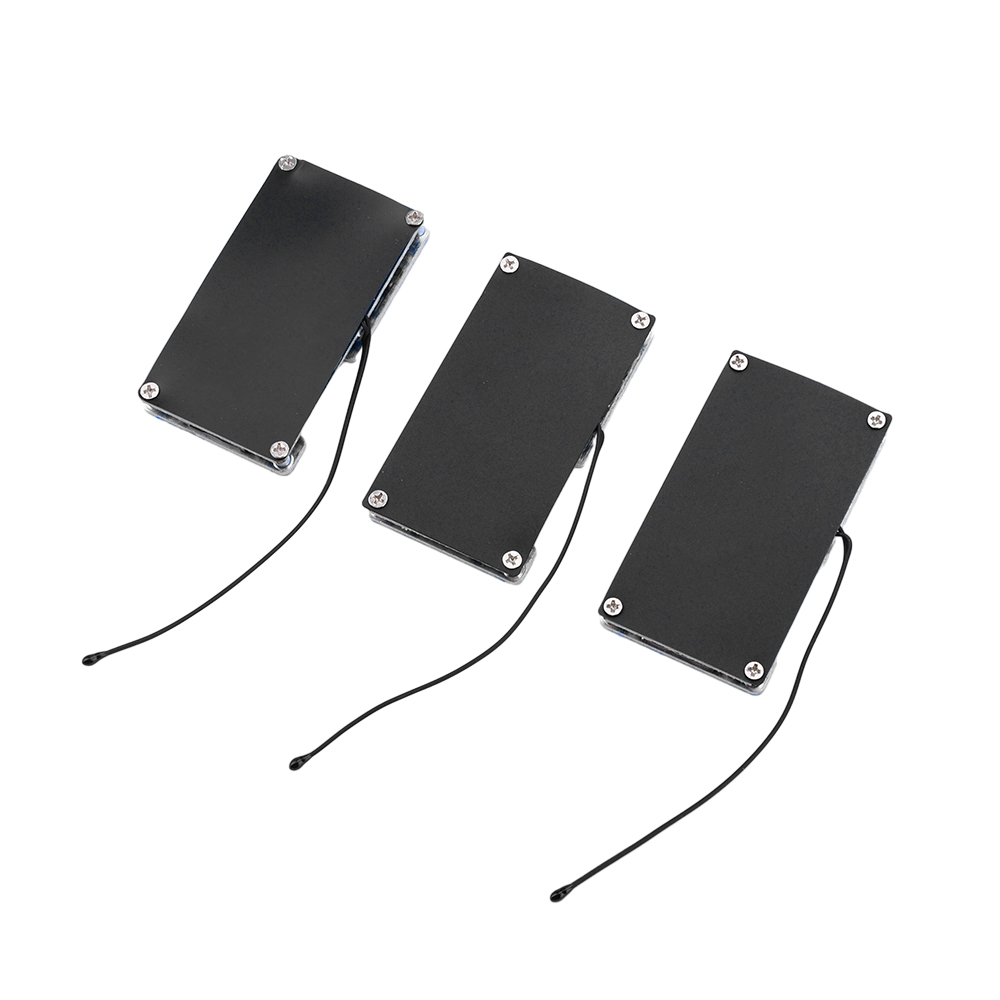

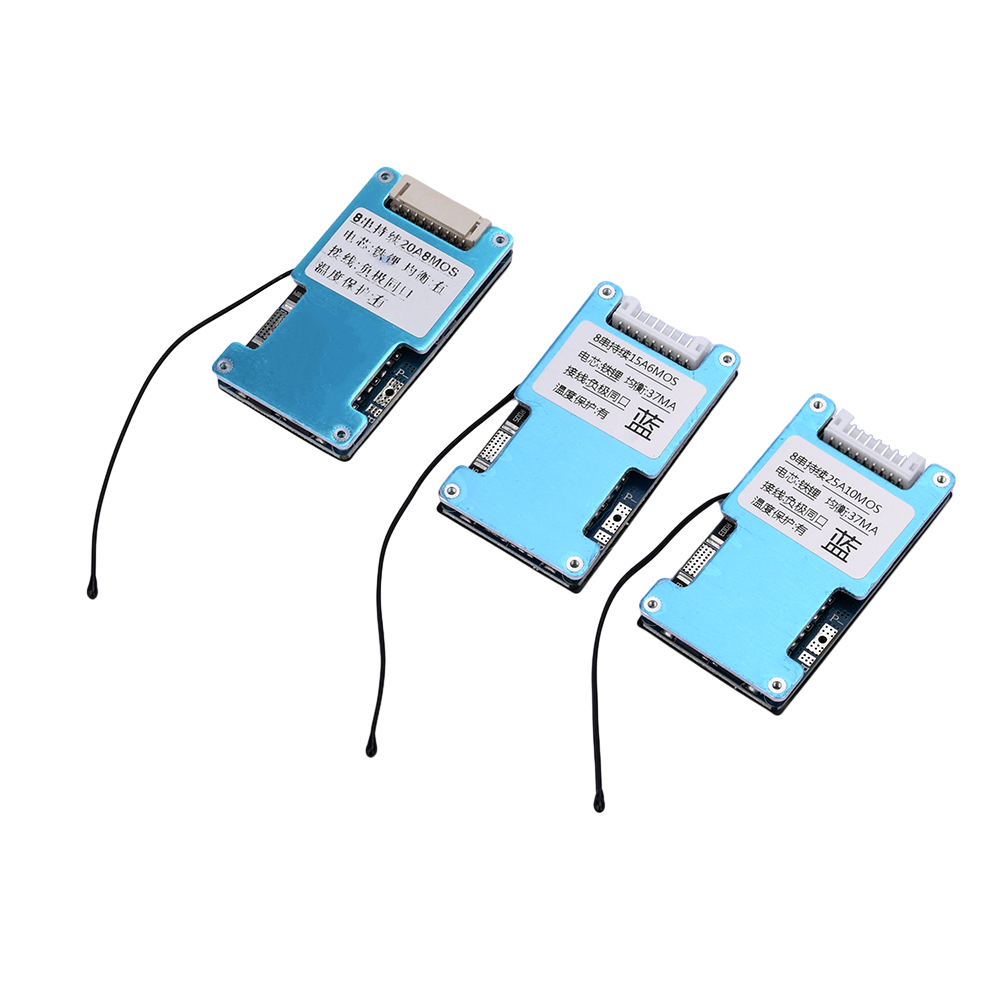

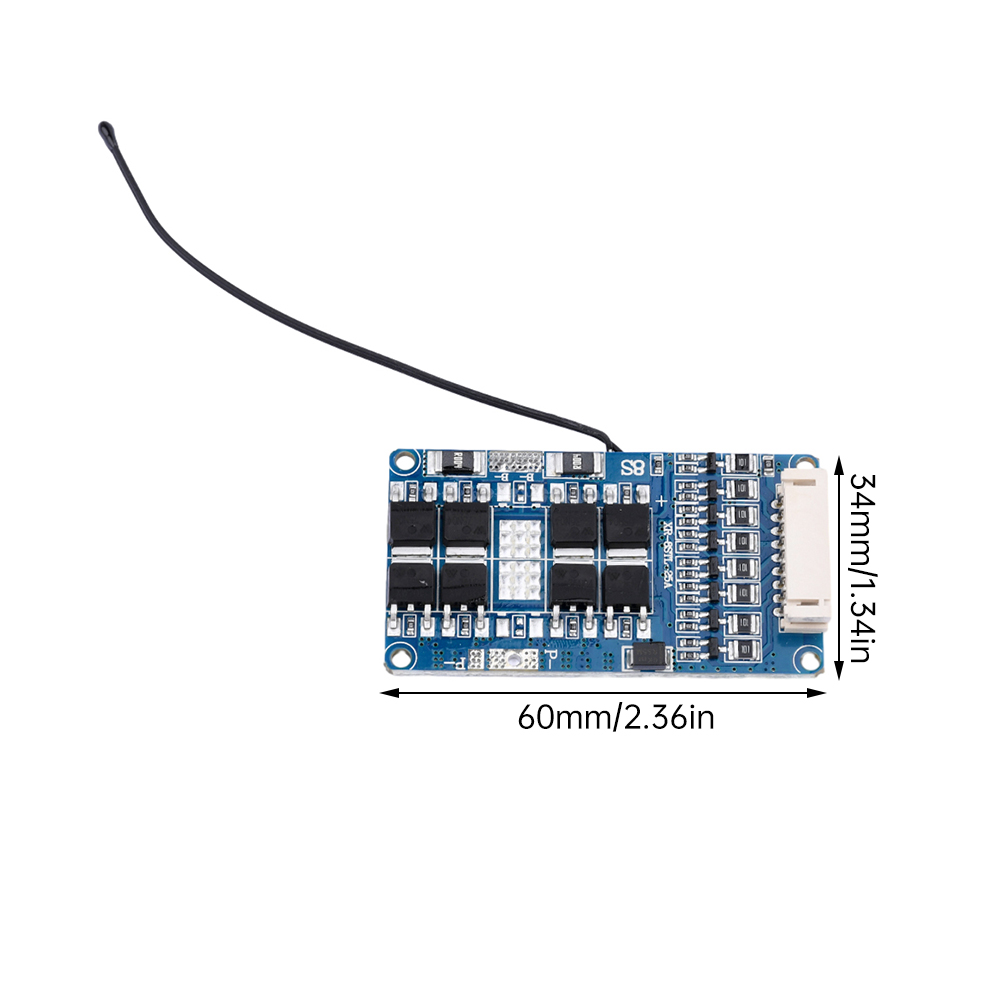

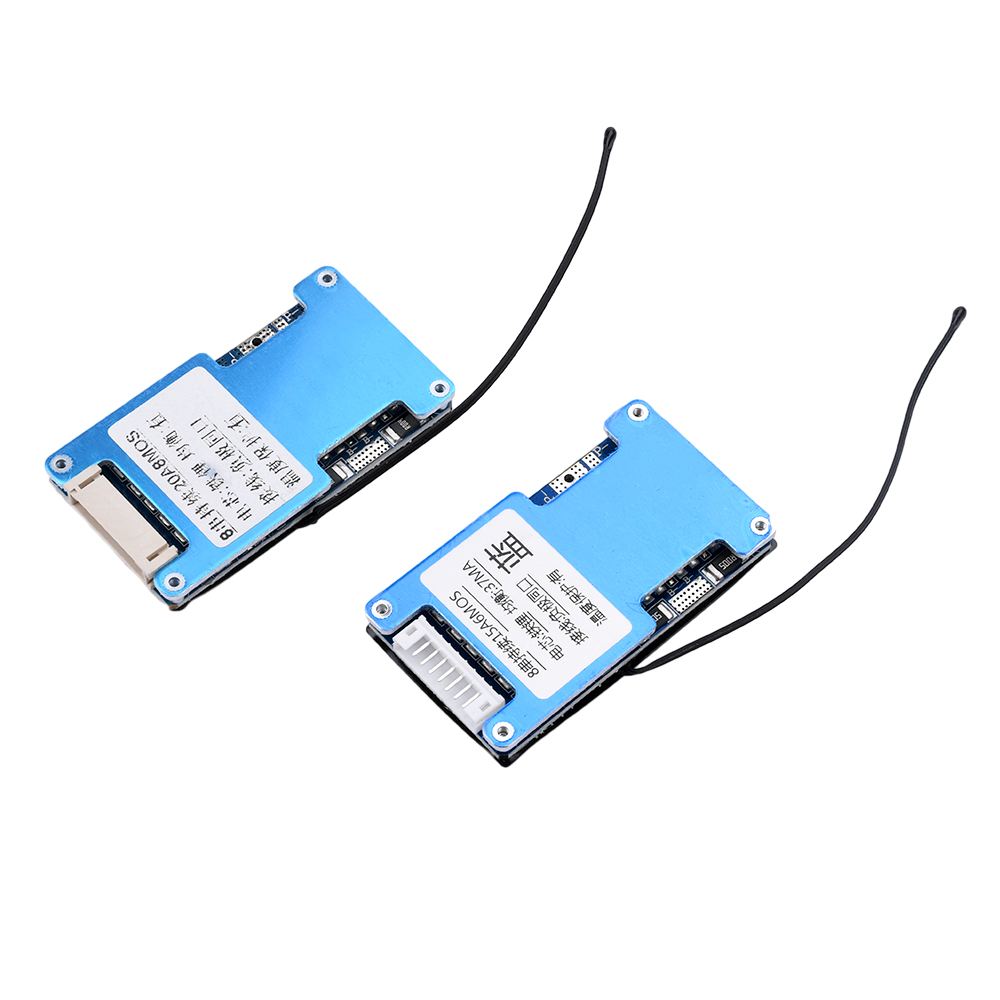

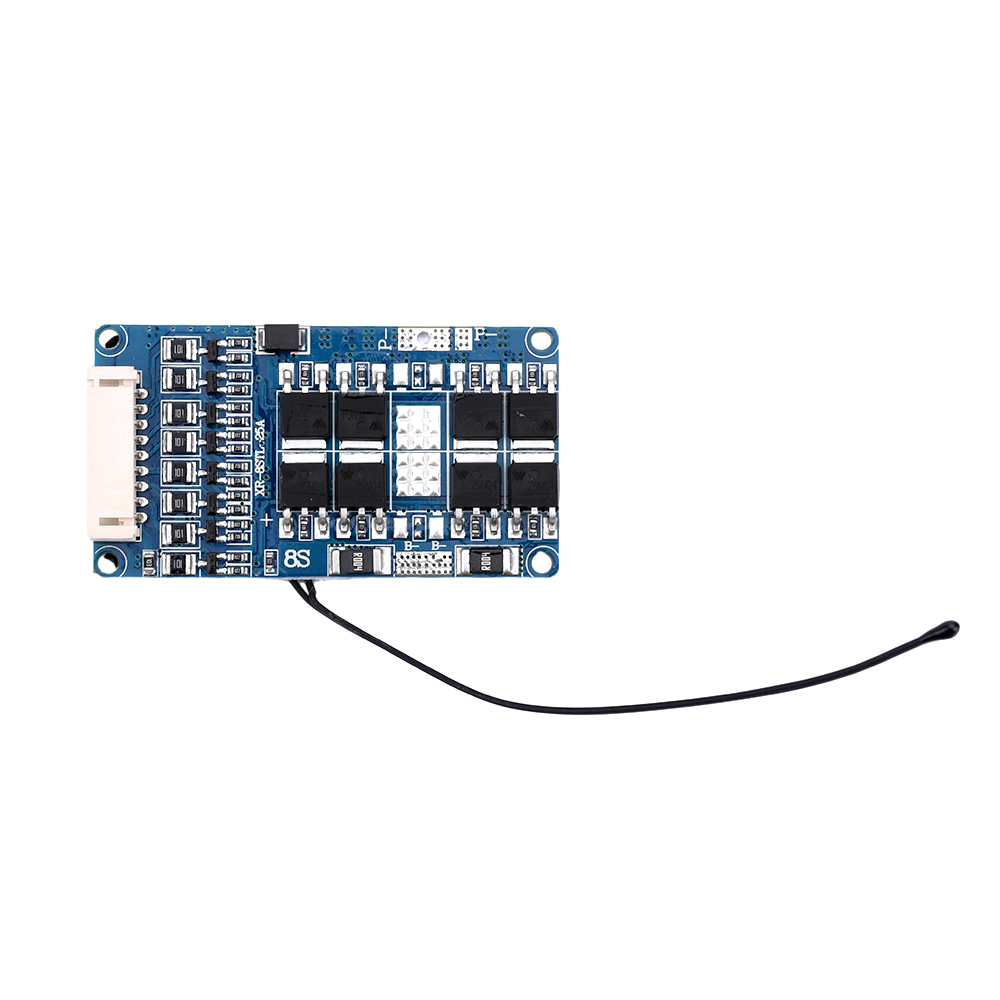

Li-ion battery protection board *1

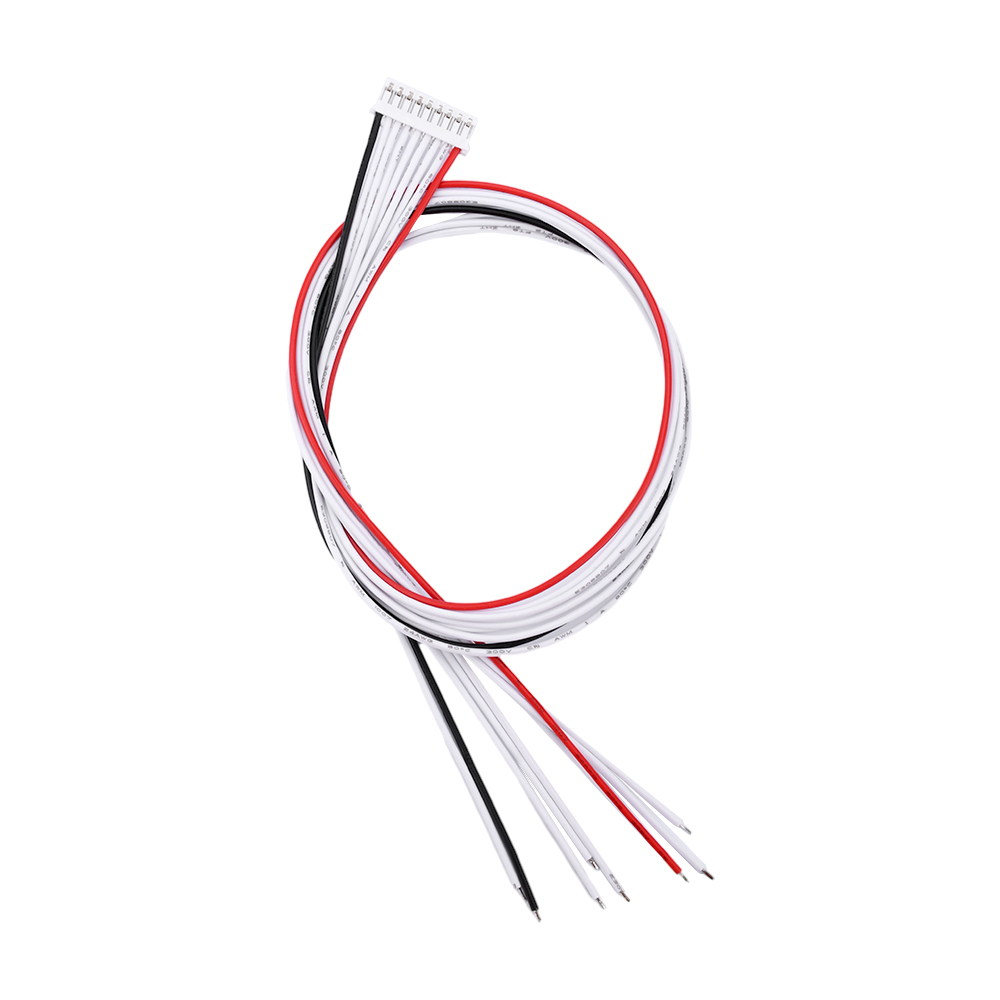

Cable*1
