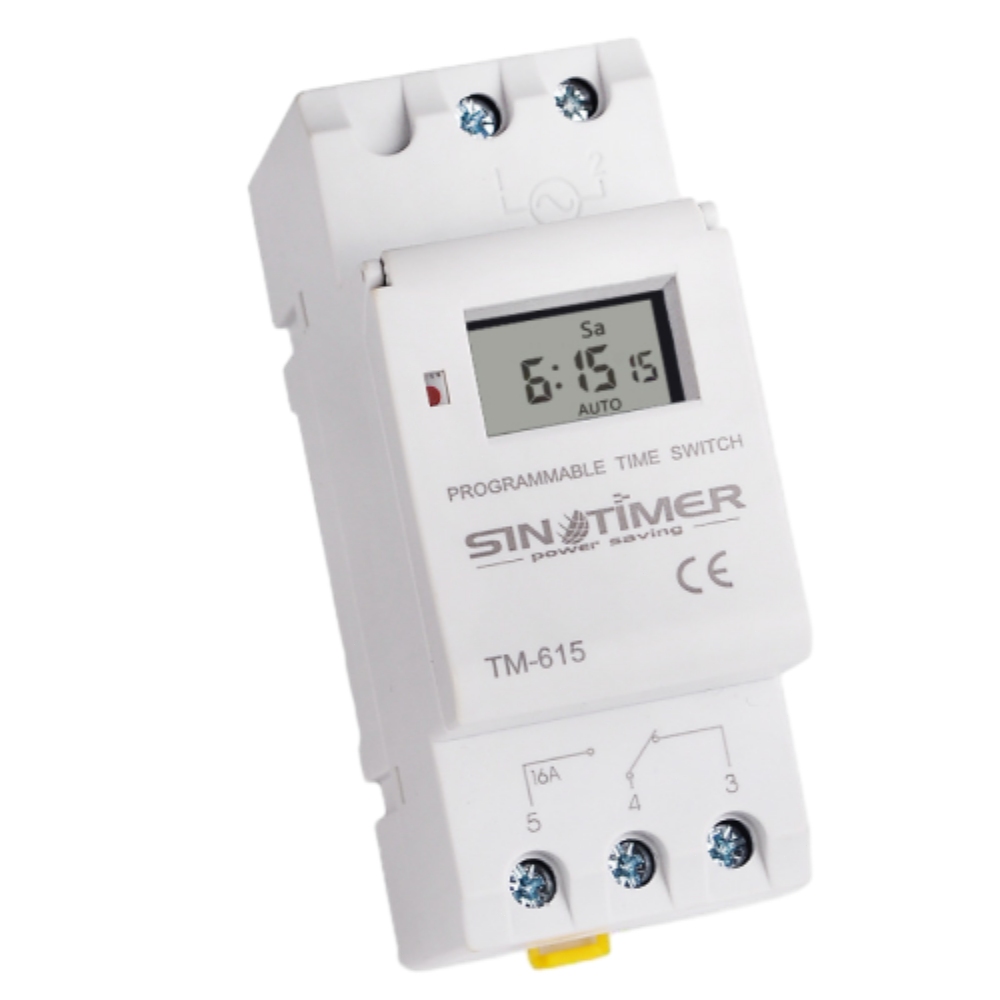

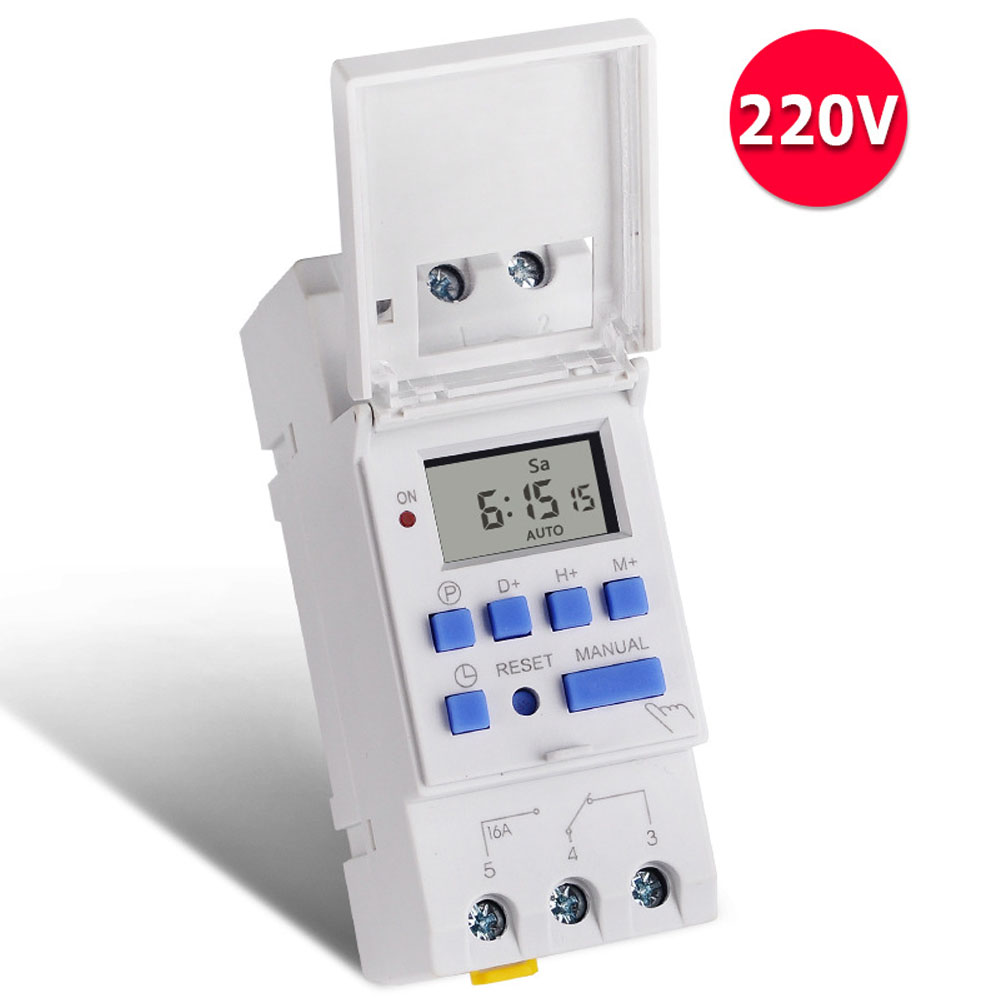

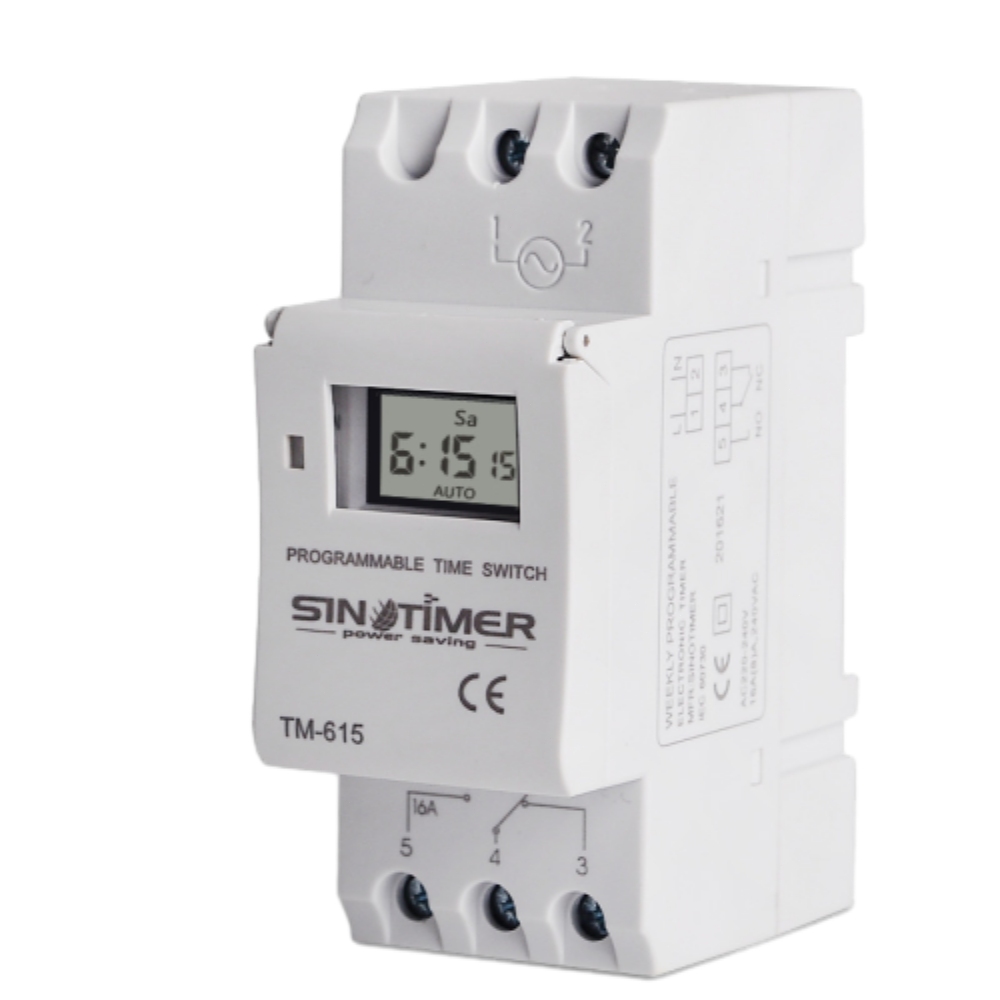

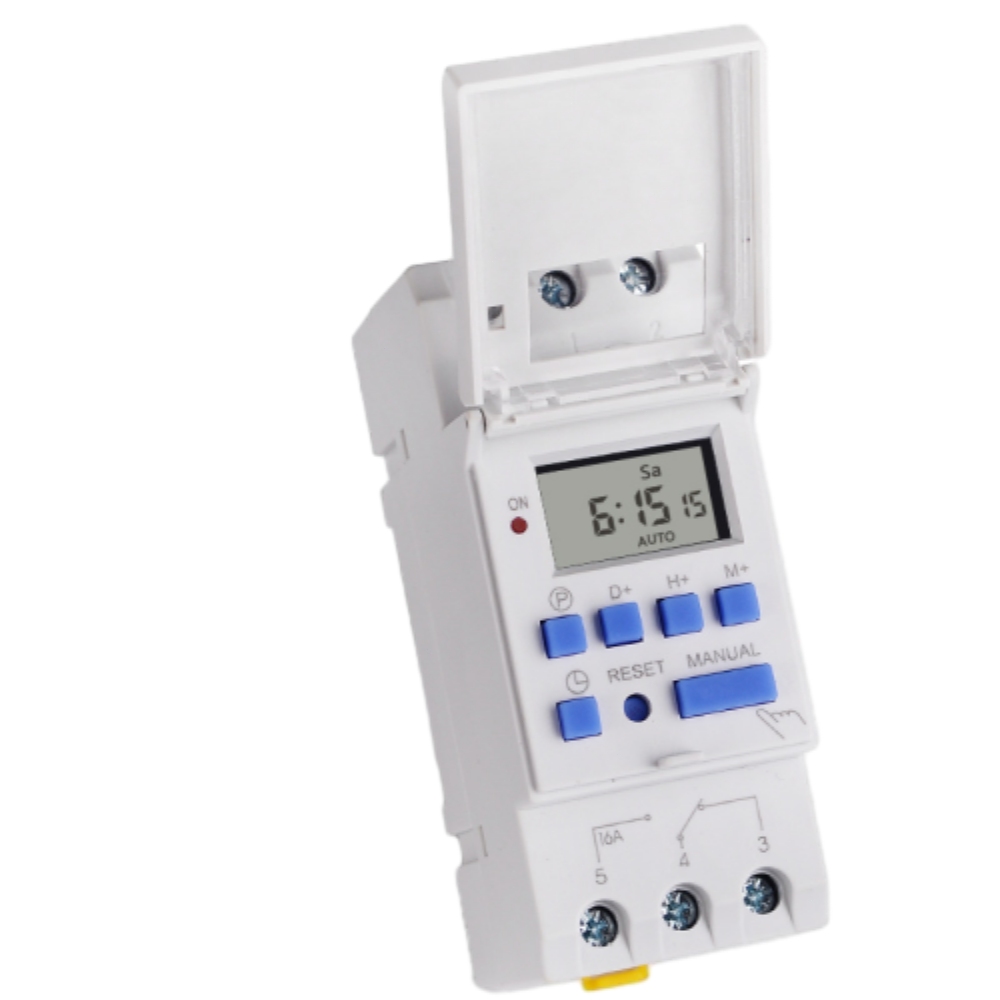

TM615 AC220V Digital 7 Days 24hrs Programmable Timer Switch with 16 ON/OFF Each Day and 15 Groups Intelligent Combination
Features:
TM615 DIN rail 7 days 24hrs Programmable switch timer can automatically switch on and switch off various kinds of electric equipment at a preset time.
It is widely used in 7 days programmable control of streetlight, neon light (sign), lamp, water heater, air conditioner, billboard, electric cooker, booster, sprayer, bottler, preheater, agriculture facilities and broadcasting equipment etc.
The digital timer switch is within replaceable battery CR2032, to save the programs for power failiure. it has the features of low consumption, high-accuracy CMOS chip, strongly anti-jamming, simple and easy to set, confirms to IEC 60367and CE certificated.
Ideal for household use in pannel mounted* 3500 Watt / 16 Amps, 1NO+1NC. Or 30A/ 5000W* 24 hours / 7 days a week programmable* Replaceable Battery for saving the memory when power failure* Auto time error correction +/- 30 sec, weekly* Repeat programs with 16 on/off settings, and setting on/off manually.
Specifications:
Model: TM615
Display: LCD
Voltage: AC220V
Power consumption 4.5 VA (MAX)
Switching contact: 1 changeover switch
Programs: 16 on/off each day or week
Hysteresis 2 sec/day (25°C)
Mini interval: 1 mins
Capacity: 16A/30A 250V AC
Black-out: 60 days
Timer range: 1min~168hr
Replaceable battery: CR2032
Average error: 1s/24h, 25°C
Temp.range: -20°C+50°C
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1mm-1cm differences due to manual measurement.
Package Included:
1x Programmable Timer Switch
