Purpose: Electric bicycle
Applicable to：Bafang BBS01B BBS02B
Voltage: 24V 36V 48V 52V 60V

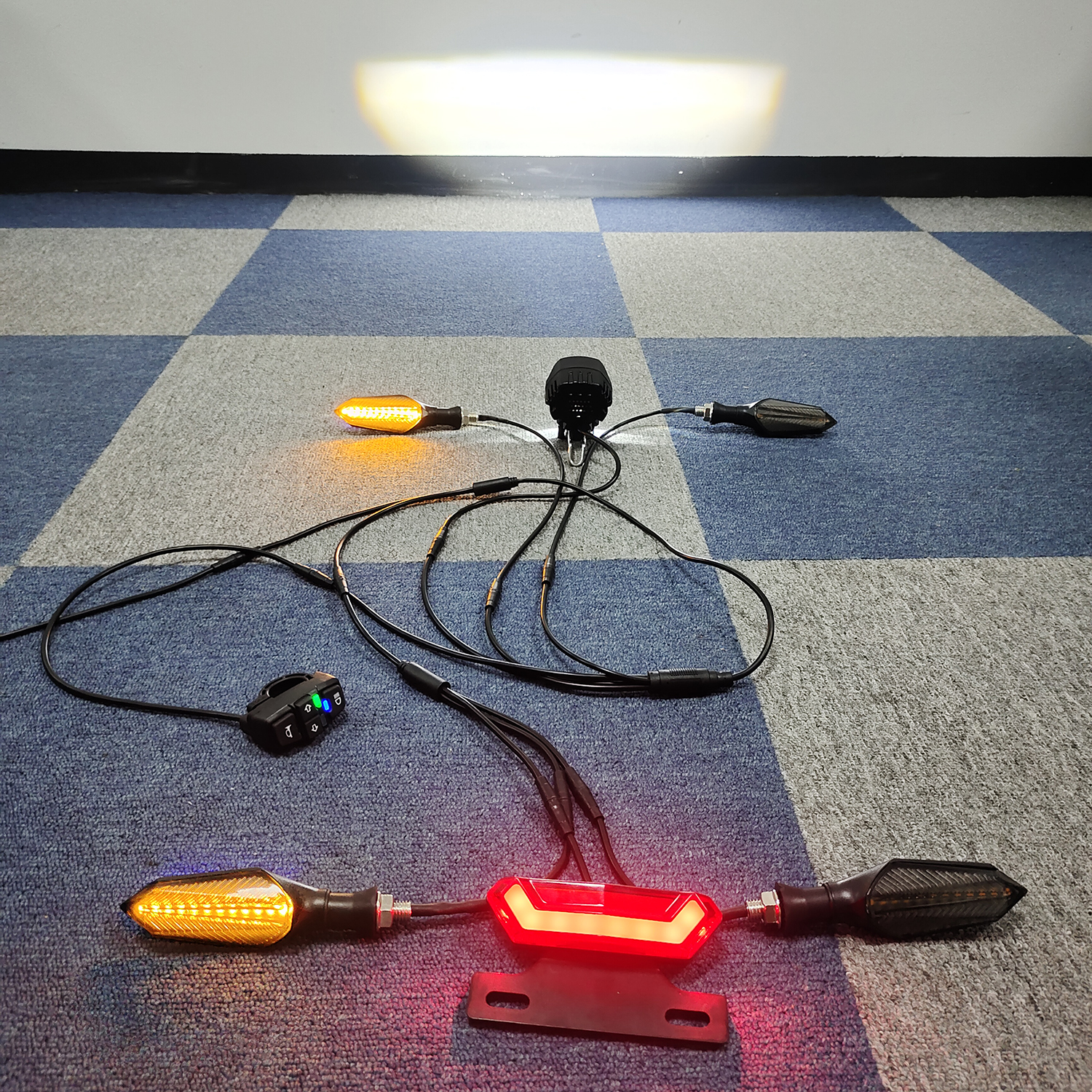

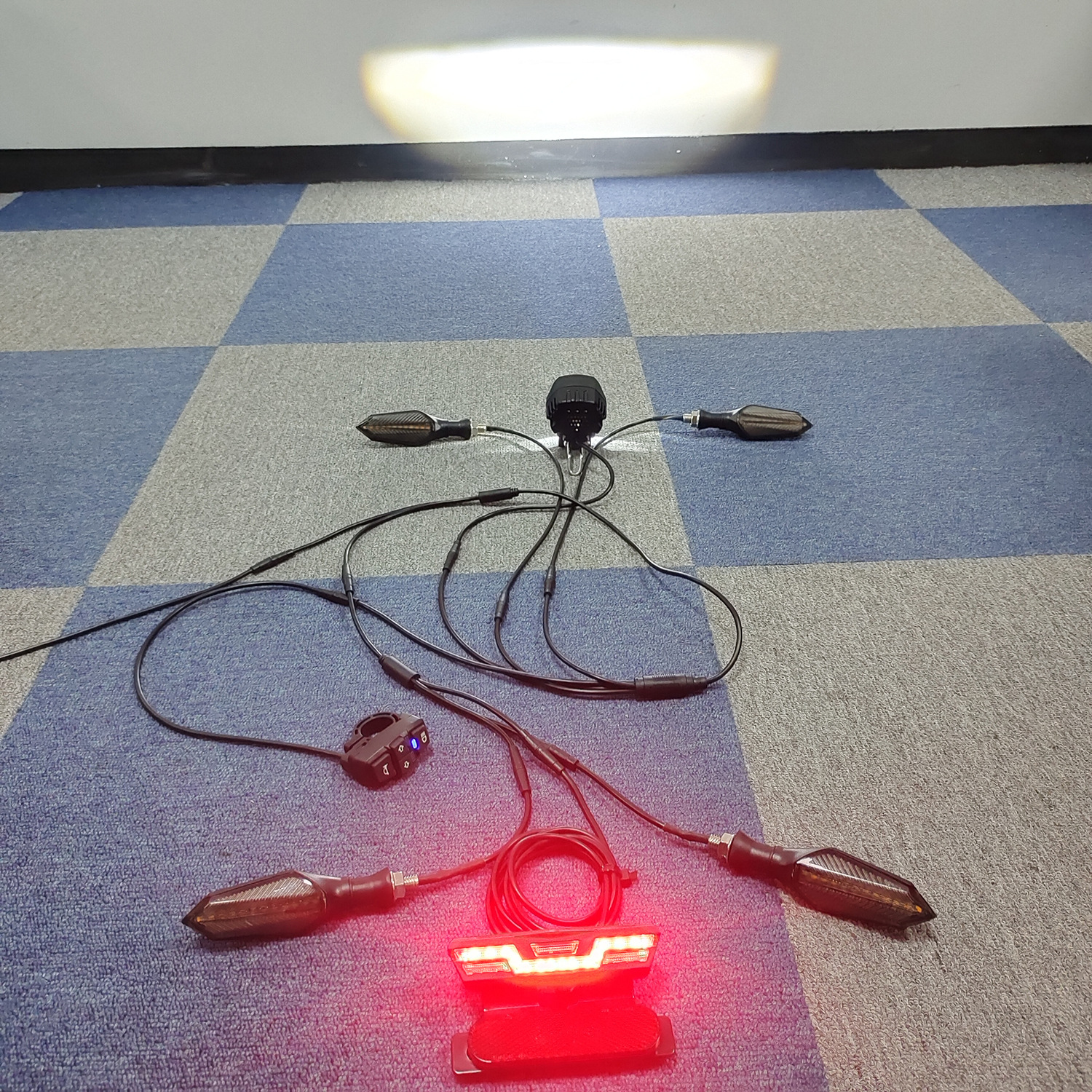

Function: Front and rear flashing water turn signal, horn, near light, rear running light, brake light, rear day running light
Applicable voltage: 24V/36V/48V
Net weight of the set: 580g
Packing size: 14*23*11CM
Packing weight: 0.7kg

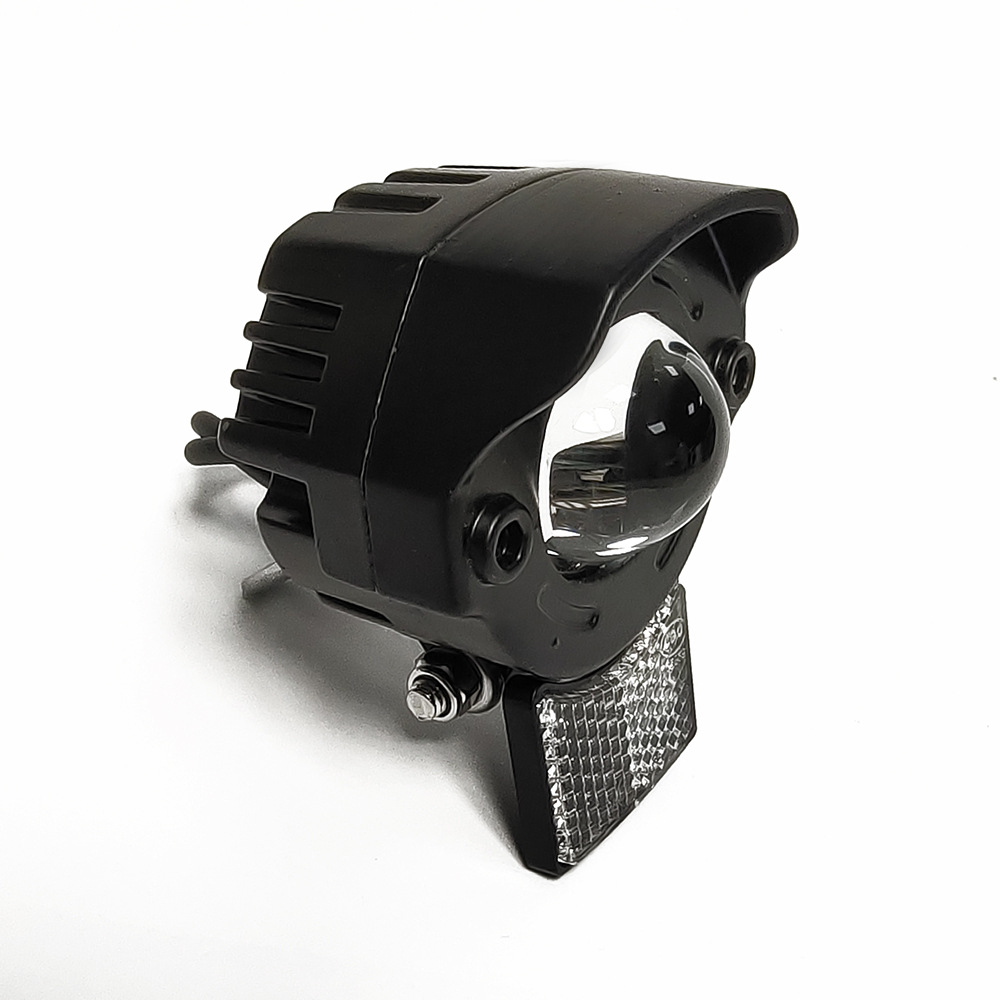

Headlight parameters:
Applicable voltage: 24V/36V/48V/60V
Light current: 48V/190mA, 36V/250mA
Power: 9 w
Function: near-light lamp, horn
Light brightness: 650 LM
Loudspeaker volume: 75-100 dB
Outlet: three-core wire
Product appearance (50*62*73)
Line length: 15 cm

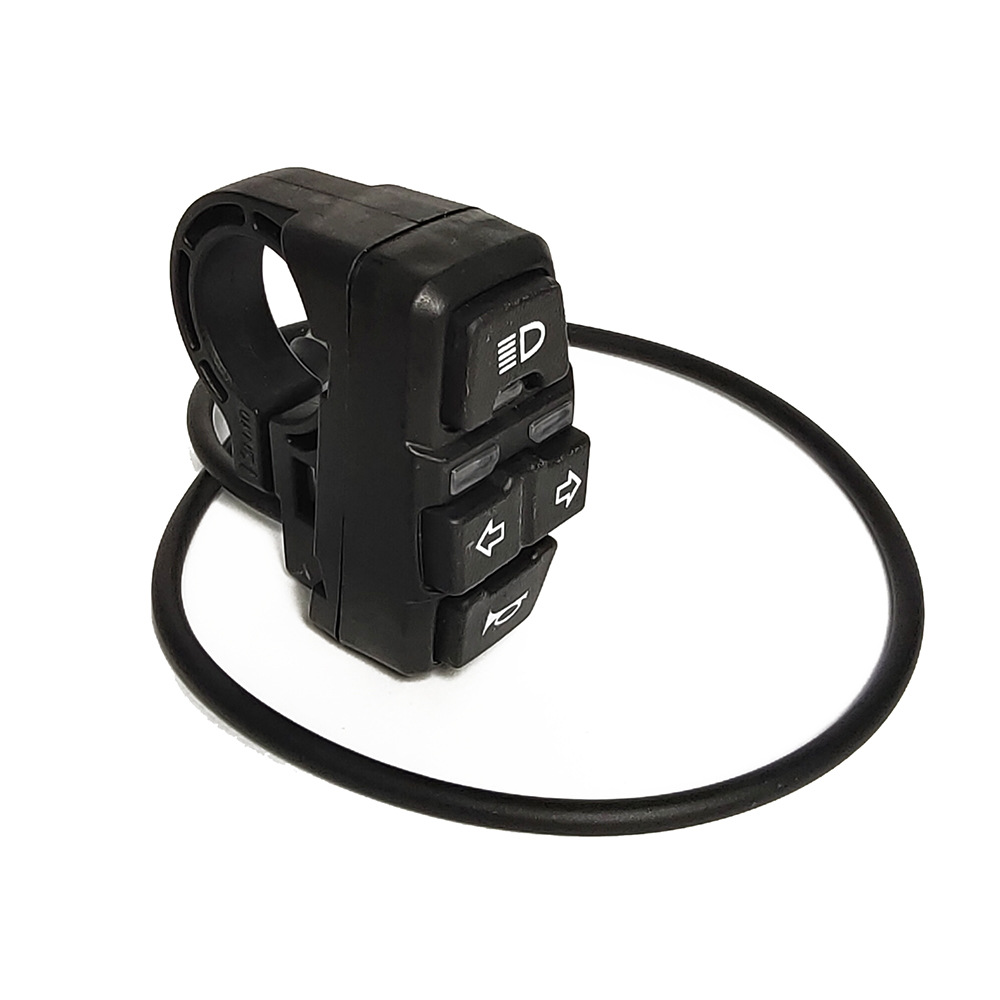

Switch parameters:
Code: PT0362
WUXING 336/2 waterproof IP4
Size: L 26mm W 54mm H 54mm
Weight: 41 g
Waterproof: IPX4
Material: PA6+20GF TPR
Wiring: 6/8 Pins
Current: 0.5A/12V-60V DC
Operating temperature: -20℃ ~ 60℃

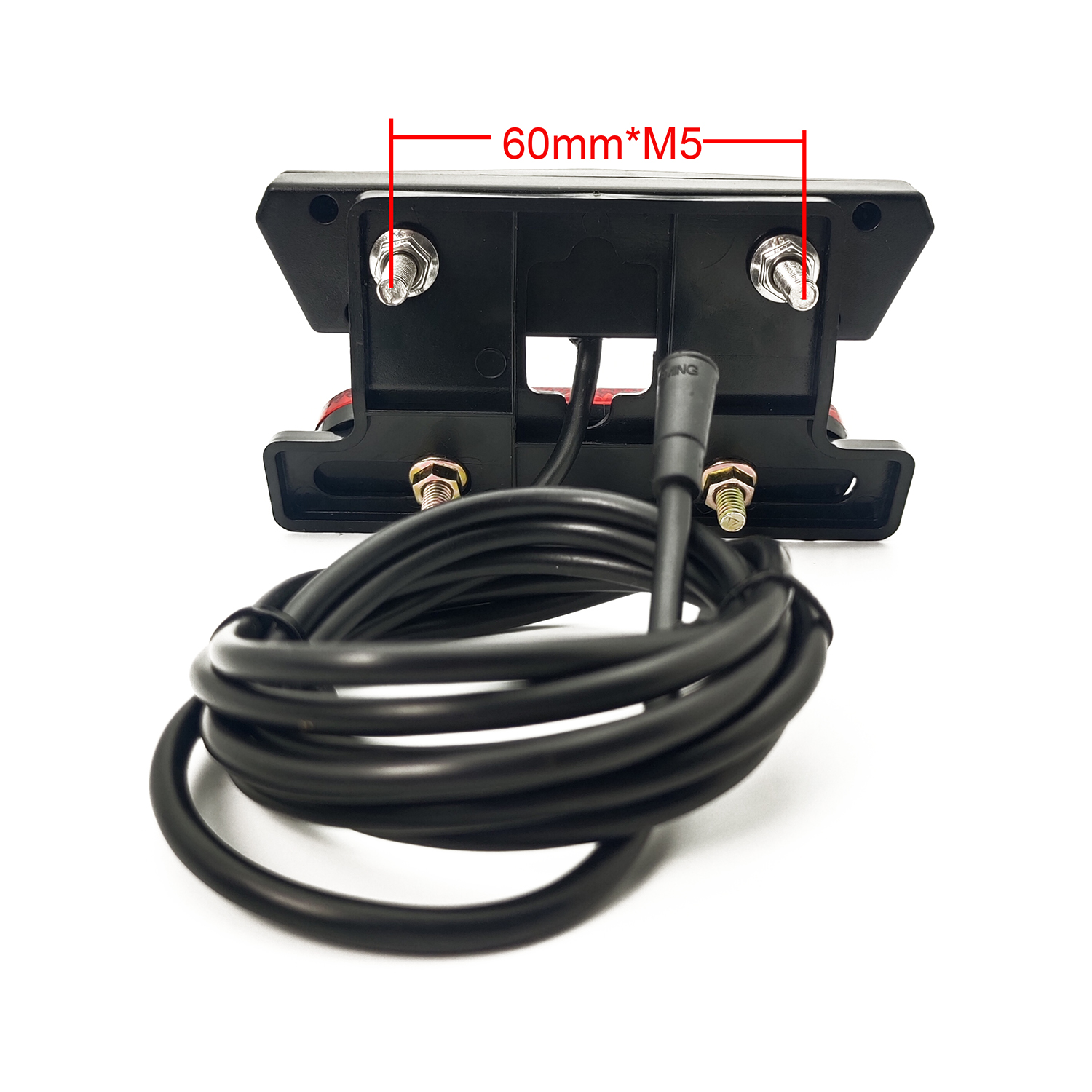

Rear light
Model: WD-10c/019
Applicable voltage: 24V-60V
Rear lamp current: 48V/23mA, 36V/17mA
Power: 1.1 W
Function: Rear light, brake light
Light brightness: 30 LM
Outlet wire: four core wire
Turn signal
Applicable voltage: 48V / 36V
Power: 3 w
Light color: yellow & blue
Features: Cool flowing lights

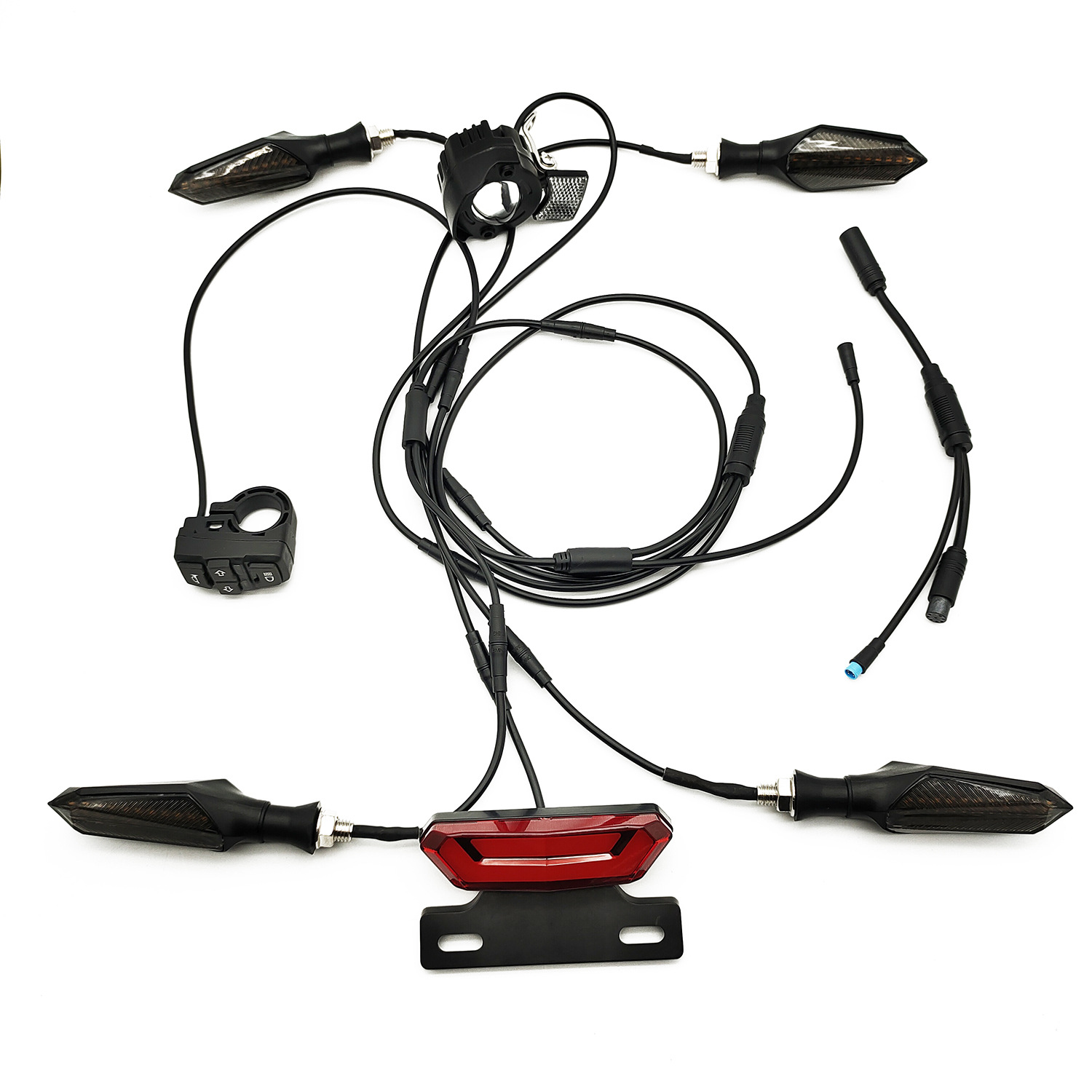

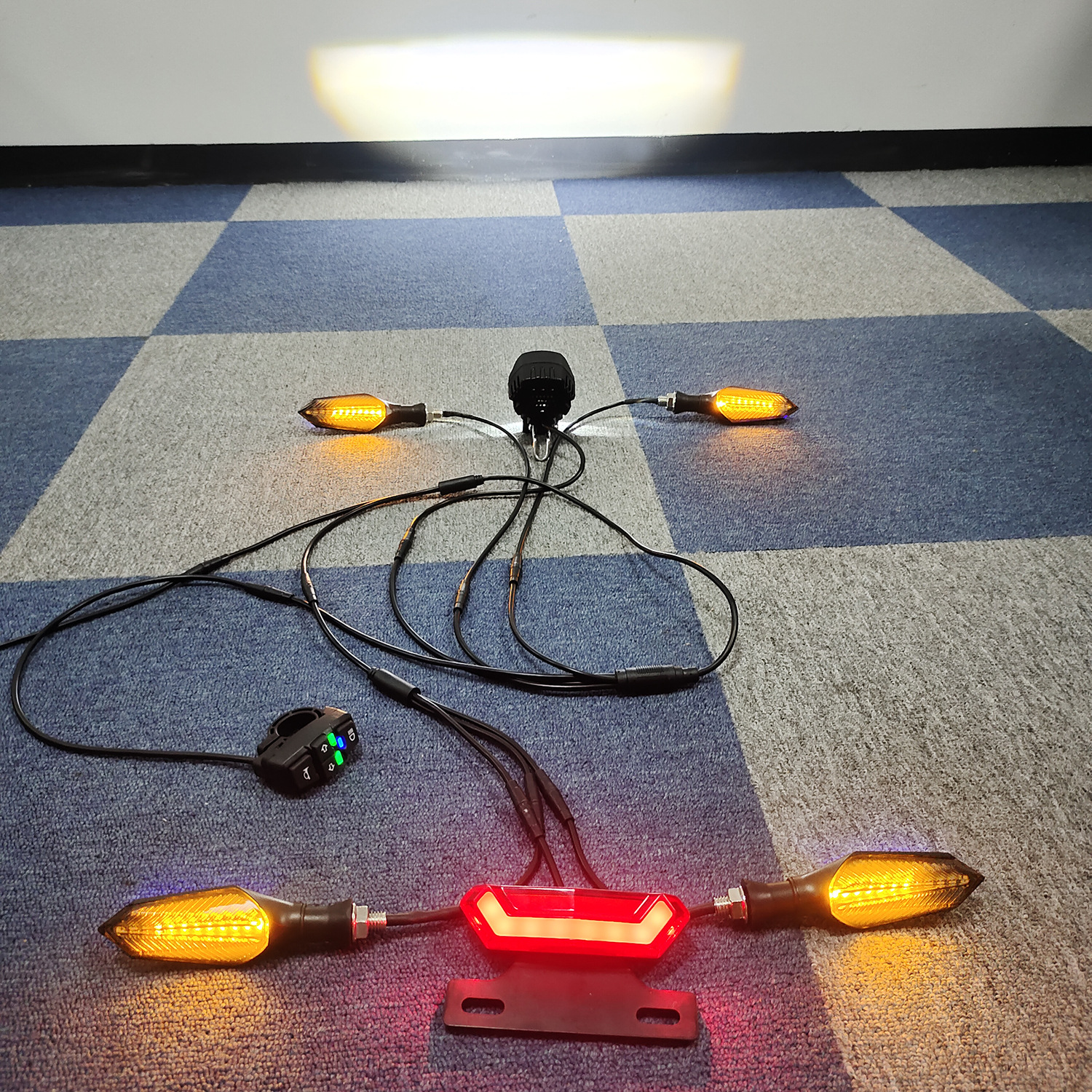

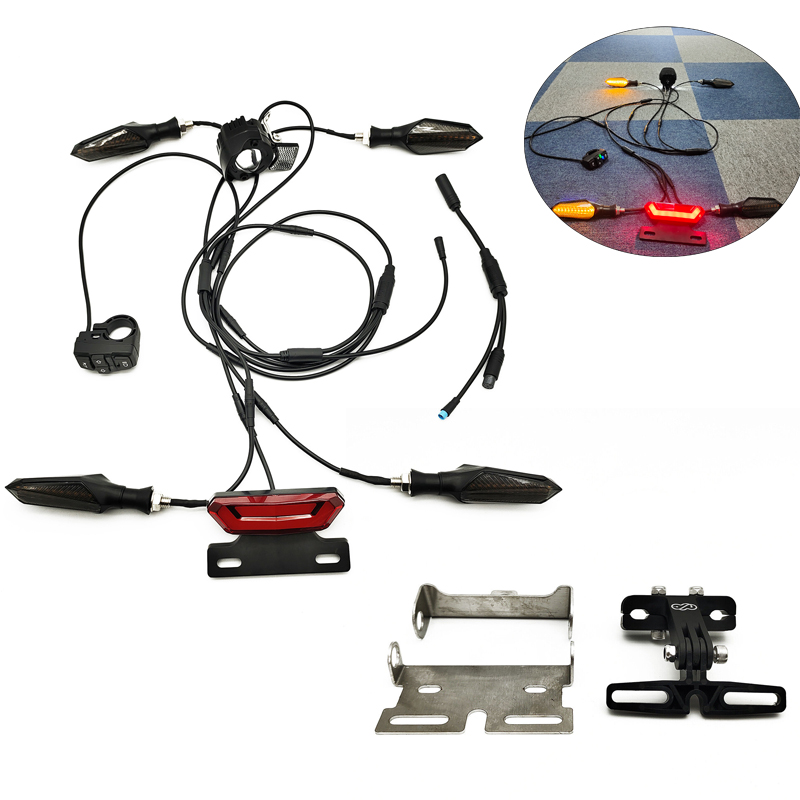

Package includes.
1*Headlight
1*Switch
1*Rear light
1*Turn signal
